- Page 1 INSTRUCTION MANUAL AUTOMATIC UPPER-ARM BLOOD PRESSURE AND PULSE MONITOR WITH ATRIAL FIBRILLATION DETECTION Diagnosis S.A. ul. Gen. W. Andersa 38A, 5128 15-113 Białystok, Poland tel./fax 85 732 46 22, 732 40 99 www.diagnosis.pl 0197...
-
Page 2: Table Of Contents
CONTENTS 1. INTRODUCTION ........... . 1 1.1 Device features. -
Page 3: Introduction
Thank you for buying the blood pressure and pulse monitor Diagnostic PRO Afib. The model can be used with irregular pulse and atrial fibrillation. If the device detects irregular pulse, the symbol appears on the display. If the device detects atrial fibrillation, the symbol . -
Page 4: Important Information On Blood Pressure And Its Measurement
2. IMPORTANT INFORMATION ON BLOOD PRESSURE AND ITS MEASUREMENT 2.1 How is hypertension / hypotension developed? The level of blood pressure is regulated in the brain, in the circulatory center and adapted to the current conditions based on feedback involving the nervous system. To adjust the blood pressure, the frequency and the strength of heart contractions and the diameter of blood vessels (the degree of contraction of smooth muscle of blood vessel walls). -
Page 5: Important Facts About Atrial Fibrillation (Afib)
For more information please visit our website: www.diagnosis.pl . Pro Afib detection provides a convenient way to screen for AFIB. Knowing your blood pressure and knowing whether you or your family members have atrial fibrillation can help reduce the risk of stroke. -
Page 6: Pressure Monitor Design

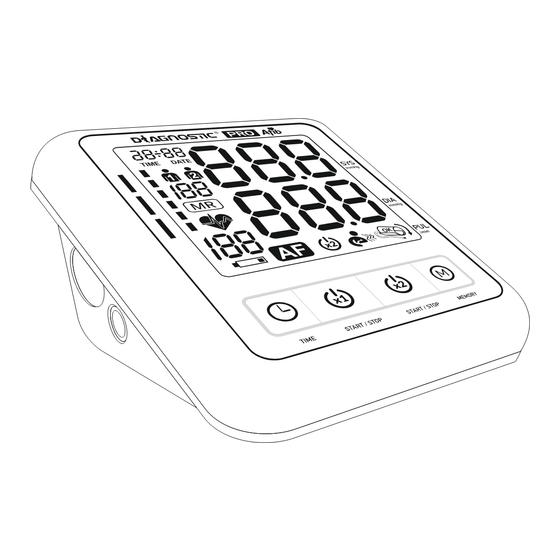

4. PRESSURE MONITOR DESIGN LCD display power supply socket MEMORY button START/STOP air tube button connector AFIB mode START/STOP button STANDARD mode TIME button CUFF plug connecting the air tube with the blood pressure monitor (insert in the (Applied part type BF) Arm circumference range: air tube connector) 22-42 cm... -
Page 7: Starting The Device
Power adapter specification: 100~240 V, 50/60Hz; output: 6V, min. 600mA We recommend using only the power adapter supplied by the manufacturer, model Diagnostic ZID 6-1 (100~240 V, 50/60Hz, 6 V, 1000 mA (1 A)) If the device is defective, unplug the power supply or the power cord. -
Page 8: Taking Measurements
5.5.Time and date settings The device has an integrated clock and displays the date. This permits saving not only the result of blood pressure measurement, but also the exact date and time of taking the reading. After inserting the new batteries, the CLOCK will be set to 12:00 and the DATE to 1-01. You must then set the correct time and date. -
Page 9: Wrapping The Cuff
6.3 Wrapping the cuff 1. Insert the tip of the air duct firmly in the opening on the left side of the unit (air tube socket) Page 4. 2. Insert the end of the cuff under the metal buckle, with the velcrofacing out. 3. -
Page 10: Measuring Procedure
d) When the appropriate pressure of the cuff is reached, the pump stops and pressure starts to slowly decrease. During the measurement, pressure of the cuff is displayed (capital digits). When the pulse is detected, the heart icon will start blinking on the screen. e) After completing the measurement, the values of systolic and diastolic pressure and the pulse rate appear on the screen (FIG. -
Page 11: Standard Measuring Mode
EXAMPLE 5: EXAMPLE 5 Systolic pressure 128, diastolic pressure 86, pulse 68, arrhythmia is detected, but atrial fibrillation is not detected. The arm movement is detected; the cuff is wrapped correctly. The results of the measurement will be displayed until the device is turned off. -
Page 12: Symbol Indicating Arrhythmia
9. SYMBOL INDICATING ARRHYTHMIA Pro Afib pressure monitor is a fully automatic digital device that also analyses pulse rate during blood pressure measurement. If an irregular pulse (arrhythmia) is detected during measurement, the symbol ( ) is displayed after completion of the measurement (when the measurement results are displayed). -
Page 13: Maintenance
More information will be provided by Diagnosis . 13. WARRANTY The Diagnostic PRO Afib blood pressure monitor is covered by a 2-year warranty starting from the purchase date. The warranty does not cover damage due to improper handling, accidents, non- compliance with the user manual, or changes made in the device by third parties. -
Page 14: Symbols
Type BF Operation Continuous mode Protection against ingress of water IPX0 Accessories Cuff sized M/L (22-42 cm), 4x batteries AA, adaptor Diagnostic ZID 6-1 (100-240 V, 50/60 Hz, 6 V, 1000 mA (1 A)), user manual, carrying case PAGE 12... - Page 15 Guidelines and manufacturer's declaration - electromagnetic emissions The devices are intended for use in the electromagnetic environment as described below. The customer or the user of the device should assure that the device is used in such an environment Fulfillment Guidelines regarding electromagnetic environment Emission test of requirements...
- Page 16 GUIDELINES AND MANUFACTURER'S DECLARATION REGARDING ELECTROMAGNETIC IMMUNITY The device is intended for use in the electromagnetic environment specified below. The customer or the user of the DEVICE should assure that it is used in such an environment. Immunity test Test level, IEC 60601 Compatibility Electromagnetic environment - guidelines standard...
- Page 17 DATE OF SALE ............WARRANTY TERMS 1. Diagnosis S.A. grants a warranty: 24 months for DIAGNOSTIC blood pressure monitors and cuffs (excluding pump assembly) Hardware defects revealed during the warranty period will be rectified free of charge within 21 days.
- Page 18 Diagnosis S.A. ul. Gen. W. Andersa 38A, 15-113 Białystok, Poland Free infoline 800 70 30 11 tel./fax 85 732 46 22, 732 40 99 www.diagnosis.pl MAIN SERVICE CENTER ul. Przemysłowa 8, 16-010 Wasilków, Polska tel. 85 874 60 45 serwis@diagnosis.pl Rev.
