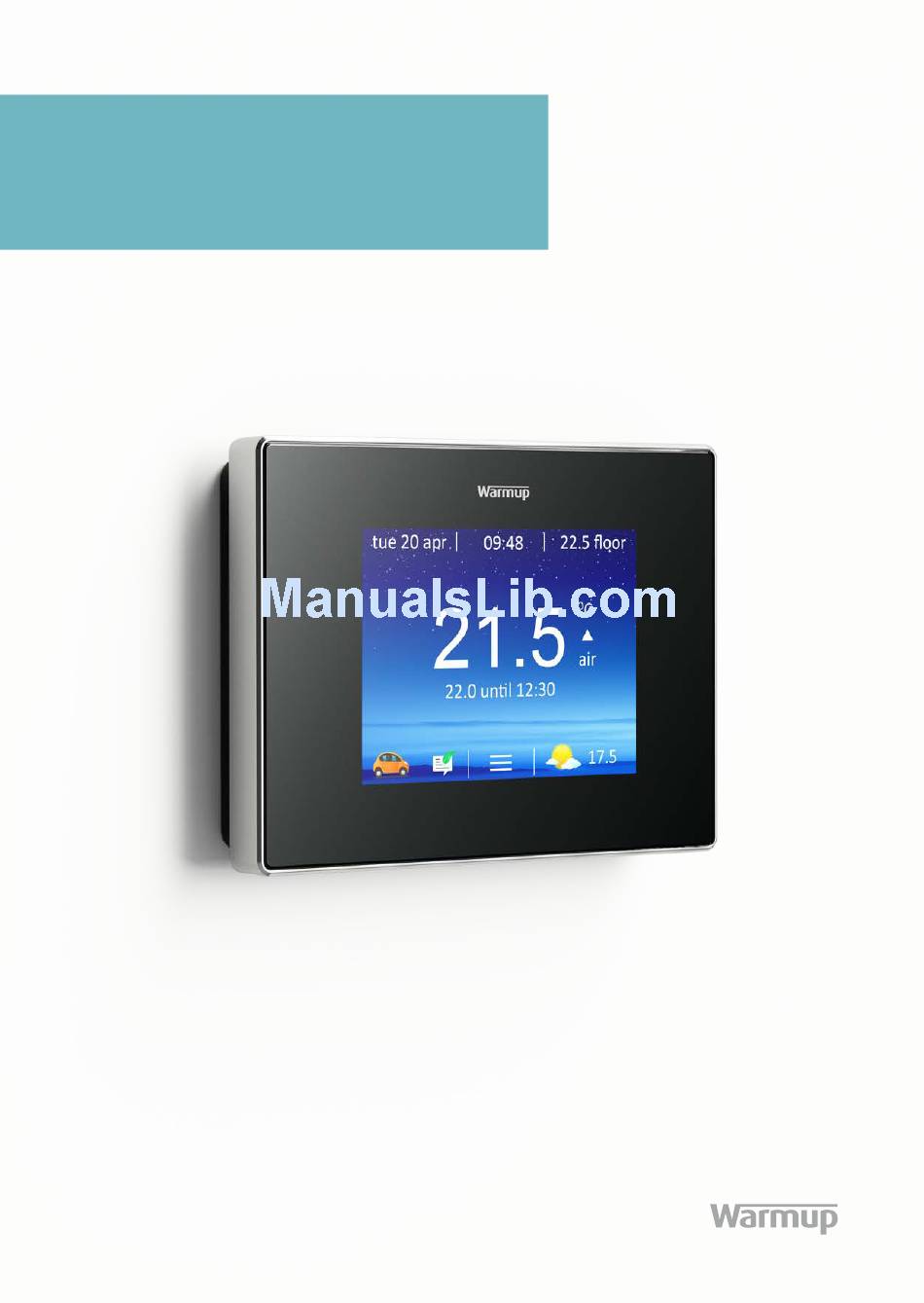

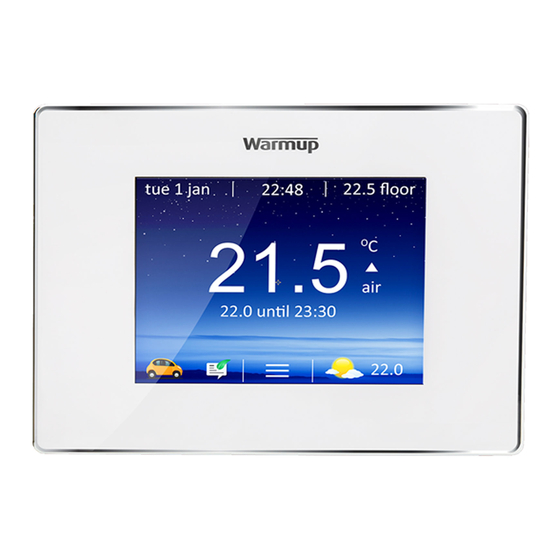

  • Page 1 Smart WiFi Thermostat Installation Manual For technical help warmupsmart.com 0345 345 2288...

  • Page 2: Table Of Contents

    Contents Pack Contents ............Mounting/Positioning ..........Wiring Connections ............ Assembling the 4iE ............. Getting Started ............Registration ............. Welcome ..............Programming ............Energy Monitoring ............Troubleshooting ............Settings ..............Technical Specifications ..........

  • Page 3: Pack Contents

    BS7671 Wiring Regulations. The 4iE and its power supply should be isolated from the mains supply throughout the installation process. Ensure that wires are fully inserted into the terminals and secured. Any free strands should be trimmed, as they could otherwise cause a short-circuit.

  • Page 4: Mounting/Positioning

    (e.g. radiator or TV). Ensure the distance from your router to the 4iE is not too great. This will ensure the wireless connection is not subject to range or interference issues once installed.

  • Page 5: Wiring Connections

    (No Polarity) Master/relay function: Used to control loads greater than 16A. Heaters will be split across two 4iE’s, one being the master and the other being the relay (slave). Only one floor sensor is required, wired into terminals 7 & 8 of the Master 4iE.
  • Page 6 L EN For extra low voltage or volt- free systems a contactor must be used. Connecting the 4iE directly to extra low voltage or volt-free boilers may cause damage to the boiler circuit. Isolate the thermostat from the mains supply...

  • Page 7: Assembling The 4Ie

    Assembling the 4iE Step 3 - Reattach 4iE Face Reattach the 4iE face to the Back Plate and tighten both screws to secure. You may now restore power to the thermostat and begin setup.

  • Page 8: Getting Started

    Getting Started Step 4 - Getting Started Depending on who has installed your 4iE, you will have one of the following screens visible. If you have anything other than the screens below, please press the standby button on the underside of Thermostat Face.

  • Page 9: Registration

    The MyHeating App is available for iOS and Android devices via the App Store or Google Play. If you have not done so already, download the MyHeating App to your tablet or smartphone. Search ‘MyHeating by Warmup’ Device Number When first registering and setting up your location on MyHeating, you will need the device number of the Thermostat.
  • Page 10 Location A location needs to be setup before a room can be configured and the 4iE device registered. Creating a location is user friendly and easy to follow, it is advised to have details of your current energy tariff and pricing to hand, as these will be required for the energy monitoring features.

  • Page 11: Welcome

    Menu WarmApps *Floor temperature will not be displayed when the 4iE is set to central heating mode Once setup has been completed the thermostat will display the home screen. If you do not press any button for 1 minute the 4iE screen will dim and go into standby.

  • Page 12: Programming

    Programming Custom Program Setting a Custom Program allows you to set comfort temperatures at set times throughout the day. monday tuesday set custom set fixed wednesday program temperature thursday select preset friday program saturday sunday back cancel help accept Press menu > Program Select days of the week >...
  • Page 13 Programming Preset Program Select a Preset Program created by Warmup. See the summary of the Preset Programmes below. monday select a preset tuesday wednesday bathroom thursday living room bedroom friday kitchen saturday sunday cancel help accept back Press menu > Program Press accept >...

  • Page 14: Temporary Override

    Programming Fixed Temperature Set a fixed temperature for the thermostat to reach and maintain until you revert back to program mode or switch the heating off. fixed temperature set custom set fixed temp program temperature 18.0°C select preset program back back accept Press menu >...

  • Page 15: Holiday Mode

    Select Frost Protect to set your heating to a constant 7°C to protect your home from frost. Press menu > Temperature > Frost protection. MyHeating App & MyWarmup Portal You can also program your 4iE with your tablet or smartphone using the MyHeating App or by visiting my.warmup.com...

  • Page 16: Energy Monitoring

    Energy Monitoring The 4iE learns how you use your system and how your house reacts to the heating and weather. It can give you an estimate of your energy usage and the running cost of your system. On initial set up,...

  • Page 17: Troubleshooting

    Display is blank the lowest settings ‘0’. (Electrician Required) Electrician required to verify power is going to the 4iE and that it is correctly wired. (Electrician Required) Electrician required to verify “er1” or “er2” is that the floor sensor has been wired correctly. If it is...
  • Page 18 ISP. Update router firmware Alternatively set your smartphone up as a mobile hotspot and connect the 4iE to this network. If it connects then distance from 4iE Contact Warmup to your router is the likely issue, or the signal with your could be blocked.
  • Page 19 Troubleshooting Server Troubleshooting 4iE won’t connect to Warmup Server Download the Has the 4iE been MyHeating App registered? and register the device Remove the front fascia You can now begin If you reboot/ You can now begin and after 10-15 seconds...
  • Page 20 Notes...
  • Page 21 Notes...

  • Page 22: Settings

    Display/Audio Background change the background screen (upload your own via MyHeating App or by visiting my.warmup.com) Home screen style choose a theme for the main screen Display brightness change the screen brightness for normal use and...

  • Page 23: Technical Specifications

    Technical Specifications Technical Specifications Dimensions (Assembled with 4iE face) 90 x 120 x 18mm Screen size 3.5in IP Rating IP33 Sensors Air & Floor (Ambient) Sensor Type NTC10k 3m Long (Can Be Extended To 50m) Max. Load 16A (3680W) Installation Depth...
  • Page 24 This warranty does not cover removal or re-installation costs, and shall not apply if it is shown by Warmup that the defect or malfunction was caused by failure to follow the instruction manuals, incorrect installation or damage which occurred while the product was in the possession of a consumer.
