Welcome to
Warmup

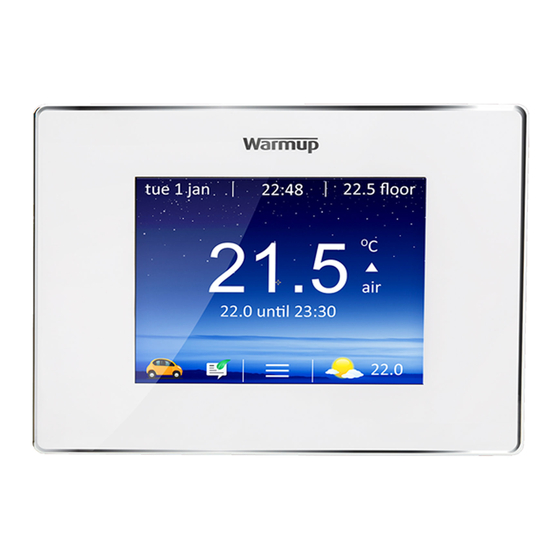

4iE Smart Thermostat operating guide
See reverse for installation guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4IE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Warmup 4IE

Summary of Contents for Warmup 4IE

  • Page 1 Welcome to Warmup 4iE Smart Thermostat operating guide See reverse for installation guide...
  • Page 3 If you do not press any button for 1 minute, the 4iE screen will dim and revert to the home screen. To wake the 4iE just tap the screen or press Wake.

  • Page 4: Getting Started

    Getting Started On initial power up the 4iE will ask you to connect to set up various aspects: • Language • Theme • Time • Brightness • Date • Audio Feedback • Daylight Savings • Floor type • Heating type •...
  • Page 6 Set your heating program With your 4iE, you can choose to set a custom heating schedule, fixed temperature or a preset program designed for different rooms. To adjust the program, you must highlight the days that you want to program by pressing them, then press Program.

  • Page 7: Preset Programs

    Preset Programs You can select a preset program schedule to get you started. You can edit the program whenever you like by following the steps in Set Your Heating Program Below is a summary of the Preset Programs Bathroom Kitchen Bedroom Living Room Time...

  • Page 8: Holiday Mode

    Holiday Mode Holiday Mode allows you to override your schedule with a fixed temperature over a number of days. This helps you save energy when you know you’ll be away for a while by setting a lower temperature. Holiday Mode can be found in the Program menu Just set the start and end times of your holiday, or leave the end time as Unspecified, if you want Holiday Mode to run indefinitely.

  • Page 10: Energy Monitor

    Energy Monitor The 4iE learns how you use your system and how your house reacts to the heating and weather. It can give you an estimate of your energy usage and the running cost of your system. You will need to enter the power of your system, and in some cases, the efficiency. If you do not know these, speak to your installer or go to warmup.com or warmup.ca...
  • Page 11 Settings The 4iE can be configured in different ways to suit you. The functions that can be accessed in the Settings menu include: Time Set time manually set time Set date manually set date Daylight savings set daylight savings Heating preferences...
  • Page 12 Advanced settings These options can affect the performance of your thermostat and should only be modified by an experienced professional or under the instruction of Warmup Technical Support Heater settings Heater limits Set the temperature limits for your floor type. User Defined lets you set custom...

  • Page 13: Special Installation

    7. Connect to terminal 7 on other thermostat For extra low voltage or volt-free systems a contactor must be used. Contact Warmup for more details. Connecting the 4iE directly to extra low voltage or volt-free boilers may cause damage to the boiler circuit.

  • Page 14: Mounting Thermostat

    Do not use where exposed to water Ne pas installer à proximité d’une source d’eau L1-LOAD-L2 LINE SENSOR (NO POLARITY) Mounting Thermostat thermostat Powering Up Push excess wire back through the wall box and You can now power up the thermostat and begin the insert thermostat back module into wall box.
  • Page 15 Introduction The 4iE thermostat is designed to aid in the comfort of your home by providing timed regulation of your heating system. The thermostat is designed to receive temperature input signals from the following sensors: Air sensor located inside thermostat...

  • Page 16: Installation

    Installation Separate the front housing of thermostat from wall module: Unscrew both closing screws (bottom of stat) until they will not turn any further. Release front housing by gripping lower half of outer frame and pulling outwards then upwards Place front housing somewhere safe Run all wires to the wall box.
  • Page 17 Contact Us Installation guide CANADA 52 Federal Road Unit 1F 374 Wellington St W 06810 Danbury CT M5V 1E3 Toronto ON Web: www.warmup.com Web: www.warmup.ca Email: us@warmup.com Email: ca@warmup.com Visit our Online Technical Assistance website: warmupedia.warmup.com...
