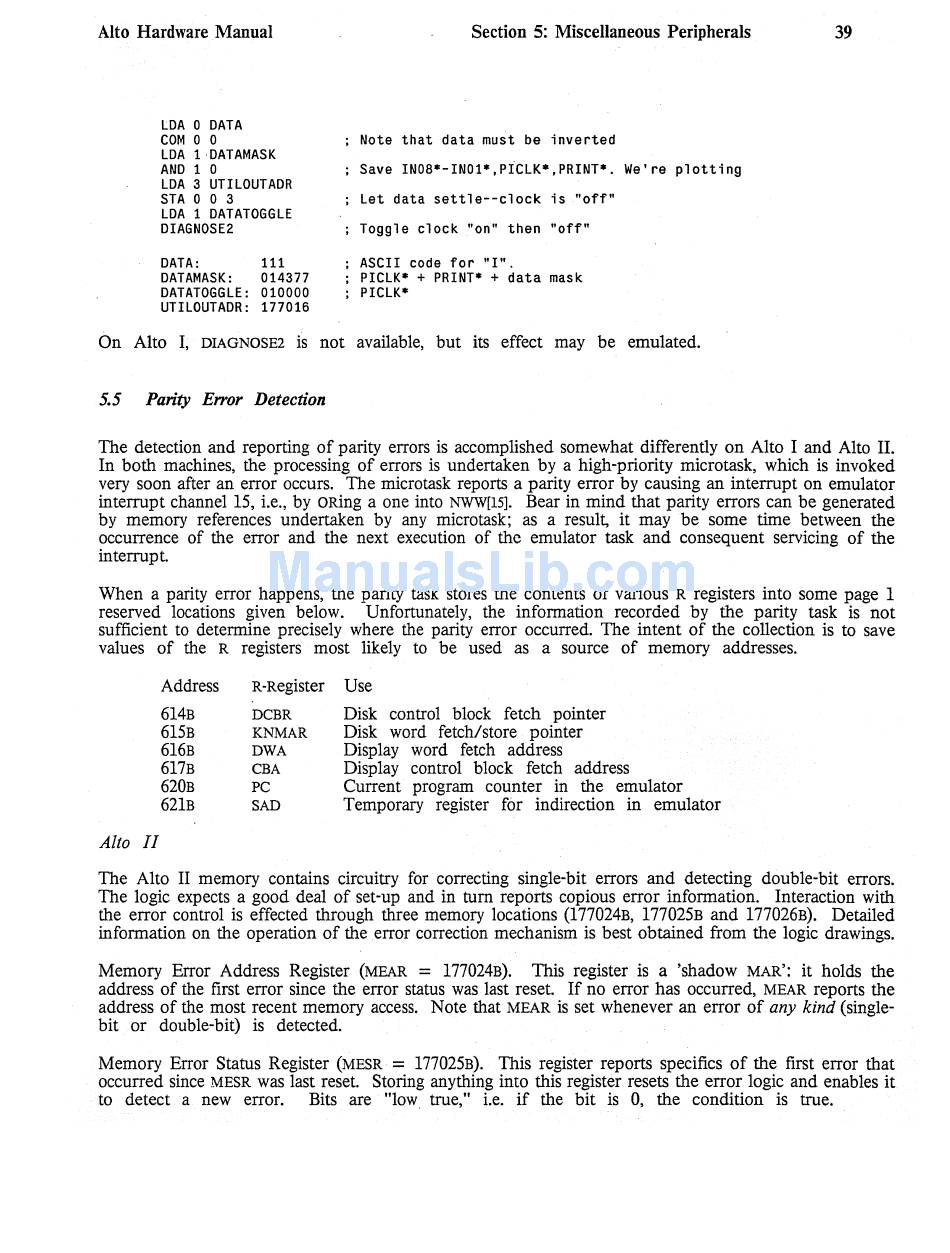

LDA 0 DATA
COM 0 0
LDA l·DATAMASK
AND 1 0
LDA 3 UTILOUTADR
STA 0 0 3
LDA 1 DATATOGGLE
DIAGNOSE2
DATA:
111
DATAMASK:
014377
DATATOGGLE: 010000
UTILOUTADR: 177016
Section 5: Miscellaneous Peripherals
Note that data must be inverted
Save IN08*-IN01*,picLK*,PRINT*. We're plotting
Let data settle--clock is "off"
Toggle clock "on" then "off"
ASCII code for "I".
PICLK*
+
PRINT*
+
data mask
PICLK*
On Alto I; DIAGNOSE2 is not available, but its effect may be emulated.
5.5
Parity Error Detection
39
The detection and reporting of parity errors is accomplished somewhat differently on Alto I and Alto II.
In both machines, the processing of errors is undertaken by a high-priority microtask, which is invoked
very soon after an error occurs. The microtask reports a parity error by causing an interrupt on emulator
interrupt channel 15, i.e., by ORing a one into
NWW[15j.
Bear in mind that parity errors can be generated
by memory references undertaken by any microtask; as a result, it may be some time between the
occurrence of the error and the next execution of the emulator task and consequent servicing of the
interrupt
When a parity error happens, the parity task stores the contents of various R registers into some page 1
reserved locations given below.
Unfortunately, the information recorded by the parity task is not
sufficient to determine precisely where the parity error occurred. The intent of the collection is to save
values of the R registers most likely to be used as a source of memory addresses.
Alto II
Address
614B
615B
616B
617B
620B
621B
R-Register
DCBR
KNMAR
DWA
CBA
PC
SAD
Use
Disk control block fetch pointer
Disk word fetch/store pointer
Display word fetch address
Display control block fetch address
Current program counter in the emulator
Temporary register for indirection in emulator
The Alto
II
memory contains circuitry for correcting single-bit errors and detecting double-bit errors.
The logic expects a good deal of set-up and in turn reports copious error information. Interaction with
the error control is effected through three memory locations (177024B, 177025B and 177026B). Detailed
information on the operation of the error correction mechanism is best obtained from the logic drawings.
Memory Error Address Register (MEAR = 177024B).
This register is a 'shadow MAR': it holds the
address of the first error since the error status was last reset. If no error has occurred, MEAR reports the
address of the most recent memory access. Note that MEAR is set whenever an error of any kind (single-
bit or double-bit) is detected.
Memory Error Status Register (MESR = 177025B). This register reports specifics of the first error that
occurred since MESR was last reset. Storing anything into this register resets the error logic and enables it
to detect a new error.
Bits are "low true," i.e. if the bit is 0, the condition is true.
