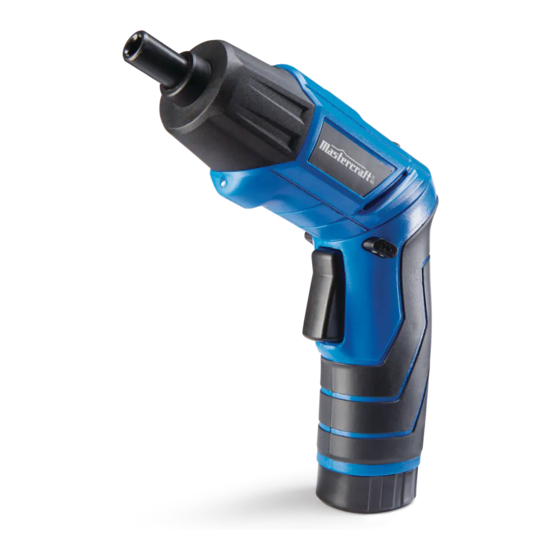

- Page 1 054-2516-4 2-IN-1 CORDLESS PIVOTING SCREWDRIVER/FLASHLIGHT INSTRUCTION IMPORTANT: Please read this manual carefully before running this MANUAL cordless screwdriver and save it for reference.
- Page 2 headline bars continuation tabs notes continuation tab warnings notes warnings...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Technical specifications General power tool safety warnings General safety warnings for battery pack Symbols Key parts diagram Accessories Parts list Operating instructions Maintain tools with care Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-800-689-9928. -
Page 4: Technical Specifications
054-2516-4 | contact us 1-800-689-9928 TECHNICAL SPECIFICATIONS Charger input voltage 100 - 240 V 50/60 Hz AC Rated input current 0.2 A Charger output voltage 8 V DC Output current 0.25 A 2 W MAX continuation tabs Battery 4 V max* (1.3 Ah) lithium-ion... -
Page 5: General Power Tool Safety Warnings
WORK AREA SAFETY • Keep work area clean and well lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, • gases or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool. -
Page 6: Personal Safety
054-2516-4 | contact us 1-800-689-9928 PERSONAL SAFETY • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. - Page 7 • When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. •...
-
Page 8: General Safety Warnings For Battery Pack
054-2516-4 | contact us 1-800-689-9928 GENERAL SAFETY WARNINGS FOR BATTERY PACK • WARNING: Risk of fire and burns. Do not disassemble, heat above 100°C (212°F), or incinerate. Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight. -
Page 9: Symbols
SYMBOLS To reduce the risk of injury, user must read instruction manual WARNING Wear ear protection Wear eye protection Wear dust mask Do not expose to rain or water Do not burn Li-ion battery. Separate collection, and battery must be recycled For indoor use only Read the operator’s manual The output plug is with positive centre pole and negative outer pole... -
Page 10: Key Parts Diagram
054-2516-4 | contact us 1-800-689-9928 KEY PARTS DIAGRAM Description Description Hex chuck On/off switch Charging indicator Soft handle Adjust handle lock switch Sight light Forward/reverse rotation switch continuation tabs notes warnings Not all the accessories illustrated or described are included in standard delivery. -
Page 11: Accessories
ACCESSORIES CRV slot bits, CRV cross-head bits Square recessed bits CRV hex bits CRV torx bits 60 mm CRV magnetic bit holder Charger We recommend that you purchase your accessories from the same store that sold you the tool. Use good-quality accessories marked with a well-known brand name. -
Page 12: Parts List
054-2516-4 | contact us 1-800-689-9928 PARTS LIST Description Qty. Description Qty. Motor connector Trigger Glisten bowl Motor gear Broad Motor Lampshade continuation tabs continuation tabs Screw 3-5 hr charger Washer Gear box Front housing Spindle Switch Washer notes... -
Page 14: Intended Use
054-2516-4 | contact us 1-800-689-9928 INTENDED USE The power tool is intended for driving in and loosening screws. CHARGING THE BATTERY The battery charger supplied is matched to the Li-ion battery installed in the machine. Do not use another battery charger. -
Page 15: Operating Instructions
Fig. A OPERATION INSTRUCTIONS Inspect the screwdriver before using to ensure all parts are running smoothly and there are no abnormal sounds or sparks. Before driving fasteners, check behind walls for wires, other electrical hazards or plumbing. Clear the work area of all parts and debris that may cause injury by flying objects. - Page 16 054-2516-4 | contact us 1-800-689-9928 Fig. E ON/OFF SWITCH OF THE FLASHLIGHT (See Fig. F) There is a flashlight in the end of the machine. The flashligh produces a light beam that emerges from the lamp head (a).
-
Page 17: Maintain Tools With Care
MAINTAIN TOOLS WITH CARE Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. Your power tool requires no additional lubrication or maintenance. There are no user-serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. -
Page 18: Warranty
054-2516-4 | contact us 1-800-689-9928 This Mastercraft product is guaranteed for a period of 3 years from the date of original retail purchase against defects in workmanship and materials, except for the following components: a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years from the date of original retail purchase against defects in workmanship and materials;...
