MasterCraft 054-2500-0 Instruction Manual

4v lithium-ion compact screwdriver
Hide thumbs
Table of Contents

Advertisement

Quick Links

instruction manual
4v lithium-ion compact
screwdriver
054-2500-0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 054-2500-0 and is the answer not in the manual?

Questions and answers

Related Manuals for MasterCraft 054-2500-0

Summary of Contents for MasterCraft 054-2500-0

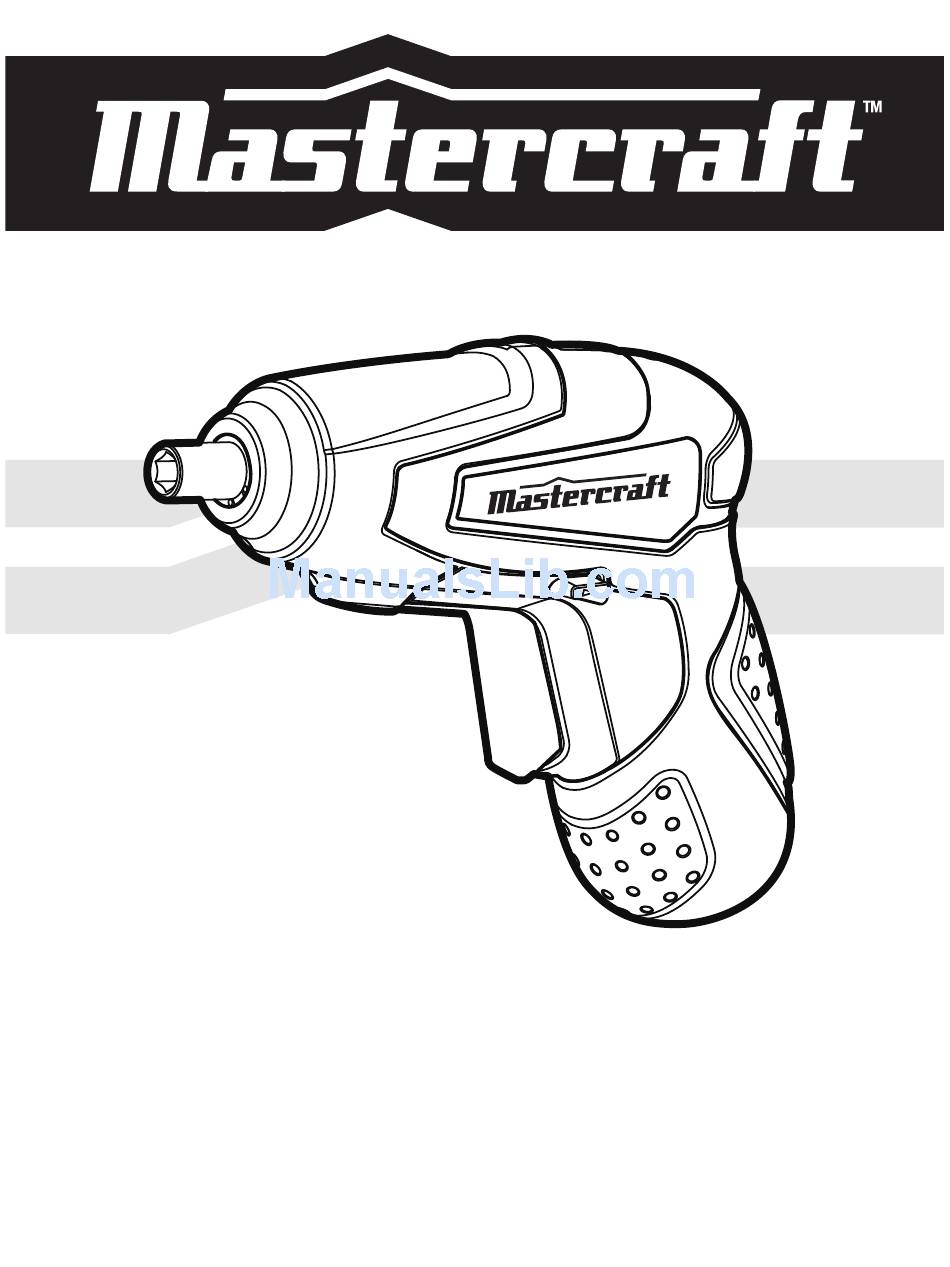

  • Page 1 4v lithium-ion compact screwdriver 054-2500-0...
  • Page 2 Keep this instruction manual for future use. should this product be passed on to a third party, then this instruction manual must be included. 4V lithium-ion compact screwdriVer - 054-2500-0 4V lithium-ion compact screwdriVer - 054-2500-0...
  • Page 3 TECHNICAL SPECIFICATIONS SAFETY GUIDELINES DESCRIPTION OPERATING INSTRUCTIONS MAINTENANCE TROUBLESHOOTING PARTS LIST WARRANTY the used standards: conforms to ul std n0.60745-1 conforms to ul std n0.60745-2-2 certified to can/csa-c22.2 std n0.60745-1-07 certified to can/csa-c22.2 std n0.60745-2-2-04 4V lithium-ion compact screwdriVer - 054-2500-0...
  • Page 4 4v dc, lithium-ion normal charging time 3–5 hours no load speed 200 rpm bit size 1/4" hex collet power unit input: 120v~ 60hz output: 5v dc 300 ma weight 12 oz (0.34 kg) 4V lithium-ion compact screwdriVer - 054-2500-0...
  • Page 5 Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. 4V lithium-ion compact screwdriVer - 054-2500-0...

  • Page 6: Electrical Safety

    • Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. 4V lithium-ion compact screwdriVer - 054-2500-0...
  • Page 7 Use of any other battery • Use power tools only with specifically designated battery packs. packs may create a risk of injury and fire. • When the battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails screws or other small metal objects that can make a connection from one Shorting the battery terminals together may cause burns or a fire. terminal to another. 4V lithium-ion compact screwdriVer - 054-2500-0...
  • Page 8 Safety guidelines for charger • The tool and its charger are specifically designed to work together. Do not attempt to charge the tool with any other type of charger. Do not attempt to charge any other type of cordless tool with the tool charger. SH-DC050300. • Only use the tool with the charger listed: 4V lithium-ion compact screwdriVer - 054-2500-0...
  • Page 9 • In case of damage and improper use of the battery, vapours may be emitted. In case of symptoms to that effect, provide fresh air and consult a physician. These vapours can irritate the respiratory system. Contents Cordless Screwdriver, charger, 10 screwdriver bits, nylon holster, instruction manual 4V lithium-ion compact screwdriVer - 054-2500-0...
  • Page 10 Forward/reverse switch charger Fuel Gauge Warning! Do not allow familiarity with the Cordless Screwdriver to cause a lack of alertness. A fraction of a second of carelessness is enough to cause severe injury 4V lithium-ion compact screwdriVer - 054-2500-0...
  • Page 11 This screwdriver is equipped with a Fuel Gauge which is used to display the remaining capacity of the battery. Press the Fuel Gauge button to display the LED lights. fig 1 ORANGE GREEN ● ● ● Full charge ● ● ○ middle charge ● ○ ○ low charge 4V lithium-ion compact screwdriVer - 054-2500-0...
  • Page 12 Avoid charging your screwdriver in freezing conditions. The power unit provided must only be used with this screwdriver and not with any other products. Trigger switch To turn the Drill ON, depress the trigger switch. To turn it OFF, release the trigger switch. 4V lithium-ion compact screwdriVer - 054-2500-0...
  • Page 13 The screwdriver will not run unless the direction-of-rotation selector is engaged fully to the NOTE: left or right. Attaching bits (fig 4) fig 4 Insert the bit into the hex collet; the mag- netic collet will hold the bits automatically. 4V lithium-ion compact screwdriVer - 054-2500-0...
  • Page 14 3. If a flat head screw is used, countersink the hole to make the screw flush with the surface. Then, simply apply even pressure when driving the screw. The screw shank clearance hole in the first piece allows the screw head to pull the pieces tightly together. 4V lithium-ion compact screwdriVer - 054-2500-0...
  • Page 15 Use only accessories that are recommended for this drill by the manufacturer. Ac- cessories that may be suitable for one tool may become hazardous when used with another tool. Warning! To ensure safety and reliability, all repairs should be performed by a qualified service technician. 4V lithium-ion compact screwdriVer - 054-2500-0...
  • Page 16 Local, state, or federal laws may prohibit disposal of lithium-Ion batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options. Warning! To ensure safety and reliability, all repairs should be performed by a qualified service technician. 4V lithium-ion compact screwdriVer - 054-2500-0...
  • Page 17 PROBLEM POSSIBLE CAUSES SOLUTIONS the driver does not work. the battery is depleted. recharge the battery. If the problem remains unsolved after performing the checks described above, call the t oll-free helpline at 1-800-689-9928. 4V lithium-ion compact screwdriVer - 054-2500-0...
  • Page 18 Exploded view 4V lithium-ion compact screwdriVer - 054-2500-0...
  • Page 19 054250030 working led button 054250014 planet gear 054250031 right housing 054250015 sun gear 054250032 screw st2. 5 x 8 054250016 rear washer 054250033 screw st2. 9 x 12 054250017 screw m2. 5 054250034 adaptor 4V lithium-ion compact screwdriVer - 054-2500-0...
  • Page 20 This Mastercraft product is guaranteed three (3) years from the date of original retail purchase against defects in materials and workmanship, except for the following components: a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years from the date of original retail purchase against defects in workmanship and materials;...
  • Page 21 The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal legislation. IMPORTED BY MASTERCRAFT CANADA TORONTO, CANADA M4S 2B8 4V lithium-ion compact screwdriVer - 054-2500-0...
