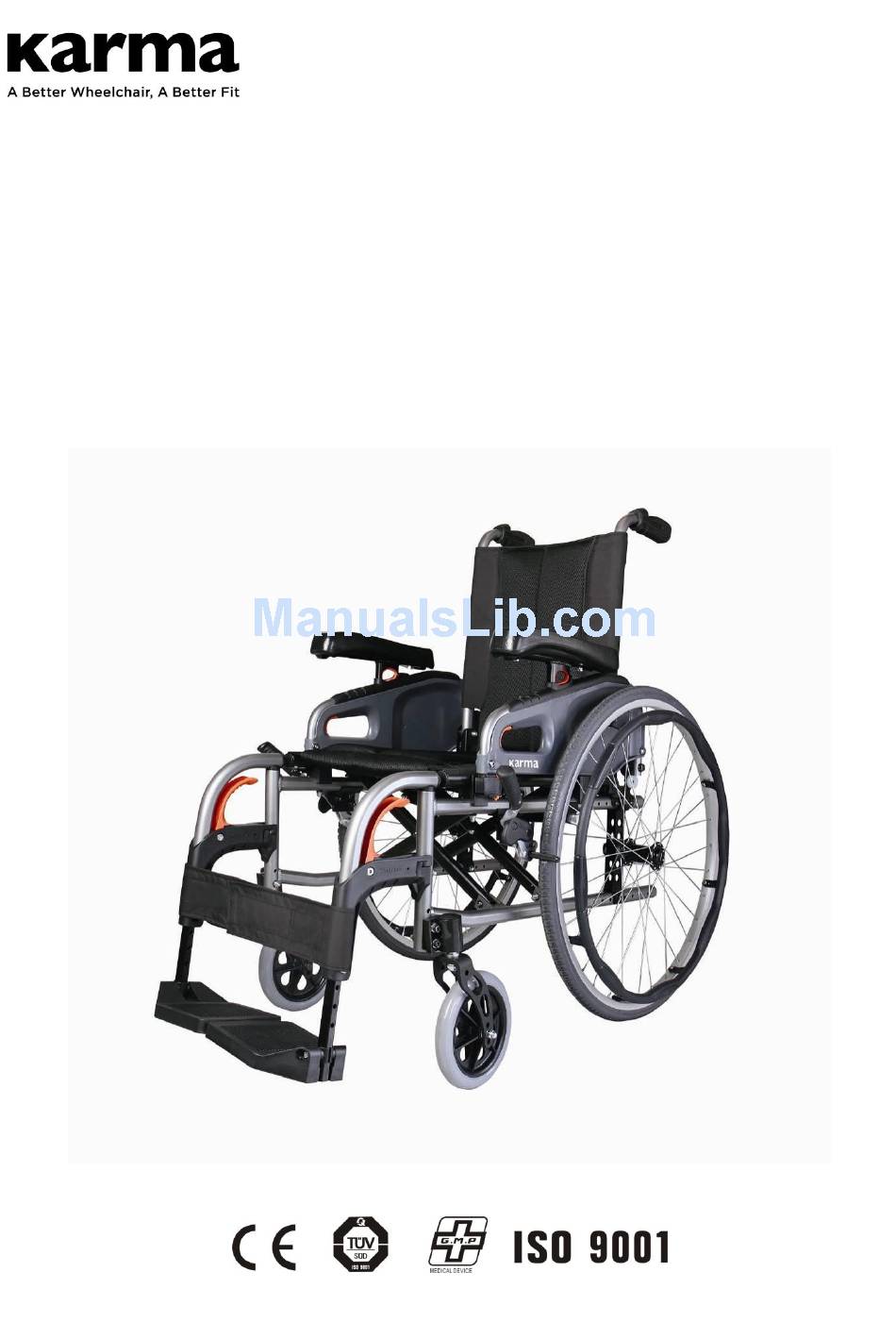

  • Page 1 Manual Wheelchair Owner's Manual Flexx Series (KM-8022/KM-8522)
  • Page 3 GENERAL WARNING ● DO maintain your chair well, in particular check the tire pressure since this affects the efficiency of the brakes. To know the correct tire pressure, please see the walls of the tires. ● DO make sure both brakes are applied before getting in or out of the chair. ●...
  • Page 4 ● If you have any defective parts or lose any parts, please contact your dealer for repair and/or replacement. Please only use parts authorized by KARMA. Use of parts that are not authorized by KARMA will void your warranty.
  • Page 5 If you cannot contact your dealer, please contact another authorized KARMA dealer for service. If all else fails, contact KARMA directly via our website or give us a call and we can refer you to your new service provider.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS 1. PREFACE ........................1 2. SAFETY ........................1 2.1 Before Using ....................1 2.2 Whiled Moving ....................1 2.3 General ......................4 2.4 Upholstery ....................... 4 2.5 Anti-Tippers ....................4 2.6 Maximum User Weight Limit ..............4 2.7 Avoid General Misuse .................
  • Page 7 4.12 Manual Brake .................... 18 4.13 Anti-Tippers (Optional) ................. 19 4.14 Transferring In ..................20 4.15 Transferring Out ..................20 4.16 Tilting ......................22 4.17 Going Down Kerbs ................. 22 4.18 Going Up Kerbs..................23 4.19 Going Up or Down Steps/Stairs ............24 4.20 General Use ....................

  • Page 8: Preface

    1.2 This owner's manual includes operation, unfolding/ folding instructions and how to prevent possible accidents for the aspects of the wheelchair. 1.3 This owner's manual is written for KARMA wheelchair: Flexx Series. 1.4 The symbols used in this manual are explained below. Pay special attention to the parts marked with these symbols.
  • Page 9 your hands on the push rims will allow you to maintain the maximum balance. DON'T try to force yourself over an obstacle and use the sides of a doorway to pull yourself through a passageway. 2.2.2 Leaning and Standing DO NOT lean over the side or stand on the wheelchair since such an action may cause you to lose balance and fall.
  • Page 10 and install anti-tippers to increase the stability of the wheelchair. 2.2.4 Kerbs 2.2.4.1. Whenever possible, get help from an assistant/attendant. If you have assistance, make sure that your chair is equipped with push handle. 2.2.4.2. DO avoid huge impacts when descending a kerb. A huge impact could probably damage the wheelchair.

  • Page 11: General

    2.3.2 Never stand on the footplates when getting in or out of the wheelchair 2.3.3 Never carry more than one passenger. KARMA wheelchairs are limited to one user. 2.3.4 Use caution to assure your clothing doesn't get tangled with the wheels.

  • Page 12: Avoid General Misuse

    the wheelchair. 2.7 Avoid General Misuse Please note that our "Owner's Manual" contains a number of cautions -- any vehicle can cause injury if misused -- use within our guidelines and with reasonable care and your safety will be increased. Your wheelchair will give years of safe use if used sensibly and carefully.

  • Page 13: Labeling

    2.8 Labeling Please carefully read all the labeling on the wheelchair before driving it. Do not remove them. Protect them for future reference.

  • Page 14: Intended Use & Parts

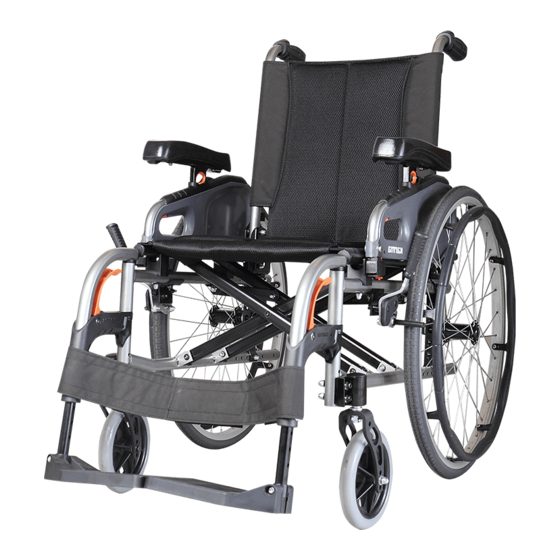

    (self-propelled) or by an attendant (transit). 3.1.2 The difference between KM-8022 and KM-8522 is that the backrest of KM-8022 is fixed, and that of KM-8522 is foldable. 3.1.3 It is designed to be used indoors, and with certain restrictions outdoor.

  • Page 15: Flexx Parts Description

    3.2 Flexx Parts Description 1. Push Handle 8. Caster 2. Attendant Brake (Optional) 9. Backrest Upholstery 3. Side Panel 10.Height Adjustable Armrest 4. Quick Release Rear Wheel 11. Seat 5. Anti-Tipper (Optional) 12. Swing-Away & Detachable Footrest 6. Manual Brake 13.

  • Page 16: Operation

    4.1.2.4 Adjust the footplate to the appropriate length, and insert the bolt and the nut. (See Figure 4.4 and 4.5) 4.1.2.5 Use the #4 Allen Key wrench provided by KARMA to tighten the bolt and the nut. (See Figure 4.6) Figure 4.1...
  • Page 17 Table 4.1 Swing-Away & Detachable Footrest Assembly Part List Part Quantity Swing-Away & Detachable Footrest Tube-in-Centre Footplate M6 Bolt M6 Nut Calf Strap 4.1.3 Unfolding While unfolding the Flexx, follow these instructions as listed below: 4.1.3.1 Stand at the side of the wheelchair as you prefer, hold the armrests and pull outwards.

  • Page 18: Getting Into Your Wheelchair (See Figure 4.17)

    CAUTION: ● While completing step 4.1.3.2, never put your fingers around the sides or under the wheelchair as they can be trapped between the seat and the frame. (See the figure at the right.) ● The calf straps should be adjusted to the length appropriate for the user's condition.

  • Page 19: Getting Out Of Your Wheelchair (See Figure 4.18)

    4.3 Getting Out of Your Wheelchair (See figure 4.18) 4.3.1 Apply the brakes. 4.3.2 Up move the feet away from the footplates and fold up the footplates. 4.3.3 With one hand on the armrest, the person should bend slightly forward, to bring the body weight to the front of the seat, and then with both feet firmly on the ground and one foot behind the other, push up into the upright position.

  • Page 20: Backrest Angle Adjustment

    5.3.3: 4.6.1 Flip back the armrest. 4.6.2 Please refer to section 5.3.3 Backrest Angle Adjustment. Use the tool provided by KARMA to loosen the bolts and nuts at the both sides of the backrest frame. 4.6.3 Adjust the backrest forward or backward to the position as desired.

  • Page 21: Seat Depth Adjustment

    4.7.1 Remove both of the rear wheels and the seat upholstery. Lift the frame up and place it gently on a levelled table or place. 4.7.2 Use the tool provided by KARMA to loosen the bolts on the bracket plate of quick release rear wheel. (See Figure 4.22) 4.7.3 Move the fixing plate of backrest tube and the bracket plate of quick...

  • Page 22: Armrest Adjustment

    CAUTION: ● The adjustment is in increments of one inch or two inches. The length of adjustment depends on the accessory equipped. ● Changing the seat depth should be carried out by authorized dealer or qualified therapist. ● As the seat depth changes, the manual brakes and the front support also moves.

  • Page 23: Footplate Height Adjustment

    4.9 Footplate Height Adjustment To adjust the footplate height, follow the instruction as listed below: 4.9.1 Use the tool provided by KARMA to loosen the bolts at the bottom part of the footrest. (See Figure 4.31) 4.9.2 Adjust the height till the user feel comfortable or the user's thighs are parallel to the ground.

  • Page 24: Pelvic Belt

    Figure 4.35 Figure 4.36 Figure 4.37 Figure 4.38 4.11 Pelvic belt Please follow the instructions below to use the pelvic belt for your safety. 4.11.1 How to Operate It 4.11.1.1 When you sit on the wheelchair, fasten the pelvic belt. (See Figure 4.39) 4.11.1.2 Adjust the belt and make it fit your body for comfort and safety.

  • Page 25: Manual Brake

    4.11.2.2 Adjust the length of the pelvic belt through the buckle of both ends. (Figure 4.41) 4.11.2.3 Pull the two parts of belt tight. (Figure 4.42) 4.11.2.4 Push the buckle of both ends to the plastic clip so that the pelvic belt will not slip out of the position.

  • Page 26: Anti-Tippers (Optional)

    4.12.3 The manual brakes are not designed to be used for a moving wheelchair. 4.12.4 Always use the handrims for braking when you are in a moving wheelchair. Make sure that the interval between the tires and the brakes complies with the given specifications. (See Figure 4.44) 4.12.5 To adjust the interval between the tires and the brakes, first loosen the bolts and set the appropriate gap.

  • Page 27: Transferring In

    Figure 4.46 Figure 4.47 Figure 4.48 CAUTION: ● If the anti-tippers are not fitted, or have been fitted incorrectly, there is a risk of tipping over and of injury WARNING: ● When the axle has been adjusted, the wheelchair must be evaluated by a qualified therapist.
  • Page 28 final destination. 4. 15.1.2 Prop up your body and move sideward slowly, using transfer board. Be careful not to hit the brake or other components of wheelchair. 4.15.2 Front transfer This approach is appropriate for users who are more or less able to stand up and have strong upper body.

  • Page 29: Tilting

    Figure 4.49 Figure 4.50 Figure 4.51 4.16 Tilting For the user's safety, tilting must be performed by an attendant. 4.16.1 Make sure both the user's feet are on the footplates and will not slip off. Make sure the handgrips are secure and cannot slip off. 4.16.2 Release both brakes.

  • Page 30: Going Up Kerbs

    CAUTION: ● This is the more difficult method and can jar the user but allows a better view of traffic. ● Be careful that the anti-tippers do not get caught on the kerb causing the user to fall. ● NEVER ALLOW THE WHEELCHAIR TO TIP FORWARDS WHEN GOING DOWN A KERB.

  • Page 31: Going Up Or Down Steps/Stairs

    4.18.1 Going Up Kerbs Forwards with an Attendant 4.18.1.1 As the footrests nearly touch the kerb tilt the wheelchair. The wheelchair should be tilted just high enough to allow the front casters to roll smoothly onto the pavement. 4. 18.1.2 Push the wheelchair forward until the rear wheels are touching the kerb.
  • Page 32 4.20.3 Always use both hands on the push handles to control the chair. (See Figure 4.54) 4.20.4 Always avoid steep or uneven surfaces because the chair may tip over. (See Figure 4.55) 4.20.5 Always avoid soft surfaces because the casters may get bogged down. (See Figure 4.56) 4.20.6 Always be careful not to go too fast or turn too quickly and try to maintain a smooth and steady ride.

  • Page 33: Storage

    Make sure that the wheelchair is fully folded when it is in storage. SUGGESTION: ● Please store the wheelchair in a location where it is out of direct sunlight, rain and dew. For more details, consult your KARMA dealer. WARNING: ● Don't put anything on the wheelchair while it is in storage.

  • Page 34: Regular Maintenance Record

    5.1.8 A qualified technician can be found at an authorized distributor/dealer. CAUTION: ● Visit a KARMA wheelchair dealer for inspection and maintenance if you find anything abnormal. 5.2 Regular Maintenance Record 5.2.1 In order to make sure your wheelchair is in good condition, visit your KARMA wheelchair dealer regularly for maintenance and keep records accordingly every six months after purchasing.
  • Page 35 ● Pivot points free of wear and looseness. Ⅴ ● Easy to engage. Ⅴ ● Stop the wheelchair from moving when engaged. Ⅴ SEAT & BACKREST ● Inspect for rips or sagging. Ⅴ ● Inspect for any loose or broken hardware, such as the Ⅴ...
  • Page 36 attached. TIRES ● Inspect for flat spots, cracks and wear. Ⅴ ● If pneumatic tires, check for proper inflation. Ⅴ ● Check tire tread depth is more than 1mm. Ⅴ ● Check tire pressure. Tire pressures are specified on the Ⅴ...

  • Page 37: Adjustment Manual

    5.3 Adjustment Manual 5.3.1 Seat Height Adjustment for 20”, 22” and 24” Rear Wheels Caster Position Rear Wheel Position Anti-Tipper Position (For 18”~21” seat height) Seat Caster Size Caster Rear Wheel Seat Anti-Tipper Rear Wheel Height Caster Position Bracket Position Angle Position 7.4〫...
  • Page 38 4〫 3.8〫 Caster Position Rear Wheel Position Anti-Tipper Position (For 15.5”~18seat height) Seat Caster Size Caster Rear Wheel Anti-Tipper Rear Wheel Seat Angle Height Caster Position Bracket Position Position 3.0〫 6" 5" 22" 2.7〫 2.4〫 18" 5.7〫 6" 5" 20" 5.4〫...
  • Page 39 Caster Position Rear Wheel Position Anti-Tipper Position Seat Caster Size Caster Rear Wheel Anti-Tipper Rear Wheel Seat Angle Height Caster Position Bracket Position Position 4.6〫 5" 22" 4.4〫 4.1〫 15.5" 4.0〫 5" 20" 3.8〫 3.6〫 5.3.2 Seat Height Adjustment for 14”Rear Wheels Caster Position Rear Wheel Position Caster Size...

  • Page 40: Accessories

    WARNING: ● We suggest that the Flexx series is set ONLY as the position specified in the above Section 5.3.1 and Section 5.3.2. ● Anti-tippers MUST be equipped to your wheelchair when the wheelchair setting is different from any of the above. ●...

  • Page 41: Troubleshooting

    Thus, this should be performed by an authorized dealer/ technician or qualified therapist. 7. TROUBLESHOOTING Trouble or Problems with Your Wheelchair You can inspect the following before taking your wheelchair to a KARMA wheelchair dealer. Problem Checking Points and Corrective Action 1.

  • Page 42: Specifications

    Packing Size (mm/in) (32.3 in*13.4 in*37.4 in) KARMA reserves the right to modify information herein without further notice. Product specification could be varied according to customer requirements. Please be noted that all the above measurements are based on the wheelchair...
  • Page 43 ● Please don't travel across a slope (in any direction) greater than 7 degrees. ● DON'T stand on the footplate directly, which the limit weight is 100 kg. Static Stability Test Result Test Requirement Flexx(KM-8022/8522) (According to ISO 7176-1:1999) Min. Forward 11.2°...

  • Page 44: Cleaning & Recycling

    CAUTION ● Please do not travel across a slope (in any direction) greater than 7 degrees. 9. CLEANING & RECYCLING 9.1 Cleaning In order to lengthen the life of your wheelchair, it is suggested that you clean the wheelchair periodically (if not daily), especially after it is used in the rain or snow.

  • Page 45: Warranty

    (a repair of this kind will hereafter be called warranty repair). 10.2.1.2 Warranty repairs can be performed by authorized KARMA wheelchair dealers only. 10.2.1.3 KARMA is not responsible for the transportation costs for repair and replacement. 10.2.1.4 Replaced parts will be the property of KARMA.
  • Page 46 10.2.6 Warranty Duration and Parts Covered by the Warranty 10.2.6.1 Please contact your local dealer. 10.2.7 Transfer of Warranty Rights 10.2.7.1 If you purchase a second-hand KARMA wheelchair while it is still...
  • Page 47 within the warranty period, bring this owner's manual and the wheelchair to the dealer where the wheelchair was purchased for registration. Full name: Gender: Date of Birth: Address: Model: Serial Number: Date of Purchase: Dealer's Data Name of the store: Phone Number and Address: If you have any suggestions on how to improve our products, please don't hesitate to contact your local dealer to let us know what you think of your...
  • Page 48 104-40188 Rev:01 May.2013...
