IM20-ZWAVE Magnetic Contact User Guide
I. Introduction
The product is a kind of wireless door/window detector, using Z-wave 500 series chip, it adopts unique structure design,
suitable for all kinds of installation occasions, with functions of fast detection of door/window status, anti-tamper and
real-time detection of battery status. Meanwhile, the product has wireless networking function, as a separately triggered
detector, it will send out alarm signal to Z-wave gateway when the magnet part and the emitter separated, to prevent
someone intruding from door or window. Applications: House, factory, shopping market, hotel, office building,
teaching place, bank, Library, warehouse and so on.
II. Specification
Model: IM20_ZWAVE
RF transmitting distance (indoor):≤ 30m
RF frequency: 868.4MHZ / 908.4MHZ
Power supply: DC 3V, 2PCS AA (7#) Alkaline Battery, 2~3 years.
Operating current: static ≤ 9uA, alarm ≤ 35mA
Operating environment:-20℃～60℃
III. Installation Instructions:
1. The product is not suitable for the following occasions, please noted:
a)
In the outdoor bad environment.
b)
At the unstable base or rainy area.
c)
Near the roadside or magnetic objects.
2. Battery Installing
a)

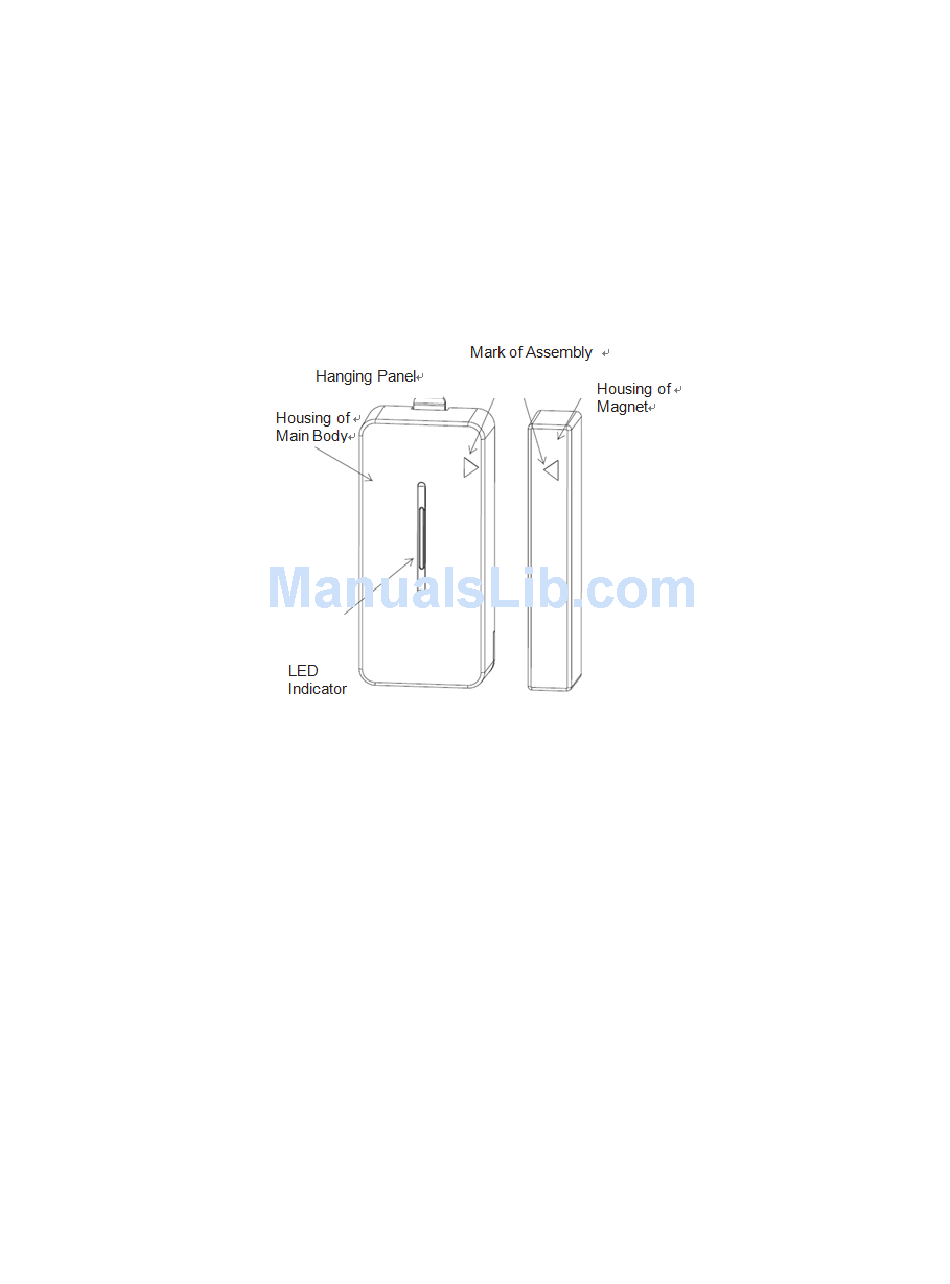

Take down the magnet main body from hanging panel.
b)
Insert 2pcs AAA 1.5V alkaline battery into the battery container with right polarity.
1
Advertisement
Table of Contents
Related Manuals for Z-Wave IM20
Summary of Contents for Z-Wave IM20
- Page 1 Meanwhile, the product has wireless networking function, as a separately triggered detector, it will send out alarm signal to Z-wave gateway when the magnet part and the emitter separated, to prevent someone intruding from door or window. Applications: House, factory, shopping market, hotel, office building, teaching place, bank, Library, warehouse and so on.
- Page 2 Put the main body part into the hanging panel, keep the bottom line horizontally aligning with location hole; pull down to fix it. 3. Screw Fixing Take out the tapered screws and expansion tube from PE bag, and then take down the hanging panels of door contact main body and magnet separately.
- Page 3 ≤6MM. Tear off remaining rubber foam release paper on the main body and magnet; stick them to the fixed or movable door/window. IV. IM20-ZWAVE Operation Instruction 1. ZWAVE basic operations 1.1 Wireless network registration and delete Network register: Activate the master gateway into register status, please press the anti-tamper switch 3 times repeatedly within 1.5 seconds to register, the right LED indicator blinking in the process and turns off LED...
- Page 4 1.2 Door sensor alarm information and connection The product supports 2 connection groups, group 1 support one device to receive alarm information, group 2 supports two devices, when the door sensor triggered, then send out “BASIC SET” command to control the device in group 2. 1.3 Factory reset Press the tamper switch 6 times repeatedly in 2 seconds to restore the factory setting.
- Page 5 c) Anti-tamper alarm： [Command Class Sensor Binary，Sensor Binary Report, value = 0xFF,type =08(Tamper)] d) Low battery report: Battery Report After activated from sleep mode, the sensor check its battery status, if low battery, sending the “Binary Sensor Report” command to the group 1 device every 1 hour. [Command Class Battery, Battery Report, Battery Level = 0xFF(Low battery warning)] 2.
- Page 6 Function Parameter Size Range Default Auto report battery 0-24 hours hours status time VII. Z-Wave door sensor commands 1. Generic Deice Type = GENERIC_TYPE_SENSOR_BINARY 2. Specific Device Type = SPECIFIC_TYPE_ROUTING_SENSOR_BINARY 3. Support Command Class = COMMAND_CLASS_ASSOCIATION_V2, COMMAND_CLASS_WAKE_UP_V2, COMMAND_CLASS_BATTERY, COMMAND_CLASS_SENSOR_BINARY_V2, COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2, COMMAND_CLASS_VERSION_V2, 10.
