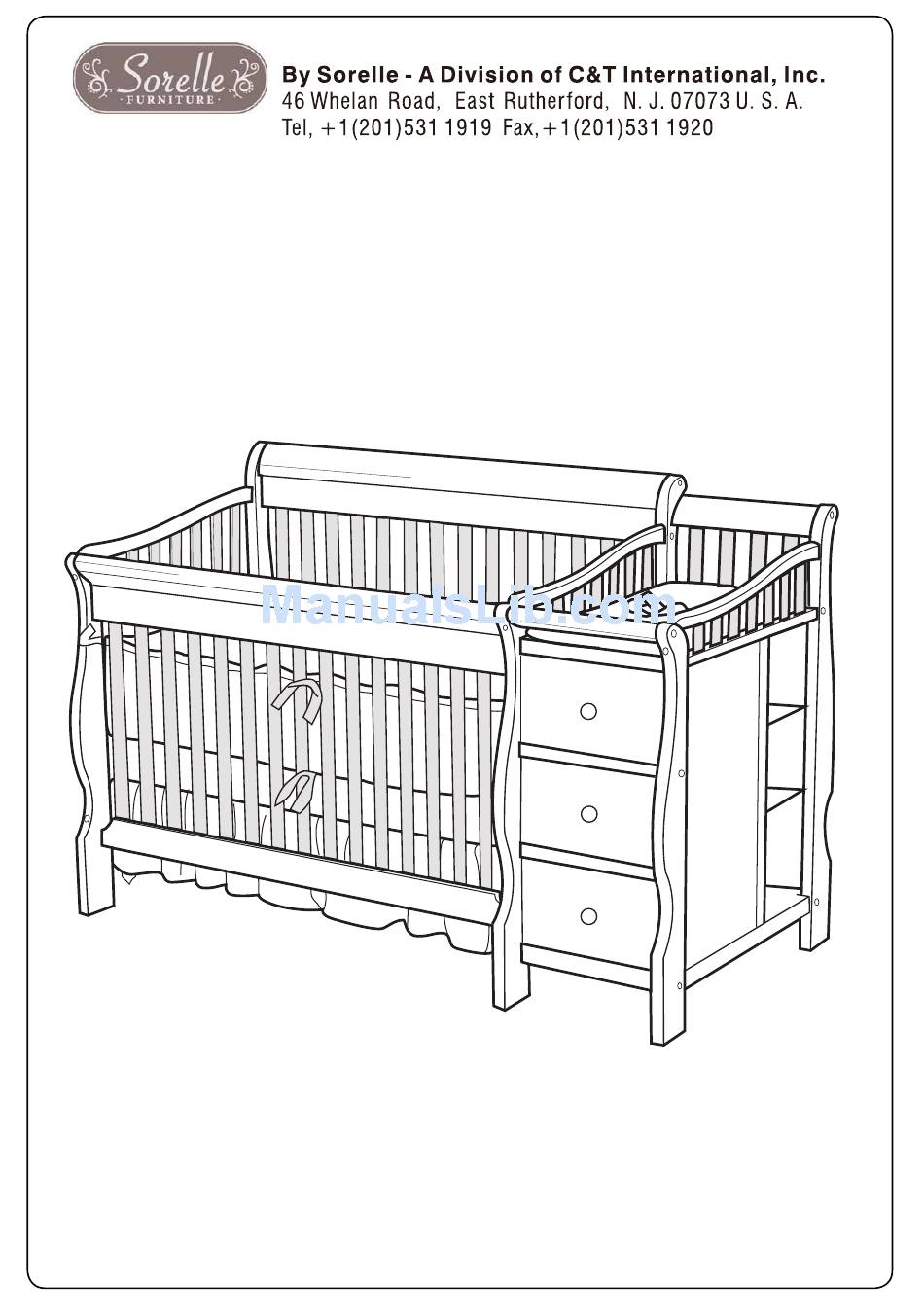

- Page 1 1050# Tuscany/Princeton Crib and More Assembly Instruction Important Information: Read all instructions BEFORE assembling crib. KEEP INSTRUTIONS FOR FUTURE USE. Made in China...
- Page 2 SORELLE 1050# Tuscany/Princeton Crib and More assembly instructions ( SC ) CRIB WARNINGS Failure to follow these warnings and assembly instructions WARNING - could result in serious injury or death. bef r r b. KEEP INSTRUCTIONS FOR FUTURE USE. DO NOT L WED.
- Page 3 SORELLE 1050# Tuscany/Princeton Crib and More assembly instructions ( SC ) CHANGING TABLE WARNINGS Failure to follow these warnings and assembly instructions WARNING could result in serious injury or death. reven ry, way k rm’ r . ev befor h befor .
- Page 4 SORELLE 1050# Tuscany/Princeton Crib and More assembly instructions ( SC ) PARTS LIST FOR CRIB ASSEMBLY (C) Front Side Rail (x1) (B) Back Side Rail (x1) (A): Left Side Rail(x1) (D) Front&Back Contoured Top (x2) (E) Rear Changer Leg (x1)
- Page 5 SORELLE 1050# Tuscany/Princeton Crib and More assembly instructions ( SC ) PARTS LIST FOR CHANGER/DRESSER ASSEMBLY (V) Rear Dresser Leg (x1) (W) Front Foot Board Leg (x1) (O4) Support Bar Solid (O3) Smaill Front (O2) Large Support Bar Peg Ends (x1)
- Page 6 SORELLE 1050# Tuscany/Princeton Crib and More assembly instructions ( SC ) HARDWARE LIST (HC) 63mm(2 1/2”) Bolts (12mm Head) (x22) (HD) 85.5mm(3 1/2”) Bolts (12mm Head) (x4) (HB) 50mm(2 ”) Bolts (12mm Head) (x2) (HE) Barrel Nuts (x26) (HA) 19mm(3/4”) Bolts (12mm Head) (x4) (HG): 32mm(1 1/4”) Phillips Screws (x24)
- Page 7 SORELLE 1050# Tuscany/Princeton Crib and More assembly instructions ( SC ) Drawer Assembly Fig. 1 Fig. 2 Grooves 1. Working on a padded, flat surface, attach 2. Slide Drawer Bottom(U) into drawer drawer sides(R&S) to Drawer Back (T) with assembly, see Fig 2 Philips Head Screw (HG), see Fig 1 Fig.
- Page 8 SORELLE 1050# Tuscany/Princeton Crib and More assembly instructions ( SC ) CHANGER/DRESSER ASSEMBLY Parts Needed: refer to Page 3, “PARTS LIST FOR CHANGER/DRESSER ASSEMBLY” Fig. 5 Fig. 6 1. Insert Decorative Support Bar (O1) into Right 2. Insert Support Bar O4, O5 and O8 into Right End End (I) and secure with 1pc Bolt(HC)、...
- Page 9 SORELLE 1050# Tuscany/Princeton Crib and More assembly instructions ( SC ) CHANGER/DRESSER ASSEMBLY Parts Needed: refer to Page 3, “PARTS LIST FOR CHANGER/DRESSER ASSEMBLY” Fig. 9 Fig. 10 6. Attach Middle Panel(H) with each support 5. Insert Top Shelf(J) , Middle Shelf(K) and bar and secure with 7pcs Bolt(HC),1pc Bolt(HB) Bottom Shelf(M) into groovess as Fig 9.
- Page 10 SORELLE 1050# Tuscany/Princeton Crib and More assembly instructions ( SC ) CRIB ASSEMBLY Fig. 13 Fig. 14 & 1. Slide 1pc Dowel Pin(HI) to front leg(F), and Using four (4) 2. Slide 12pcs Dowel Pin (HI) into each end of Back Bolts (HD) and Barrel Nuts (HE) assembly Front leg(F) and Side Rail (B), Front side rail(C) and Front &...
- Page 11 SORELLE 1050# Tuscany/Princeton Crib and More assembly instructions ( SC ) Crib Assembly CRIB ASSEMBLY Fig. 18 Fig. 17 3. Attach the Right side panel to Back Side Rail(B) and Front 4. Attach completed Mattress support(M) to Crib Side Rail(C) with with 4pcs Bolts(HC) and 4pcs Barrel Nuts(HE), using four(4) Bolts(HA) , See Fig 18 See Fig.17...
- Page 12 Sorelle PAGE 11 CONVERTING TO A FULL SIZE HEADBOARD IMPORTANT: You MUST use supplied Wall Strap Kit with stand-alone Changer/Dresser. See instructions provided with Wall Strap Kit. 1. Remove the Drawers and Mattress support from Changer and Crib. 2. Remove Changer from the Crib, as Fig. 21 & Fig 22.
