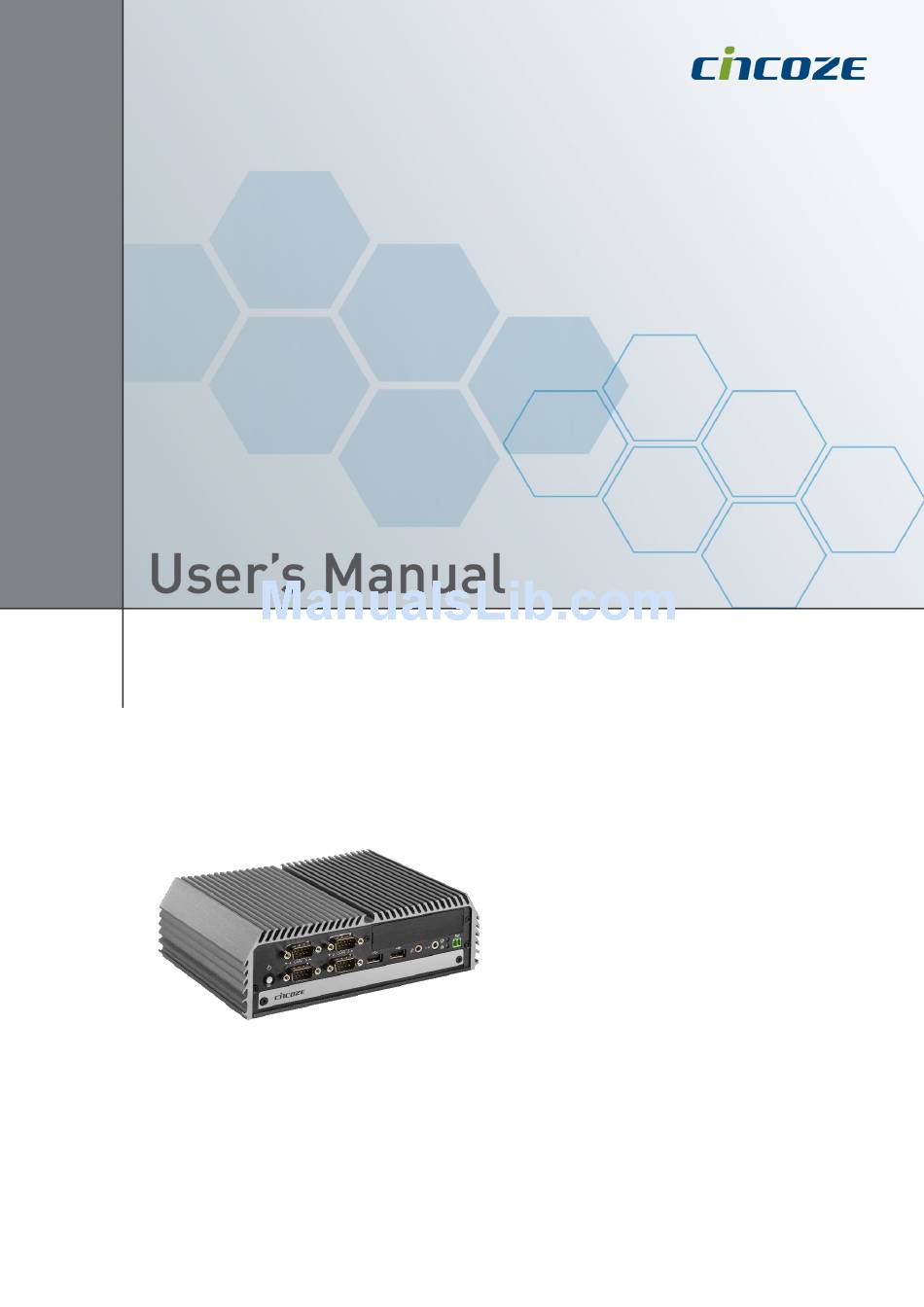

Rugged Embedded Computer
6
Generation Intel® Core™ (Skylake-U)
th
High Performance, Compact and Modular Rugged Embedded Computer
DI-1000 Series
DOC No: DI-20170309001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DI-1000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cincoze DI-1000 Series

Summary of Contents for Cincoze DI-1000 Series

  • Page 1 Rugged Embedded Computer Generation Intel® Core™ (Skylake-U) High Performance, Compact and Modular Rugged Embedded Computer DI-1000 Series DOC No: DI-20170309001...

  • Page 2: Table Of Contents

    Contents DI-1000 Series | User’s Manual Rugged Embedded Computer Preface Revision …………………………………………….……..………………..……….. 05 Copyright Notice ……………………………………………………………..……… 05 Acknowledgement …………………………………………….………....05 Disclaimer ………………………………………………………….………….…….. 05 Declaration of Conformity ……………………………………….………….……… 05 Product Warranty Statement ……………………………………….……….…….. 06 Technical Support and Assistance ………………………………….……….……. 07 Conventions Used in this Manual …………………………………….…….…….. 07 Safety Precautions …..…………………………………….…………….……..…..
  • Page 3 DI-1000 Series | User’s Manual Rugged Embedded Computer 4.5.3 Installing a SIM Card …..…………………..………………….. 53 4.5.4 Installing the Front Cover Plate …..……………………………. 54 4.6 Wall Mount Brackets………………………….……………..…………... 54 4.7 DIN-Rail Mount Brackets…………….…….…………………………..56 VESA Mount ……………………………………………..….…………... 58 4.9 Side Mount Brackets………..…………………..……..………………... 59 Chapter 5 BIOS Setup 5.1 BIOS Introduction …….……….…………….…….…..….…………….
  • Page 4 DI-1000 Series | User’s Manual Rugged Embedded Computer Chapter 6 Product Application 6.1 Digital I/O (DIO) Application……………………….…..….……………..85 6.1.1 Digital I/O Programming Guide ………………………………... 85 (DIO) Hardware Specification ……………………………………..….. 90 6.2.1 DIO Connector Definitions ..….………………………………..91...

  • Page 5: Revision

    2017/03/09 Copyright Notice © 2016 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd.

  • Page 6: Product Warranty Statement

    (such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain a RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.

  • Page 7: Technical Support And Assistance

    DI-1000 Series | User’s Manual Rugged Embedded Computer Technical Support and Assistance 1. Visit the Cincoze website at www.cincoze.com where you can find the latest information about the product. 2. Contact your distributor or our technical support team or sales representative for technical support if you need additional assistance.

  • Page 8: Safety Precautions

    DI-1000 Series | User’s Manual Rugged Embedded Computer Safety Precautions Before installing and using this device, please note the following precautions: 1. Read these safety instructions carefully. 2. Keep this User’s Manual for future reference. 3. Disconnected this equipment from any AC outlet before cleaning.

  • Page 9: Package Contents

    DI-1000 Series | User’s Manual Rugged Embedded Computer Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty Embedded System CPU Heatsink Thermal Pad Utility DVD Driver Screw Pack...

  • Page 10: Optional Modules & Accessories

    DI-1000 Series | User’s Manual Rugged Embedded Computer Optional Modules & Accessories Model No. Description CFM-IGN102 CFM Module with Power Ignition Sensing Control Function, Selectable 12V/24V (68 x 25 mm) CMI-LAN104/UB0712 CMI Module with 4x Intel GbE LAN, RJ45 Port, 1x Universal Bracket (82.5 x 19.5 mm) CMI Module with 4x PoE+, Intel GbE LAN, RJ45 Port, Individual Port 25.5W, 1x Universal Bracket...

  • Page 11: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...

  • Page 12: Overview

    2.5” SATA HDD/SSD bay for RAID 0/1 function, making DI-1000 series unmatchable in the market for its size and functions. DI-1000 Series weighs only 1.65 kg supporting 4 types of mounting mechanisms (Wall, DIN, Side and VESA) allowing it to be installed everywhere.

  • Page 13: Product Pictures

    • Rich I/O Including DVI, DP, 2x GbE LAN, 6x COM, 6x USB, 8x Optical Isolated DIO • Supports Cincoze CMI Technology for LAN, PoE & M12 X-Coding Connector Expansion • Supports Cincoze CFM Technology for Power Ignition Sensing (IGN) Function Expansion •...

  • Page 14: Hardware Specification

    (w/ SSD, according to IEC60068-2-27) Expansion • Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes • 1x CFM Interface for Cincoze CFM Modules (w/ SSD, according to IEC60068-2-64) • 1x CMI Interfaces for Cincoze CMI Modules • EMC: CE, FCC Class A •...

  • Page 15: System I/O

    DI-1000 Series | User’s Manual Rugged Embedded Computer 1.6 System I/O 1.6.1 Front ATX Power On/Off Button Removable 2.5” SATA HDD/SSD Bay Press to power-on or power-off the system Used to inserts a 2.5” HDD/SSD AT/ATX Mode Select Switch Mic-in...

  • Page 16: Rear

    DI-1000 Series | User’s Manual Rugged Embedded Computer 1.6.2 Rear DC IN Terminal Block USB 3.0 Port Used to plug a DC power input with terminal Used to connect USB 3.0/2.0/1.1 device block COM Port DVI-I Port COM #1 ~ COM #2 support RS232/422/485...

  • Page 17: Mechanical Dimension

    DI-1000 Series | User’s Manual Rugged Embedded Computer 1.7 Mechanical Dimension Unit: mm...

  • Page 18: Chapter 2 System Pin Definitions And Settings

    Chapter 2 System Pin Definitions and Settings...

  • Page 19: Settings

    DI-1000 Series | User’s Manual Rugged Embedded Computer 2.1 Settings When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

  • Page 20: Bottom View

    DI-1000 Series | User’s Manual Rugged Embedded Computer 2.2.2 Bottom View...

  • Page 21: Connector / Jumper / Switch Definition

    DI-1000 Series | User’s Manual Rugged Embedded Computer 2.3 Connector / Jumper / Switch Definition List of Connector / Jumper / Switch Connector Location Definition COM1~4 with Power Select MODE_SEL1 Super CAP for RTC MODE_SEL6 COM6 with Power Select MODE_SEL7...

  • Page 22: Definition Of Switches

    DI-1000 Series | User’s Manual Rugged Embedded Computer 2.4 Definition of Switches SW1 Pin Defined: COM1 / COM2 / COM3 / COM4 Power Select COM1/2/3/4 Voltage Function Setting : Pin Define Switch Switch Mode Function 0V(RI) ON/ON (Default) COM1 ON/OFF...
  • Page 23 DI-1000 Series | User’s Manual Rugged Embedded Computer MODE_SEL1 Pin Defined: RTC Super CAP Function Setting: Pin Define MODE_SEL1 Switch Switch mode Function Super CAP Enable (Default) Disable AT_ATX1: AT / ATX Power Mode Switch Definition 1-2 (Left) ATX Power Mode (Default)

  • Page 24: Definition Of Connectors

    DI-1000 Series | User’s Manual Rugged Embedded Computer 2.5 Definition of Connectors MINIPCIE1: Mini PCI-Express Socket (Support mSATA feature) Definition Definition Definition WAKE# RESERVED 3.3V 3.3V USB_D+ 3.3V PERST# PERN0/SATARP0 3.3V 1.5V 3.3V CLKREQ# PERP0/SATARN0 RESERVED +1.5V REFCLK- SMB_CLK +1.5V...
  • Page 25 DI-1000 Series | User’s Manual Rugged Embedded Computer MINIPCIE2: Mini PCI-Express Socket (Support mSATA and SIM Card to Link feature) Definition Definition Definition WAKE# 3.3V 3.3V USB_D+ 3.3V PERST# PERN1/SATARP1 3.3V 1.5V 3.3V CLKREQ# PERP1/SATARN1 SIM_PWR SIM_DATA +1.5V REFCLK- SIM_CLK SMB_CLK +1.5V...
  • Page 26 DI-1000 Series | User’s Manual Rugged Embedded Computer LED1: Power / HDD Access LED Status LED1 LED Color POWER Green Yellow LAN LED Status Definition Act LED Status Definition Link LED Status Definition Blinking Yellow Data Activity Steady Green 1Gbps Network Link...
  • Page 27 DI-1000 Series | User’s Manual Rugged Embedded Computer COM1/2/3/4/5/6: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub COM1/COM2/COM3/COM4/COM5/COM6 RS422 / 485 RS485 RS232 Full Duplex Half Duplex Definition Definition Definition DATA- DATA+ DIO: Digital Input / Output Connector Connector Type: Terminal Block 2X5 10-pin, 3.5mm pitch...

  • Page 28: Chapter 3 Optional Module Pin Definitions And Settings

    Chapter 3 Optional Module Pin Definitions and Settings...

  • Page 29: Cfm-Ign Power Ignition Module Connector Location

    DI-1000 Series | User’s Manual Rugged Embedded Computer Optional CFM-IGN Power Ignition Module Model No. Description CFM Module with Power Ignition Sensing Control Function, CFM-IGN102 12V/24V Selectable (68 x 25 mm) 3.1 CFM-IGN Power Ignition Module Connector Location 12V_24V_1 Connector Location...
  • Page 30 DI-1000 Series | User’s Manual Rugged Embedded Computer SW1 (DIP 1): Enable or Disable power ignition function DIP 1 Definition Enable Power Ignition Function Disable Power Ignition Function SW1 (DIP2~4): Set shutdown delay timer when ACC is turned off DIP 2...

  • Page 31: Chapter 4 System Setup

    Chapter 4 System Setup...

  • Page 32: Disassembling The System For Installation

    DI-1000 Series | User’s Manual Rugged Embedded Computer 4.1 Disassembling the System for Installation In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source. 1. Turn over the unit to have the bottom side face up, loosen the 6 screws of bottom cover and place them aside for later use.
  • Page 33 DI-1000 Series | User’s Manual Rugged Embedded Computer 3. Hold front and rear panel and lift up the body of unit vertically. 4. Turn over the body of the unit and place it gently.

  • Page 34: Installing Components On Top Side

    DI-1000 Series | User’s Manual Rugged Embedded Computer 4.2 Installing Components on Top Side 4.2.1 Installing SO-DIMM Memory 1. Locate the SODIMM socket on the top side of system. 2. Insert a SO-DIMM module at a 45 degree angle until its edge connector is connected to SO-DIMM socket firmly.

  • Page 35: Installing A Mini-Pcie/Msata Card

    DI-1000 Series | User’s Manual Rugged Embedded Computer 3. Press down the module until the retaining clips snap back in place. 4.2.2 Installing a Mini-PCIe/mSATA Card 1. Locate the Mini-PCIe slot on the top side of system.
  • Page 36 DI-1000 Series | User’s Manual Rugged Embedded Computer 2. Insert the Mini-PCIe card at a 45 degree angle until its edge connector is connected firmly into slot. For 3G/4G Mini-PCIe card, please install on MINIPCIE2 slot. MINIPCIE1 slot MINIPCIE2 slot...

  • Page 37: Installing Antennas

    DI-1000 Series | User’s Manual Rugged Embedded Computer 4.2.3 Installing Antennas Please installing a Mini PCIe Wireless Lan Card on top side before you put on washer and fasten the nut with antenna jack. 1. Remove the antenna rubber covers on rear panel.
  • Page 38 DI-1000 Series | User’s Manual Rugged Embedded Computer 3. Put on washer and fasten the nut with antenna jack. 4. Assemble the antenna and antenna jack together...
  • Page 39 DI-1000 Series | User’s Manual Rugged Embedded Computer 5. Attach the RF connector at another end of cable onto the module.

  • Page 40: Installing Components On Bottom Side

    DI-1000 Series | User’s Manual Rugged Embedded Computer 4.3 Installing Components on Bottom Side 4.3.1 Installing a SATA Hard Drive 1. Turn the unit to bottom side. Loosen 4 screws to remove the HDD bracket. 2. Make the bottom side of HDD face up, and place the HDD bracket on it. Ensure the direction of bracket is correct and use 4 provided screws to assemble HDD and HDD bracket together.

  • Page 41: Installing A Cfm-Ign Power Ignition Module

    DI-1000 Series | User’s Manual Rugged Embedded Computer 3. Turn over the HDD bracket assembly. Connect the HDD bracket to the SATA connector and fasten the 4 screws to fix it. 4.3.2 Installing a CFM-IGN Power Ignition Module 1. Locate the IGN connector on the bottom side of system.
  • Page 42 DI-1000 Series | User’s Manual Rugged Embedded Computer 2. Insert IGN module vertically to the female connector on the system’s mainboard, and fasten 2 screws to fix it.

  • Page 43: Installing A High Speed Cmi Module

    | User’s Manual Rugged Embedded Computer 4.3.3 Installing a High Speed CMI Module The applicable high speed CMI modules for DI-1000 series are listed in the following table. Model No. Description CMI Module with 4x Intel GbE LAN, RJ45 Port, 1x Universal...
  • Page 44 DI-1000 Series | User’s Manual Rugged Embedded Computer 1. Loosen the 2 screws on front bezel to remove the cover plate. 2. Remove 4 rubber rings on M12 jacks; Penetrate M12 jacks of CMI module through the accompanying M12 I/O bracket. then fasten 4 ring hexes onto jacks as illustrated in right...
  • Page 45 DI-1000 Series | User’s Manual Rugged Embedded Computer 3. Locate the CMI connector on the top side of system. 4. Insert the CMI module vertically into the female connector on system’s mainboard until it’s connected firmly. Fasten 3 screws to fix it.

  • Page 46: Assembling The System

    DI-1000 Series | User’s Manual Rugged Embedded Computer 5. Fasten 2 screws on front bezel. 4.4 Assembling the System 4.4.1 Installing Thermal Pad 1. Please find the new thermal pad that is attached on the top cover of system.
  • Page 47 DI-1000 Series | User’s Manual Rugged Embedded Computer 2. Remove the protection sheet on the thermal pad. Protection sheet 3. Please paste the thermal pad onto the heatsink carefully. Thermal pad...

  • Page 48: Installing Top Cover

    DI-1000 Series | User’s Manual Rugged Embedded Computer 4.4.2 Installing Top Cover 1. Hold front and rear panel and put the body of unit back to chassis.

  • Page 49: Installing Bottom Cover

    DI-1000 Series | User’s Manual Rugged Embedded Computer 4.4.3 Installing Bottom Cover 1. Place the bottom cover back to system. 2. Fasten the bottom cover with 6 screws .

  • Page 50: Installing Components At Front Side

    DI-1000 Series | User’s Manual Rugged Embedded Computer 4.5 Installing Components at Front Side 4.5.1 Removing the Front Cover Plate 1. Loosen 2 screws on front panel to remove cover plate. Note: It’s advised to fasten the 2 screws manually. If fastened with an electrical screw driver, please set the torque of the driver to 2.5KgF.
  • Page 51 DI-1000 Series | User’s Manual Rugged Embedded Computer 2. Pull the rotating arm and pull the HDD bracket out of system. 3. Make the bottom side of the HDD face up, place the HDD bracket on it. Ensure the direction...
  • Page 52 DI-1000 Series | User’s Manual Rugged Embedded Computer 4. Align the HDD bracket assembly with the entrance of removable HDD bay. Holding the rotating arm and insert the HDD bracket until the connector of HDD contact the SATA connector firmly.

  • Page 53: Installing A Sim Card

    DI-1000 Series | User’s Manual Rugged Embedded Computer 4.5.3 Installing a SIM Card 1. Locate the SIM card slot at front side. 2. Insert a SIM card into SIM slot with the gold contacts facing up. Please pay attention to the...

  • Page 54: Installing The Front Cover Plate

    4.5.4 Installing the Front Cover Plate 1. Put the front cover plate back. Fasten it with 2 screws. 4.6 Wall Mount Brackets DI-1000 series offers wall mount that customers can install system on the wall in convenient and economical ways.
  • Page 55 DI-1000 Series | User’s Manual Rugged Embedded Computer 1. The mounting holes are at the bottom side of system. Use provided 4 screws to fasten the bracket on each side. 2. There are 2 bracket mounting holes at left and right side for customer fix the system on the...

  • Page 56: Din-Rail Mount Brackets

    | User’s Manual Rugged Embedded Computer 4.7 DIN-Rail Mount Brackets DI-1000 series offers DIN-Rail Mount that customer can install system on the DIN Rail. 1. Please refer to section 3.5 Wall Mount Brackets to install mounting bracket at both sides of system.
  • Page 57 DI-1000 Series | User’s Manual Rugged Embedded Computer 3. Clip the system into DIN rail as illustrated by the following steps. (1) Have lower end of mounting clip snaps into the DIN rail. (2) Press the system toward to have upper end of...

  • Page 58: Vesa Mount

    VESA 75mm and 100 mm standard for various usage. 1. The following picture illustrates the installation of DI-1000 series on a VESA stand. Align the 4 screw holes of VESA stand with the screw holes on bottom side of system. Fasten 4...

  • Page 59: Side Mount Brackets

    | User’s Manual Rugged Embedded Computer 3. Provided below is mounted with VESA stand. 4.9 Side Mount Brackets DI-1000 series offers Side Mount that customer can install system to the right or left side of wall to create effective of space.
  • Page 60 DI-1000 Series | User’s Manual Rugged Embedded Computer 1. The mounting holes are at the bottom of system. Fasten the 4 screws to fix the side mount bracket with system together. 2. Fasten the screws through the bracket mounting hole to mount system on the wall.

  • Page 61: Chapter 5 Bios Setup

    Chapter 5 BIOS Setup...

  • Page 62: Bios Introduction

    DI-1000 Series | User’s Manual Rugged Embedded Computer Chapter 4: BIOS Setup 5.1 BIOS Introduction The BIOS (Basic Input/Output System) is a program located on a Flash Memory on the motherboard. When you start the computer, the BIOS program will gain control. The BIOS first...

  • Page 63: Main Setup

    DI-1000 Series | User’s Manual Rugged Embedded Computer Chapter 4: BIOS Setup 5.2 Main Setup Press <Del> key to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu.

  • Page 64: Advanced Setup

    DI-1000 Series | User’s Manual Rugged Embedded Computer Chapter 4: BIOS Setup 5.3 Advanced Setup This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 5.3.1 ACPI Settings...

  • Page 65: Amt Configuration

    DI-1000 Series | User’s Manual Rugged Embedded Computer ■ Enable ACPI Auto Configuration Enables or disables BIOS Advanced Configuration Power Interface® (ACPI) auto configuration. ■ Enable Hibernation Enables or disables system ability to hibernate state (OS/S4 state). This option may not be effective with some OS.

  • Page 66: Pch-Fw Configuration

    DI-1000 Series | User’s Manual Rugged Embedded Computer ■ Un-Configure ME Enables or disables Un-Configure-Management Engine(ME) without password. 5.3.3 PCH-FW Configuration ■ Firmware Update Configuration Configure Management Engine Parameters  Me FW Image Re-Flash Enables or disables ME firmware Image Re-Flash function.

  • Page 67: F81866 Super Io Configuration

    DI-1000 Series | User’s Manual Rugged Embedded Computer 5.3.4 F81866 Super IO Configuration Set Parameters of Serial Ports. User can Enable/Disable the serial port and Select an optimal settings for the Super IO Device ■ Serial Port 1~6 Configuration.

  • Page 68: Hardware Monitor

    DI-1000 Series | User’s Manual Rugged Embedded Computer  Serial Port Enables or disables serial port.  Change Settings Allows you to change the IO Address & IRQ settings of the specified serial port.  Onboard Serial Port 1~6 Mode Allows you to select Serial Port Mode.

  • Page 69: S5 Rtc Wake Settings

    DI-1000 Series | User’s Manual Rugged Embedded Computer 5.3.6 S5 RTC Wake Settings ■ Wake system from S5 Enables or disables wake system from S5 (soft-off state). [Disabled]: Disables wake system from S5. [Fixed Time]: Sets a fixed time (HH:MM:SS) to wake system from S5.

  • Page 70: Serial Port Console Redirection

    DI-1000 Series | User’s Manual Rugged Embedded Computer 5.3.7 Serial Port Console Redirection ■ Console Redirection Allow users to enable or disable COM0, COM1, COM2, COM3, COM4, COM5 console redirection function. COM0 = Serial Port 1 COM1 = Serial Port 2...

  • Page 71: Sata Configuration

    DI-1000 Series | User’s Manual Rugged Embedded Computer ■ Hyper-threading Enables or disables for Hyper-Threading Technology. ■ Active Process Cores Allows you to choose the number of active processor cores. Configuration options: [All] [1]. ■ Intel® Virtualization Technology Enables or disables Intel® Virtualization Technology, which will allow a platform to run multiple operating systems and applications in independent partitions.
  • Page 72 DI-1000 Series | User’s Manual Rugged Embedded Computer ■ Software Feature Mask Configuration RAID OROM(Option ROM) / RST(Intel® Rapid Storage Technology) driver will refer to the software feature configuration to enable or disable the storage features.  RAID0 Enables or disables RAID0 function.

  • Page 73: Csm Configuration

    DI-1000 Series | User’s Manual Rugged Embedded Computer ■ Serial ATA Port 0  Port 0 Enables or disables SATA Port 0.  Hot Plug Enables or disables Port0 as Hot Pluggable. ■ Serial ATA Port 1  Port 1 Enables or disables SATA Port 1.

  • Page 74: Asmedia Sata Controller Configuration

    DI-1000 Series | User’s Manual Rugged Embedded Computer ■ Network PXE Controls the execution of UEFI and Legacy PXE (Network Preboot eXecution Environment) option ROM. [Do not launch]: Disables option ROM execution. [UEFI]: Enables UEFI option ROM only. [Legacy]: Enables legacy option ROM only.

  • Page 75: Usb Configuration

    DI-1000 Series | User’s Manual Rugged Embedded Computer 5.3.12 USB Configuration ■ Legacy USB Support This item allows you to enable or disable legacy USB support. When set to [Auto], legacy USB support will be disabled automatically if no USB devices are connected.

  • Page 76: Intel® I210 Gigabit Network Connection Intel® Ethernet Connection I219-Lm

    DI-1000 Series | User’s Manual Rugged Embedded Computer 5.3.13 Intel® I210 Gigabit Network Connection Intel® Ethernet Connection I219-LM ■ NIC Configuration  Link Speed Change link speed and duplex for current port. Configuration options: [AutoNeg] [10 Mbps Half] [10 Mbps Full] [100 Mbps Half] [100 Mbps Full] ...

  • Page 77: Chipset Setup

    DI-1000 Series | User’s Manual Rugged Embedded Computer 5.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 5.4.1 System Agent (SA) Configuration...

  • Page 78: Pch-Io Configuration

    DI-1000 Series | User’s Manual Rugged Embedded Computer ■ VT-d Enables or disables Intel® Virtualization Technology for Directed I/O (VT-d) capability. ■ Above 4GB MMIO BIOS assignment Enables or disables Above 4GB Memory Mapped IO BIOS assignment. This is disabled automatically when Aperture Size is set to 2048MB.
  • Page 79 DI-1000 Series | User’s Manual Rugged Embedded Computer ■ PCI Express Configuration PCI Express Root Port (Mini PCIe 1)  PCI Express Root Port Enables or disables PCI Express Root Port.  PCIeSpeed Allows you to select PCI Express port speed.
  • Page 80 DI-1000 Series | User’s Manual Rugged Embedded Computer ■ HD Audio Configuration  HD Audio Control detection of the HD-Audio device. Configuration options: [Disabled]:[Enabled] [Auto] ■ LAN i219LM Controller Enables or disables i219LM LAN Controller. ■ LAN i210AT Controller Enables or disables i210AT LAN Controller.

  • Page 81: Security Setup

    DI-1000 Series | User’s Manual Rugged Embedded Computer 5.5 Security Setup This section allows you to configure BIOS security settings. 5.5.1 Administrator Password Allows you to set Administrator Password to control access to the BIOS Setup utility. 5.5.2 User Password Allows you to set User Password to control access to the system at boot and to the BIOS Setup utility.

  • Page 82: Boot Setup

    DI-1000 Series | User’s Manual Rugged Embedded Computer 5.6 Boot Setup This section allows you to configure Boot settings. 5.6.1 Setup Prompt Timeout Use this item to set number of seconds (1..65535) to wait for setup activation key. 5.6.2 Bootup NumLock State Allows you to set NumLock key to <On>...

  • Page 83: Save & Exit

    DI-1000 Series | User’s Manual Rugged Embedded Computer 5.7 Save & Exit 5.7.1 Save Changes and Exit This item allows you to exit system setup after saving changes. 5.7.2 Discard Changes and Exit This item allows you to exit system setup without saving changes.

  • Page 84: Chapter 6 Product Application

    Chapter 6 Product Application (For DIO only)

  • Page 85: Digital I/O (Dio) Application

    DI-1000 Series | User’s Manual Rugged Embedded Computer This chapter describes the DIO applications . 6.1 Digital I/O (DIO) Application This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers.
  • Page 86 DI-1000 Series | User’s Manual Rugged Embedded Computer 6.1.1.3 Relative Registers To program the F81866A configuration registers, the following configuration procedures.
  • Page 87 DI-1000 Series | User’s Manual Rugged Embedded Computer 6.1.1.4 Sample Code in C Language 6.1.1.4.1 Control of GP74 to GP77 (DI1 ~ DI4) #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) //Must write twice to entering Extended mode <Select Logic Device>...
  • Page 88 // Select configuration register 60h (High Byte address) WriteByte(DataPort, ( 0x0A)) WriteByte(AddrPort, 0x61) // Select configuration register 61h (Low Byte address) WriteByte(DataPort, ( 0x00)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Cincoze default DIO Port base address is set to 0x0A00h...
  • Page 89 DI-1000 Series | User’s Manual Rugged Embedded Computer 6.1.1.6 DATA Bit Table (DIO) 7 6 5 4 3 2 1 0 = DI1 0 0 0 1 - - - - value (Base address +3) (0xA03) 7 6 5 4 3 2 1 0...

  • Page 90: Dio) Hardware Specification

    DI-1000 Series | User’s Manual Rugged Embedded Computer 6.1.1.7 DIO I/O Port Address (Default Address 0xA00) Pin Definition Data Bits 0xA03 0xA02 I/O Port address 6.2 (DIO) Hardware Specification • 4x Digital Input (Source Type) • Input Voltage (Dry Contact)

  • Page 91: Dio Connector Definitions

    DI-1000 Series | User’s Manual Rugged Embedded Computer 6.2.1 DIO Connector Definitions DIO1: Digital Input / Output Connector Connector Type: Terminal Block 2X5 10-pin, 3.5mm pitch Definition Definition DC INPUT...
  • Page 92 © 2014 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
