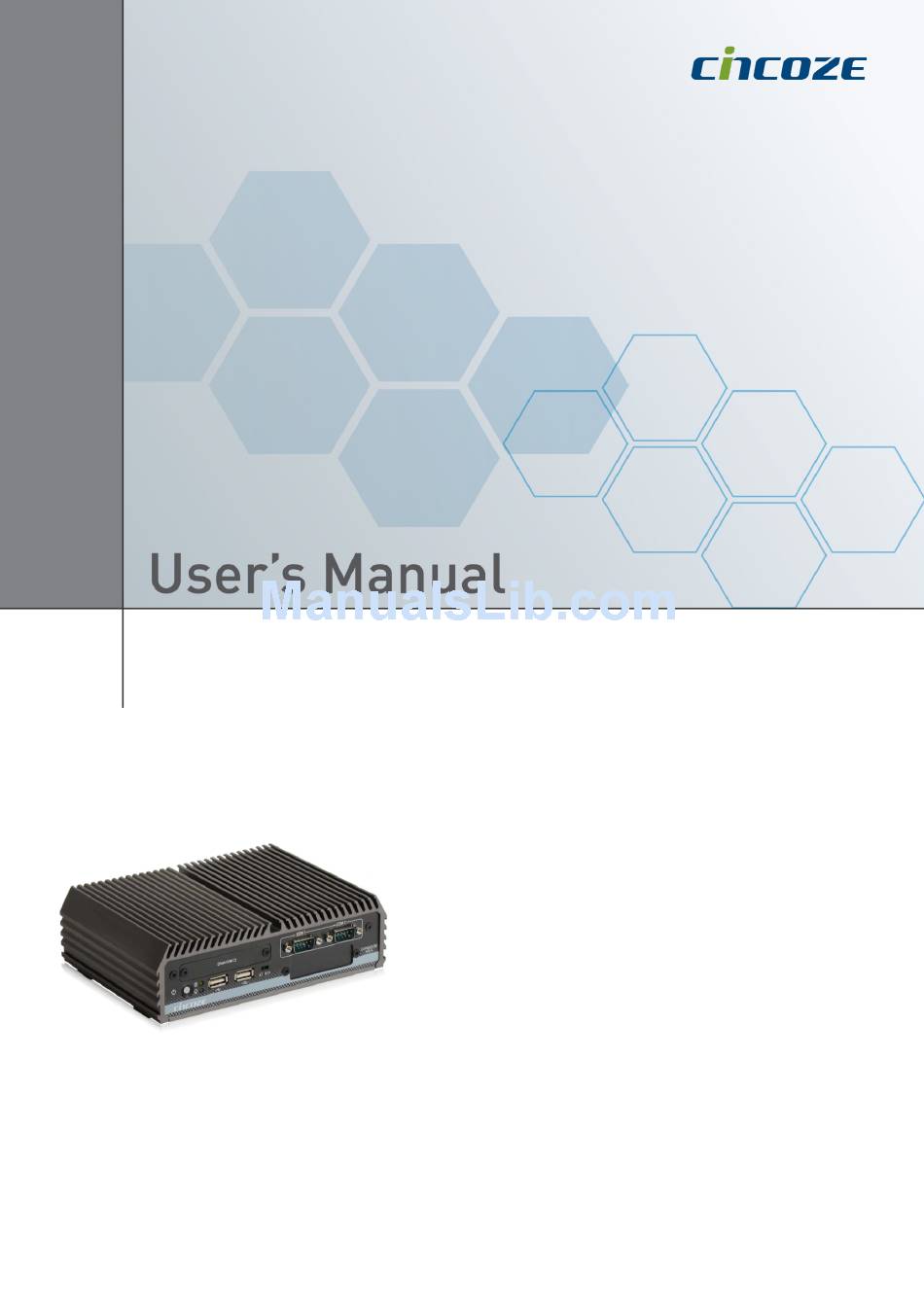

  • Page 1 Fanless Computing Solution Compact Size Fanless Computer DC-1100...

  • Page 2: Table Of Contents

    DC-1100 | User’s Manual Compact Size Fanless Computer Contents Prefaces Revision …………………………………………………..……………….……….. 04 Acknowledgement ……………………………………………………....Disclaimer ………………………………………………………….……………….. 04 Declaration of Conformity ……………………………………….………………… 04 Product Warranty Statement ……………………………………….…………….. 05 Technical Support and Assistance ………………………………….……………. 06 Conventions Used in this Manual …………………………………….………….. 06 Copyright Notice ……………………………………………………………………...
  • Page 3 DC-1100 | User’s Manual Compact Size Fanless Computer 3.14 Wall Mount Bracket ..……….……………….….…..….……………..47 3.15 Side Mount Bracket ..……….……………………..….……………….. 48 3.16 VESA Mount Bracket ..……….………………...…..….……………..49 3.17 DIN-Rail Mount Bracket ..……….…………………...………………... 50 Chapter 4 BIOS Setup 4.1 BIOS Introduction …….……….…………….…….…..….…………... 52 4.2 Main Setup ……..……….………………….…..….………………..

  • Page 4: Revision

    This manual is intended to be used as a practical and informative guide only and is subject to change without notice. It does not represent a commitment on the part of Cincoze. This product might include unintentional technical or typographical errors. Changes are periodically made to the information herein to correct such errors, and these changes are incorporated into new editions of the publication.

  • Page 5: Product Warranty Statement

    (such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain a RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.

  • Page 6: Technical Support And Assistance

    This indication provides additional information to complete a task easily. Copyright Notice © 2016 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd.

  • Page 7: Safety Precaution

    DC-1100 | User’s Manual Compact Size Fanless Computer Prefaces Safety Precautions Before installing and using this device, please note the following precautions: 1. Read these safety instructions carefully. 2. Keep this User’s Manual for future reference. 3. Disconnected this equipment from any AC outlet before cleaning.

  • Page 8: Package Contents

    Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty DC-1100 Embedded System Utility DVD Driver DIO Terminal Block Connector (Female) Power Terminal Block Connector (Female) DVI-I to VGA Adapter...

  • Page 9: Optional Accessory

    DC-1100 | User’s Manual Compact Size Fanless Computer Prefaces Optional Accessories Model Name Description Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm GSM60A12-CIN Pitch, GSM60A12-P1J US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C SL2-SL3 Black 1.8M SL-2+SL-3...

  • Page 10: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...

  • Page 11: Overview

    Chapter 1: Product Introductions 1.1 Overview DC-1100 is a high performance compact size (185mm (W) x 131mm (D) x 54mm (H)) system designed with onboard Intel® Atom™ E3845 Quad Core 1.91GHz processor , rich I/O, unique expansion capability, and wide range (9~48V) DC power input. It supports the latest USB 3.0 technology.

  • Page 12: Hardware Specification

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 1: Product Introductions 1.2 Hardware Specification Processor System Digital Input & Output • Onboard Intel® Atom™ Processor E3845 Quad • 4x Digital Input (Source Type) Core, 1.91 GHz with AMI 64Mbit SPI BIOS.

  • Page 13: System I/O

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 1: Product Introductions 1.3 System I/O 1.3.1 Front Panel ATX power on/off switch AT/ATX mode select switch Press to power-on or power-off the system Used to select AT or ATX power mode...

  • Page 14: Mechanical Dimension

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 1: Product Introductions 1.4 Mechanical Dimensions Unit: mm...

  • Page 15: Chapter 2 Jumpers And Connectors

    Chapter 2 Jumpers and Connectors...

  • Page 16: Jumper Settings

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 2: Jumpers and Connectors 2.1 Jumpers Settings When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

  • Page 17: Bottom View

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 2: Jumpers and Connectors 2.2.2 Bottom View 2.2.3 Daughter board view...

  • Page 18: List Of Switch / Jumper / Connector

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 2: Jumpers and Connectors 2.3 Connector / Jumper / Switch Definition List of Connector / Jumper / Switch Connector Location Definition AT_ATX1 AT / ATX Power Mode Switch CFAST1 CFast Connector...

  • Page 19: Switch Definition

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 2: Jumpers and Connectors 2.4 Switches Definitions AT_ATX1: AT / ATX Power Mode Switch Switch Definition 1-2 (Right) ATX Power Mode（Default） 2-3 (Left) AT Power Mode CLR_CMOS1: Clear BIOS Switch Switch...

  • Page 20: Connector Definition

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 2: Jumpers and Connectors 2.6 Connectors Definitions CFAST1: CFast (Cerebrospinal Fluid Artifact Suppression Technique) Connector Definition Definition Definition PC10 SATA_TX2+ PC11 SATA_TX2- PC12 PC13 +3.3V SATA_RX2- PC14 +3.3V SATA_RX2+ PC15 PC16...
  • Page 21 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 2: Jumpers and Connectors COM2_1: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS232 RS422 / 485 Full RS485 Half Duplex Definition Duplex Definition Definition DCD2 TX2- DATA2- Power over Serial PIN Definitions...
  • Page 22 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 2: Jumpers and Connectors COM4_1: RS232 / RS422 / RS485 Connector Connector Type: 9-pin D-Sub RS232 RS422 / 485 Full RS485 Half Duplex Definition Duplex Definition Definition DCD4 TX4- DATA4- Power over Serial PIN Definitions...
  • Page 23 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 2: Jumpers and Connectors...
  • Page 24 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 2: Jumpers and Connectors DP1: DisplayPort Connector Definition Definition DP_LANE0_P DP_LANE3_N DP_LANE0_N DP_LANE1_P DP_AUX_P DP_LANE1_N DP_LANE2_P DP_AUX_N DP_HPD DP_LANE2_N DP_LANE3_P DP_PWR DVI_I1: DVI-I Connector Definition Definition DVI_TX2- DVI Hot Plug Detect...
  • Page 25 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 2: Jumpers and Connectors LAN1: RJ45 with LEDs Port Definition Definition LAN1_MDI0P LAN1_MDI2N LAN1_MDI0N LAN1_MDI1N LAN1_MDI1P LAN1_MDI3P LAN1_MDI2P LAN1_MDI3N Act LED Status Definition Link LED Status Definition Blinking Yellow Data Activity...
  • Page 26 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 2: Jumpers and Connectors SPK_OUT1 : Speaker-out Jack (Green) MIC1: Microphone Jack (Pink) Connector Type: 5-pin Phone Jack Connector Type: 5-pin Phone Jack Definition Definition OUT_R MIC_R OUT_L MIC_L MINIPCIE1: Mini PCI-Express Socket...
  • Page 27 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 2: Jumpers and Connectors MINIPCIE2: Mini PCI-Express Socket Definition Definition Definition WAKE# +3.3V +3.3V USB_2P +3.3V MINIPCIE RST# MINIPCIE_RXN +3.3V +1.5V +3.3V CLKREQ# MINIPCIE_RXP +1.5V MINIPCIE_CLKN SMB_CLK +1.5V MINIPCIE_CLKP MINIPCIE_TXN SMB_DATA MINIPCIE_TXP +3.3V...
  • Page 28 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 2: Jumpers and Connectors PWR_SW1: Power Switch Definition Power Button SATA1: SATA with Power Connector Definition Definition SATA_TX1+ SATA_TX1- SATA_RX1- SATA_RX1+ +3.3V +3.3V +12V +3.3V +12V +12V SIM1：SIM Card Socket Definition...
  • Page 29 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 2: Jumpers and Connectors USB2_1: USB2.0 Connector, Type A Definition USB_DATA0- USB_DATA0+ USB2_2, USB2_3: USB2.0 Connector, Type A USB2_2 Definition USB2_3 Definition USB_DATA2- USB_DATA3- USB_DATA2+ USB_DATA3+ USB3_1: USB 3.0 Connector, Type A...

  • Page 30: Chapter 3 System Setup

    Chapter 3 System Setup...

  • Page 31: Removing The Chassis Bottom Cover

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 3: System Setup 3.1 Removing the Chassis Bottom Cover In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source.

  • Page 32: Removing The Chassis

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 3: System Setup 3.2 Removing the Chassis 1. Loosen the 3 screws as mark on photo and place them aside. 2. Hold front and rear panels and lift up the body of unit vertically.

  • Page 33: Installing A Half Size Mini Pcie Card On Top Side

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 3: System Setup 3.3 Installing a Half Size Mini PCIe Card on Top Side 1. Locate the Mini PCIe slot. 2. Use provided two screws on bracket to fasten the module and bracket together.
  • Page 34 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 3: System Setup 3. Tilt the Mini PCIe module at 45 degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. 45°...

  • Page 35: Installing A Full Size Mini Pcie Card On Top Side

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 3: System Setup 3.4 Installing a Full Size Mini PCIe Card on Top Side 1. Locate the Mini PCIe slot. 2. Tilt the Mini PCIe module at 45 degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot.

  • Page 36: Installing Antenna

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 3: System Setup 3.5 Installing Antennas Please installing a Mini PCIe Wireless Lan Card on top side before you put on washer and fasten the nut with antenna jack. 1. Remove the antenna hole covers at rear panel.
  • Page 37 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 3: System Setup 4. Assemble the antenna and antenna jack together. 5. Attach the RF connector at another end of cable onto the module.

  • Page 38: Installing A Half Size Mini Pcie Card On Bottom Side

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 3: System Setup 3.6 Installing a Half Size Mini PCIe Card on Bottom Side 1. Turn over the body of unit. Unscrew the 3 screws on HDD bracket and remove the bracket.
  • Page 39 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 3: System Setup 4. Tilt the Mini PCIe module at 45 degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. 5. Press down the module and use the two screws to fix the module.

  • Page 40: Installing A Full Size Mini Pcie Card On Bottom Side

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 3: System Setup 3.7 Installing a Full Size Mini PCIe Card on Bottom Side 1. Locate the Mini PCIe slot. 2. Tilt the Mini PCIe module at 45 degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot.

  • Page 41: Installing A Sata Hard Drive

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 3: System Setup 3.8 Installing a SATA Hard Drive 1. Lift up the empty HDD bracket by unscrewing the 3 screws. 2. Make the PCB side of the HDD face up, place the HDD bracket on it. Ensure the direction of bracket is correct and use 4 provided screws to assemble HDD and HDD bracket together.

  • Page 42: Installing A Sodimm

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 3: System Setup 3.9 Installing a SODIMM 1. Locate SODIMM socket. 2. Tilt the SODIMM module at a 45 degree angle and insert it to SODIMM socket until the gold-pated connector of module contacted firmly with the socket.

  • Page 43: Installing The Chassis

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 3: System Setup 3.10 Installing the Chassis 1. Hold the body of unit, level the 3 screw holes with the hollow studs on the chassis. 2. Make sure the either sides of front and rear panels are in the chassis grooves and insert the...

  • Page 44: Installing The Chassis Bottom Cover

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 3: System Setup 3.11 Installing the Chassis Bottom Cover 1. Level the grooves on bottom cover with front and rear panels. Put on the cover. 2. Fasten the 4 screws to fix the cover.

  • Page 45: Installing A Sim Card

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 3: System Setup 3.12 Installing a SIM Card 1. SIM card slot is at the front panel of the system. 2. Remove the mounting cover by unscrewing the two screws. 3. Insert the SIM card.

  • Page 46: Installing A Cfast Card

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 3: System Setup 3.13 Installing a CFast Card 1. Locate the CFast card slot. 2. Remove the mounting cover by unscrewing the two screws. 3. Insert the CFast card.

  • Page 47: Wall Mount Bracket

    Chapter 3: System Setup 3.14 Wall Mount Brackets DC-1100 offers a wall mount option so that customers can install the system on the wall in a convenient and economical ways. 1. The mounting holes are at the bottom of system. Use provided 4 screws to fasten the bracket with each side of system together.

  • Page 48: Side Mount Bracket

    Chapter 3: System Setup 3.15 Side Mount Bracket DC-1100 offers a side mount option so that customers can install the system to the right or left side of wall to create effective of space. 1. The mounting holes are at the bottom of system. Fasten the 4 screws to fix the side mount bracket with system together.

  • Page 49: Vesa Mount Bracket

    Chapter 3: System Setup 3.16 VESA Mount Brackets DC-1100 offers a VESA mount option so that customers can mount system with panel complying with VESA 75mm and 100 mm standard for various usage. 1. The mounting holes are at the bottom of 2.

  • Page 50: Din-Rail Mount Bracket

    Chapter 3: System Setup 3.17 DIN-Rail Mount Bracket DC-1100 offers a DIN-Rail mount option so that customers can install system on the DIN Rail. 1. The mounting holes are at the bottom of system. Fasten the 2 screws to fix the DIN-Rail...

  • Page 51: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup...

  • Page 52: Bios Introduction

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup 4.1 BIOS Introduction The BIOS (Basic Input/Output System) is a program located on a Flash Memory on the motherboard. When you start the computer, the BIOS program will gain control. The BIOS first...

  • Page 53: Main Setup

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup 4.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility, the Main Menu (as shown below) will appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu.

  • Page 54: Advanced Setup

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup 4.3 Advanced Setup 4.3.1 ACPI Settings Enable or disable BIOS ACPI Auto Configuration.

  • Page 55: Super Io Configuration

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup 4.3.2 Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. ■ Serial Port 1 Configuration ...
  • Page 56 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup ■ Serial Port 2 Configuration  Serial Port This item will allow users to enable or disable serial port.  COM2 Mode Select Change the Serial interface. Select <RS232> ,<RS422> or <RS485> interface.
  • Page 57 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup ■ Serial Port 4 Configuration  Serial Port This item will allow users to enable or disable serial port.  COM4 Mode Select Change the Serial interface. Select <RS232> ,<RS422> or <RS485> interface.

  • Page 58: Hardware Monitor

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup 4.3.3 Hardware Monitor These items display the current status of all monitored hardware devices/ components such as voltages and temperatures. 4.3.4 Serial Port Console Redirection  Console Redirection...

  • Page 59: Cpu Configuration

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup 4.3.5 CPU Configuration ■ Socket 0 CPU Information This section provides information on your CPU, frequency, and cache memory. ■ Active Processor Cores Change the active processor cores. Select <All> or <1> mode.

  • Page 60: Ppm Configuration

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup 4.3.6 PPM Configuration ■ EIST Enable or disable Intel SpeedStep. ■ CPU C state Report Enables or disables support for CPU's power-saving functions. ■ Enhanced C state Enables or disables Intel CPU Enhanced Halt (C1E) function, a CPU power-saving function in system halt state.

  • Page 61: Thermal Configuration

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup 4.3.7 Thermal Configuration ■ Critical Trip Point Allows user to set the CPU temperature threshold. If the CPU temperature reaches this value, the operating system will shut down the system. This item is configurable only when DTS is enabled.

  • Page 62: Ide Configuration

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup 4.3.8 IDE Configuration ■ Serial-ATA (SATA) This item will allow users to enable or disable Serial ATA. ■ SATA Mode This item will allow users to select IDE or AHCI Mode.

  • Page 63: Compatibility Support Module Configuration

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup 4.3.9 Compatibility Support Module Configuration ■ CSM Support Enables or disables UEFI CSM (Compatibility Support Module) to support a legacy PC boot process. ■ Boot option filter Allows user to select which type of operating system to boot.

  • Page 64: Usb Configuration

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup 4.3.10 USB Configuration ■ Legacy USB Support Allows USB keyboard/ mouse to be used in MS-DOS. ■ XHCI Hand-off Determines whether to enable XHCI (USB3.0) Hand-off feature for an operating system without XHCI (USB3.0) Hand-off support.

  • Page 65: Chipset

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup 4.4 Chipset 4.4.1 North Bridge This section provides information on the installed memory size and memory/onboard graphics- related configuration options.
  • Page 66 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup ■ Intel IGD Configuration This section provides onboard graphics-related configuration options.  GOP Driver This item will allow users to enable or disable GOP Driver.  Integrated Graphics Device This item will allow users to enable or disable Integrated Graphics Device.

  • Page 67: South Bridge

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup 4.4.2 South Bridge ■ Azalia HD Audio Control detection of the Azaliadevice.  Audio Controller Enabled: Azalia will be unconditionally enabled. Disabled: Azalia will be unconditionally disabled. ■ USB Configuration ...
  • Page 68 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup ■ PCI Express Configuration  PCI Express Port 0 This item will allow users to enable or disable PCI Express Port 0.  Speed Change the PCI Express interface speed. Select <AUTO> ,<Gen 2> or <Gen 1>...

  • Page 69: Security

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup 4.5 Security This section allows you to configure and improve your system and allows you to set up some system features according to your preference. 4.5.1 Administrator Password Administrator Password controls access to the BIOS Setup utility.

  • Page 70: Boot

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup 4.6 Boot This section allows you to configure the boot settings. 4.6.1 Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key.

  • Page 71: Save & Exit

    DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 4: BIOS Setup 4.7 Save & Exit This section allows you to configure the boot settings. 4.7.1 Save Changes and Reset This item allows user to reset system setup after saving changes.
  • Page 72 Chapter 5 Product Application...
  • Page 73 This section describes DIO application of the product. The content and application development are better understood and implemented by well experienced professionals or developers. 5.1.1 Digital I/O Programming Guide 5.1.1.1 Pins for Digital I/O for Cincoze DC-1100 series product Item Standard GPIO74 (Pin107)
  • Page 74 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 5: Product application 5.1.1.3 Relative Registers To program the F81866A configuration registers, see the following configuration procedures.
  • Page 75 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 5: Product application 5.1.1.4 Sample Code in C Language 5.1.1.4.1 Control of GP74 to GP77 (DI1 ~ DI4) #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87)
  • Page 76 DC-1100 | User’s Manual Compact Size Fanless Computer Chapter 5: Product application 5.1.1.4.2 Control of GP80 to GP83 (DO1 ~ DO4) #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device>...
  • Page 77 // Select configuration register 61h (Low Byte address) WriteByte(DataPort, ( 0x00)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Note: Cincoze DIO Port base address is 0x0A00h. 5.1.1.6 DATA Bit Table (DI/O) 7 6 5 4 3 2 1 0 7 6 5 4 3 2 1 0...
  • Page 78 Pin Definition Data Bits 0xA03 0xA02 I/O Port address 5.2 DC-1100 series Digital I/O (DIO) Hardware Specification • 4x Digital Input (Source Type) • Input Voltage (Dry Contact) - Logic 0: Close to GND - Logic 1: Open • Input Voltage: - Logic 0: -3V (Min/DI to COM+) •...
  • Page 79 © 2014 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
