Before Using
Charging
Attach the battery packs to both the display unit and the keypad
unit when charging. Always join FOMA terminal to charge the
keypad unit.
When FOMA terminal turned OFF, charge of the display unit takes
precedence when using AC adapter or DC adapter and charge of
the keypad unit takes precedence when using the desktop holder.

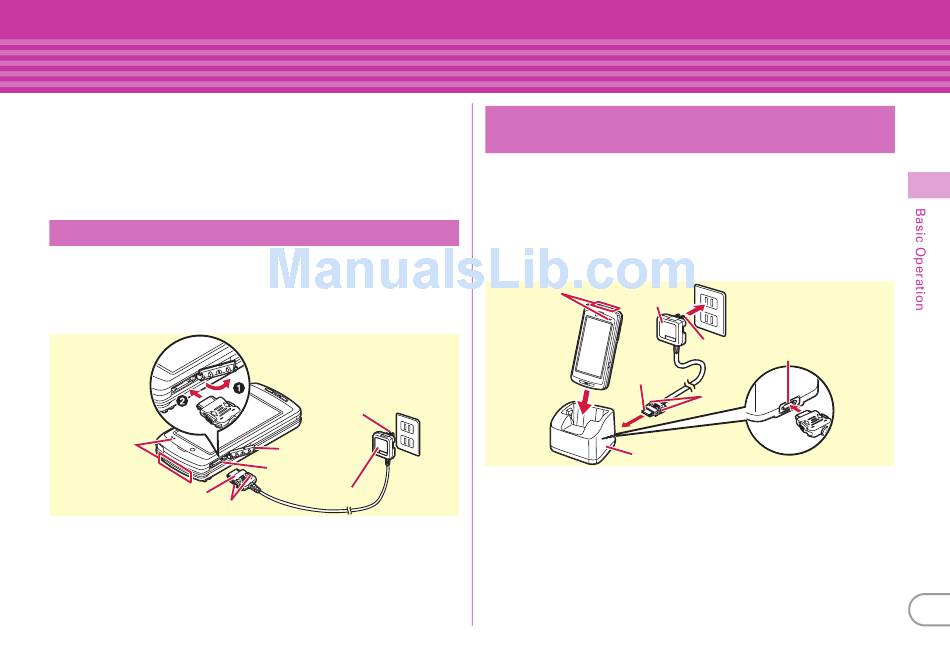

Charging using AC adapter
a
Open jack cap (a) of FOMA terminal, hold the
connector horizontally with the arrow side upward and
insert it to the jack. (b)
b
Unfold the power plug and insert it into a 100V AC outlet.
Check that
Indicator
light and
Arch light
Connector
turns on
Release buttons
c
When charging is over, pull out the power plug from
the outlet, and pull out from FOMA terminal
horizontally while pressing the release buttons on both
sides of the connector.
100V AC outlet
Power plug
Jack cap
External
connection jack
AC adapter
Using desktop holder and AC adapter in
combination for charging
a
Insert the connector of AC adapter horizontally to the
desktop holder, with the arrow mark side upward.
b
Unfold the AC adapters power plug and insert it into a
100V AC outlet.
c
Join FOMA terminal units into basic style and insert it
into the desktop holder.
Check that
AC adapter
Indicator
light and
Arch light
turns on
Connector
Desktop holder
d
After charging is completed, remove FOMA terminal
from the desktop holder.
✜
Operations for charging
･
When both units turn ON, a unit selection screen for charging with priority appears. If
there is no operation for a certain time, the display unit takes precedence.
･
When charging starts, a charge start alert sounds. While charging, the indicator
light or arch light turns on and the battery icons blink. When charging is ended, a
charge completion alert sounds.
100V AC outlet
Power plug
Insert at the back side
Release
buttons
