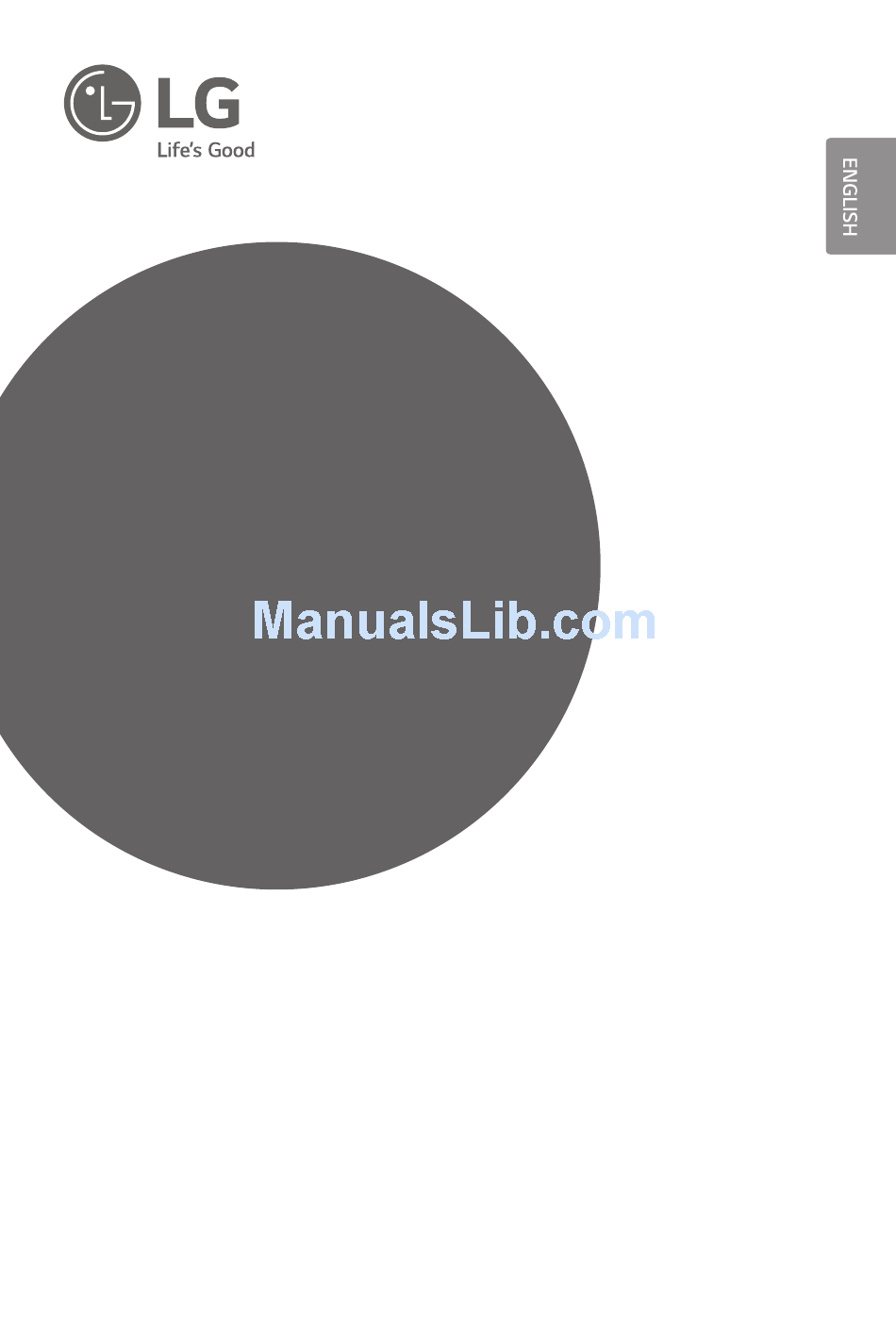

OWNER'S MANUAL
WASHING
MACHINE
Please read this manual carefully before operating
your set and retain it for future reference
T7267TDDL*
T7567TEDL*
T8067TEDL*
T8567TEDL*
P/NO : MFL68921108
Rev. No. : 01
www.lg.com

Advertisement

loading

  Summary of Contents for LG T7267TDDL SERIES

  • Page 1 OWNER'S MANUAL WASHING MACHINE Please read this manual carefully before operating your set and retain it for future reference T7267TDDL* T7567TEDL* T8067TEDL* T8567TEDL* P/NO : MFL68921108 www.lg.com Rev. No. : 01...
  • Page 2: Table Of Contents

    ontents READ THIS MANUAL Inside you will find many helpful hints on how to use and maintain your washer properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your washer. You will find many answers to common problems in the Troubleshooting section.
  • Page 3: Product Features

    roduct Features Washer doesn't operate while the lid is opened. If the lid is opened during the wash, rinse or spin cycles, the operation stops for safety. JET SPRAY A technology uniquely designed to spray inlet water with greater force to penetrate deep into the clothes to bring out the best washing and rinsing performance.
  • Page 4: Safety Information

    afety Information Read carefully and thoroughly go through this booklet as it contains important safety information that will protect the user from unexpected dangers and prevent potential damages to the product. This booklet is divided into 2 parts : Warning and Caution. : This is a warning sign specifying user’s applications which might be dangerous.
  • Page 5 j{kk tkudkjh bl iq L rd dks /;kuiw o Z d vkS j iw . kZ : i ls i<+ s a D;ks a f d bles a viz R ;kf'kr [krjks a ls mi;ks x drkZ dh j{kk vkS j mRikn ds fy, vla H kkfor uq d lku dks jks d us ds fy, egRoiw . kZ tkudkjh nh xbZ gS A ;g iq L rd Hkkxks a es a foHkkftr dh xbZ gS % ps r kouh vkS j lko/kkuhA ;g ,d ps r kouh dk la d s r gS ftles a mi;ks x drkZ dh dk;Z i )fr;k¡...
  • Page 6 afety Information YOUR WARNING LAUNDRY AREA • Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemical, etc. Operating with such materials around the machine may trigger explosion or fire. • Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with, or inside this or any other appliance.
  • Page 7 j{kk tkudkjh vkidk ps r kouh diM+ k /kks u s • vius midj.kks a ds uhps vkS j vklikl ds {ks = k dks Toyu'kkhy lkexz h tS l s fya V ] dkxt] diM+ s dk {ks = k ,oa jlk;u bR;kfn ls eq D r j[ks a A e'khu ds vklikl bl rjg dh lkexz h ds lkFk la p kyu djus ij foLQks V gks ldrk gS ;k vkx yx ldrh gS A...
  • Page 8 afety Information WHEN USING WARNING THE WASHER • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 9 j{kk tkudkjh e'khu dk mi;ks x ps r kouh djrs le; • ;g midj.k mu O;fDr;ks a ¼cPpks a lfgr½ ds mi;ks x ds fy, ugha gS ftudh 'kkjhfjd] la o s n h ;k ekufld {kerk de gS ;k mues a vuq H ko vkS j Kku dh deh gS ] tc rd fd mudh lq j {kk ds fy, fdlh ftEes n kj O;fDr }kjk midj.k ds mi;ks x ds la c a / k es a i;Z o s { k.k ;k funs Z ' k u fn;k tk;s A Iyx] lkW d s V vkS j rkjks a ds midj.kks a dk mudh fu/kkZ f jr {kerk ls vf/kd dk mi;ks x u djs a ] lhek ls vf/kd ds mi;ks x djus ij fo|q r >Vdk] vkx] [kjkc ;k iq t s Z foÑr gks ldrs gS a A...
  • Page 10: Identification Of Parts

    ” Parts can be different according to the model. Please do not match this figure with model as it may be different from your model .These are schematic diagrams only. Due to continuous improvements at LG, specification of washing machine are subject to change without prior notice.
  • Page 11: Quick Wash

    unction Information Our machine provides various washing methods which suits various conditions and types of laundry. Different types of laundry washing FUZZY (NORMAL) Wash Use this Program for everyday washing e.g. sheets, towels, T-shirts . (refer to page 20) STRONG (JEANS) Wash Use this Program for heavily soiled durable garments e.g.
  • Page 12: Preparation Before Washing

    Use nylon nets for long, DELICATE items. For laundry with long strings or long length , a net will prevent tangling during washing. Fasten zippers, hook, and strings to make sure that these items don't snag on other clothes. Nylon net is not supplied by LG.
  • Page 13: Use Of Water, Detergent, Bleach And Softener

    se of Water, Detergent, Bleach and Softener Using Water Amount of WATER LEVEL WATER-DETERGENT FULL • This machine detects the quantity of laundry automatically, then set the WATER LEVEL and proper amount of Detergent. • When you select a wash program, the WATER LEVEL will be shown on the control panel.
  • Page 14 Water Level and Amount of Detergent Concentrated detergent: 20g per 30 liters of water. Regular synthetic detergent: 30g per 30 liters of water. When sensing water levels automatically, the amount of detergent can differ according to the amount of laundry even at the same water level.
  • Page 15 se of Water, Detergent, Bleach and Softener Using Fabric Softener • Dilute fabric softener with water. Softener dispenser( Undiluted fabric softener may result in spots that look like oil stains. • Measure and add the recommended amount of fabric softener into the compartment marked with this symbol( Follow manufacturer’s direction.
  • Page 16: Special Guide For Stain Removal

    pecial Guide for Stain Removal WARNING Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death. To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below: Read and comply with all instructions on stain removal products.
  • Page 17: Stain Removal

    pecial Guide for Stain Removal Stain Removal STAIN TREATMENT Adhesive tape, chewing gum, Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with prewash stain remover or rubber cement nonflammable dry cleaning fluid. Use product containing enzymes to pretreat or soak stains. Baby formula, dairy products, egg Beverages (coffee, tea, soda, juice, Pretreat stain.
  • Page 18 (refer to page 22)
  • Page 19: Quick Wash

    WASHING CONDITION INDICATOR follows : FUZZY (Normal) GENTLE (WOOL/SAREE) QUICK WASH STRONG (JEANS) EXTRA/SMART RINSE AQUA RESERVE ECO WASH CLEAN FUZZY (Normal) etc. Select the desired program by pressing the (refer to page 27) button. (refer to page 24) Do not match above picture with your purchased model, the Control Panel may differ according to different models. Product feature may very according to different models.
  • Page 20: Extra Rinse

    load and the ideal wash power & wash, rinse and spin times are set accordingly. GENTLE (WOOL/SAREE) Select the GENTLE and saree (WOOL/ SAREE) program on saree the control or saree panel. washing wool or saree. STRONG (JEANS) Select the STRONG (JEANS) program on...
  • Page 21 prevent damage to laundry. It should always be high.
  • Page 22 Use this mode to wash normal clothes or thick and heavy clothes which are excessvely dirty. SOAK mode can be used with FUZZY or STRONG (JEANS) or AQUA RESERVE or ECO WASH or EXTRA /SMART Rinse program. SOAK will not work in GENTLE (WOOL/SAREE) and QUICK WASH, TUB CLEAN Program.
  • Page 23: Eco Wash

    CO Wash Use this program to save water consumption. Select the PROGRAM button to select ECO WASH program Add the laundry into the washing tub. Add the detergent & close the lid. ECO Wash is recommended program designed to minimize water consumption for normally soiled clothing. For water saving we recommend to use 5 to 8 Water level.
  • Page 24 irritant odour. damage to the tub. time, as it may rust the tub. Use this program once in every month.
  • Page 25 dirty...
  • Page 26 When you only need the SPIN, RINSE/SPIN,RINSE, WASH/RINSE, WASH, WASH/ RINSE/SPIN these can be set manually. Press the RINSE button to select the desired no. of rinse cycles. When you want to only drain, press SPIN button. Then press START/PAUSE button.
  • Page 27: Tub Clean

    DELAY START (RESERVATION) Wash is used to delay the nishing time of the operation. The hours to be delayed can be set by the user accordingly. The time on the display is the nishing time, not the start time. Select the program for laundry on the Control panel. This program will not work in GENTLE (WOOL/SAREE) and TUB CLEAN Program.
  • Page 28 simultaneously, and hold till “CL” blink. • During the wash program, all the buttons are locked until washing is completed or child-lock function is deactivated manually. If you want to use the washing machine without alarm signal sounds, pressing BEEPER button allows you to select : HIGH OFF LOW HIGH respectively.
  • Page 29 lacing, Leveling and Installation Improper installation of the washer may cause noise and malfunctioning. The ventilating openings in the base area must not be obstructed by carpeting when the washing machine is Note : installed on a carpeted floor. Install the washing machine on a level and firm Installation area surface.
  • Page 30: Water Supply Hose

    onnecting Hose Water Supply Hose Normal Type (Normal tap without thread & one touch type inlet hose.) Separate Middle connector from Water Supply Hose Separate Middle connector from the Water Middle Fixed Sticker connector Supply Hose by pulling the Pressing Rod and the Pressing Handle Pressing Handle that is attached to the Water Pressing Rod...
  • Page 31: Drain Hose

    condition. Drain Hose How to connect the drain hose Insert the drain hose to the connect- Press the hose clip. ing area at the body. While pressing, push the hose towards the body. Release the hose clip after pushing the hose.
  • Page 32: Grounding Method

    LG Electronics India Pvt. Ltd. pick up facilities are done by third parties with LG Electronics India Pvt. viuh ls o k,a iz n ku dj jgh gks a ] ls djok,a A Ltd. Merely as a facilitator.
  • Page 33 To Clean the Magic Filter If the magic filter is damaged, purchase a new one from LG Authorised Service Center. When there is a fear of freezing • Close the water taps and remove the Water Supply Hose.
  • Page 34: Use Of Handle Locker

    leaning and Maintenance Cleaning the Inside of your Washer If you use fabric softener or do regular COLD water washing, it is very important that you occasionally clean the inside of your washer. • Fill your washer with HOT water. •...
  • Page 35: Common Washing Problems

    ommon washing problems Many washing problems involve poor soil & stain removal, residues of lint and scum, and fabric damage. For satisfactory washing results, follow these instructions. WASH PROBLEM Problems Solutions & Preventive Measures Possible Causes • Not enough Detergent •...
  • Page 36: Troubleshooting

    • Is the laundry evenly balanced? Spin Failure • Is the washing machine placed on a flat surface.? Door(Lid) Open • Is the lid closed? • Please call your nearest LG Electronics service center for help. Internal sensing failure Power failure Overflow failure...
  • Page 37 Using SmartDiagnosis sound is When instructed to do so by the call center, place the mouthpiece of your phone just above to the Smartdiagnosis symbol near to Power Button. AIR DRY...
  • Page 38 eatures & Specifications...
  • Page 40 MFL68921108...
