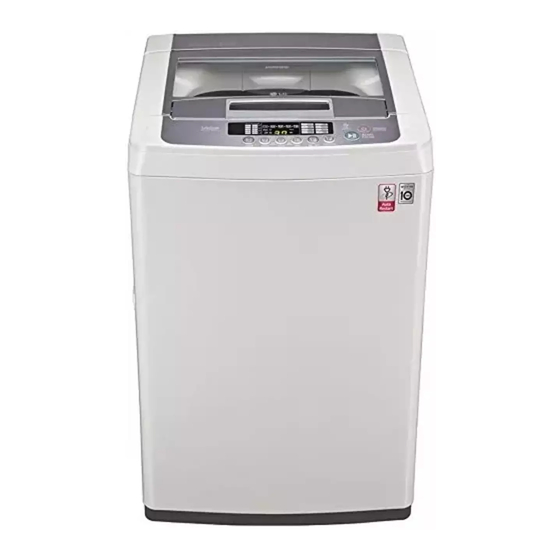

LG T7569NDDL Series Owner's Manual

Hide thumbs Also See for T7569NDDL Series:

Owner's manual (40 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

OWNER'S MANUAL

WASHING

MACHINE

Please read this manual carefully before operating

your set and retain it for future reference

T7569NDDL*

T7269NDDL*

T7069NDDL*

* : 1,5,H,J,K,L,R,X, Y or etc.

P/NO : MFL68486508

Rev. No. : 00_170426

www.lg.com

Table of Contents

Need help?

Do you have a question about the T7569NDDL Series and is the answer not in the manual?

Questions and answers

Summary of Contents for LG T7569NDDL Series

Page 1 Please read this manual carefully before operating your set and retain it for future reference T7569NDDL* T7269NDDL* T7069NDDL* * : 1,5,H,J,K,L,R,X, Y or etc. www.lg.com P/NO : MFL68486508 Copyright © 2017 LG Electronics. All rights reserved. Rev. No. : 00_170426...
Page 2: Table Of Contents
ontents READ THIS MANUAL Inside you will find many helpful hints on how to use and maintain your washer properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your washer. You will find many answers to common problems in the Troubleshooting section.
Page 3: Product Features
roduct Features Washer doesn't operate while the lid is opened. If the lid is opened during the wash, rinse or spin cycles, the operation stops for safety. Pre Wash Normal The purpose of this program is to deliver best Wash Performance by adding extra 8 minutes of uniquely designed washing pattern before the main wash cycle.
Page 4: Safety Information
afety Information Read carefully and thoroughly go through this booklet as it contains important safety information that will protect the user from unexpected dangers and prevent potential damages to the product. This booklet is divided into 2 parts : Warning and Caution. : This is a warning sign specifying user’s applications which might be dangerous.
Page 5 j{kk tkudkjh bl iq L rd dks /;kuiw o Z d vkS j iw . kZ : i ls i<+ s a D;ks a f d bles a viz R ;kf'kr [krjks a ls mi;ks x drkZ dh j{kk vkS j mRikn ds fy, vla H kkfor uq d lku dks jks d us ds fy, egRoiw . kZ tkudkjh nh xbZ gS A ;g iq L rd Hkkxks a es a foHkkftr dh xbZ gS % ps r kouh vkS j lko/kkuhA ;g ,d ps r kouh dk la d s r gS ftles a mi;ks x drkZ dh dk;Z i )fr;k¡...
Page 6 afety Information YOUR WARNING LAUNDRY AREA • Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemical, etc. Operating with such materials around the machine may trigger explosion or fire. • Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with, or inside this or any other appliance.
Page 7 j{kk tkudkjh vkidk ps r kouh diM+ k /kks u s • vius midj.kks a ds uhps vkS j vklikl ds {ks = k dks Toyu'kkhy lkexz h tS l s fya V ] dkxt] diM+ s dk {ks = k ,oa jlk;u bR;kfn ls eq D r j[ks a A e'khu ds vklikl bl rjg dh lkexz h ds lkFk la p kyu djus ij foLQks V gks ldrk gS ;k vkx yx ldrh gS A...
Page 8 afety Information WHEN USING WARNING THE WASHER • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Page 9 j{kk tkudkjh e'khu dk mi;ks x ps r kouh djrs le; • ;g midj.k mu O;fDr;ks a ¼cPpks a lfgr½ ds mi;ks x ds fy, ugha gS ftudh 'kkjhfjd] la o s n h ;k ekufld {kerk de gS ;k mues a vuq H ko vkS j Kku dh deh gS ] tc rd fd mudh lq j {kk ds fy, fdlh ftEes n kj O;fDr }kjk midj.k ds mi;ks x ds la c a / k es a i;Z o s { k.k ;k funs Z ' k u fn;k tk;s A Iyx] lkW d s V vkS j rkjks a ds midj.kks a dk mudh fu/kkZ f jr {kerk ls vf/kd dk mi;ks x u djs a ] lhek ls vf/kd ds mi;ks x djus ij fo|q r >Vdk] vkx] [kjkc ;k iq t s Z foÑr gks ldrs gS a A...
Page 10: Identification Of Parts
” Parts can be different according to the model. Please do not match this figure with model as it may be different from your model .These are schematic diagrams only. Due to continuous improvements at LG, specification of washing machine are subject to change without prior notice.
Page 11: Function Information
unction Information Our machine provides various washing methods which suits various conditions and types of laundry. Different types of laundry washing Normal Wash Use this Program for everyday washing e.g. sheets, towels, T-shirts. (refer to page 20) Strong (Jeans) Wash Use this Program for heavily soiled durable garments e.g.
Page 12 Use nylon nets for long, DELICATE items. For laundry with long strings or long length , a net will prevent tangling during washing. Fasten zippers, hook, and strings to make sure that these items don't snag on other clothes. Nylon net is not supplied by LG.
Page 13 se of Water, Detergent, Bleach and Softener se of Water, Detergent, Bleach and Softener Using Water Amount of WATER LEVEL* • This machine detects the quantity of laundry automatically, then set the WATER LEVEL. • When you select a wash program, the WATER LEVEL will be shown on the control panel. •...
Page 14 Water Level and Amount of Detergent Concentrated detergent: 20g per 30 liters of water. Water Amount Amount Level of Water of laundry Regular synthetic detergent: 30g per 30 liters of water. 62 l Less than When sensing water levels automatically, the amount of Less than 5.5kg 59 l detergent can differ according to the amount of laundry...
Page 15: Option Washing
se of Water, Detergent, Bleach and Softener Using Fabric Softener • Dilute fabric softener with water. Undiluted fabric softener may result in spots that look like oil stains. Softener dispenser( • Measure and add the recommended amount of fabric softener into the compartment marked with this symbol( Follow manufacturer’s direction.
Page 16 pecial Guide for Stain Removal WARNING Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death. To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below: Read and comply with all instructions on stain removal products.
Page 17 pecial Guide for Stain Removal Stain Removal STAIN TREATMENT Adhesive tape, chewing gum, Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with prewash stain remover or rubber cement nonflammable dry cleaning fluid. Baby formula, dairy products, egg Use product containing enzymes to pretreat or soak stains.
Page 18 Use to lock or unlock the control This button is used for air-drying of your buttons prevent settings from laundry Air dry selection lights up in sequence as being changed by a child. follows . To lock, push the RINSE and 30▶60▶90 ▶2 HOUR ▶30 ▶60.
Page 19 SMART DIAGNOSIS Function Display It marks the place to put the phone to receive signal when a problem occurs. (refer to page 38) Use to set a delayed ﬁnishing time. To increase the time press WASH and RINSE button simultaneously The following settings are indicated as the button is pushed 3►4 ►5►...
Page 20 Normal Wash Use this program for washing NORMAL normal clothes, this mode Program is automatically selects the most set by default appropriate conditions and completes the sequence in one operation. The built-in sensor detects the size of the load and ideal wash power &...
Page 21 Wash tub rotates twice to Open the lid and add When the wash detect the laundry load. appropriate quantity of program ends, the detergent as shown on buzzer will ring and Water level will be indicated water level indicator or the power goes off Changes to water level is possible, only and water will be supplied...
Page 22 Use this mode to wash normal clothes or thick and heavy clothes which are excessively dirty. SOAK mode can be used with NORMAL or STRONG (JEANS) or AQUA RESERVE WASH or FAVORITE program. SOAK will not work in GENTLE(WOOL), PREWASH+NORMAL & QUICK WASH Programs. wash When the wash program ends, the buzzer will ring and Power goes off automatically after 15 secs.
Page 23 AVORITE Wash* Press the WASH button, the RINSE button & the SPIN button to select wash time, rinse times & QUA RESERVE Wash Use this program to reuse the water for second round of wash load AQUA RESERVE Do not keep water hold for long time after the end of cycle This may cause bad odour and damage the laundry.
Page 24 This program takes about 2hrs to be completed. irritant odour. damage to the tub. time, as it may rust the tub. Use this program once in every month.
Page 25 Select “Air Dry” 30 min for Tub Drying When you only need the SPIN, RINSE/SPIN,RINSE, WASH/RINSE, WASH, WASH/ RINSE/SPIN these can be set manually. • Press the WASH button to • Press the RINSE button to • Press the SPIN button to select the desired timing.
Page 26 • Press the WASH button to • Press the RINSE button to When you want to only select the desired timing. select the desired no. of drain, press SPIN button. rinse cycles. • Press the RINSE button to Then press START/PAUSE select the desired no.
Page 27: Delay Start (Reservation) Wash
DELAY START (RESERVATION) Wash is used to delay the ﬁnishing time of the operation. The hours to be delayed can be set by the user accordingly. The time on the display is the ﬁnishing time, not the start time. Select the program for laundry on the Control panel. This program will not work in GENTLE (WOOL) and TUB CLEAN Program.
Page 28 simultaneously, and hold till “CL” blink. • During the wash program, all the buttons are locked until washing is completed or child-lock function is deactivated manually. To see the remaining time for each process, first press START/PAUSE button and then press one of the WASH, RINSE and SPIN buttons.
Page 29: Placing, Leveling And Installation
lacing, Leveling and Installation Improper installation of the washer may cause noise and malfunctioning. The ventilating openings in the base area must not be obstructed by carpeting when the washing machine is Note : installed on a carpeted floor. Install the washing machine on a level and firm Installation area surface.
Page 30: Connecting Hose
onnecting Hose Water Supply Hose Normal Type (Normal tap without thread & one touch type inlet hose.) Separate Middle connector from Water Supply Hose Separate Middle connector from the Water Middle Fixed Sticker connector Supply Hose by pulling the Pressing Rod and the Pressing Handle Pressing Handle that is attached to the Water Pressing Rod...
Page 31 condition. Drain Hose How to connect the drain hose Insert the drain hose to the connect- Press the hose clip. ing area at the body. While pressing, push the hose towards the body. Release the hose clip after pushing the hose.
Page 32: Grounding Method
rounding Method Earth wire should be connected. If the earth wire is not connected, there is possible a danger of electric shock caused by the current leakage . Ground terminal Grounding Method with Ground insert space Terminal If the AC current outlet has a ground terminal, then separate grounding is not required.
Page 33 To Clean the Magic Filter If the magic filter is damaged, purchase a new one from LG Authorised Service Center. # Product feature may vary according to different models. Refer page 39 for model wise features for your...
Page 34: Cleaning And Maintenance
leaning and Maintenance When there is a fear of freezing • Close the water taps and remove the Water Supply Hose. • Remove the water which remains in the water supply. • Lower the drain hose and drain the water in the bowl and the drain hose by spinning. If frozen °...
Page 35: Use Of Handle Locker
A lHkh la x z g .k ds U nz o 1800-315-9999 / 1800-180-9999 centre and pick up facilities are done by third parties with LG vi dh lq f o/kk,a fdlh FkMZ ikVhZ tks LG Electronics India Pvt.
Page 36: Common Washing Problems
ommon washing problems Many washing problems involve poor soil & stain removal, residues of lint and scum, and fabric damage. For satisfactory washing results, follow these instructions. WASH PROBLEM Problems Solutions & Preventive Measures Possible Causes • Not enough Detergent •...
Page 37: Troubleshooting
• Is the laundry evenly balanced? Spin Failure • Is the washing machine placed on a flat surface.? Door(Lid) Open • Is the lid closed? • Please call your nearest LG Electronics Internal sensing service center for help. failure Power failure Motor Error Overflow failure •...
Page 38: Smart Diagnosis
Diagnosis Only use this feature when instructed to do so by the LG Customer Service Call Center. The transmission sound is similar to a fax machine, and so has no meaning except to the call center. Press and hold the Water level button for three seconds, while holding the phone mouthpiece to the icon or POWER button.
Page 39 eatures & Speciﬁcations...
Page 40 MFL68486508...
