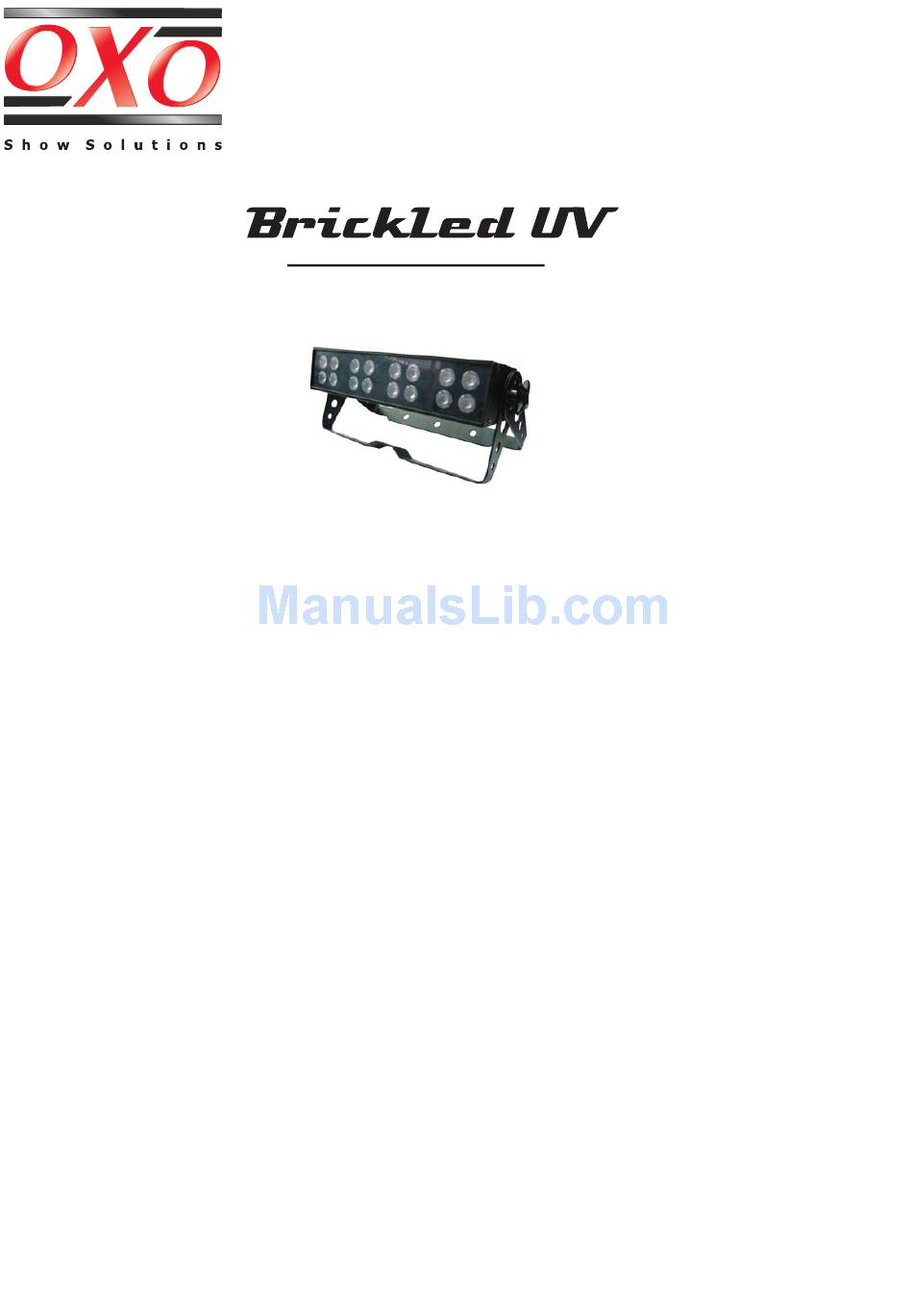

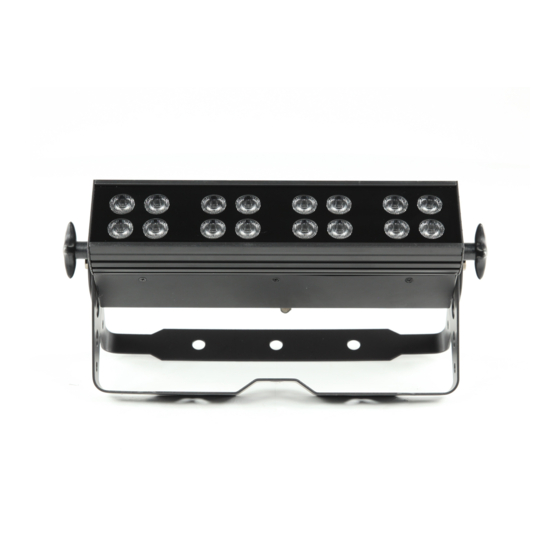

OXO Brickled UV User Manual

WARNING ! - To reduce the risk of fire or injury:
1. Never operate this device:
If it has a damaged cord or plug; if it is not working properly;
If it has been dropped or damaged, or immersed into water.
Return the product to the dealer for examination and repair.
2. Keep the cord away from heated surfaces.
3. Never block the air opening of the device.
4. Never place it near fabrics or combustible materials.
5. Never drop or insert any object into any opening.
6. Always unplug this product immediately after using.

Operation Instruction

1) The system has DMX online mode and stand- alone mode. DMX online mode can link up each other and is
controlled by DMX controller. Stand- alone has some functions, such as dimmer, change program, music
active and so on.
2) When under DMX mode or Master/ slave mode, the signal is present. The slave LED will blink fast. The
address will blink without signal.
3) If the slave links up the master and also connects wi th DMX controller, the master can identify automatically
the data and also turn off the function of sending data from master. Under this mode, the led is lightless. The
slave receives the signal from DMX controller.
4) If slave receives the signal from master, led is light all the time. The slave switches automatically into 1- SL.
Under this circumstance, the slave is synchronal with the master. The buttons of up and down is no function.
5)When the unit recrive DMX signal,master/slave mode will change into DMX online mode.When unit cut off DMX signal,the unit runs reture.
