Summary of Contents for ELC dmXLAN node3

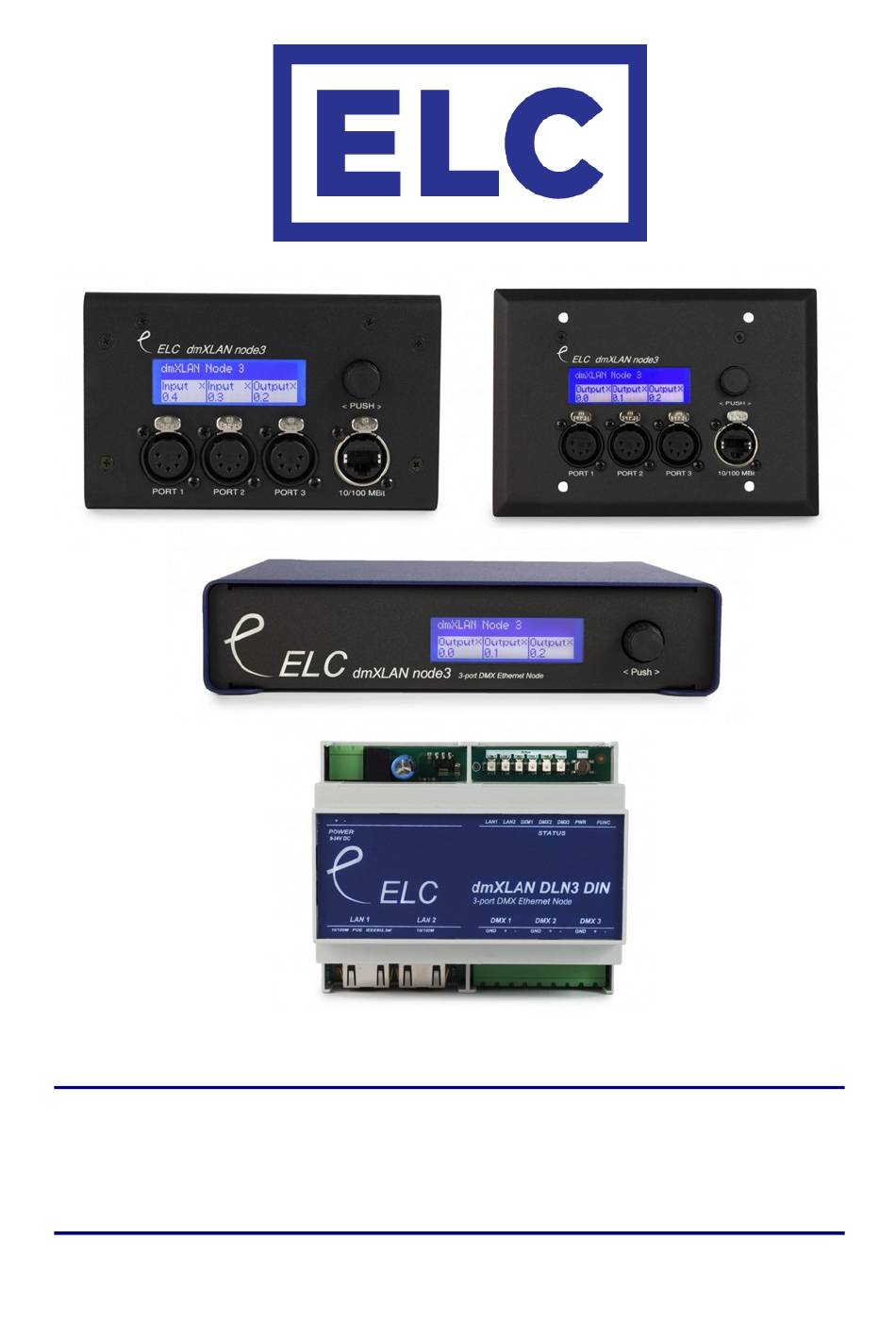

  • Page 1 User Manual...
  • Page 2 __________________________________________________________________________________ ELC dmXLAN node3 User Manual...
  • Page 3 User Manual The ELC dmXLAN node3 has 3 bi-directional DMX ports to convert from or to sACN, Art-Net or Shownet. An internal switch provides a second Ethernet port for a local lighting desk or additional Ethernet switches or nodes. The node3 can be outfitted with fully isolated DMX ports and Power over Ethernet.
  • Page 4 This DIN-rail mounted Power over Ethernet version connects 3 bi-directional DMX ports to an Ethernet network, and an internal switch provides a second Ethernet port for a local lighting desk or a PC running ELC dmXLAN control/management freeware or additional Ethernet switches or nodes.
  • Page 5 The ports also have internal 120 Ohm terminator resistors and line biasing for RDM. This product may only be used for controlling dimmers and moving lights. Using the product outside of these specifications will remove all responsibility from the supplier. __________________________________________________________________________________ ELC dmXLAN node3 User Manual...

  • Page 6: Operation

    Operation The dmXLAN node3 can be operated in 2 ways; either through the front panel or the dmXLAN control software. The software can be downloaded from the ELC website at www.elclighting.com. The front panel control options will be explained below.
  • Page 7 If the selected universe is not present on the network for several seconds and the input has valid DMX, then it will send DMX data. If another sender starts sending the same universe, the input will go back into backup mode. __________________________________________________________________________________ ELC dmXLAN node3 User Manual...

  • Page 8: Technical Specifications

    Wall Mount Power: Power over Ethernet required on the internal connection Dimensions: 165 x 115 x 40 mm Weight: 0.3 kg node3 DIN Dimensions: 105 x 90 x 60 mm Weight: 0.2 kg __________________________________________________________________________________ ELC dmXLAN node3 User Manual...

  • Page 9: General Safety Instructions

    In all of the previous conditions, disconnect the main plug immediately and call your distributor or technical support! __________________________________________________________________________________ ELC dmXLAN node3 User Manual...
  • Page 10 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE __________________________________________________________________________________ ELC dmXLAN node3 User Manual...

  • Page 11: Declaration Of Conformity

    All signal input- and output connections must be shielded and the shielding must be connected to the ground of the corresponding plug. Gemert, February 16, 2018 ing. Joost van Eenbergen __________________________________________________________________________________ ELC dmXLAN node3 User Manual...
