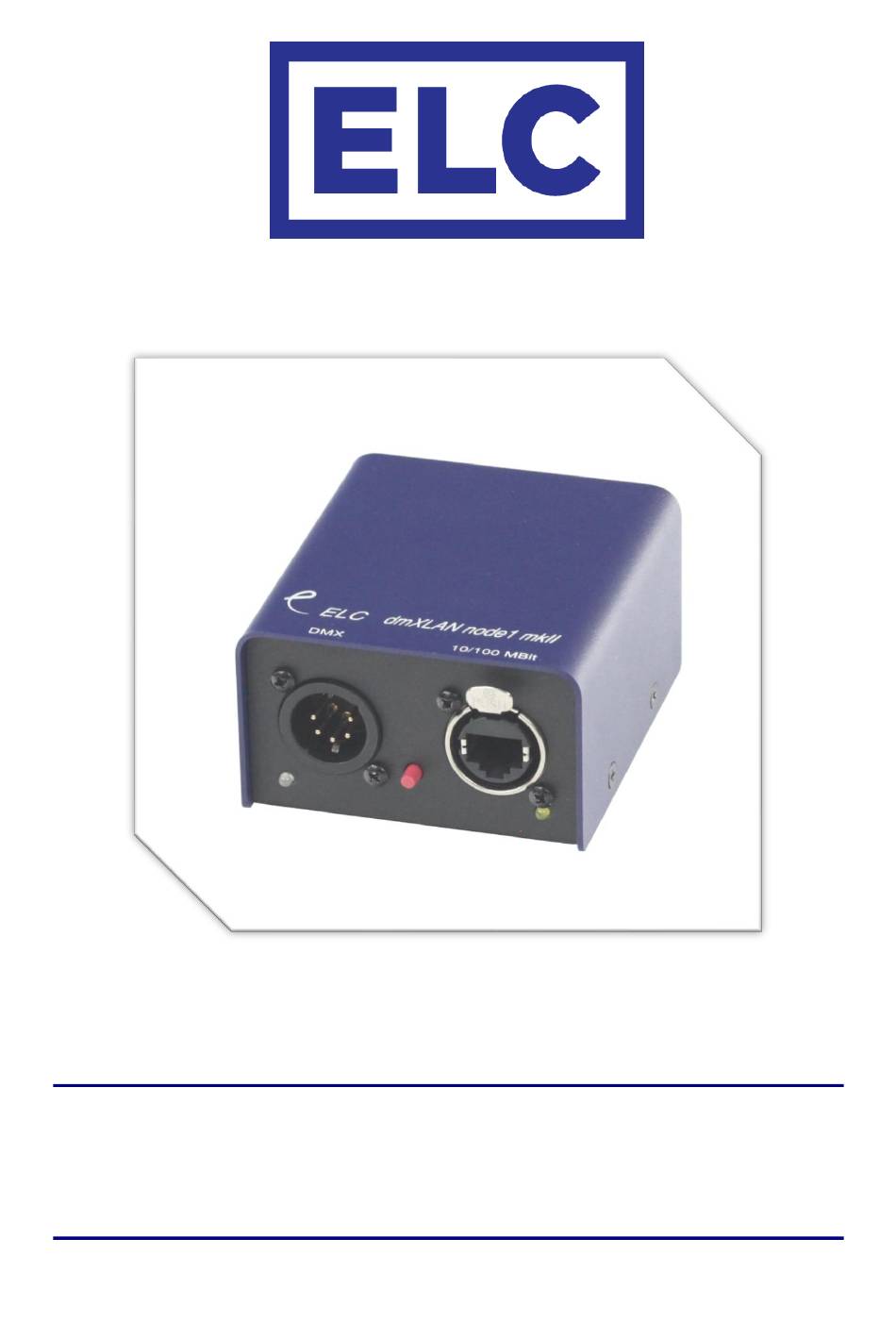

- Page 1 User Manual...
- Page 2 __________________________________________________________________________________ ELC dmXLAN node1s User Manual...
- Page 3 User Manual The dmXLAN node1s is a single port desk or surface mounted Ethernet to DMX / DMX to Ethernet node. This easy to use device will either convert one DMX universe from a lighting desk for use with an Ethernet network, or provide one DMX universe from an Ethernet network.
- Page 4 All DMX ports are bi-directional (can act as input or output) with RDM preparation and internal 120 Ohm terminator resistors. Mounting The ELC dmXLAN node1s can be mounted to a wall or surface using the keyhole or circular hole located on the back of the device. This product may only be used for controlling dimmers and moving lights.
- Page 5 The software can be downloaded from the ELC website at www.elclighting.com. Further configuration of the dmXLAN node1s is all done using the single red switch located on the front of the unit, between the two connections. This switch can be used in 3 ways;...
- Page 6 If another sender starts sending the same universe, the input will go back into backup mode. Technical specifications Power: Power over Ethernet (IEEE 802.3af) Dimensions: 83 x 75 x 45 mm Weight: 0.3 kg __________________________________________________________________________________ ELC dmXLAN node1s User Manual...
- Page 7 In all of the previous conditions, disconnect the main plug immediately and call your distributor or technical support! WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE __________________________________________________________________________________ ELC dmXLAN node1s User Manual...
- Page 8 All signal input- and output connections must be shielded and the shielding must be connected to the ground of the corresponding plug. Gemert, February 16, 2018 ing. Joost van Eenbergen __________________________________________________________________________________ ELC dmXLAN node1s User Manual...
