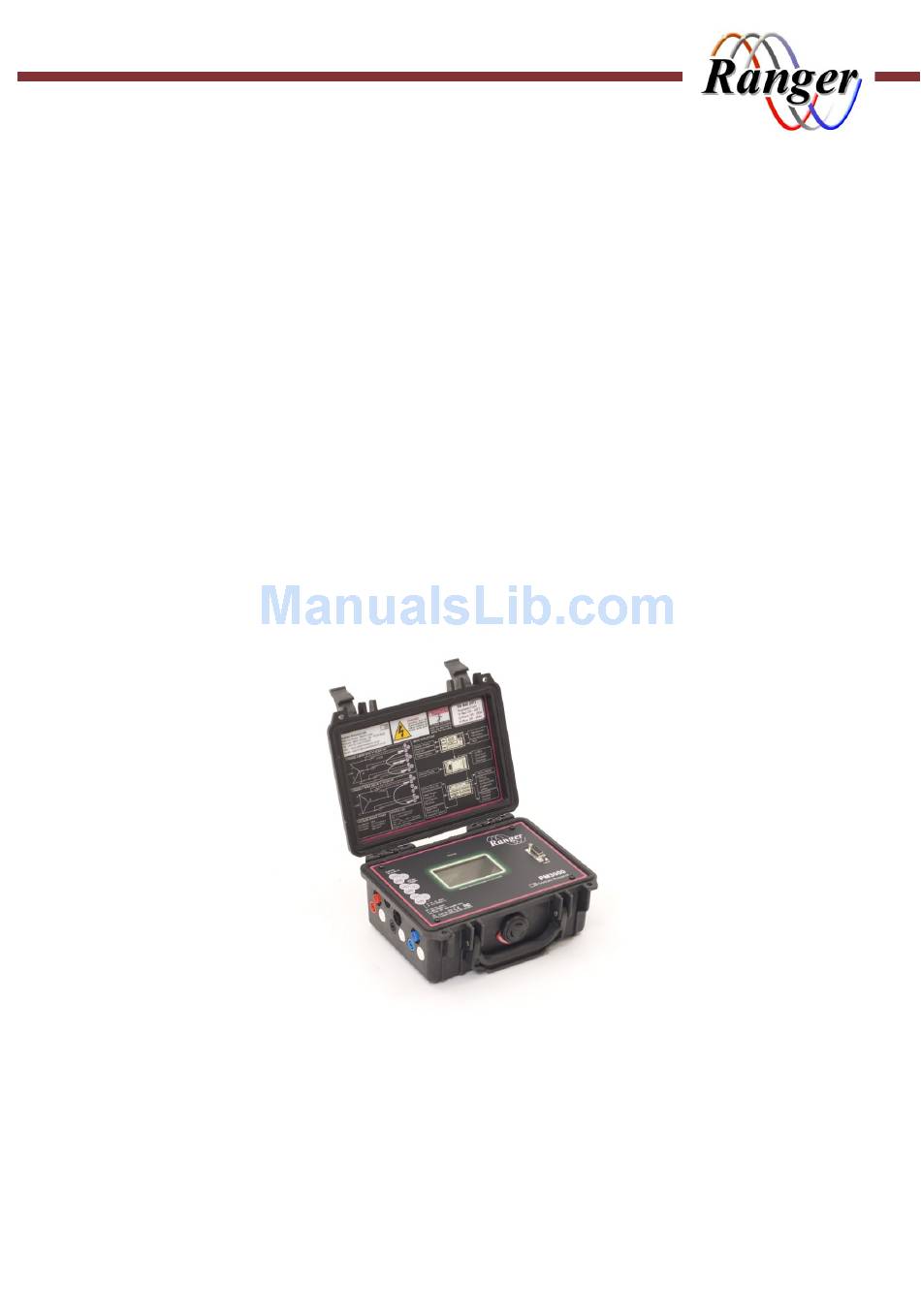

Configuration Guide
for the
Ranger PM3000
Recommended
Read through this short guide before
configuring your PM3000.
Synergy Systems, Inc
4101 Pierce Drive
Shelby Township, MI 48316
PH: 800-338-4505 ● Fax: 248-656-6078
Email: sales @ synergy-mi.com
www.powerqualityrecorders.com
Advertisement
Summary of Contents for Ranger PM3000
- Page 1 Configuration Guide for the Ranger PM3000 Recommended Read through this short guide before configuring your PM3000. Synergy Systems, Inc 4101 Pierce Drive Shelby Township, MI 48316 PH: 800-338-4505 ● Fax: 248-656-6078 Email: sales @ synergy-mi.com www.powerqualityrecorders.com...
- Page 2 Configuration Guide for the Ranger PM3000 . Choose the best configuration for your needs To help you set up your PM3000 as quickly and easily as possible we have pre- loaded 23 recording configurations (configs) ready for your immediate use. The default config is on p.
-
Page 3: Configuration Options
Configuration Options Changes that can be made to any configuration, using PMScreen, are: Physical Hook-up Hook-up (10 different physical connection set-ups available) Input Channel Calibration Timings / Memory Mode Length of recording (1 sec to as long as you like, ‘FIFO’) ... - Page 4 PM3000 and PM3000HF Factory Configuration Summary Table Adaptive Store Configuration Name Hook-up Recording Detail Current Channels All Configurations are set to record for a 7 day period (unless otherwise stated) with FIFO recording mode off. * signifies use in PM3000HF units only 1ø...
- Page 5 3 V2 480 Volts = 480.0 4 I2 1000 Amps = 1000.0 Detailed (Math) Channels 5 Vne 480 Volts = 480.0 1 RMS of Signal Vln (Vac) 6 I3 1000 Amps = 1000.0 2-16 Unspecified Alarms: None PM3000 Power Quality Analyzer Factory Configurations...
- Page 6 7 Flicker short term Van 10 mins (Pst) 0.80 Off 8 Flicker long term Van 2 hours (Plt) 50.50 49.50 9 RMS of Signal Vne (Hi resolution) (Vac) 10-15 Unspecified 16 AC Frequency (Hz) PM3000 Power Quality Analyzer Factory Configurations...
- Page 7 5 Real Power (V.A)= ChVln * ChIl / 1000 (kW) 6 Reactive Power (V.A)= Vln * Il / 1000 (kVr) 7 Displacement Power Factor (V,A)= Vln, Il (PF) 8 Apparent Power (V.A)= Vln * Il / 1000 (kVA) 9-16 Unspecified PM3000 Power Quality Analyzer Factory Configurations...
- Page 8 7 2 Phase 3 Wire Real Power (Inputs 1,2,3,4) (kW) 8 2 Phase 3 Wire Reactive Power (Inputs 1,2,3,4) (kVr) 9 2 Phase 3 Wire Power Factor (Inputs 1,2,3,4) (PF) 10 2 Phase 3 Wire Apparent Power (Inputs 1,2,3,4) (kVA) 11-16 Unspecified PM3000 Power Quality Analyzer Factory Configurations...
- Page 9 6 RMS of Signal Ic (Aac) 7 3 Phase 1 Element Real Power (Inputs 1,6) (kW) 8 3 Phase 1 Element Reactive Power (Inputs 1,6) (kVr) 9 3 Phase 1 Element Power Factor (Inputs 1,6) (PF) 10-16 Unspecified PM3000 Power Quality Analyzer Factory Configurations...
- Page 10 6 RMS of Signal Ic (Aac) 7 3 Phase 2.5 Element Real Power (Inputs 1,2,3,4,6) (kW) 8 3 Phase 2.5 Element Reactive Power (Inputs 1,2,3,4,6) (kVr) 9 3 Phase 2.5 Element Power Factor (Inputs 1,2,3,4,6) (PF) 10-16 Unspecified PM3000 Power Quality Analyzer Factory Configurations...
- Page 11 0.80 Off 13 Flicker long term Vab 2 hours (Plt) 0.80 Off 14 Flicker long term Vbc 2 hours (Plt) 50.50 49.50 15 Flicker long term Vca 2 hours (Plt) 16 AC Frequency (Hz) PM3000 Power Quality Analyzer Factory Configurations...
- Page 12 13 Flicker long term Vab 2 hours (Plt) 1.00 Off 14 Flicker long term Vbc 2 hours (Plt) 0.80 Off 15 Flicker long term Vca 2 hours (Plt) 0.80 Off 16 AC Frequency (Hz) 0.80 Off 50.50 49.50 PM3000 Power Quality Analyzer Factory Configurations...
- Page 13 0.80 Off 13 Flicker long term Vab 2 hours (Plt) 0.80 Off 14 Flicker long term Vbc 2 hours (Plt) 50.50 49.50 15 Flicker long term Vca 2 hours (Plt) 16 AC Frequency (Hz) PM3000 Power Quality Analyzer Factory Configurations...
- Page 14 12 Flicker short term Vca 10 mins (Pst) 13 Flicker long term Vab 2 hours (Plt) 14 Flicker long term Vbc 2 hours (Plt) 15 Flicker long term Vca 2 hours (Plt) 16 AC Frequency (Hz) PM3000 Power Quality Analyzer Factory Configurations...
- Page 15 8 3 Phase 3 wire YD Reactive Power (Inputs 1,2,3or5,6) (kVr) 9 3 Phase 3 wire YD Power Factor (Inputs 1,2,3or5,6) (PF) 10 3 Phase 3 wire YD Apparent Power (Inputs 1,2,3or5,6) (KVA) 11-16 Unspecified PM3000 Power Quality Analyzer Factory Configurations...
- Page 16 3 RMS of Signal Vcn (Vac) Alarms: On 4 RMS of Signal Ia (Aac) Alarm Values High Low 5 RMS of Signal Ib (Aac) 253.0 216.2 6 RMS of Signal Ic (Aac) 253.0 216.2 7-16 Unspecified 253.0 216.2 PM3000 Power Quality Analyzer Factory Configurations...
- Page 17 3 RMS of Signal Vcn (Vac) Alarms: On 4 RMS of Signal Ia (Aac) Alarm Values High Low 5 RMS of Signal Ib (Aac) 253.0 216.2 6 RMS of Signal Ic (Aac) 253.0 216.2 7-16 Unspecified 253.0 216.2 PM3000 Power Quality Analyzer Factory Configurations...
- Page 18 1 RMS of Signal Van (Vac) 6 Ic 1000 Amps = 1000.0 2 RMS of Signal Vbn (Vac) 3 RMS of Signal Vcn (Vac) Alarms: On 4-16 Unspecified Alarm Values High Low 253.0 216.2 253.0 216.2 253.0 216.2 PM3000 Power Quality Analyzer Factory Configurations...
- Page 19 12 Flicker short term Vcn 10 mins (Pst) 0.80 Off 13 Flicker long term Van 2 hours (Plt) 0.80 Off 14 Flicker long term Vbn 2 hours (Plt) 15 Flicker long term Vcn 2 hours (Plt) 16 AC Frequency (Hz) PM3000 Power Quality Analyzer Factory Configurations...
- Page 20 13 Flicker long term Van 2 hours (Plt) 1.00 Off 14 Flicker long term Vbn 2 hours (Plt) 0.80 Off 15 Flicker long term Vcn 2 hours (Plt) 0.80 Off 16 AC Frequency (Hz) 0.80 Off 50.50 49.50 PM3000 Power Quality Analyzer Factory Configurations...
- Page 21 3ø 4w Y Hmnc 7day (PM3000 Default) Hook Up: 3-Phase 4-Wire Wye General Setup Values Storage Mode: Adaptive Store Channel Functions Recording Duration: 7 Days Input Channels FIFO / Recycle mode: Off 1 Van 0 to 480 Vac 2 Ia...
- Page 22 13 3 Phase 4 wire Real Power (Inputs 1,2,3,4,5,6) (kW) 14 3 Phase 4 wire Reactive Power (Inputs 1,2,3,4,5,6) (kVr) 15 3 Phase 4 wire Apparent Power (Inputs 1,2,3,4,5,6) (kVA) 16 3 Phase 4 wire Power Factor (Inputs 1,2,3,4,5,6) (PF) PM3000 Power Quality Analyzer Factory Configurations...
- Page 23 12 Flicker short term Vbn 10 mins (Pst) 13 Flicker short term Vcn 10 mins (Pst) 14 Flicker long term Van 2 hours (Plt) 15 Flicker long term Vbn 2 hours (Plt) 16 Flicker long term Vcn 2 hours (Plt) PM3000 Power Quality Analyzer Factory Configurations...
- Page 24 13 3 Phase 4 wire Power Factor (Inputs 1,2,3,4,5,6) (PF) 14 3 Phase %UnBalance on 3 Currents (Inputs 4,5,6) (%) 15 3 Phase Volts NPS-PPS ratio (Inputs 1,2,3) (%) 16 3 Phase Volts NPS-Volts Phase Angle [Inputs 1,2,3] (°) PM3000 Power Quality Analyzer Factory Configurations...
- Page 25 2 RMS of Signal V2 (Vac) 3 RMS of Signal V3 (Vac) Alarms: None 4 RMS of Signal I1 (Aac) 5 RMS of Signal I2 (Aac) 6 RMS of Signal I3 (Aac) 7-16 Unspecified PM3000 Power Quality Analyzer Factory Configurations...
- Page 26 11 Flicker short term V2 10 mins (Pst) 12 Flicker short term V3 10 mins (Pst) 13 Flicker flag on V1 (Flg) 14 Flicker flag on V2 (Flg) 15 Flicker flag on V3 (Flg) 16 Unspecified PM3000 Power Quality Analyzer Factory Configurations...
- Page 27 2 RMS of Signal V2 (Vac) 3 RMS of Signal V3 (Vac) 4-6 Unspecified 7 3 Phase Volts NPS-PPS ratio (Inputs 1,2,3) (%) 8 3 Phase Volts NPS-Volts Phase Angle [Inputs 1,2,3] (°) 9-16 Unspecified PM3000 Power Quality Analyzer Factory Configurations...
