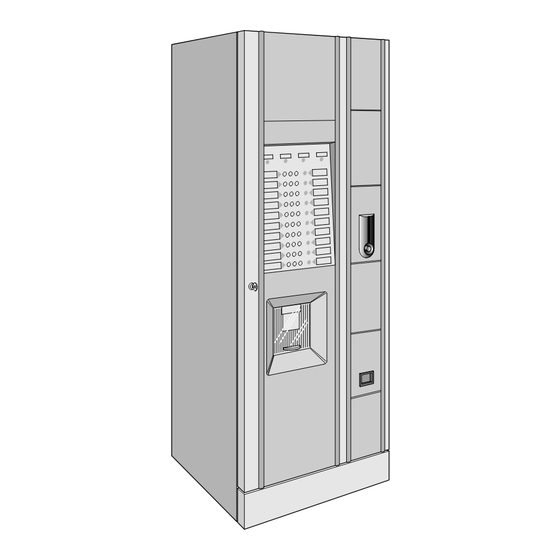

BIANCHI VENDING SIRIO FRESH BREW Manual
  1. Manuals
  2. Brands
  3. BIANCHI VENDING Manuals
  4. Vending machines
  5. SIRIO FRESH BREW
  6. Manual

BIANCHI VENDING SIRIO FRESH BREW Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
The Managing Director

Advertisement

loading
Need help?

Need help?

Do you have a question about the SIRIO FRESH BREW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIANCHI VENDING SIRIO FRESH BREW

Summary of Contents for BIANCHI VENDING SIRIO FRESH BREW

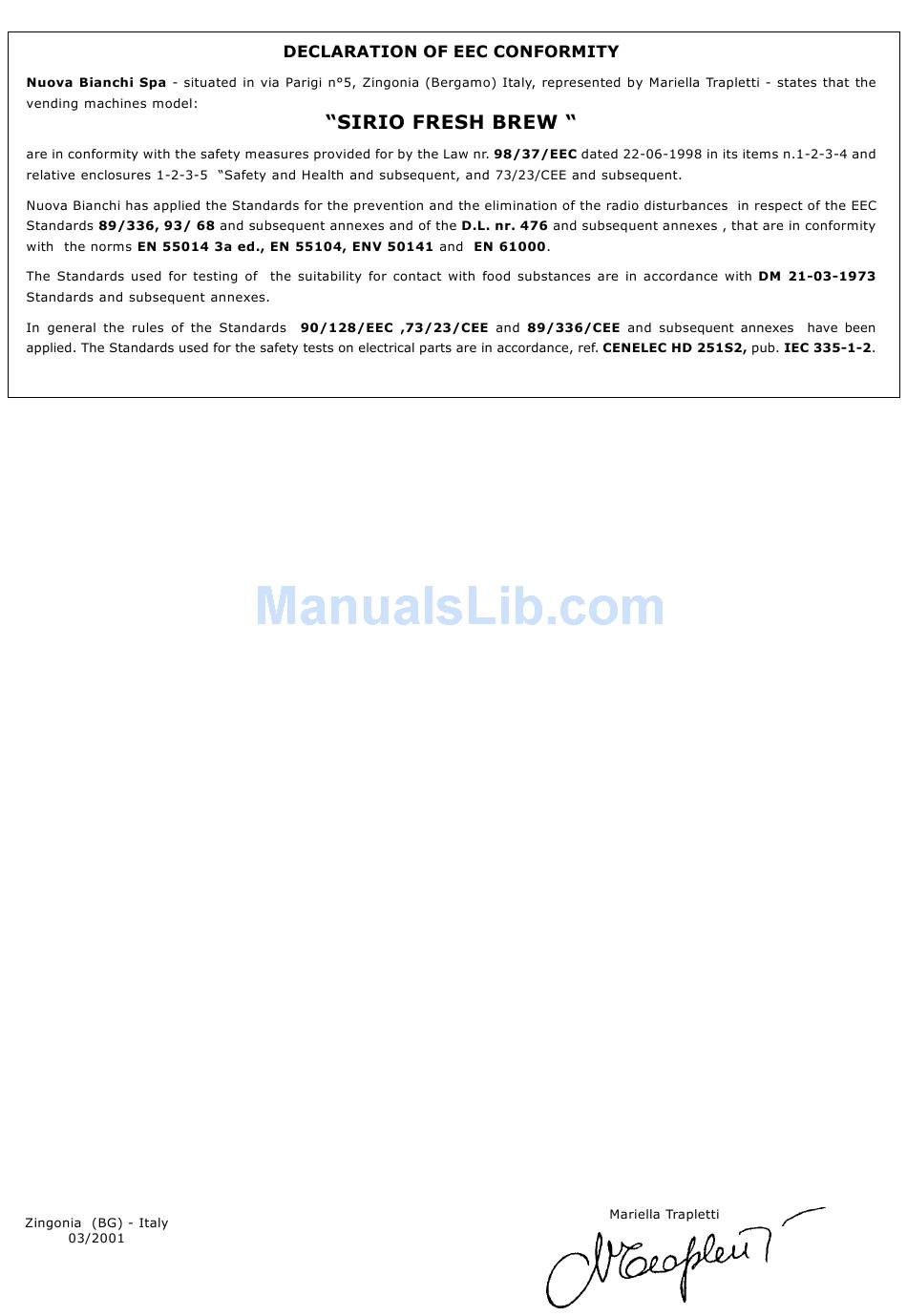

  • Page 1 The Managing Director...
  • Page 3 FRESH-BREW NUOVA BIANCHI S.p.A. Viale Parigi, 5-7-9 24040 ZINGONIA DI VERDELLINO (BG) - ITALIA Tel. 035 88 22 25 (ra) - Fax 035 88 33 04 E-mail: postvendita@bianchivending.it...
  • Page 4 SIRIO...
  • Page 5 SIRIO...

  • Page 6: Important Notices

    SIRIO 1.1 Important notices The user must not under any circumstances remove the guards that require a tool for removal. 1.2 General Instructions Before using the automatic distributor, carefully read all parts of the present manual. It is the buyer’s responsibility to ascertain that the users have been trained and are informed and regulations indicated in the technical documentation supplied.
  • Page 7 SIRIO Any tampering with or modifications made to the machine that are not previously authorized by the manufacturer, relieve the latter from any responsibility for damages deriving from, and will automatically result in the cancellation of the machine guarantee terms. This manual reflects the status at the moment of the emission of the automatic vending machine on the market;...
  • Page 8 SIRIO Average consumption: WATER SUPPLY CUP DISPENSER BOILER RESISTANCES Fig. 2.1...
  • Page 9 SIRIO 3.1 Machine description (Fig. 3.1) Fig. 3.1...
  • Page 10 SIRIO 3.2 Foreseen use 3.3 Models The manual is compiled for the most complete model: it Fig. 3.2 is therefore possible, tofind descriptions or explanations not related to your machine 3.4 Basic operation concepts CUP DISPENSING Fig. 3.3 INSTANT DRINKS Fig.
  • Page 11 SIRIO FRESH BREW DRINKS Fig. 3.5...
  • Page 12 SIRIO 4.1 Handling and transport (Fig. 4.1) lifting the distributor with ropes or presses dragging the distributor overturning or laying the distributor down during transport jolting the distributor knocked weighed down with other packs on the top exposed to either rain or freezing conditions or heat sources kept in damp places Fig.
  • Page 13 SIRIO Fig. 4.5 The packing material must not be left accessible to others, as it is a potential environmental pollution risk. For the disposal contact qualified authorized companies. Fig. 4.6 Fig. 4.7 Fig. 4.8...
  • Page 14 SIRIO 5.0 SAFETY NORMS WARNING! 6.1 Positioning Always disconnect the POWER CABLE before maintenance or cleaning operations. WARNING! Do not position the device near inflammable NEVER OPERATE ON THE MACHINE OR REMOVE objects, keep a minimum safety distance of 30 cm. ANY GUARD ELEMENTS BEFORE THE HOT PARTS HAVE BEEN ALLOWED TO COOL.

  • Page 15: Main Power Supply Connection

    SIRIO 6.3 Main Power supply connection Fig. 6.3 Fig. 6.4 Fig. 6.6 Fig. 6.5 The power supply cables are to be replaced by skilled personnel. Fig. 6.7 Fig. 6.8...
  • Page 16 SIRIO 6.4 Starting up of the unit The terminals of the power cable (Fig. 6.10 - pos. 1) and the service switch inside the distributor (Fig. 6.11 - pos. 1) however remain live. Fig. 6.9 The opening and possible connection of the distributor with door open (unless it involves cleaning operations) is to be undertaken solely by personnel authorized to undertake such operations.

  • Page 17: Installation

    SIRIO 6.5 Installation 6.5.1 Filling the water circuit Fig. 6.13 6.5.2 Cleaning of the parts in contact with food substances Fig. 6.14 Fig. 6.15 To ensure even greater safety, on re-assembling the re- lative parts, it is a good idea to undertake some automatic washing cycle in order to eliminate any eventual residues.
  • Page 18 SIRIO 6.6 Product container filling (with machine off) 6.6.1 Container filling Version 1 Fig. 6.18 Fig. 6.19 Fig. 6.20...

  • Page 19: Label Application

    SIRIO 6.6.2 Label application 6.6.3 Cup filling Fig. 6.21 Fig. 6.22 Fig. 6.24 Fig. 6.23 Fig. 6.25...
  • Page 20 SIRIO 6.6.4 Insertion of waste dreg bag 6.6.5 Payment system installation Fig. 6.26 Fig. 6.27 Fig. 6.28 Fig. 6.29...
  • Page 21 SIRIO PROGRAMMING INDEX Programming key Fig. 7.1 The programming diagrams shown refer to the automatic SIRIO distributor with double heater: therefore for the configuration of different machines to these the programming diagrams may also be subject to variation.
  • Page 22 SIRIO Programming panel Maintenance panel RESET RESET RESET RESET RESET...
  • Page 23 SIRIO 7.1.1 Language selection Fig. 7.2...

  • Page 24: Function Description

    SIRIO Fig. 7.3 EURO OPTIONS FA.GE ð ð ð ð ð ð ð ð ð ð ð ð 7.2 Function description 7.2.1 TIME-DOSES (Fig. 7.4) P 3000...
  • Page 25 SIRIO TEA LEAVES TEA LEAVES Key Tc = with pre-selection Sugar time: Extra milk time: Integral water time B. 01 LONG COFFEE Coffee infusion time Tea infusion time Bitter compensation time B. 02 ESPRESSO + MILK Extra tea time Minus tea time Extra coffee time Minus coffee time B.
  • Page 26 SIRIO Fig. 7.5...
  • Page 27 SIRIO Fig. 7.6...
  • Page 28 SIRIO 7.2.4 PRICE SELECTIONS (Fig. 7.7) Fig. 7.7...
  • Page 29 SIRIO Fig. 7.8...
  • Page 30 SIRIO 7.2.6 INCLUDE JUG (Fig. 7.9) Fig. 7.9...
  • Page 31 SIRIO The two functions are related, by setting “N” under the multivend options, any permanent credit operation will be cancelled this will not however stop the distributor function Fig. 7.10...
  • Page 32 SIRIO Fig. 7.11...
  • Page 33 SIRIO Fig. 7.12...
  • Page 34 SIRIO Fig. 7.13 TEMP. WATER SOL. C. 096...
  • Page 35 SIRIO EURO OPTIONS Euro PROG “currency code 000” OPTIONS Fig. 7.14...

  • Page 36: Maintenance Panel

    SIRIO Maintenance panel RESET RESET RESET RESET RESET...

  • Page 37: Cleaning And Filling

    SIRIO 9.1.3 Daily cleaning Cleaning and Filling In order to ensure the efficient operation of the distributor over time, certain periodic operations must be undertaken, Proceed as follows: some of which are essential in order to comply with the current health regulations in force. These operations, unless otherwise stated, are to be undertaken with distributor Remove and clean carefully: open and switched off.
  • Page 38 SIRIO 9.1.4 Weekly cleaning Fig.9.4 Fig.9.5 Fig. 9.6 Fig. 9.7 9.1.5 Product filling 9.1.6 Product storage advice...

  • Page 39: Maintenance

    SIRIO EVERY DAY EACH WEEK EACH EVERY SIX EVERY 9.2 MAINTENANCE MONTH MONTHS 10.000 DRINKS 9.2.1 Ordinary and Extraordinary Maintenance For all operations that require the disassembly of the distributors’ components, make sure that the latter is switched off. 9.3 Regulations 9.3.1 Regulation of the solubles solenoid water delivery valves Fig.
  • Page 40 SIRIO 9.4 Inactivity Fig. 9.9 Fig. 9.10...
  • Page 41 SIRIO No cup (blocks machine). Fill up the relative column. The Fresh Brew unit is blocked, either in piston movement or blockage of shower unit, which means that movement has not occurred within the timeout limit of 8/6 (blocks the coffee/tea selections). Lack of the pressure necessary during the infusion period (generated during a specific pressure withholding stage of the system)
  • Page 42 SIRIO...
  • Page 43 SIRIO SCHEMA IDRAULICO 11.0812.11 nuova nuova Cod. Data Dis. 5.7.2000 Colombo SCHEMA HYDRAULIQUE BIANCHI Ediz. DENOMINAZIONE ITALIANO Tubo akulon 4x6 Tubo silicone 5x9 SIFB01 Tubo santoprene 5x8 Elettrovalvole solubili Tubo silicone 8x11 Scatola dosatrice caffe' fresh Tubo silicone 7x11(C) Scatola dosatrice decaffeinato o te' fogliefresh E 480 Tubo silicone 8x12 Scatola dosatrice latte...
  • Page 44 SIRIO...
  • Page 45 SIRIO...
