2.5
HDD Installation
1.
Remove top cover and HDD bracket by unscrewing the 4 screws.
2.
Install the 2.5" SATA HDD with the 4 HDD mounting screws. Make sure the PCB
side of the HDD will be facing the bottom cover.
3.
Connect the SATA signal cable and power cable to the HDD.
4.
Reinstall the HDD bracket and top cover.

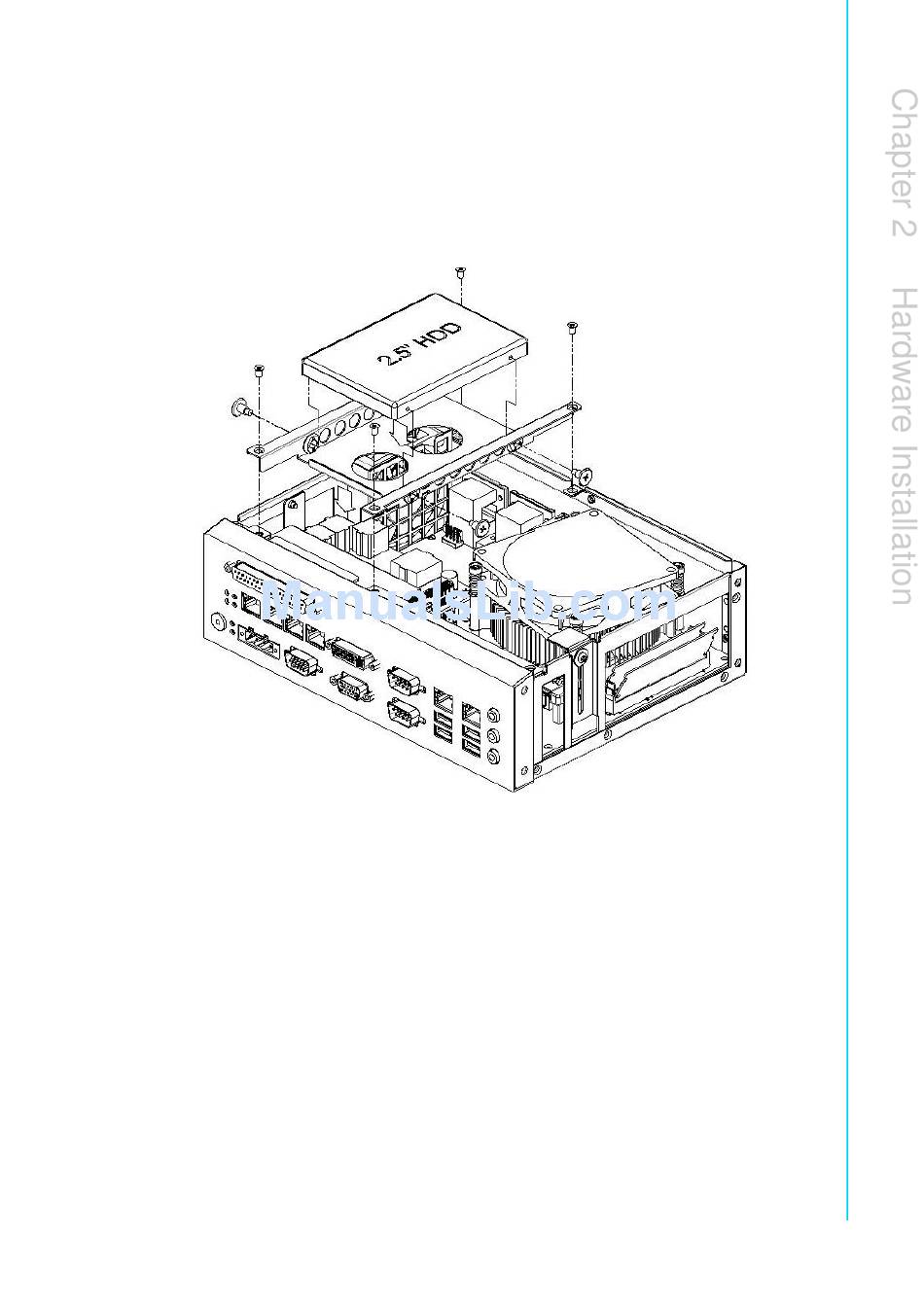

Figure 2.16 HDD Installation
17
AIIS-3400/3410 User Manual
