2.1 Front Panel Controls, Indicators & Connectors
2.1.1

Power On/Off Button

AIIS-3400/3410 has a Power On/Off button with LED indicators on the front side that
show On status (green LED) and Off/Suspend status (orange LED). The Power but-
ton supports dual functions: Soft Power -On/Off (Instant off or Delay 4 Seconds then
off), and Suspend.
Table 2.1: Power Button Connector Pin Assignment
LED color
Green
Amber
AIIS-3400/3410 User Manual

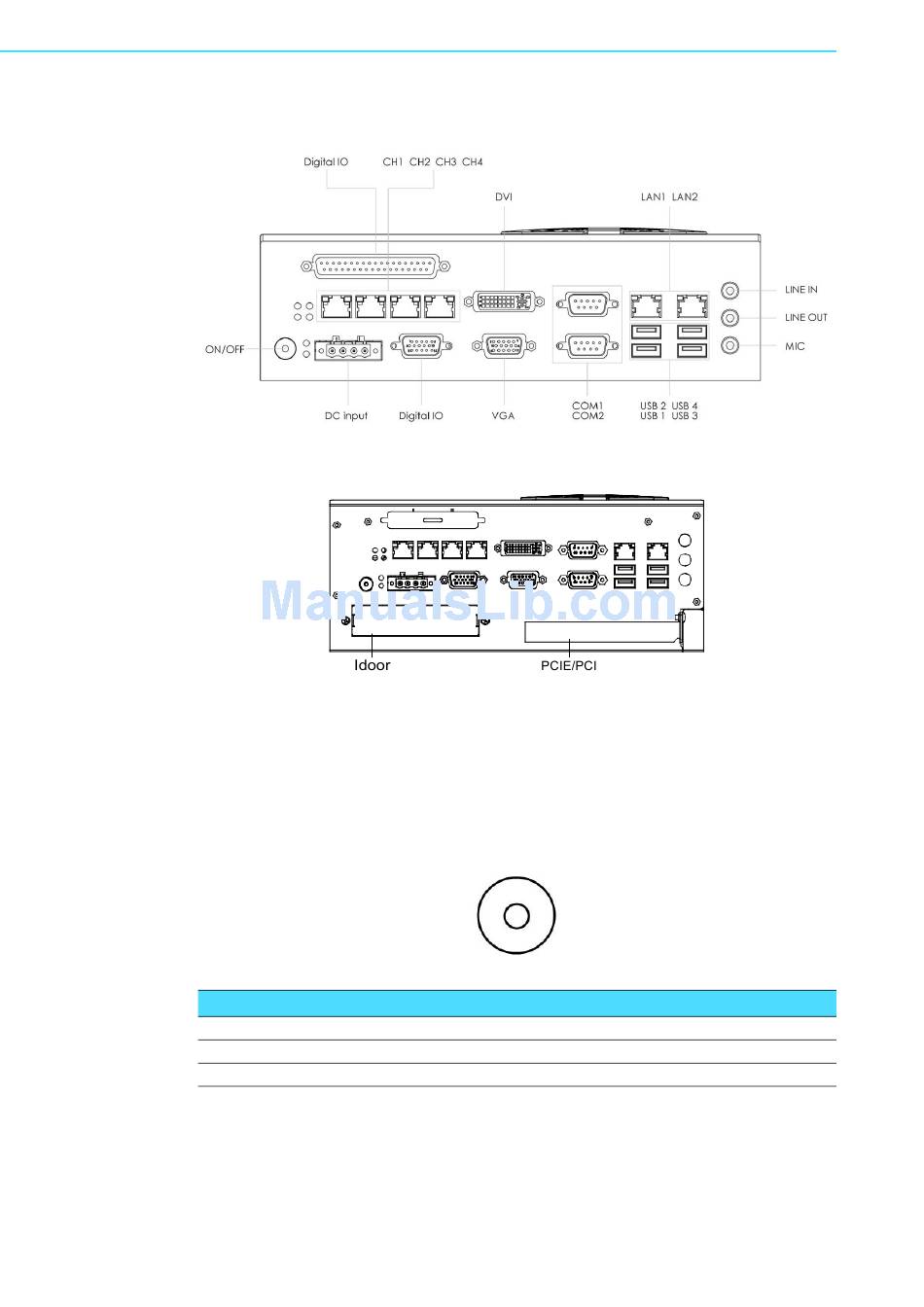

Figure 2.1 AIIS-3400 Front View
Figure 2.2 AIIS-3410 Front View
Figure 2.3 Power On/Off Button
Status
Power ON
S1/S4/S5
8
