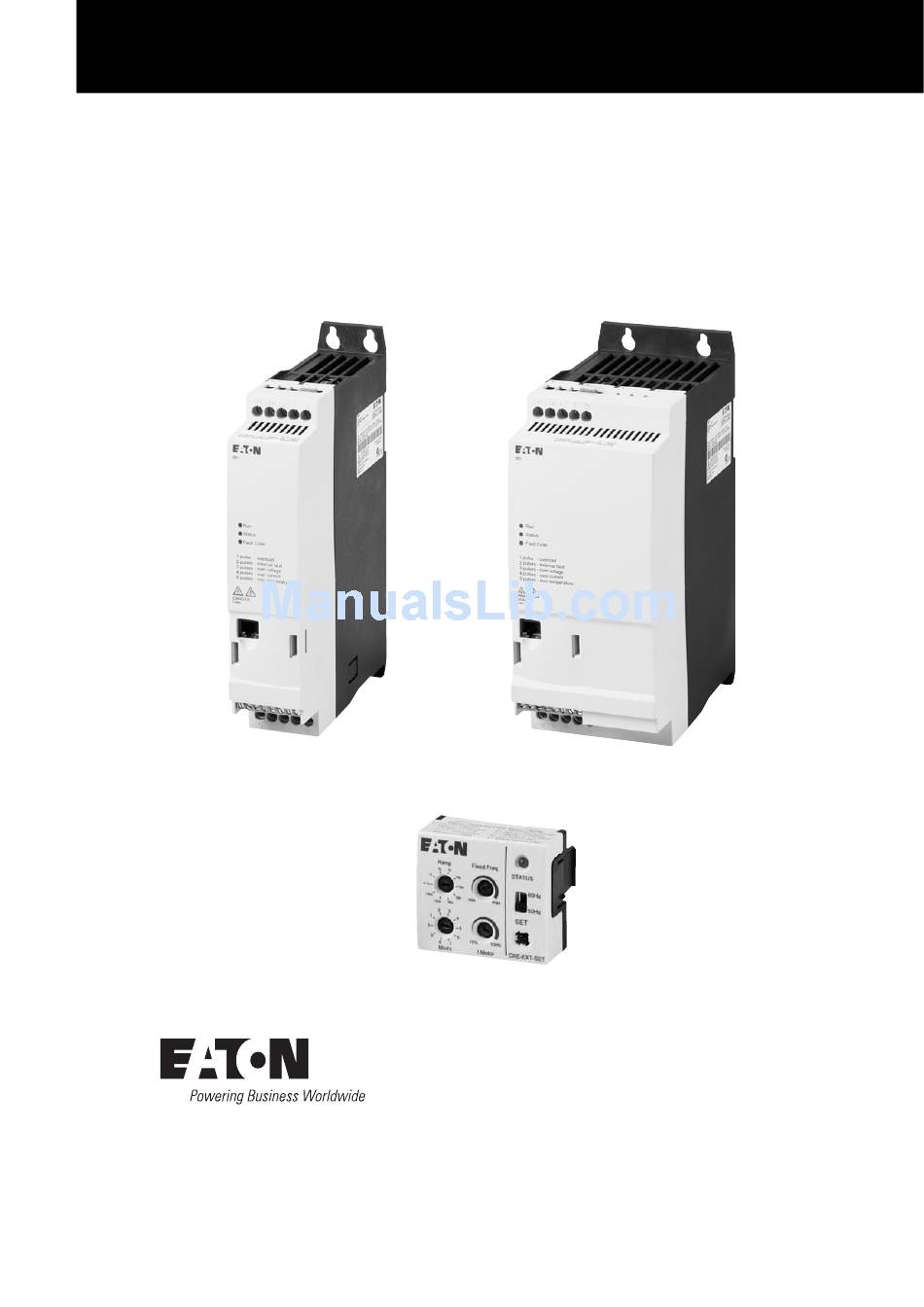

Manual
11/16 MN040011EN

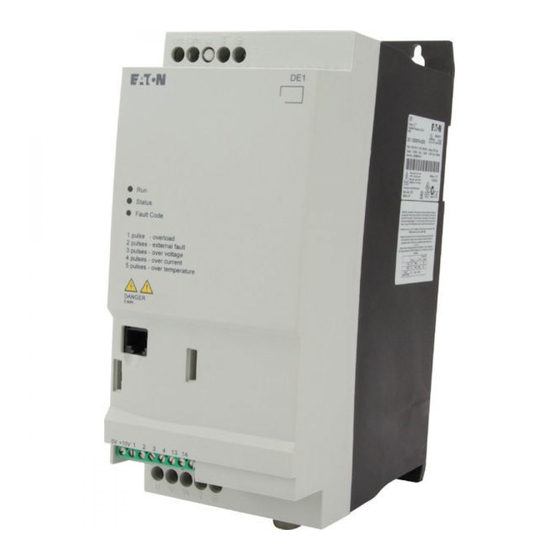

PowerXL
™
DE1... – Variable speed starter
Variable Speed Starter VSS
DXE-EXT-SET – Configuration module

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerXL DE1 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton PowerXL DE1 series

Summary of Contents for Eaton PowerXL DE1 series

  • Page 1 Manual 11/16 MN040011EN PowerXL ™ DE1… – Variable speed starter Variable Speed Starter VSS DXE-EXT-SET – Configuration module...
  • Page 2 3. Edition 2015, publication date 05/15 4. Edition 2015, publication date 11/15 5. Edition 2016, publication date 02/16 6. Edition 2016, publication date 11/16 © 2014 by Eaton Industries GmbH, 53105 Bonn Authors: Jörg Randermann, Heribert Joachim Redaction: René Wiegand All rights reserved, also for the translation.
  • Page 3 Danger! Dangerous electrical voltage! Before commencing the installation • Disconnect the power supply of the device. • Wherever faults in the automation system may cause damage to persons or property, external measures must • Ensure that devices cannot be accidentally retriggered. be implemented to ensure a safe operating state in the •...

  • Page 5: Table Of Contents

    Safety and switching..............28 2.3.1 Disconnecting device ..............28 2.3.2 Fuses and cable cross-sections ........... 28 2.3.3 Residual current circuit-breaker (RCD) ......... 29 2.3.4 Mains contactors................30 2.3.5 Using a bypass connection ............30 DE1… variable speed starter 11/16 MN040011EN www.eaton.com...
  • Page 6 Commissioning with default settings .......... 70 DXE-EXT-SET configuration module ........71 DXE-EXT-SET designation............71 Plugging the module into / removing it from a DE1... variable speed starter............72 Description and use ..............73 DE1… variable speed starter 11/16 MN040011EN www.eaton.com...
  • Page 7 DX-COM-PCKIT interface card ............. 138 Splitter DX-SPL-RJ45-2SL1PL ............140 Cable and safety devices ............. 141 DIL…mains contactors..............144 DX-LN… mains chokes ..............145 9.10 External EMC filter ............... 147 9.11 Motor Choke DX-LM3… .............. 150 DE1… variable speed starter 11/16 MN040011EN www.eaton.com...
  • Page 8 Fault messages ................153 10.1 Acknowledge fault message (Reset) ........... 154 10.2 Fault log ..................154 10.3 Fault list..................156 List of parameters..............159 Index ................... 171 DE1… variable speed starter 11/16 MN040011EN www.eaton.com...

  • Page 9: About This Manual

    MN040019 manual: “CANopen – Communication manual for DA1, DC1, DE11 variable frequency drives” • Instruction leaflet IL040005ZU: “DE1-12…, DE1-34…, DE11-12…, DE11-34…” • Instruction leaflet IL040020ZU: “DXE-EXT-SET” • Application Note AP040092 Quick-Start-Guide: “DE1” • Application Note AP040033 Quick-Start-Guide: “DE11” DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 10: Writing Conventions

    All the specifications in this manual refer to the hardware and software versions documented in it. ￫ More information on the devices described here can be found on the Internet under: www.eaton.eu/powerxl www.eaton.eu/documentation DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 11: Abbreviations

    Protective earth shield (PE connection for screened cables) Parameter number Reverse run (anticlockwise rotation field active) Root Mean Square Read Only (read access only) Read/Write (read/write access) SCCR Short Circuit Current Rating UL® Underwriters Laboratories Variable Speed Starter DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 12: Mains Supply Voltages

    × 9/5 + 32 Fahrenheit Rotational speed 1 min 1 rpm Revolutions per minute Weight 0.4536 kg 1 lb 2.205 pound Flow rate 1.698 m /min 1 cfm 0.5889 cubic feed per minute DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 13: De1

    There is also the PC-based drivesConnect parameter software, which helps prevent data loss, makes it possible to make custom changes and adjustments, and reduces the time it takes to commission and maintain a DE1 device. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 14  0 V +10 V 1 13 14 0 V +10 V 1 13 14   Figure 1: DE1... housing versions (left: 45 mm, right: 90 mm) and optional DXE-EXT-SET configuration module DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 15: System Overview

    DX-LN… mains choke, DX-LM3-… motor choke, DX-EMC… external radio interference suppression filter c DXE-EXT-SET configuration module d DX-NET-SWD3 SmartWire-DT interface e DX-COM-STICK communication module and accessories (e. g. DX-CBL-… connection cable) f DX-KEY-…keypad (external) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 16: Checking The Delivery

    0 V +10 V 1 0 V +10 V 1 13 14 13 14   Figure 3: Equipment supplied: DE1 variable speed starter with a size of 45 mm or 90 mm and instruction leaflet IL0400005ZU DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 17: Rated Operational Data

    I/P: 380-480 V +/-10 %, 50/60 Hz, 3 ph 4.9 A (pk) O/P: 0-500 V, 3.6 A, 1.5 kW, 3 phase, 0-300 Hz S/Ware: 0.00 Serial No.: 11111111111 Figure 6: Nameplate B (on the front) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 18: Rating Data On The Nameplate

    Variable speed starter with variable output frequency (VSS) IP20 Degree of protection of the enclosure: IP20 Software: 0.00, software version Max amb. 50 °C Maximum permissible ambient air temperature: 50 °C (without derating/output reduction) 27032014 Manufacturing date: 03-27-2014 DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 19: Designation

    1 = single-phase mains connection/three-phase motor 3 = three-phase mains connection/three-phase motor Device series DE1, DE11 = variable speed starter (VSS), economy (D = Drives, E = Economy, 1, 11 = Series) Figure 7: Designation DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 20: Designation

    Connection terminals in power section (motor feeder) f Control signal terminals g Communication interface and slot for DXE-EXT-SET or DX-NET-SWD3 h LED operating signals i Connection terminals in power section (mains side) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 21: Voltage Categories

    Mains, U = 3 ~ 380 - 480 V ±10 % Motor L1/L L2/N 400 V 3 ∼ 440 - 480 V    Figure 12: DE1…-34…NN-N20N (without radio interference suppression filter) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 22: Selection Criteria

    (Max. ambient temperature of 50 °C without output reduction, IP20) ￫ Variable speed starter that should be selected: DE1-342D1… • …-34: 3-phase, 400 V • …2D1: 2.1 A (1.9 A rated motor current) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 23: Proper Use

    Always observe the technical data and connection conditions! The corresponding information can be found on the variable speed starter’s rating plate and in the relevant documentation. Any other use will be considered to be an improper use of the device. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 24: Maintenance And Inspection

    To prevent damage to the variable speed starter’s internal DC link capacitors, it is not recommended to store the variable speed starter for more than 12 months (￫ Section 1.11, “Charging the internal DC link capacitors”). DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 25: Charging The Internal Dc Link Capacitors

    Information concerning the guarantee can be found in the Terms and Conditions Eaton Industries GmbH. Break-Down Service Please contact your local office: http://www.eaton.eu/aftersales Hotline After Sales Service +49 (0) 180 5 223822 (de, en) AfterSalesEGBonn@eaton.com DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 26 1 DE1... series 1.12 Service and warranty DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 27: Engineering

    All applicable laws and local standards must be complied with when planning and carrying out the installation. Not following the recommendations provided may result in problems what will not be covered by the warranty. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 28: Introduction

    Motor choke, dV/dt filter h Cable lengths, motor cables, shielding (EMC) i Motor protection, thermistor j Motor and application, parallel operation of multiple motors on a variable speed starter, bypass circuit; DC braking DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 29: Electrical Power Network

    (non-earthed, insulated), the filter must be deactivated (by removing the two EMC jumpers). ￫ For detailed information on how to remove the EMC jumpers, please refer to ￫ Section 3.3.4, “EMC jumper”, Page 46. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 30: Mains Voltage And Frequency

    DE1...-34… variable speed starters, which work with a three-phase power supply, are designed as low harmonic drives. This means that it is not necessary to use a mains choke in order to reduce THD levels. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 31: Reactive Power Compensation

    If you are designing systems in which variable speed starters will be connected to AC power supply systems with undefined conditions, make sure to incorporate mains chokes into your design ￫ Section 9.9, “DX-LN… mains chokes”, Page 145. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 32: Safety And Switching

    The PE conductor’s cross-sectional area must be the same as the phase conductors’ cross-sectional area. The connection terminals marked with  must be connected to the earth-current circuit. NOTICE The specified minimum PE conductor cross-sections (EN 61800-5-1) must be maintained. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 33: Residual Current Circuit-Breaker (Rcd)

    Other protective measures against direct and indirect contact can be used for DE1... variable speed starters, including isolating them from the supply system with the use of a transformer. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 34: Mains Contactors

    T1 DE1... variable speed starter U V W S1 interlocked switching between variable speed starter and bypass F2 Motor protection (overload relay) M1 Three-phase motor ② 3∼ Figure 16: Bypass motor control (example) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 35: Emc Measures

    You should also route cables separately from each other if there are large differences in voltage. If control cables and power cables need to cross, they should always do so at a right angle (90°). DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 36 Analog signal cables (measured values, setpoints, and correction values) must be routed inside screened conduit. Figure 18: Separate routing a Power cable: mains voltage, motor connection b Control and signal lines, fieldbus connections DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 37: Motor Selection

    ￫ Within a frequency range of 20 to 120 Hz, a PKE electronic motor-protective circuit-breaker can be used at the variable speed starter’s output for motor protection purposes as well. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 38: Circuit Types With Three-Phase Motors

    Temperature monitors in the motor windings (thermistor, thermo-Click) are not to be connected directly to DE1... variable speed starters but must be connected via an approved trigger apparatus for EX areas i.e. EMT6. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 39: Installation

    ￫ Install the DE1... variable speed starter only on a nonflammable mounting base (e.g., on a metal plate). Figure 21: Surface mounting on metal plate DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 40: Mounting Position

    75 (2.96) DE1…-348D5… 75 (2.96) DE1…-34011… 100 (3.94) DE1…-34016… 100 (3.94) Figure 23: Space for air-cooling ￫ DE1... variable speed starters can be installed next to each other without any clearance in between. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 41 DE1... variable speed starter. ① Figure 24: Minimum clearance ￫ The appendix lists the dimensions, weights, and required mounting dimensions for the individual sizes (FS1, FS2). DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 42: Fixing

    Use screws with a washer and split washer with the permissi- ble tightening torque of 1 Nm in order to protect the enclosure while safely and reliably mounting the device. 4 x M4  L1/L L2/N L3  Figure 25: Screw fixing DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 43 Then grab the DE1... variable speed starter from the bottom edge and pull it forward [2]. Finally, lift it up and away from the mounting rail [3]. Figure 28: Dismantling from mounting rails DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 44: Electrical Installation

    5 minutes after the supply volt- age is switched off (due to the DC link capacitors’ discharge time). Pay attention to hazard warnings! ￫ Perform the steps below with the specified insulated tools and without using force. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 45: Insulation Test

    Measure the individual motor windings’ insulation resistance. The insulation resistance must be greater than 1 MΩ. ￫ Please refer to the motor manufacturer’s manual for the exact insulation resistance values and permissible test voltages. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 46: Connection To Power Section

    U, V, and W. NOTICE The DE1... variable speed starter must always be connected with ground potential via a grounding conductor (PE). NOTICE Do not use any of the sealed-off connection terminals in the power section. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 47 (DE1…-...FN-…). Link to PE connec- tion used only in combination with the EMC jumper on the mains side  PE, ground connection on motor side Internal connection to the mains-side PE connection DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 48 • DE1…-34…FN-… (400 V/460 V) with built-in radio interference suppression filter Three-phase motor connection for three-phase motors:  • DE1…-12…NN-… (230 V) • DE1…-34…NN-… (400 V/460 V) without built-in radio interference suppression filter DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 49: Earthing

    ￫ In the case of variable speed starters with an internal interfer- ence radio interference suppression filter, the PE cable (DE1...-…FN-…) must be inserted behind the EMC jumper. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 50: Emc Jumper

    (they will be closed). L1/L L2/N   L1/L L2/N       Figure 33: DE1…-…FN-… (with filter) DE1…-…NN-… (without filter) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 51 The two EMC jumpers must be removed! Operating the device with only one EMC jumper is not permissible! ￫ If the EMC jumpers are removed, the filtering function required for electromagnetic compatibility (EMC) will no longer be active. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 52: Three-Phase Commoning Link

    Observe the three-phase commoning links’ ampacity (I = 35 A). Extending the three-phase connection by turning the three- phase commoning links around when installing them is not possible when connecting DE1...-34… variable speed starters. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 53 L1 /L L2 /N  L1 /L L2 /N  L1 /L L2 /N  L1 /L L2 /N  Figure 36: PE connection for the individual variable speed starters (example) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 54: Motor Connection

    Screened, four-wire cable is recommended for the motor cables. The green- yellow line of this cable connects the protective ground connections from the motor and the variable speed starter and therefore minimizes the equalizing current loads on the shielding braid. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 55 (PES) in such a way that electrical contact is established across a large surface area. Unscreened connection cables should not be longer than approx. 300 mm. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 56: Installations Meeting Ul Requirements

    9 (P-15 = 9). Prerequisite: P-19 = 0, OR • Motor thermal memory (P-33 = 0). Prerequisite: P-08 = Set to rated motor current. ￫ Instruction leaflet IL040005ZU includes a summary titled “Additional Information for UL® Approved Installations”. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 57: Connection To Control Section

    • Resolution: 12 Bit • Default setting f-REF: 0 - f-max (50/60 Hz) DI4, digital input 4 • Level for high signal: +9 - 30 V • Input current: 1.15/3 mA (10/24 V) • parameterizable DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 58 The control cables should be twisted. ￫ You can prevent the screening from fraying by sliding the cut plastic jacket over the screen’s end or by placing a rubber grommet around it, for example. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 59 The terminal capacities and stripping lengths are listed in the following table. Table 8: Connection cables at the control terminals Lb-in 0.5 - 1.5 0.5 - 1 30 - 16 0.7 x 3 DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 60 < 20 mA Acceleration ramp time: 5 seconds (P-03) Deceleration ramp time: 5 seconds (P-04) +10 V R1: Reference value potentiometer (e.g., fixed value of 4.7 kΩ) [Hz] (60) f-REF t [s] f-REF DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 61 Connection example showing an external analog reference value source Parameter P-17 can be used to scale the analog input values, while parameter P-18 can be used to invert them. ￫ Table 32, page 110 goes over the parameters’ configuration. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 62 If using an external voltage source, make sure that the external voltage source’s 0-V potential and the DE1 variable speed starter’s 0-V potential (0 V) are connected to each other. The external control voltage’s residual ripple must be smaller than ±5 % ΔUa/Ua. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 63 The setpoint value is set with an external signal +10 V (0 - 10 V). < 20 mA Note: +10 V The signal common for the PLC’s analog and digital outputs is 0 V. +24 V DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 64 (e.g., coupling relays, contactors) as follows: Drive relay output 250 V ∼ ≦ 6 A, AC-1 30 V ⎓ ≦ 5 A, DC-1 Varistor RC filter Diode Figure 44: Connection examples with suppressor circuit DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 65: Rj 45 Interface

    Modbus RTU: PIN 7 and PIN 8, 120 Ω ￫ For additional information on accessories, please refer to ￫ Chapter 9 “Accessory devices”, page 131. ￫ The DXE-EXT-SET configuration module is described in detail in ￫ Chapter 5, “DXE-EXT-SET configuration module”. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 66 I Mo tor DX E-E XT -SE US B → IL040020ZU PW R Rx D Tx D Se ria l → IL04012022Z Figure 46: System overview for the DE1 variable speed starter’s RJ45 interface DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 67: Led Indicators

    Lights up with a continuous red light in combination with the Status LED in the event of an internal communication fault (DE1... malfunctioning). • Lights up with a continuous yellow light if the DE1 variable speed starter’s DC braking is active. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 68 Live zero error 11 x Under-temperature 12 x Thermistor fault 13 x Data error ￫ For a detailed description of the fault messages, please refer to ￫ Chapter 10 “Fault messages”, page 153. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 69: Block Diagrams

    P - 51 P - 52 →  P - 53 DE11 P - 54 Figure 49: DE1-12…NN-… block diagram Variable speed starter with single-phase mains supply voltage No internal radio interference suppression filter DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 70: De1

    P - 51 P - 52 →  P - 53 DE11 P - 54 Figure 51: DE1-34…NN-… block diagram Variable speed starter with three-phase mains supply voltage No internal radio interference suppression filter DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 71: Operation

    (￫ Check the U, V, W phase sequence or the FWD or REV operating direction). All emergency switching off functions and safety functions are in an appropriate condition. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 72: Hazard Warnings For Operation

    DANGER  Following a shutdown (fault, mains voltage off), the motor can start automatically (when the supply voltage is switched back on) if the automatic restart function has been enabled (￫ parameters P-31). DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 73 If motors are to be operated with frequencies higher than the standard 50 or 60 Hz, then these operating ranges must be approved by the motor manufacturer. The motors could be damaged otherwise. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 74: Commissioning With Default Settings

    To activate the start enable signal, drive control terminal 1 with +10 V: The Run LED will light up with a continuous light. Potentiometer R1 can be used to set the desired speed value for the motor. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 75: Dxe-Ext-Set Configuration Module

    Ramp selector switch – used to change the ramp times (acceleration and deceleration) h Fixed Freq. potentiometer – used to adjust fixed frequency FF1 within the range defined by the minimum and maximum limits i Mode – overview of control terminal configurations DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 76: Plugging The Module Into / Removing It From A De1

    To remove the module, simply squeeze the two mounting clips [1]. Then pull the configuration module forward while continuing to press on the mounting clips [2]. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 77: Description And Use

    P-39 to 1 (parameter lock). Exception: Even if the starter’s parameters are locked, it will be possible to change the value of parameter P-20 (FF1) with the Fixed Freq. potentiometer on the DXE-EXT-SET configuration module. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 78 In order for this transfer to stop, the SET button needs to be pressed again. • In an operating mode with the FF1 control command active (modes 0, 2, 3, 4, 7, 8), the Fixed Freq. potentiometer can be used to directly adjust the drive’s speed. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 79 230/400 V △ 3.2/1.9 A (from P-08) cos ϕ 0.79 0,75 KW 0 V +10 V 1 Connection: 13 14 1410 mi n 50 Hz  Star switching V1 W1 P-10 P-09 W2 U2 DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 80 Mode 2 +10 V Fixed frequencies (1) With two operating directions (FWD, REV); fixed frequency reference value via binary-coded inputs. Fixed frequency 20 Hz P-20 30 Hz P-21 40 Hz P-22 50 Hz P-23 DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 81 Fixed frequency 20 Hz P-20 30 Hz P-21 40 Hz P-22 50 Hz P-23 An external fault message (EXTFLT) can be connected to input DI3 (see mode 1). DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 82 An external fault message (EXTFLT) can be connected to input DI3 (see mode 1). Note: If there is a wire breakage at DI2 (DIR = REV), the operating direction will be reversed automatically (FWD)! DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 83: Parameter

    OP bus (Operation Bus) / External keypad / -PC connection OP bus (operation bus) / External keypad / +PC connection +24 V, DC power supply RS485- / Modbus RTU (A) RS485+ / Modbus RTU (B) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 84: Dx-Key-Led Keypad

    RJ45 interface, which is located at the front of the device. ￫ The DX-KEY-LED keypad is not included as standard with the DE1... variable speed starter. View (Display) Controls (buttons) Figure 57: DX-KEY-LED operating unit view DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 85 • Used to increase the output frequency (motor speed) (see parameters P-12 and P-24) DOWN button • Used to lower the numeric value or parameter number (exponentially) • Used to lower the output frequency (motor speed) (see parameters P-12 and P-24) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 86: Key Combinations

    6.1.1 Key combinations Table 17: Key combinations of keypad Function Key combination Keypad address (keypad port) on an OP bus DE1... variable speed starter address Fan and display test (FS2) 1) Press the button first DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 87: Parameter Structure

    P-14 P-14 P00-20 (P-38) P-15 P-16 P-41 P-51 P-52 DE11 P-53 P-54 Figure 59: Parameter structure ￫ The value for unlocking the advanced parameter set is defined in parameter P-38 (default setting: 101). DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 88: Setting Parameters

    (f-REF) is zero. A frequency reference value of 0 to 10 V, for example, can be used to adjust the drive’s speed from 20 Hz (= f-min) to f-max (P-09). DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 89: Drivesconnect

    (by printing and saving parameter lists) and transfer data. The program can be downloaded from the Internet (www.eaton.eu) and installed. drivesConnect can run on the Windows 7, Windows 8, and Windows XP operating systems. Older Windows operating systems are not supported.

  • Page 90: Modbus Rtu And Canopen

    Further information concerning the Modbus RTU or CANopen topic can be found in: • MN040018: „Modbus RTU – Communication manual for DA1, DC1, DE1 variable frequency drives“, • MN040019: „CANopen – Communication manual for DA1, DC1, DE11 variable frequency drives“. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 91: Smartwire-Dt

    Figure 61: DX-NET-SWD3 SmartWire-DT interface card ￫ For more information, as well as a detailed description of the SmartWire-DT connection, please refer to manual MN04012009Z-EN, “DX-NET-SWD SmartWire-DT Interface Card for PowerXL™ Variable Frequency Drives”. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 92: Parameter Description

    P-09. P-04 t-dec 0.1 - 300 s 5.0 s Deceleration time Ramp time for deceleration from the rated motor frequency set in P-09 to 0 Hz (stop). DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 93 P-03 P-04 Figure 62: Acceleration and deceleration time ￫ The reference points for the acceleration and deceleration times configured in P-03 and P-04 are always 0 Hz and the motor’s rated frequency (P-09). DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 94 ￫ During continuous operation, excessive DC link voltage may result in the motor’s speed being temporarily increased. If deceleration ramp P-04 is active, this frequency increase will result in the ramp being lengthened. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 95: Motor Data

    230 V in P-07 ￫ Delta circuit ￫ P-08 = 3.2 A • 400 V in P-07 ￫ Star connection ￫ P-08 = 1.9 A V1 W1 V1 W1 W2 U2 W2 U2 Figure 64: Circuits (delta, star) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 96 3,000 rpm for 50 Hz – this is the synchro- nous speed of a 2-pole motor). 1) The parameter’s values will not be copied if the parameters are copied to a DE1... variable speed starter with a different output rating. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 97: Motor Protection

    ￫ The fault message must be reset by deactivating the enable sig- nal (FWD, REV), by pressing the STOP button on the keypad, or by switching off the mains voltage. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 98 +10 V and 3). In P-15 = 1 / 3 / 5 / 7 / 9 configurations, it will be used as an external fault message source (EXTFLT). The DE1... variable speed starter will be automatically switched off at a resistance of 3600 Ω with the following fault message: DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 99 (external fault) function in P-15 (= 1, 3, 5, 7, or 9): 0: High = OK, Low = EXTFLT 1: Low = OK, High = EXTFLT LED fault message (Fault Code): “2 pulses - external fault” DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 100: V/F Characteristic Curve

    Motor voltage during operation at rated frequency (P-09). Note: If the output frequency is higher than the motor frequency set in P-09, the output voltage will remain constant at the value set in this parameter. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 101 1) The parameter’s values will not be copied if the parameters are copied to a DE1... variable speed starter with a different output rating. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 102 The voltage boost (P-11) can be set to values of up to 40 % of the motor’s rated operating voltage (P-07). The voltage boost configured with P-11 will be effective up to approx. 50 % of the rated motor frequency (P-09). DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 103 In this case, the speed behavior of a three-phase asynchronous motor is comparable to operation on a constant AC supply system. Speed changes → n caused by loads (n ) will not be compensated for. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 104: Dc Braking

    Percentage of the motor voltage for DC braking. P-28 0 - P-01 0.0Hz DC braking, frequency DCBrake@stop Output frequency in Hz for activating DC braking during the deceleration phase (P-05 = 1). DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 105: Control Terminal Configuration

    ST AT US 0.1s 180 s 60 Hz 120 s ma x 50 Hz SE T 100 % M od e I M oto r DX E- EX T- SE Figure 69: DXE-EXT-SET configuration module DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 106 ENA, DIR ENA = Enable signal (HIGH level) at DI1 and start command with the oper- ating direction preselected with DI2 (= DIR): HIGH = Counterclockwise rotating field, LOW = Clockwise rotating field DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 107 Mode AI1/DI4 EXTFLT REF EXTFLT REV DOWN EXTFLT DOWN DOWN EXTFLT FF2 START START EXTFLT REF Note: The assigned control signal terminal func- tions will depend on the value set in P-12. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 108 P-12 = 2 (two operating directions) Pressing the START button will start the drive in the operating direction specified using control terminals DI1 (FWD) and DI2 (REV). Pressing the START button again will automatically reverse the operating direction. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 109 ￫ MN040018 manual, “Modbus RTU – Communication manual for DA1, DC1, DE1 variable frequency drives” describes the configuration options (P-15) for the control terminals when the device is used together with Modbus RTU. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 110 F. EXTFLT n. F. n. F. n. F. n. F. n. F. EXTFLT n. F. n. F. = no Function. When configured this way, the control terminals “n.F.” will have no function whatsoever! DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 111 P-12 = 13 (SWD control + SWD setpoint value), reference value enable signal via control terminals. Table 30: Configuration with SWD and P-12 (= 13) P-15 AI1/DI4 (Mode) f-REF EXTFLT f-REF EXTFLT f-REF DOWN EXTFLT DOWN DOWN EXTFLT f-REF EXTFLT f-REF DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 112 An additional option is to set parameter P-24 to a value of 2 or 3. In this case, the keypad’s START and STOP buttons will be disabled. The DE1... variable speed starter will then respond only to commands commands applied to DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 113 P-17 = 2.500: (0 - +4 (10) V) x 2.5 ￫ 0 - 50 (50) Hz, At 4 V, the output frequency will reach the value in P-01, and will then remain constant within a range > 4 - 10 V (gain factor: 250 %). DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 114 Analog input AI1, inversion Example: Example: f-REF = 0 - 10 V 0: 0 V = f-min (P-02); 10 V = f-max (P-01) 1: 0 V = f-max (P-01); 10 V = f-min (P-02) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 115: Parameter Lock

    Locked parameter sets can be copied to a DE1... variable speed starter with a computer (“drivesConnect” parameter configura- tion software) or a DX-COM-STICK, provided the parameter set is not locked in the DE1... variable speed starter. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 116: Default Settings

    Default settings (P-37) Modbus ID Access right Name Value Description RUN, ro/rw STOP P-37 STOP Parameter Set Used to restore the device’s default settings 0: deactivated 1: Activated (will be automatically reset to 0) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 117: Displaying Operational Data

    DI2, DI3, DI4). They can be used to monitor whether a control signal (e.g., from an external PLC) activates the variable speed starter’s inputs (DI1 - DI4). This is an easy way to check wiring (wire breakage). Following are a few examples: DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 118 Control signal on terminal 4 active (DI4) 0101 Control signal on terminal 2 and terminal 4 active (DI2 + DI4) Display value: 1 = Activated = High; 0 = Not activated = Low DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 119: Modbus Rtu Und Canopen Bus Systems

    CANopen bus system can only be used with DE11 variable speed starters! For detailed information, please refer to the separate manual: MN040019: “CANopen – Communication manual for DA1, DC1, DE11 variable frequency drives” ￫ For more information on Modbus, please visit: www.can-cia.org DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 120 7 Modbus RTU und CANopen bus systems 7.2 CANopen DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 121: Technical Data

    Output voltage: 3 AC 400 V, 50 Hz/480 V, 60 Hz (380 V - 480 V ±10 %) DE1…-341D3… IP20 0.37 DE1…-342D1… IP20 0.75 DE1…-343D6… IP20 DE1…-345D0… IP20 DE1…-346D6… IP20 DE1…-348D5… IP20 DE1-34011… 11.3 IP20 DE1-34016… IP20 1) The rated motor currents apply to normal internally and surface-cooled three-phase motors DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 122: General Rating Data

    0 - 1000 above sea level, > 1,000 with 1 % load current reduction (derating) for every 100 m, Max. 2000 Degree of protection IP20 (NEMA 0) Protection against contact BGV A3 (VBG4, finger- and back-of-hand proof) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 123: Rating Data

    < 3.5 AC/ < 10 DC < 10 DC < 10 DC < 10 DC < 10 DC < 10 DC DC braking 0 - 100 % U , 0 - 10 s, parameterizable DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 124 0.55 0.75 50 Hz at 220 -240 V, 60 Hz Apparent power at rated value at 230 V 0.56 0.92 1.08 1.71 2.79 3.82 at 240 V 0.58 0.96 1.12 1.79 2.91 3.99 DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 125 Maximum permissible Degrees 5 deviation from vertical installation position Internal device fan Degree of protection IP20/NEMA 0 IP20/NEMA 0 IP20/NEMA 0 IP20/NEMA 0 IP20/NEMA 0 IP20/NEMA 0 Weight 1.04 1.04 1.06 1.06 1.06 1.68 DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 126 Solid or 30 - 16 30 - 16 30 - 16 30 - 16 30 - 16 30 - 16 stranded Strip length tool 0.7 x 3 mm standard screwdriver Tightening torque DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 127: De1

    DC braking 0 - 100 % U , 0 - 10 s, parameterizable Heat dissipation (idle, standby) 5.13 5.13 5.13 5.52 Heat dissipation (speed/torque) 100/100 90/100 100/50 90/100 50/100 50/50 50/25 0/100 0/50 0/25 DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 128 45 x 230 x 169 45 x 230 x169 90 x 230 x 169 Maximum permissible deviation Degree from vertical installation position Internal device fan Degree of protection IP20/NEMA 0 IP20/NEMA 0 IP20/NEMA 0 IP20/NEMA 0 Weight DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 129 0.5 - 1 0.5 - 1 0.5 - 1 Solid or stranded 30 - 16 30 - 16 30 - 16 30 - 16 Strip length tool 0.7 x 3 mm standard screwdriver Tightening Torque DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 130 0 - 100 % U , 0 - 10 s, parameterizable Heat dissipation (idle, standby) P 5.52 5.52 5.52 5.52 Heat dissipation (speed/torque) 100/100 90/100 100/50 90/100 50/100 50/50 50/25 0/100 0/50 0/25 DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 131 90 x 230 x 169 90 x 230 x 169 Maximum permissible deviation Degrees from vertical installation position Internal device fan Degree of protection IP20/NEMA 0 IP20/NEMA 0 IP20/NEMA 0 IP20/NEMA 0 Weight DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 132 0.5 - 1 0.5 - 1 0.5 - 1 Solid or stranded 30 - 16 30 - 16 30 - 16 30 - 16 Strip length tool 0.7 x 3 mm standard screwdriver Tightening Torque DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 133: Dimensions

    (in) (in) (in) (1.77) (0.98) (9.06) (8.66) (0.2) (6.61) (0.26) (0.2) (0.39) (3.54) (1.97) (9.06) (8.66) (0.2) (6.61) (0.26) (0.2) (0.39) 1 in = 1’’ = 25.4 mm, 1 mm = 0.0394 in DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 134 8 Technical Data 8.4 Dimensions DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 135: Accessory Devices

    The DX-KEY-LED keypad is designed to be installed in a control panel door. The DX-KEY-LED’s degree of protection on the front is IP54. L1/L L2/N  DX-KEY-LED 0 V +10 V 1 13 14  Figure 75: Mounting in a control panel door DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 136 By using parameter P5-01 in DA1 variable frequency drives • By using parameter P-34 in DE1 variable speed starters Table 36: Key combinations for port addresses Function Key combination Keypad address DE1, DC1, DA1 address DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 137 ) you want. Then press the STOP + ▼ keys simultaneously again to Adr-63 save the address in the corresponding device (DE1, DC1, DA1), after which the device’s data will be loaded onto the keypad. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 138: Dx-Com-Stick Communications Stick

    Continuous = Bluetooth ready for operation Flashing = Communicating with a computer e Button – Read data from connected device ⑤ and store it f Button – Transfer data from DX-COM-STICK communication stick to connected device ③ ④ DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 139 DX-COM-STICK is locked, the DE1... Status Flash for 2 s (4 Hz), yellow is in RUN mode, or the DE1... part no. is not compatible. Fault Code Flash for 2 s (4 Hz), yellow DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 140: Smartwire-Dt Dx-Net-Swd3

    Instruction leaflet IL040009ZU. ￫ For detailed instructions on how to use the DX-NET-SWD3 mod- ule, please refer to manual MN04012009Z-DE, “DX-NET- SWD… SmartWire-DT interface module for PowerXL™ variable frequency drive/variable speed starter”. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 141: Dx-Cbl-Pc1M5 Computer Cable

    USB interface at the end (computer connection). ￫ For more information on the DX-CBL-PC1M5 connection cable, please refer to manual MN040003EN, “drivesConnect Parame- ter Software for PowerXL™ Variable Frequency Drives”, and to Instruction leaflet IL040002ZU. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 142: Dx-Com-Pckit Interface Card

    13 14  DC + BR  US B PW R ① Se ria l ① DX-COM-PC KIT ② ② RS485 ② DX-SPL-RJ45-2SL1PL ③ DX-CBL-RJ45-... RJ45 ③ OP-BUS ③ Figure 83: Communication line example DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 143 An approximately 80 cm-long cable with USB interfaces (type A and type B) • An approximately 80 cm-long cable with RS485 and RJ45 plugs. ￫ For more information on DX-COM-PCKIT, please refer to instruction leaflet IL04012022Z. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 144: Splitter Dx-Spl-Rj45-2Sl1Pl

    ① L1 /L L2 /N  ③ 0 V +10 V 1 13 14  ② Figure 85: RJ45 connection a DE1… variable speed starters b Splitter DX-SPL-RJ45-2SL1PL c DX-CBL-RJ45… cable DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 145: Cable And Safety Devices

    – a screened power cable. The motor cable’s length will depend on the EMC category. NOTICE When selecting fuses and cables, make sure to always comply with all the regulations that apply at the installation site. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 146 3) Fuse as per UL if using AWG wiring The cable cross-sectional areas that can be properly clamped in place, as well as the stripping lengths, are provided in the technical data section (￫ Page 117ff.). DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 147 2) Equivalent PKZM part nos. are permissible. However, please note that the overload release will not provide any direct protection for the motor. 3) Group protection, SCCR: 14 kA, 3 pole: 480 V/277 V AC FAZ-B307/3-NA for all DE1…-34… combinations up to a total input current (I ) < 30 A DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 148: Dil

    DILM7-… DE1…-34016… 16.5 DILEM-… DILM7-… 1) Phase current on mains side (without mains choke) Technical data on the mains contactors can be found in the main catalog HPL, Contactors DILEM and DILM 7. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 149: Dx-Ln

    30 % and increase the lifespan of variable speed starters and upstream-connected switchgear. Further information and technical data on the mains chokes of the DX-LN… series is provided in instruction leaflet IL00906003Z. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 150 480 +10 % DX-LN3-010 DE1…-346D6… 480 +10 % DX-LN3-010 DE1…-348D5… 480 +10 % DX-LN3-010 DE1…-34011… 480 +10 % DX-LN3-016 DE1…-34016… 16.5 480 +10 % DX-LN3-016 1) Phase current on mains side (without mains choke) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 151: External Emc Filter

    DE1... variable speed starter. L1/L L2/N  0 V +10 V 1 13 14  Figure 89: Installation position (example showing DX-EMC34-019… and DE1...-340… with FS2 frame size) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 152 Part no. EMC category C1 [m] C2 [m] C3 [m] Voltage class 220/240 V DE1…-121D4… DX-EMC12-019-FS1 DE1…-122D3… DE1…-122D7… DE1…-124D3… DE1…-127D0… DE1…-129D6… DX-EMC12-025-FS2 Voltage class 380/400 V DE1…-341D3… DX-EMC34-008-FS1 DX-EMC34-008-FS1-L (25) DE1…-342D1… DE1…-343D6… DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 153 Part no. EMC category C1 [m] C2 [m] C3 [m] DE1…-345D0… DX-EMC34-019-FS3 DX-EMC34-019-FS3-L DE1…-346D6… DE1…-348D5… DE1…-34011… DE1…-34016… 1) Reduced motor cable length in category C1 when combining DE1...-34…NN… and reduced leakage current filter DX-EMC34-008-FS1-L DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 154: Motor Choke Dx-Lm3

    Further information and technical data on the motor chokes of the DX-LM3… series is provided in instruction leaflet IL00906003Z. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 155 • Maximum motor choke power supply (U ): 750 V ±0% • Maximum permissible output frequency f : 200 Hz • Maximum permissible pulse frequency (f ) for DE1 device: 24 kHz (= P-29) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 156 9 Accessory devices 9.11 Motor Choke DX-LM3… DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 157: De1

    When the mains voltage is switched on or returns, the two synchronously flashing Status and Fault Code LEDs will signal that the switched-mode power supply is working and the DE1... variable speed starter’s operating state will be checked before the Run LED starts flashing. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 158: Acknowledge Fault Message (Reset)

    The fault memory cannot be cleared. It will retain its information even if the device’s default settings are restored. ￫ When using the DX-KEY-LED keypad, it will only be possible to view the most recent fault and the three faults that preceded it. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 159 If you press the ▲ (UP) arrow key again, the fourth most recent fault message will be shown. Fourth most recent fault message; U-Volt Example: (undervoltage signal) The three decimal points on the right will flash (= fourth most recent fault message). DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 160: Fault List

    ￫ Is there enough air circulation around the DE1... variable speed starter (clearances above and underneath)? ￫ Are the vents clear? ￫ In the case of devices with an internal fan: Is the fan running? DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 161 ° 12 x Thermistor fault • Faulty thermistor on internal heat sink. th-FLt ￫ Please contact your closest Eaton representative. 13 x Data error • The modified parameters were not saved (flash memory) and dAtA-F the default settings have been loaded instead.
  • Page 162 10 Fault messages 10.3 Fault list DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 163: List Of Parameters

    Ramp time for accelerating from 0 Hz (stop) to the rated motor frequency set in P-09. P-04 t-dec 0.1 - 300 s 5.0 s Deceleration time Ramp time for decelerating from the rated motor frequency set in P-09 to 0 Hz (stop). DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 164 LED fault message (Fault Code): "1 pulse – overload." P-09 STOP Motor Nom 20.0 - 300 Hz 50 Hz Motor’s rated frequency Frequency (60Hz) The motor frequency at the rated operating voltage (P-07). DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 165 The voltage increase function will result in a higher starting torque and will improve the torque curve at low speeds. In addition, the motor current will be increased, resulting in increased motor heating. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 166 Display memory containing the eight most recent recent fault fault messages P-14 Password 0 - 65535 Access code Password protection for the extended parameter set (P-15 through P-41). The password can be set using parameter P-38. Default settings: 101 DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 167 Analog input AI1, inversion Example: f-REF = 0 - 10 V • 0: 0 V = f-min (P-02)/10 V = f-max (P-01) • 1: 0 V = f-max (P-01)/10 V = f-min (P-02) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 168 DC braking, voltage Percentage of the motor voltage for DC braking. P-28 f-DCBrake@Stop 0 - P-01 0.0Hz DC braking, frequency Output frequency in Hz for activating DC braking during the deceleration phase (P-05 = 1). DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 169 0: activated 1: Locked. The thermal image will be deleted when the device is switched back on. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 170 P-05 = 1 (ramp) 3: Shutdown (uncontrolled deceleration, free run- down) 4: Shutdown with fault message Note: P-36 can be used to set a delay for the response to a loss of communication. DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 171 ≧ operating point; the level will be a logical 1 if the value < switching threshold P-54 RO1 switch-on 0.0 - 250.0 s 0.0 s Delay time before the output switches from delay logical 0 to logical 1 DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 172 Operating hours since FWD/REV/ENA DE1... operating hours in RUN mode since the most recent enable signal (FWD or REV). Displayed in hours or in minutes and seconds (use the arrow keys to switch between units) DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 173 Serial number (78-000) Serial number from left to right, split into two sections (use the arrow keys to switch between the two sections) P00-20 Drive Information 0.37 - 7.50 DE1… Info Rating in kW DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...
  • Page 174 11 List of parameters DE1… Variable Speed Starter 11/16 MN040011EN www.eaton.com...

  • Page 175: Index

    ....... . 9 ... . 21 DE1 variable speed starter 11/16 MN040011EN www.eaton.com...
  • Page 176 ......159 Parameter Lock ......111 DE1 variable speed starter 11/16 MN040011EN www.eaton.com...
  • Page 177 ....... . . 21 Wiring system ......18, 34 DE1 variable speed starter 11/16 MN040011EN www.eaton.com...

Table of Contents

Save PDF
