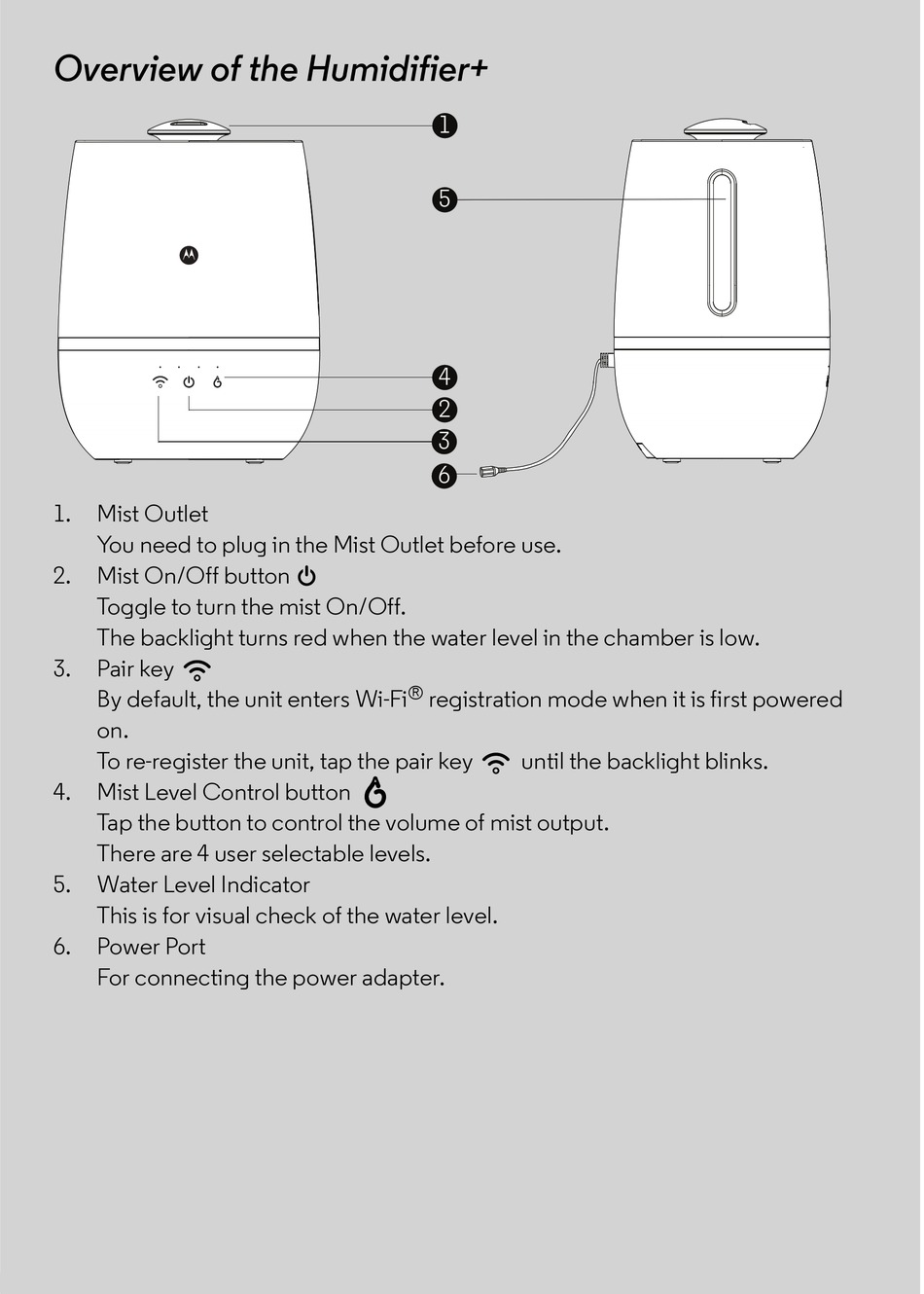

Overview of the Humidifier+
1. Mist Outlet
You need to plug in the Mist Outlet before use.
2. Mist On/Off button 0
Toggle to turn the mist On/Off.
The backlight turns red when the water level in the chamber is low.
3. Pair key
By default, the unit enters Wi-Fi
on.
To re-register the unit, tap the pair key
4. Mist Level Control button
Tap the button to control the volume of mist output.
There are 4 user selectable levels.
5. Water Level Indicator
This is for visual check of the water level.
6. Power Port
For connecting the power adapter.
1
5
4
2
3
6
®
registration mode when it is first powered
until the backlight blinks.
