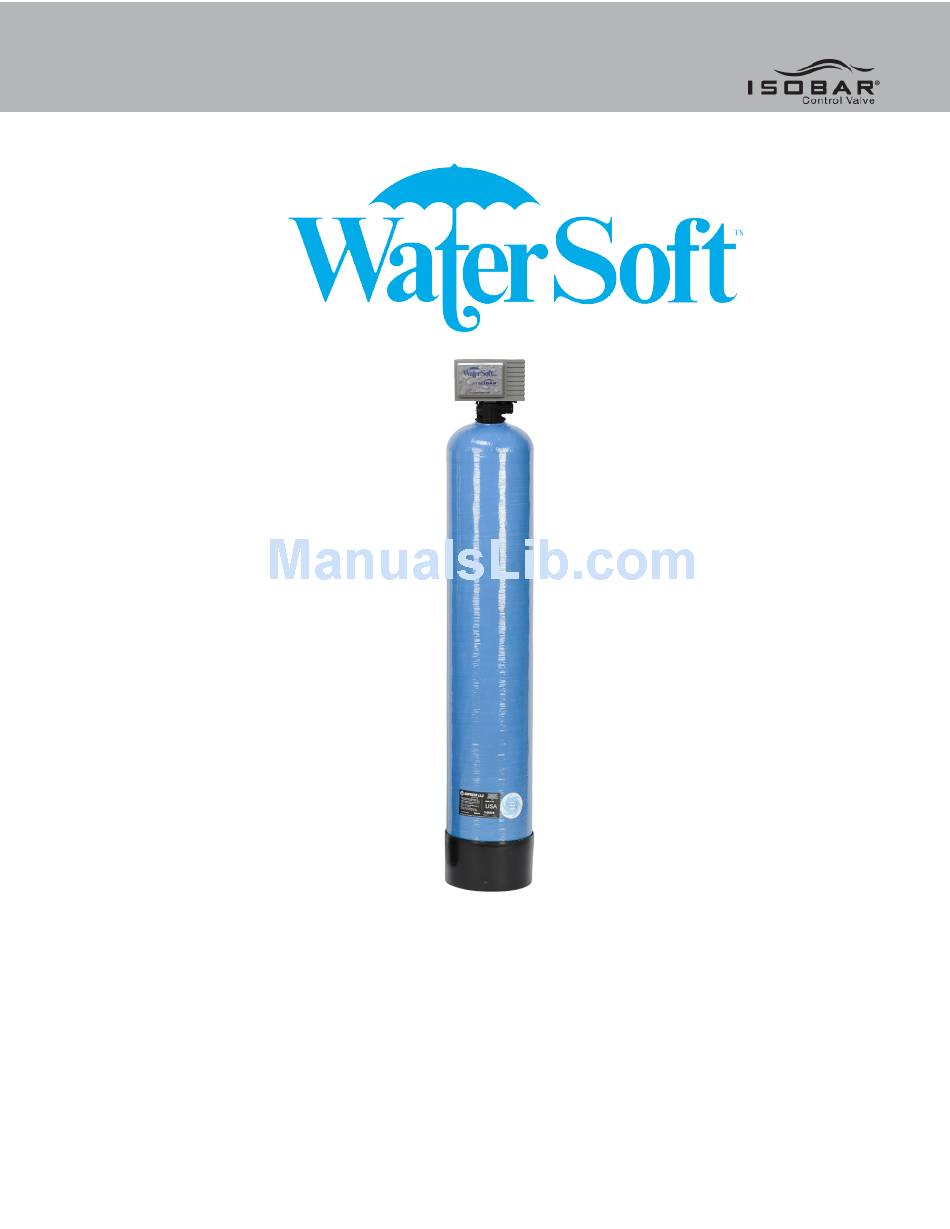

- Page 1 Filter Manual Installation / Operation Manual Fully Automatic Water Filter with 2092 Isobar Control Valve...
- Page 2 Filter Specifications....................Page 3 Installation Requirements..................Page 4 Installation Procedures...................Page 6...
-
Page 3: Filter Specifications
Filter Specifications General Specifications G10P G12P G13P Less Filter Media Filtration Filter Media Capacity (cu ft) Mineral Tank (Vortech ™) 9 X 48 10 X 54 12 X 52 13 X 54 Service Flow Rate - Continuous (gpm) Service Flow Rate - Intermittent (gpm) Backwash Flow Rate... -
Page 4: Installation Requirements
Installation Installation Requirements A level floor position ahead of piping into water heater. Unit must be installed at least 10 feet ahead of the inlet to a water heater to prevent damage due to back-up hot water. DO NOT install the unit in an area of direct sunlight or where freezing temperatures may occur! Locate the unit near an unswitched, 120 volt / 60 Hz grounded electrical outlet. -
Page 5: Installation Procedure
Installation Installation Procedure - Water Supply Connection and Bypass Valve - To allow for filter servicing, swimming pool filling or lawn sprinkling, a manual Bypass Valve has been installed at the factory. The Bypass allows raw water to be manually routed around the filter. 1. -
Page 6: Installation Procedures
Installation Caution: Be extremely careful to position distributor tube into control valve distributor tube pilot hole. 3. Turn OFF main water supply and OPEN nearest faucet to relieve pressure. 4. Cut main line and install appropriate elbows and extensions. Caution: Raised arrows located on the sides of control valve body and bypass valve indicate proper direction of water flow. - Page 7 Installation 4. Set the days of backwash desired and the time of day as follows: How to set the day on which the water filter is to backwash: Rotate the skipper wheel until the number “1" is at the red pointer. Set the days that the backwash is to occur on by sliding tabs on the skipper wheel outward to expose trip fingers.
