Summary of Contents for WaterSoft rs1

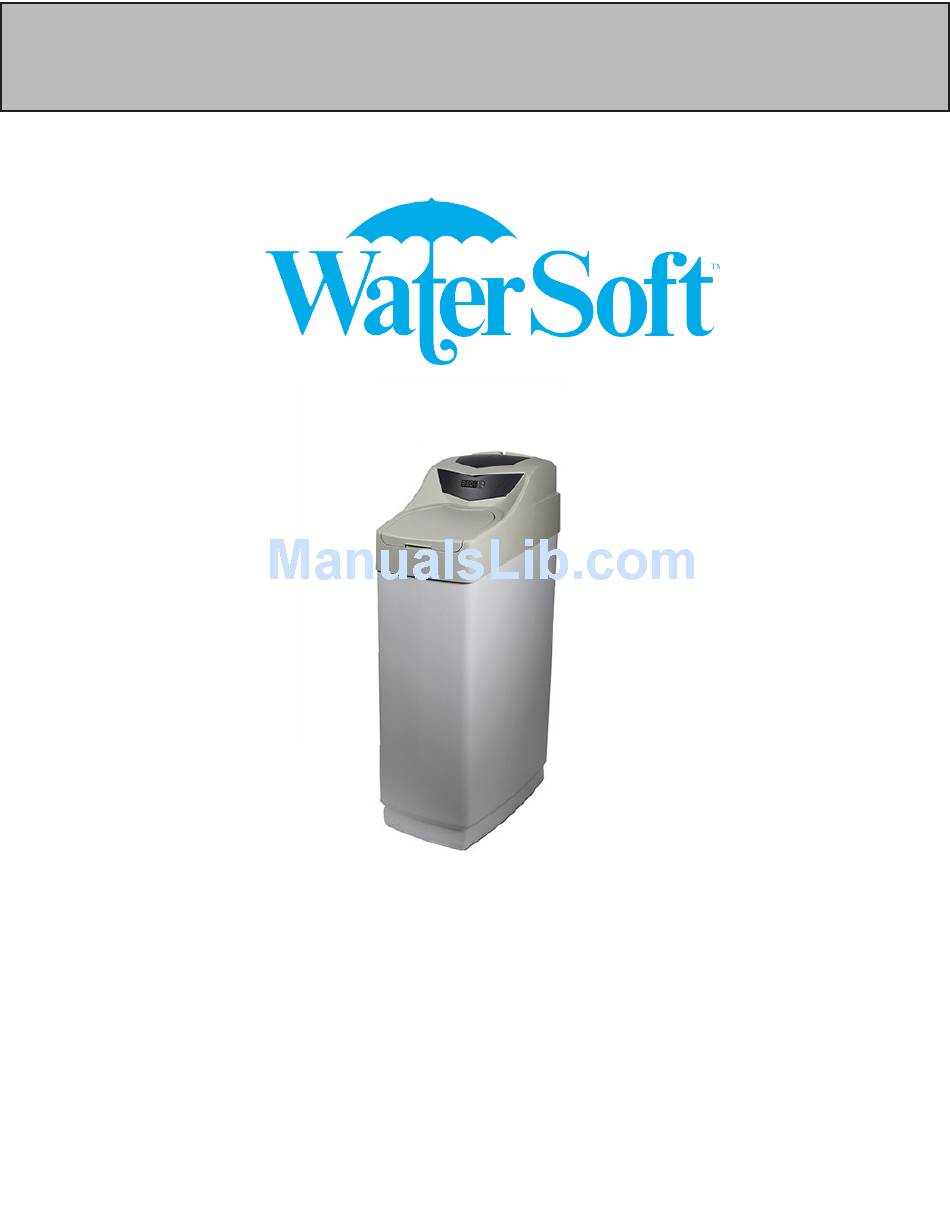

  • Page 1 Softener Manual Installation / Operation Manual CABINET Water Softener...
  • Page 2: Table Of Contents

    Softener Specifications....................Page 3 Softener Installation......................Page 5 Master Programming.....................Page 12 Utilizing Bluetooth......................Page 14 Powerhead Assembly....................Page 15 Valve Body Assembly....................Page 16 Cabinet Body Assembly....................Page 17 Bypass Assembly......................Page 18 Additional Information....................Page 19 Troubleshooting......................Page 22 Error Codes........................Page 23...
  • Page 3: Softener Specifications

    Softener Specifications General Specifications CD24 CD32 CD24X* CD32X* 20,250 / 7.5 27,000 / 9 Grains Capacity - Regeneration / Lbs Salt Used Maximum Raw Water Hardness (grains) Maximum Clear Iron / Manganese Exchange Resin (cu ft per tank) Mineral Tanks (polyglass) 9 X 35 9 X 35 Brine Tank (polyethylene w grid &...
  • Page 4: How A Water Softener Works

    Softener Specifications PLEASE NOTE THESE SPECIFICATIONS BEFORE PROCEEDING OPERATING PRESSURE RANGE : 20 - 125 PSI OPERATING TEMPERATURE RANGE : 33º F - 120º F INLET / OUTLET PIPE SIZE : 3/4: FNPT PLEASE COMPLY WITH ALL APPLICABLE PLUMBING CODES PROTECT THE SOFTENER AND PIPING FROM FREEZING TEMPERATURES Please read the entire Owner’s Manual and Instruction before installation.
  • Page 5: Softener Installation

    Installation -Pre-Installation Check List- A water test should always be performed in order to determine total water hardness (in gpg) and total dis- solved iron (in parts per million - ppm). This is critical for proper equipment selection, sizing and for determining the program for regeneration frequency.
  • Page 6: Installation Procedure

    Installation -Softener Location / Other Requirements- • Locate the unit near an unswitched, 120 volt / 60 Hz grounded electrical outlet. • Check for distance and proper drain installation (e.g. floor drain, washing machine standpipe). • Determine type and size of piping required for softener connection (e.g. copper, galvanized, PVC plastic). Note •...
  • Page 7: Drain Line Connection

    Installation -Drain Line Connection- 1. Pull out clip and remove drain line assembly located on the left side of control valve. Remove drain line hose barb and wrap threads with Teflon tape. Reinstall drain line hose barb. Caution : Hand tighten only!!! Replace drain line assembly and reinstall clip.
  • Page 8: Programming The Control Valve

    Installation - Pressurizing The System - 1. Make certain the RS1 Series Control Valve is in SERVICE position. 2. Slowly rotate bypass valve to the SERVICE position. (Position of bypass lever is parallel to inlet / outlet piping.) 3. Open the nearest faucet to evacuate air from plumbing lines.
  • Page 9 Installation 1. Set time of day. 2. Set a.m. or p.m. 3. Set water hardness in grains per gallon (gpg). Note : If the water contains iron and / or manganese, multiply the total parts per million (ppm) by “four” (4) and then add to the grains per gallon (gpg) of hardness.
  • Page 10 Installation - Start Up Procedure - - Disinfection - For disinfection of your unit, please follow the Sani-System Procedure on the back of the packet provided. - Filling The Brine Tank With Salt - To expect a high level of performance and reliability, a salt manufactured specifically for water softeners must be used. Salt of this grade is virtually free from dirt and other particulates that would eventually cause the softener to malfunction.
  • Page 11: Normal Operation

    Normal Operation 1. Home Display The RS1 model will alternate the Time of Day and Gallons left until the next regeneration. The meter will count down to zero (0000) and then regenerate at the scheduled time set. Starting Extra Regeneration Cycle To Start Delayed Extra Cycle - Press and hold the Set/Change button for 3 seconds until the display reads ‘0000’...
  • Page 12: Master Programming

    Master Programming Mode Master Programming Mode To enter Master Programming Mode, press and hold both buttons for 5 seconds. All Master Programming functions have been preset at the factory. Unless a change is desired, it is NOT Note: necessary to enter Master Programming Mode. 1.
  • Page 13 Master Programming Mode 5. Reserve Capacity Setting % Example (p - 25) 6. Bluetooth Enabled BE - 1 (ON) BE - 0 (OFF) 7. Bluetooth Password BBPP is displayed for one second, then password is displayed. 8. To Exit the Master Programming Mode, press the Menu/Enter button until time of day returns. Note: If no buttons are pressed for 60 seconds, the Master Programming Mode will be exited automatically.
  • Page 14: Utilizing Bluetooth

    Utilizing Bluetooth Control To take advantage of the Bluetooth interface this feature must be set up on a Bluetooth enabled device. Note: At the time of this release Bluetooth control only works on Android devices with a compatible version of Bluetooth. 1.
  • Page 15: Powerhead Assembly

    Power Head Assembly * Components included in wiring harness (Not Shown). Description Part Number Secondary Plate 20016X002 Encoder Wheel 20001X007 Encoder Board* 20016X200 Main Plate 20016X001 Motor* 20016X200 Brine Cam 20001X122 Main Gear 20001X120...
  • Page 16: Valve Body Assembly

    Valve Body Assy. Description Part # Qty. Description Part # Qty. R e f R e f Piston Assembly 20001X231 Injector Seal 20001X224 Injector - White 20001X219 Screw 20001X001 Screen 20001X222 Seal & Spacer Kit 20561X253 Bottom Spacer Plug 20001X217 Tank O-Ring 20001X215 DLFC Button 2.0...
  • Page 17: Cabinet Body Assembly

    Cabinet Body Assembly Ref # Description Part # Qty. Clack Windsor Tank Cabinet Bottom 20016X007 Resin / Media Tank - Natural 30935X000 Brine Well Assy. & Air Check 20016X008 Cabinet Cap 20016X009 Cabinet Lid 20016X010 Top Insert 20016X011 Bluetooth Board EVB-019-CAB Rubber Key Pad EVA-019-KEY...
  • Page 18: Bypass Assembly

    Bypass Assembly (1A) Ref # Description Part # Meter Assembly, Turbine Complete 20003X200 20561X292 Plastic Bypass Valve Assembly Bypass Valve 3/4” Stainless Steel 20561X270 Bypass Valve 1” Stainless Steel 20561X283...
  • Page 19: Additional Information

    Service Instructions / Instructional Videos Available at www.csiwater.com General Preliminary Instructions PERFORM BEFORE ALL SERVICING OPERATIONS 1. Turn off water supply to conditioner. -If the conditioner installation has a “three valve” bypass system, first open the valve in the bypass line, then close the valves at the conditioner inlet and outlet. -If the conditioner has an integral bypass valve, put it in the bypass position.
  • Page 20 Service Instructions / Instructional Videos Available at www.csiwater.com To Replace Brine Valve 1. Follow steps A1 - A3 2. Remove the top cover. Disconnect the meter cable from the meter assembly. 3. Remove screw and washer at piston drive yoke. Remove powerhead mounting screws.
  • Page 21 Service Instructions / Instructional Videos Available at www.csiwater.com To Replace Seals and Spacers 1. Follow steps A1 - A3. 2. Remove the control top cover. Disconnect the meter signal wire from the meter. 3. Remove screw and washer at piston drive yoke. Remove powerhead mounting screws. The entire powerhead assembly will now lift off easily.
  • Page 22: Troubleshooting

    Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION Power supply plugged into Connect to constant power source intermittentent or dead power source 1.Softener Fails to Disconnected meter cable Reconnect cable Regenerate Improper control valve Reset program settings programming Automatically Defective power supply Replace power supply Meter is dirty or defective Clean or replace meter assembly...
  • Page 23: Error Codes

    Troubleshooting Guide SYMPTOM PROBABLE CAUSE CORRECTION Plugged drain line or drain line control Check flow to drain. Clean drainline flow control button 7. Excessive Water in Dirty or damaged brine valve Clean or replace brine valve. Brine Tank and / or Plugged injector or screen Clean or replace injector screen.
  • Page 24 WATERSOFT 710 Orange St, Ashland, OH 44805 l PH 419-281-6829 l FAX 419-281-2375 www.WATERSOFT.com...
