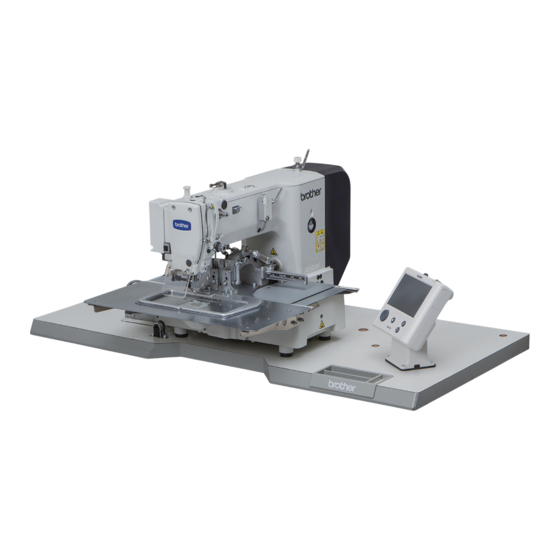

Brother BAS-326H-484 Basic Operation Manual

Programmable electronic pattern sewer
Hide thumbs Also See for BAS-326H-484:
Table of Contents

Advertisement

Quick Links

BAS-326H-484
BAS-326H-484 SF
ダイレクトドライブ
プログラム式電子ミシン＜全回転３倍がま仕様＞
この説明書を読んでから、製品をご使用ください。
この説明書は、必要なときにすぐに取り出せる場所に、保管してください。
* この「取扱説明書・基本編」には、ミシンの操作までの基本的な内容が記述されています。
お手入れや標準調整など、更に詳しい内容は、 「ダウンロード版」の取扱説明書をご覧ください。
DIRECT DRIVE
PROGRAMMABLE ELECTRONIC PATTERN SEWER
<TREBLE HOOK>
Please read this manual before using the machine.
Please keep this manual within easy reach for quick reference.
* This basic operation manual describes basic operations including sewing machine operations.
For cleaning, standard adjustments and more details, please refer to the instruction manual contained in
the download version of the Instruction Manual.
直接驱动式
程序电脑花式机<三倍大旋梭>
在使用缝纫机之前请先阅读本使用说明书。
请将本使用说明书放在便于查阅的地方保管。
* 本「使用说明书·基本篇」，主要记述了有关缝纫机操作的基本内容。
保养、标准调整等详细内容，请浏览下载版的使用说明书。
MOTOR INCORPORADO AL EJE
MÁQUINA ELECTRÓNICA DE ÁREA PROGRAMABLE
<GARFIO MEDIO>
Por favor lea este manual antes de usar la máquina.
Por favor guarde este manual al alcance de la mano para una rápida referencia.
* Este manual básico de operación describe las operaciones básicas de la máquina de coser. Para limpiar,
realizar ajustes estándar y otros detalles, consulte el manual de instrucciones de la versión de descarga.
取扱説明書・基本編
Basic Operation Manual
使用说明书·基本篇
Manual básico de operación

Advertisement

Table of Contents
loading

Related Manuals for Brother BAS-326H-484

Summary of Contents for Brother BAS-326H-484

  • Page 1 BAS-326H-484 取扱説明書・基本編 Basic Operation Manual BAS-326H-484 SF 使用说明书·基本篇 Manual básico de operación ダイレクトドライブ プログラム式電子ミシン＜全回転３倍がま仕様＞ この説明書を読んでから、製品をご使用ください。 この説明書は、必要なときにすぐに取り出せる場所に、保管してください。 * この「取扱説明書・基本編」には、ミシンの操作までの基本的な内容が記述されています。 お手入れや標準調整など、更に詳しい内容は、 「ダウンロード版」の取扱説明書をご覧ください。 DIRECT DRIVE PROGRAMMABLE ELECTRONIC PATTERN SEWER <TREBLE HOOK> Please read this manual before using the machine. Please keep this manual within easy reach for quick reference.
  • Page 2 BAS-326H-484, BAS-326H-484 SF...
  • Page 3 BAS-326H-484 BAS-326H-484 SF DIRECT DRIVE PROGRAMMABLE ELECTRONIC PATTERN SEWER <TREBLE HOOK>...
  • Page 4 Thank you very much for buying a BROTHER sewing machine. Before using your new machine, please read the safety instructions below and the explanations given in the instruction manual. With industrial sewing machines, it is normal to carry out work while positioned directly in front of moving parts such as the needle and thread take-up lever, and consequently there is always a danger of injury that can be caused by these parts.

  • Page 5: Safety Instructions

    This symbol ( ) indicates something that you must do. The picture inside the circle indicates the ･･････ nature of the thing that must be done. (For example, the symbol at left means “you must make the ground connection”.) BAS-326H-484, BAS-326H-484 SF...
  • Page 6 Furthermore, do not excessively bend the cords or secure them too firmly Contact your Brother dealer or a qualified electrician with staples, otherwise there is the danger that fire or for any electrical work that may need to be done.

  • Page 7: Maintenance And Inspection

    Furthermore, do not apply excessive force when Ask your Brother dealer or a qualified electrician to tilting back the machine head. The sewing machine carry out any maintenance and inspection of the may become unbalanced and fall down, and serious electrical system.
  • Page 8 The following warning labels appear on the sewing machine. Please follow the instructions on the labels at all times when using the machine. If the labels have been removed or are difficult to read, please contact your nearest Brother dealer. *Safety devices...
  • Page 9 Rear cover Solenoid cover Inner cover L Outer cover Fixed cover Side cover Thread take-up cover Eye guard Finger guard Inner cover R Outer cover Fixed cover Gas spring support cover 3687B BAS-326H-484, BAS-326H-484 SF...

  • Page 10: Table Of Contents

    3-4. Installing the machine head......5 5-5. Setting the intermittent presser foot lift amount 3-5. Installing the LCD panel ........8 (BAS-326H-484 SF specifications only) ...37 3-6. Installing the two-pedal foot switch ....9 6. USING STORAGE MEDIA ....39 3-7. Connecting the cords........9 6-1.

  • Page 11: Names Of Major Parts

    (2) Control box (10) Finger guard (3) LCD panel (11) Eye guard (4) Work clamp switch (12) Thread take-up cover (5) Start switch (13) Rear cover (6) STOP switch (7) Pulley (8) Cotton stand (9) Solenoid valve BAS-326H-484, BAS-326H-484 SF...

  • Page 12: Useful Functions For Optimum Sewing

    Page 34 This is used to stop the thread from pulling out at the 3689B sewing start, and at times when skipped stitches might easily occur. The starting-up speed at the sewing start can be adjusted easily. BAS-326H-484, BAS-326H-484 SF...

  • Page 13: Installation

    Furthermore, do not excessively bend the cords or secure them too firmly staples, Contact your Brother dealer or a qualified electrician otherwise there is the danger that fire or electric for any electrical work that may need to be done.

  • Page 14: Installing The Control Box

    (6) Spring washers [4 pcs.] (7) Nuts [8 pcs.] 3033B (8) Power switch (9) Wood screws [2 pcs.] (10) Staples [4 pcs.] Operator 1841B 3-3. Installing the oil pan (1) Oil pan (2) Nails [6 pcs.] (3) Waste oil tank 3034B BAS-326H-484, BAS-326H-484 SF...

  • Page 15: Installing The Machine Head

    Approx. 20 mm of the pulse motor. Approx. 20 mm 3690B (4) Hinge holders [2 pcs.] (5) Bolts [4 pcs.] (6) Plain washers [4 pcs.] (7) Nuts [4 pcs.] (8) Head rest (9) Bolts with washer [4 pcs.] 3691B BAS-326H-484, BAS-326H-484 SF...
  • Page 16 • Be careful not to clamp any items such as screwdrivers under the cushion when tilting back machine head. 3432B (12) Bobbin winder tension assembly (13) Set screw [1 pc.] 3521B BAS-326H-484, BAS-326H-484 SF...
  • Page 17 (28) Gas spring shaft U (29) Retaining rings E [2 pcs.] (30) Plain washers (small) [2 pcs.] (31) Absorber setting plate (32) Bolts with washer [2 pcs.] 3534B (33) Gas spring support cover (34) Bolts with washer [6 pcs.] 3692B BAS-326H-484, BAS-326H-484 SF...

  • Page 18: Installing The Lcd Panel

    (PANEL) connector (9) on the side of the control box. • Tighten the four wood screws (3) so that the thickness of the rubber cushion (2) is 5 mm. 3554B BAS-326H-484, BAS-326H-484 SF...

  • Page 19: Installing The Two-Pedal Foot Switch

    • Secure the cables with cable ties and cord clamps, while being careful not to pull on the connector. 3694B (*1) Please download the "LCD Panel/Operation Panel" Instruction Manual from our web site. BAS-326H-484, BAS-326H-484 SF...
  • Page 20 NOTE: Route the X, Y and Iintermittent presser foot pulse motor harnesses so that they do not touch the power supply P.C. board at the bottom of the control box. *1: Only applicable to -484 SF specifications. BAS-326H-484, BAS-326H-484 SF...
  • Page 21 Close the cord presser plate (6) securely so that no foreign objects, insects or small animals can get inside the control box. 6. Check that the cords do not get pulled, and then gently return the machine head to its original position. 3538B BAS-326H-484, BAS-326H-484 SF...
  • Page 22 3. INSTALLATION (PANEL) Connector D-sub connector LCD panel [9-pin] (PANEL) 3557B BAS-326H-484, BAS-326H-484 SF...

  • Page 23: Connecting The Ground Wire

    • Tighten the control box cover with the six screws. Check that the cords are not clamped by the cover at this time. NOTE: Make sure that the ground connections are secure in order to ensure safety. BAS-326H-484, BAS-326H-484 SF...

  • Page 24: Connecting The Power Cord

    • Take care when tapping in the staples (3) to make sure that they do not pierce the cords. • Do not use extension cords, otherwise machine operation problems result. Control box Green and yellow wire (ground wire) 3665B BAS-326H-484, BAS-326H-484 SF...
  • Page 25 3. Use the six screws to tighten the cover of the control box. Check that none of the cords are being clamped by the cover at this time. Green and yellow wire (ground wire) BAS-326H-484, BAS-326H-484 SF...
  • Page 26 3. Use the six screws to tighten the cover of the control box. Check that none of the cords are being clamped by the cover at this time. Green and yellow wire (ground wire) 3658B BAS-326H-484, BAS-326H-484 SF...

  • Page 27: Installing The Cotton Stand

    3. INSTALLATION 3-10. Installing the cotton stand (1) Cotton stand NOTE: Securely tighten the nut (3) so that the two washers (2) are securely clamped so that the cotton stand (1) does not move. 3640B BAS-326H-484, BAS-326H-484 SF...

  • Page 28: Installing The Pneumatic Unit

    The air tubes (5) marked with an A connect to the front valve connections (A), and those marked with B connect to the rear connections (B). 3. Open the air cock (6). (*1) Please download the Instruction Manual for the sewing machine from our web site. BAS-326H-484, BAS-326H-484 SF...

  • Page 29: Adjusting The Speed Controller

    To use, fully tighten both the upper and lower knobs (7) and (8), and then loosen them both by 6 turns. NOTE: If the knobs (7) and (8) are tightened more than the settings mentioned above, the upper thread trailing length may not Valve 4 be maintained correctly. 3701B BAS-326H-484, BAS-326H-484 SF...

  • Page 30: Installing The Eye Guard

    3-14. Installing the side cover and rear cover (1) Side cover 3702B (2) Screws [4 pcs.] (3) Rear cover (4) Screws [4 pcs.] NOTE: Be careful not to clamp the cords when installing the side cover and the rear cover. 3703B BAS-326H-484, BAS-326H-484 SF...

  • Page 31: Lubrication

    Use only the lubricating oil <JX Nippon Oil & Energy Corporation Sewing Lube N10; VG10> specified by Brother. * If this type of lubricating oil is difficult to obtain, the recommended oil to use is <Exxon Mobil Essotex SM10; VG10>.

  • Page 32: Installing The Machine Head Fixing Bolt

    If the machine head switch (1) is not turned on, error [E050], [E051] or [E055] will occur. Use the screw (2) to adjust the installation position of the machine head switch as shown in the illustration. 3054B BAS-326H-484, BAS-326H-484 SF...

  • Page 33: Preparation Before Sewing

    2. Insert the needle (2) in a straight line as far as it will go, making sure that the long groove on the needle is at the front, and then securely tighten the set screw (1). 3057B BAS-326H-484, BAS-326H-484 SF...

  • Page 34: Threading The Upper Thread

    • If you would like to adjust the sensitivity of the thread breakage sensor, refer to "Adjusting the sensitivity of the thread breakage sensor" in the Instruction Manual. (*1) (*1) Please download the Instruction Manual for the sewing machine from our web site. BAS-326H-484, BAS-326H-484 SF...

  • Page 35: Threading Mode

    The display will return to the previous screen. • The work clamps (and the intermittent presser foot *1) will return to where it was before threading mode was started. *1: The intermittent presser foot is only applicable to -484 SF specifications. BAS-326H-484, BAS-326H-484 SF...

  • Page 36: Winding The Lower Thread

    10. Remove the bobbin, hook the thread onto the knife (3), and then pull the bobbin in the direction of the arrow to cut the thread. 11. Touch the OK key (5) to return to the previous screen. 3550B BAS-326H-484, BAS-326H-484 SF...

  • Page 37: Installing The Bobbin Case

    3. Pass the thread through the thread slot (2), pass it underneath the spring (3), and then pass it through the thread guide (4), leaving a trailing-out length of about 30 mm. 4. Hold the latch on the bobbin case and insert the bobbin case into the rotary hook. BAS-326H-484, BAS-326H-484 SF...

  • Page 38: Installing The Anti-Spin Spring

    Lower thread tension (N) 0.3 − 0.6 Pre-tension (N) Needle DP x 17 #25 Normal sewing speed 1,300 sti/min 4-6-1. Lower thread tension Adjust the lower thread tension by turning the adjusting screw (1). Weaker Stronger 3185Q BAS-326H-484, BAS-326H-484 SF...

  • Page 39: Upper Thread Tension

    No programs are registered at the time of shipment from the factory, and so "---" is displayed as the program number (No.). For details on the sewing data reading method, refer to "6. USING STORAGE MEDIA". BAS-326H-484, BAS-326H-484 SF...

  • Page 40: Using The Operation Panel (Basic Operations)

    Touch to switch to the [sewing operation screen]. (2) Programming key Touch to switch to the [programming screen]. (3) File Manager key Touch to switch to the [file manager screen]. (4) Settings key Touch to switch to the [setting menu screen]. BAS-326H-484, BAS-326H-484 SF...

  • Page 41: Sewing Operation Screen

    Shows information about the sewing data. (23) Preview Shows a preview of the sewing data. (24) Model name Shows the model name and specifications. (25) Date and time Shows the current date and time. (26) Comments Shows comments about the sewing data. BAS-326H-484, BAS-326H-484 SF...

  • Page 42: Parameter Setting Method

    100 sti/min units Initial value: 2,000 sti/min Thread wiping Touch the Wiper key (2) to turn the wiper on or off. (The initial setting value is off.) When the setting is on, the key is displayed in blue. BAS-326H-484, BAS-326H-484 SF...
  • Page 43 Touch the Default key (8) to return the setting to the initial value. Initial values: X/Y-scale = 100%, X/Y-offset = 0 mm ・ Touch the Cancel key (9) to return to the previous screen without changing the setting. BAS-326H-484, BAS-326H-484 SF...
  • Page 44 * When memory switch No. 100 and No. 400 are set to ON, slow start patterns can be recorded separately for each program number. * For details on memory switches, refer to "2-1. Memory switch setting method" in the "LCD Panel/Operation Panel" Instruction Manual. (*1). (*1) Please download the “LCD Panel/Operation Panel” Instruction Manual from our web site. BAS-326H-484, BAS-326H-484 SF...

  • Page 45: Copying Programs

    Select the copy source program No. and the copy destination program No. Touch the OK key to carry out copying. After copying, the display will return to the previous screen. Touch the Cancel key to return to the previous screen without copying. BAS-326H-484, BAS-326H-484 SF...

  • Page 46: Checking The Sewing Pattern

    Continuous feed stop key. ・ Touch the Move to sewing start key (2) to return to the sewing start. Touch to move back by one stitch. Single stitch check Touch to move forward by one stitch. Fast-forward 4923Q BAS-326H-484, BAS-326H-484 SF...

  • Page 47: Setting The Intermittent Presser Foot Lift Amount (Bas-326H-484 Sf Specifications Only)

    5. USING THE LCD PANEL (BASIC OPERATIONS) 5-5. Setting the intermittent presser foot lift amount (BAS-326H-484 SF specifications only) The settings for the intermittent presser foot lift amount can be changed at the [sewing operation screen]. [Sewing operation screen] Touch the Clamp key (1) to display the Adjust Clamp Height setting screen.
  • Page 48 While sewing Refer to "Adjusting the intermittent presser foot (-484 SF specifications only)" in the Instruction Manual when making the adjustment. (*1) 3713B (*1) Please download the Instruction Manual for the sewing machine from our web site. BAS-326H-484, BAS-326H-484 SF...

  • Page 49: Using Storage Media

    [Setting menu screen] ・ If you select "Data Management" > "Import (Storage Media to Panel)", the display switches to the [import screen]. If you select "Data Management" > "Export (Panel to Storage Media)", it switches to the [export screen]. BAS-326H-484, BAS-326H-484 SF...
  • Page 50 * To select and import only part of the sewing data, refer to the procedure in 6-3. [Export screen] [Items to export] Sewing Data Cycle Program, User Parameter Memory Switch Settings Panel, Programmer Settings Extended Option Program Error Log BAS-326H-484, BAS-326H-484 SF...

  • Page 51: Importing Items Of Sewing Data Separately

    * If you would like to select multiple files, you can select files in multiple select mode. Touch to switch between multiple select and single select mode. * For details on other functions, please contact the place of purchase. BAS-326H-484, BAS-326H-484 SF...

  • Page 52: Sewing

    Use work clamps which will hold the material securely so that it does not slip. If the material slips when using the standard work clamps and feed plate, process 3551B them so that the material does not slip. 3707B BAS-326H-484, BAS-326H-484 SF...

  • Page 53: Using The Stop Switch

    3655B <Returning to the sewing start position without continuing sewing> If you do not wish to continue sewing, touch "No" (4). ・After home position detection is carried out, the mechanism will return to the sewing start position. BAS-326H-484, BAS-326H-484 SF...
  • Page 54 * 请注意:由于产品改进，本手册内容可能会与实际购买的产品略有出入。 * Tenga en cuenta que como resultado de mejoras en el producto el contenido de este manual puede variar ligeramente del producto que ha comprado. © 2015 Brother Industries, Ltd. All Rights Reserved. BAS-326H-484, BAS-326H-484 SF SB6873-001 This is the original instructions.
