DIRECTV
Remote Control UG-Philips.indd 1
Remote Control UG-Philips.indd 1
Universal
®

Remote Control

User's Guide
7/26/05 11:10:44 AM
7/26/05 11:10:44 AM

Advertisement

Table of Contents
loading

Related Manuals for DirecTV Universal

Summary of Contents for DirecTV Universal

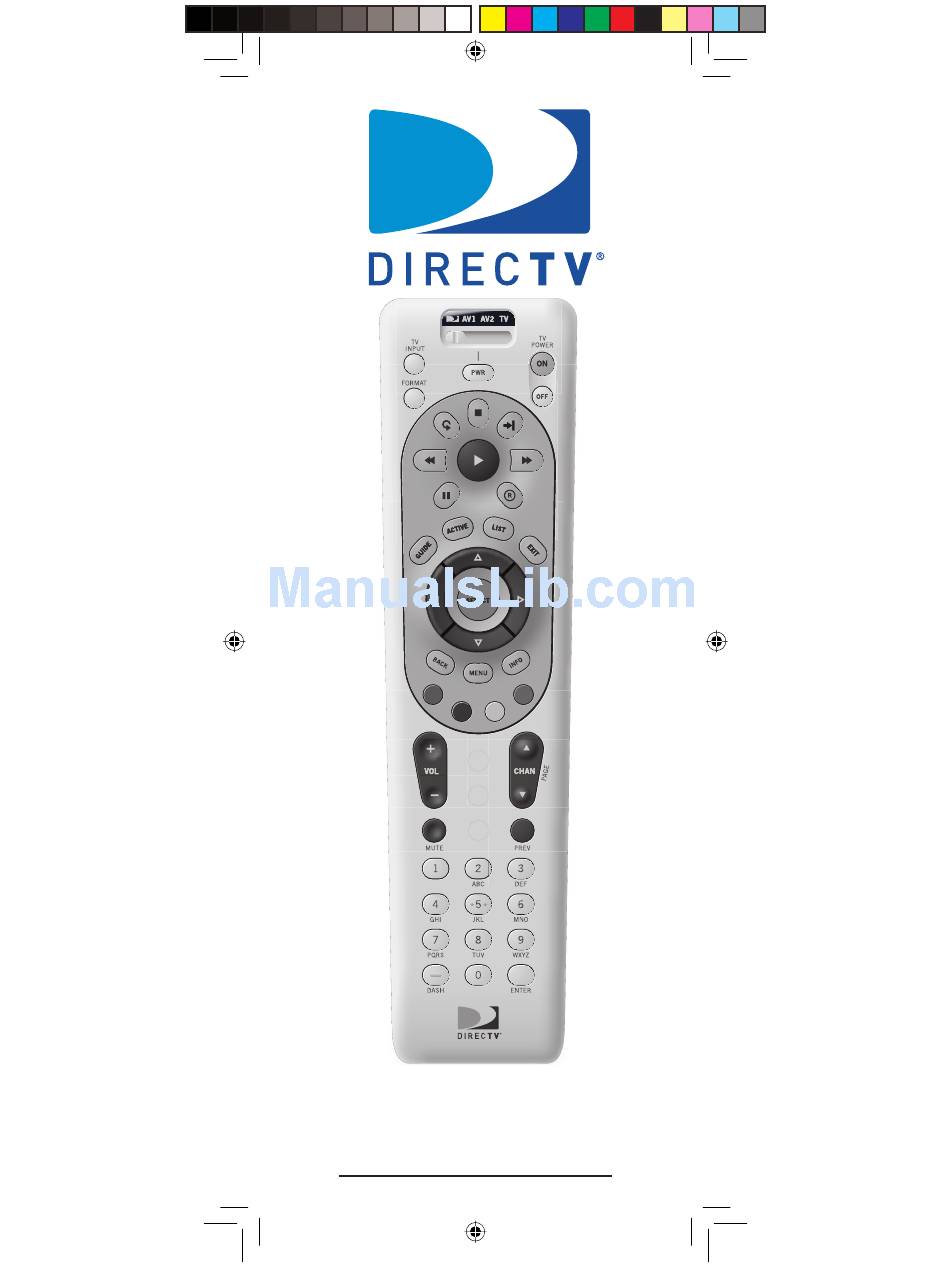

  • Page 1: Remote Control

    DIRECTV Universal ® Remote Control User’s Guide Remote Control UG-Philips.indd 1 Remote Control UG-Philips.indd 1 7/26/05 11:10:44 AM 7/26/05 11:10:44 AM...

  • Page 2: Table Of Contents

    Troubleshooting ............ 15 DIRECTV Setup Codes ......... 16 Setup Codes for DIRECTV Receivers ..... 16 Setup Codes for DIRECTV HD Receivers ..16 Setup Codes for DIRECTV DVRs ....17 Other Manufacturer Codes ........18 Setup Codes for TVs ........18 Setup Codes for VCRs ........

  • Page 3: Introduction

    Please follow the instructions detailed in this guide to set up your DIRECTV Universal Remote Control so you can start enjoying its features. Remote Control UG-Philips.indd 3 Remote Control UG-Philips.indd 3...

  • Page 4: Features And Functions

    Press PWR to turn the select- ed component on or off. Press TV POWER ON/OFF POWER to turn the TV and DIRECTV Receiver on or off. (Note: These keys are only active af- ter the remote has been setup for your TV. See page 10.) continued on next page…...
  • Page 5 DIRECTV NEWS™ and info. Press LIST to display your LIST TO DO list of programs. (Not available on all DIRECTV Receivers.) Press EXIT to exit menu EXIT screens and the program guide and return to live TV.
  • Page 6 While watching TV, press CHAN p (or q) to select the next higher (or lower) CHAN channel. While in the DIRECTV pro- gram guide or menu, press PAGE p (or q) to page up (or down) through available channels in the Guide.
  • Page 7 FEATURES AND FUNCTIONS Key Charts (continued) Press MUTE to turn the sound off or back on. MUTE Press PREV to return to the last channel viewed. PREV Press the number keys to di- rectly enter a channel number (e.g. 207) while watching TV or in the Guide.

  • Page 8: Installing Batteries

    INSTALLING BATTERIES – – 1. On the back of the remote control, push down on the door (as shown), slide the battery cover off, and re- move the used batteries. 2. Obtain two (2) new AA alkaline batteries. Match their + and - marks to the + and - marks in the battery case, then insert them.

  • Page 9: Controlling Your Directv Receiver

    DIRECTV position fl ashes twice. 7. Aim the remote at your DIRECTV Receiver and press the PWR key once. The DIRECTV Receiver should turn off; if it does not, repeat steps 3 and 4, trying each code for your brand until you fi...

  • Page 10: Controlling Your Tv

    CONTROLLING YOUR TV Once you have successfully setup your DIRECTV Re- mote to operate your DIRECTV Receiver, you can set it up to control your TV. We recommend you use the on- screen steps described on page 9, but you can also use the manual method below: 1.

  • Page 11: Deactive The Tv Input Select Key

    CONTROLLING OTHER COMPONENTS The AV1 and AV2 switch positions can be setup to con- trol a VCR, DVD, STEREO, second DIRECTV Receiver or second TV. We recommend you use the onscreen steps described on page 9, but you can also use the manual method below: 1.

  • Page 12: Searching For Tv, Av1 Or Av2 Codes

    TV or component. Verifying the Codes Once you have setup the DIRECTV Universal Remote Control using the above steps, use the following instruc- tions to fi nd out the 5-digit code to which your compo- nent responded: 1.

  • Page 13: Changing Volume Lock

    1. Press and hold the MUTE and SELECT keys until the green light under the DIRECTV position fl ashes twice, then release both keys. 2. Using the number keys, enter 9-9-3. (The green light fl...

  • Page 14: Restore Factory Default Settings

    RESTORE FACTORY DEFAULT SETTINGS To reset all the functions of the remote control to the factory defaults (the original, out-of-the-box settings), follow these steps: 1. Press and hold the MUTE and SELECT keys at the same time until the green light fl ashes twice, then re- lease both keys.

  • Page 15: Troubleshooting

    Light at the top of the remote blinks when you press a key, but the component does not respond. SOLUTION 1: Try replacing the batteries (see page 8). SOLUTION 2: Make sure you are aiming the DIRECTV ® Uni- versal Remote Control at your home entertain- ment component and that you are within 15 feet of the component you are trying to control.

  • Page 16: Directv Setup Codes

    SIR-S310W 01108 Sony models (All models except TiVo and Ultimate TV) 01639 Toshiba model TSR101DSS 00790 Uniden model UDS100 00724 Setup Codes for DIRECTV HD Receivers DIRECTV Model H-10 00001, 00002 Hitachi model 61HDX98B 00819 HNS models HIRD-E8, HTL-HD 01750...

  • Page 17: Setup Codes For Directv Dvrs

    Setup Codes for DIRECTV DVRs HNS models SD-DVR80, SD-DV40, SD-DVR120, HDVR2, GXCEBOT, GXCEBOTD 01442 Philips models DSR704, DSR708, DSR6000, DSR600R, 01142, DRS700/17 01442 RCA models DWD490RE, DWD496RG 01392 RCA models DVR39, 40, 80, 120 01442 Sony model SAT-T60 00639 Sony model SAT-W60...

  • Page 18: Other Manufacturer Codes

    OTHER MANUFACTURER CODES Setup Codes for TVs Admiral 10093, 10463 Advent 10761, 10817, 10815, 10783, 10842 Aiko 10092 Akai 10812, 10702, 10030, 10672 Alaron 10179 Albatron 10843, 10700 Ambassador 10177 America Action 10180 Ampro 10751 Anam 10180 10030, 10019 Apex Digital 10748, 10765, 10767 Audiovox 10451, 10180, 10092, 10623...
  • Page 19 Fujitsu 10809, 10683, 10179, 10853 Funai 10180, 10171, 10179 Futuretech 10180 Gateway 11755, 11756 11447, 10047, 10051, 10451, 10178, 10021, 11347, 11147 Harley Davidson 10179 Harman/Kardon 10054 Harvard 10180 Havermy 10093 Hello Kitty 10451 Himitsu 10180 Hisense 10748 Hitachi 11145, 10145, 10016, 10151, 10056 Hyundai 10849 Infi...
  • Page 20 Optonica 10093 Orion 10236, 10463, 10179 Panasonic 10250, 10051, 10650 Penney 10047, 10156, 10051, 10060, 10030, 10178, 10021, 10019, 11347 Prima 10761, 10783, 10817, 10815 Princeton 10700, 10717 Prism 10051 Proscan 11447, 10047, 11347 Proton 10178, 10466 Pulsar 10017, 10019 Quasar 10250, 10051, 10650 RadioShack...

  • Page 21: Setup Codes For Vcrs

    10463 Wards 10054, 10030, 10178, 10019, 10179, 10016, 10021, 10056, 10866 Waycon 10156 White Westinghouse 10463, 10623 Yamaha 10030, 10019 Zenith 10017, 10463, 10178, 10016, 10092 Setup Codes for VCRs 21972 Admiral 20048, 20209 Adventura 20000 Aiko 20278 Aiwa 20037, 20000 Akai 20041 Alienware...
  • Page 22 GoldStar 20037, 20038, 21237 Gradiente 20000 Harley Davidson 20000 Harman/Kardon 20081, 20038 Harwood 20072 HI-Q 20047 Hitachi 20000, 20042, 20041 Howard Computers 21972 21972 Hughes Network 20042 Systems iBUYPOWER 21972 Jensen 20041 20067, 20041 20037, 20278 Kenwood 20067, 20041, 20038 20072 Kodak 20035, 20037...
  • Page 23 Philips 20035, 20081, 20618 Pilot 20037 Pioneer 20067 RadioShack 20000 Radix 20037 Randex 20037 20060, 20240, 20042, 20149, 21035, 20880, 20807, 21060 Realistic 20035, 20037, 20048, 20047, 20000, 20104 ReplayTV 20616, 20614 Runco 20039 Samsung 20240, 20045, 21014 Sanky 20048, 20039 Sansui 20000, 20067, 20209, 20041, 20479, 21479 Sanyo...

  • Page 24: Setup Codes For Dvd Players

    Setup Codes for DVD Players Advent 21016 Akai 20899 Allegro 20869 Apex Digital 20672, 20717, 20794, 20830, 21061, 20755, 20797, 21056, 20796, 21020, 21100 Audiovox 21072, 21071 Axion 21072, 21071 Blaupunkt 20717 Blue Parade 20571 Broksonic 20868, 20695 CineVision 20876, 20869 Coby 21086 Curtis Mathes...

  • Page 25: Setup Codes For Stereo Receivers

    Polk Audio 20539 Prima 21016 Proscan 20522 Qwestar 20651 20522, 20571, 20717, 21022, 20822 20869 Rowa 20823 Samsung 20490, 20573, 20820, 21075, 20899 Sansui 20695 Sanyo 20873, 20695, 20670 Sharp 20630 Shinsonic 20533, 20839 Sonic Blue 20869 Sony 20533, 20864, 21033, 22043, 22020 Superscan 20821 Sylvania...
  • Page 26 Curtis Mathes 30080 Daewoo 31250 Dell 31383 Harman/Kardon 30110, 30189, 30891 Hewlett Packard 31181 Hitachi 31801 Initial 31426 Integra 31298, 30135 30110, 31306 30074, 31495, 31374 Kenwood 31313, 31570, 31569, 30027, 30186, 30042, 30239 31412, 31390, 31428 Koss 31366 Lasonic 31798 Lenoxx 31437...

  • Page 27: Setup Codes For Stereo Amplifi Ers

    Sharper Image 31556 Sherwood 31653, 30502, 30491 Soundesign 30670 Stereophonics 31023 Sunfi re 31313 Teac 30463, 31528, 31390, 31074 Technics 31308, 31518, 30039, 30309 Thorens 31189 Venturer 31390 Victor 30074 Wards 30158, 30189, 30080, 30014 Yamaha 30176, 30186, 31375, 31331, 31176 Yorx 30195 Zenith...

  • Page 28: Repair Or Replacement Policy

    DIRECTV will, at our sole discretion, repair or replace the DIRECTV Universal Remote Control, provided that: a. You are a customer of DIRECTV and your account is in good standing; and b. The problem with the DIRECTV Universal Remote Control...

  • Page 29: Additional Information

    For help via the Internet, visit us at: DIRECTV.com Or ask for technical support at: 1-800-531-5000 Copyright 2005 by DIRECTV, Inc. No part of this pub- lication may be reproduced, transmitted, transcribed, stored in any retrieval system, or translated to any lan-...

  • Page 30: Compliance With Fcc Rules And Regulations

    1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired opera- tion. Responsible Party: DIRECTV, Inc. 2230 E. Imperial Hwy. El Segundo, CA 90245 1-800-531-5000 Remote Control UG-Philips.indd 30 Remote Control UG-Philips.indd 30...
