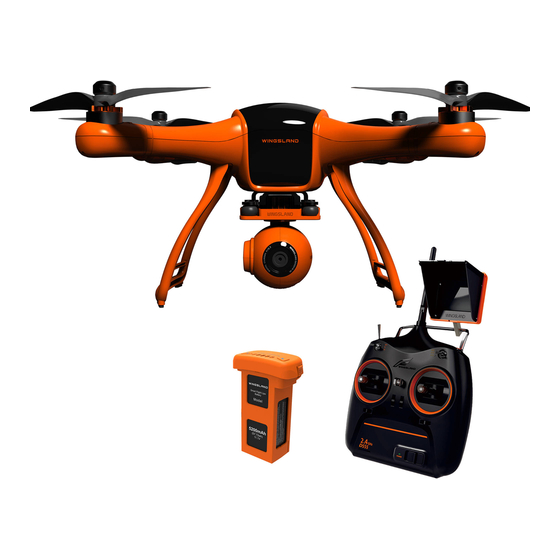

Summary of Contents for Wingsland minivet
- Page 1 Copyright@2015 WINGSLAND All Right Reser ved USER MANUAL VERSION1.0 Height Changes Your Aesthetic View...
- Page 2 INTRODUCTION Support & Ser vice Thank you for purchasing Wingsland Minivet, you hereby agree with and accept the terms of this disclaimer and is believed that you have read it thoroughly. If you have any questions or concerns during your operating, please don’t hesitate to contact Wingsland Customer service or Wingsland authorized dealer by email or telephone.
- Page 3 Disclaimer & Warning Please read this disclaimer and warning carefully before using this Wingsland product. Once you have begun to use Wingsland product, you hereby agree to this disclaimer and signify that you have read them fully. Instructions & Cautions...
- Page 4 Attention before Flight [For safety reason, do not use this product before reading User Manual fully] Battery Usage Notes Limitation of Liability Copyright@2015 WINGSLAND All Right Reserved...
-
Page 5: Table Of Contents
4 Gimbal and Camera Introduction 4-1 Gimbal and Camera operation 4-2 Camera Setting 5 Flight and Camera Introduction 5-1 Flight Notes 5-2 Check and Calibrate the Compass 5-3 Flight Operation 6 GCS Assistant Software Operation Copyright@2015 WINGSLAND All Right Reserved... -
Page 6: Product Profile
Screw Nuts Figure 2 Wrench Damaged propellers shall be replaced by Wingsland new ones. Please use original Wingsland propellers only. Please use Assistant Wrench to Spin and Fasten Screw Nuts. Ensure that all propellers are installed correctly and firmly before every flight. -
Page 7: Components Of Remote Controller
Switch R2 Sunscreen Shading Switch L1 Display Screen Indicator Switch R1 Neck Strap Attachment Left Stick Right Stick Trimming Button W1-W4 L2-0 R2-0 Middle Position L2-1 R2-1 R1-0 L1-0 Middle Position Middle Position R1-1 L1-1 Copyright@2015 WINGSLAND All Right Reserved... -
Page 8: Aircraft
Toggle switch L1 to L1-0 position to activate Aerial photography mode, the fastest speed is limited to 1.2 m/s, then the operator can focus on the more stabilized aerial photos and videos. Caution The default forward direction will be reset automatically after powering on the aircraft each time. Figure 2 A point Copyright@2015 WINGSLAND All Right Reserved... -
Page 9: Flight Battery
The home point will be set to the location from which the aircraft was launched and finished GPS initialization.(required GPS satellites number≥5) Flight Battery The Flight Battery is specially designed for Minivet, built-in battery level indicators which can display current capacity level. Main Parameters:... -
Page 10: Remoter Controller
If a continuous beeps from the Remote Controller when powering on, it indicates low voltage warning. Battery should be replaced immediately. Powering on the Remote Controller before turning on the aircraft. After every flight, make sure to remove the aircraft battery firstly, then power off the Remoter Controller. Copyright@2015 WINGSLAND All Right Reserved... - Page 11 A. Stabilized Smooth GPS Mode: Outdoor and strong GPS signal (GPS satellites ≥5). B. Normal Stabilized Mode: Indoor or Outdoor but weak GPS signal (GPS satellites <5). L1-1 Position: Automatic Return-to-Home Mode L1-0 Position: Aerial photography Mode Copyright@2015 WINGSLAND All Right Reserved...
- Page 12 Lock the Trimming Button when finished the Trimming neutral point setup operation to avoid touching it. It is recommended that calibrate Trimming Neutral Point via PC operation. Under nonemergency condition, do not use the Trimming Button to calibrate the trimming neutral point. Copyright@2015 WINGSLAND All Right Reserved...
- Page 13 The flight control system will automatically control the aircraft to return to Home Point and land to reduce injuries and damages. Enable this operation only with stabilized smooth GPS Flight Mode. Copyright@2015 WINGSLAND All Right Reserved...
- Page 14 Right Stick Left Stick Nose Nose Direction Direction Figure 2 Figure 4 Nose Nose Direction Direction When hovering, the aircraft is deviated from the hovering point. The Remote Controller Neutral Caution point recalibration is needed. Caution Copyright@2015 WINGSLAND All Right Reserved...
-
Page 15: Display Screen
The Display Screen can display the view of the camera and flight parameters in real time. (1)Display Screen Diagram (Figure 1),(Figure 2) Figure 2 Figure 1 Aircraft Battery Charging Indicator Indicator Satellite Signal Fight Height Charging Port Fight Speed Fight Distance Fight Position Power Button Copyright@2015 WINGSLAND All Right Reserved... -
Page 16: Gimbal And Camera Introduction
Gimbal Conrol Joystick Toggle R1 switch to R1-0 Position, flip R2 switch once to start recording video. Then flip once again to stop recording. Cyclic operation between begin to stop mode. Copyright@2015 WINGSLAND All Right Reserved... -
Page 17: Camera Setting
Insert Micro-SD card to SD card reader, then connect with the computer via USB cable. A new magnetic Disk will appear, click and open it. Two folders in the new magnetic Disk: named [MOVIE] stores Videos files, while named [PHOTO] stores Photos files. Copyright@2015 WINGSLAND All Right Reserved... -
Page 18: Check And Calibrate The Compass
Holding the aircraft horizontally, clockwise rotate aircraft 360 degree on its center axis for 4 times or more , until the 4 LED indicators beneath the arms of aircraft stop flashing for the complete of compass calibration. Horizontal-rotating Aircraft Flip L1 switch for 5times or more Indicators Flashin Copyright@2015 WINGSLAND All Right Reserved... -
Page 19: Flight Operation
When the aircraft topple and fall anytime, do not be closed to at once. The operator needs to Notice maintain the Left Throttle Stick on the lowest position for 10 seconds or more until the aircraft motors locked, then move to Power off the aircraft. Copyright@2015 WINGSLAND All Right Reserved... -
Page 20: Gcs Assistant Software Operation
Power on the Remote Controller. Firmware Status English Obtain the latest Firmware from Wingsland website: www. szsungreeen.com or Windsland authorized dealer, save to FW Ver PC. Click the “Firmware Choice” icon on “Firmware” interf -ace to choose the latest Firmware file. - Page 21 Shenzhen WINGSLAND Technology Co., Ltd Thanks for purchasing Windsland Minivet and read this User Manual fully. If you have any questions or concerns in the process, please don't hesitate to email or call Wingsland Customer Service. We would try our best to serve you.
