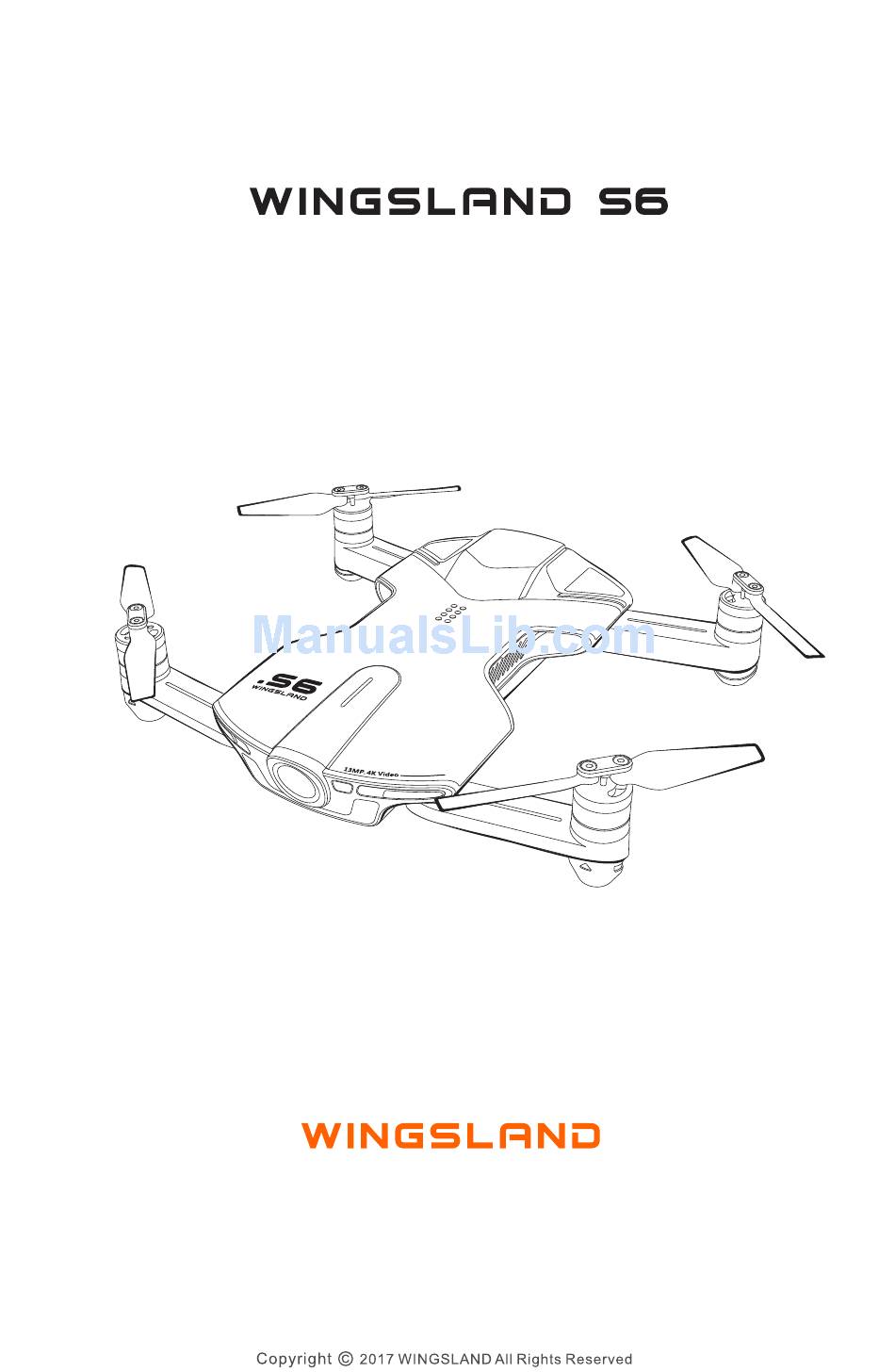

S 6 U s e r M a n u a l V 2 . 0
H e i g h t C h a n g e s Yo u r S i g h t

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wingsland S6

Summary of Contents for Wingsland S6

  • Page 1 S 6 U s e r M a n u a l V 2 . 0 H e i g h t C h a n g e s Yo u r S i g h t...
  • Page 2 If you have any questions about this product, please contact WINGSLAND technical support or WINGSLAND authorized dealer by sending a message or giving us a call. For user manual renewal, firmware upgrade, company announcements and more information, please keep up with the WINGSLAND official website: www.wingsland.com...

  • Page 3: Table Of Contents

    S6 User Manual Contents Introduction S6 Over view Over view In The Box Aircraft Diagram Preparing The Aircraft The Aircraft Outdoor Flying Indoor Flying Flight Failsafe Wingsland Fly APP Flying Interface Introduction Flight 10-14 Fly Safe Preflight Checklist Operation Intelligent Features...

  • Page 4: S6 Over View

    S6 Over view Over view The S6 pocket drone only weights 260g with the folding arms design. It is a new generation recreational aircraft which is independently developed by WINGSLAND Technology. The camera features an electronic image stabilization system, which can capture 13MP images and shoot ultra high definition videos up to 4K at 30 frames per second or 1920*1080 at 60 frames per second.

  • Page 5: Aircraft Diagram

    S6 User Manual A i r c r a f t D i a g r a m ① Propeller Lock Screw ② Motors ③ Arm ④ Extended port ⑤ Built-in Camera ⑥ Flashlight ⑦ Front LEDs indicator(Green) ⑧ Ventilation Slot ⑨...

  • Page 6: Preparing The Aircraft

    Recommend: Please twist screws of the motors tightly ever y after 5 hours flight time. Flight Batter y The S6 flight LiPo batter y has a capacity of 1400mAh, a voltage of 7.6V, and with charge / discharge functionality, the max flight time is 10 mins.
  • Page 7 S6 User Manual Charging State Indicator Batter y Batter y Charging Base Connect to a suitable power source USB Port (A fully charging takes approx. 1h 30mins.) The max flight time is tested in a lab environment, vary depending on environmental condition, for reference only.

  • Page 8: The Aircraft

    Auto Return-to-Home The S6 equips a auto Return-to-Home feature, when you are not clear of the position of the aircraft, you could active the feature to call back the aircraft. Tap the Return-to-Home icon...

  • Page 9: Indoor Flying

    S6 User Manual The flight height < 7 meters. The flight height ≥7 meters. The auto Return-to-Home feature can be canceled during a Return-to-Home flight by tapping the top left corner “exit” icon or by moving the virtual joysticks. When the GPS reception is poor, the auto Return-to-Home function will not be functional.

  • Page 10: Flight Failsafe

    S6 User Manual F l i g h t Fa i l s a f e Low Batter y Warning & Landing A red prompt on the screen will appear when the flight batter y is at 30 percent. It means that the low batter y warning is triggered.

  • Page 11: Wingsland Fly App

    WINGSLAND FLY APP is a mobile application designed specifically for WINGSLAND S6. WINGSLAND offers an ideal and powerful mobile device remote solution for controlling your S6 with the virtual remote FPV monitor and flight critical information display. With built-in simulator software and guidelines for beginner, you will soon get the hang of it.

  • Page 12: Flight

    Preflight Checklist ● Mobile device and flight battery are fully charged before flight. ● Make sure that the Wingsland Fly application and flight control firmware are the latest version. ● Unfold the 4 folding arms to maximum position. Propellers are mounted correctly and firmly.
  • Page 13 S6 User Manual ① ② ③ ● Do not calibrate in strong magnetic field. ● If the repeated calibration is not successful, please transfer to other places for calibration. ● Do not be in the vicinity of high-rise buildings or metal surface calibration.
  • Page 14 S6 User Manual fly forwards fly upwards rotate to rotate to fly left fly right the right the left fly backwards fly downwards Mode 1 fly upwards fly forwards rotate to rotate to fly left fly right the right the left...

  • Page 15: Intelligent Features

    S6 User Manual Videos: Choose video recording , tap record icon once to start recording video, then tap again to stop recording. A recording timer will be displayed during the video shooting. Timer Photo Mode: Choose Timer Photo Mode , tap shutter once, the camera will take one photo in a preset delayed time (default time: 5s).

  • Page 16: Follow Me

    S6 User Manual Point-of-Interest The aircraft will orbit around a subject automatically in POI mode. To perform POI, you need to fly the aircraft above the object that you are interested in, and then after confirmed POI function, move your aircraft from the current location to your desired location to set the orbit radius.

  • Page 17: Accessories

    S6 User Manual Accessories Accessories Interface Exit Boom Boom Searchlight Landing Emoji Display Accessories Menu Boom Boom shoot Exit Search Light Setting Mode Solid Lighting Strobe Lighting Send Number Brightness S e t t i n g Letter Emoji Cancel...

  • Page 18: Emoji Display

    S6 User Manual ⑤ Use bullet clip to fill the Boom Boom. Do not aim at people or animals. WINGSLAND is not responsible for any losses and damage if caused by the BOOM BOOM. ● Emoji Display The display board will show the numbers, letters or emojis which are typed through the app.

  • Page 19: Searchlight

    S6 User Manual ● Searchlight You can change different level of brightness and flash modes through the APP. Searchlight Installation: ① Slide the Searchlight into the buckle. ② Clasp the buckle on one side first, then push the buckle down to lock it on both side.

  • Page 20: Appendix

    S6 User Manual Appendix S6 Specifications Aircraft Weight 260g (include battery) Dimensions eady to Fly form：138*169*32.6（mm） olded up form：138*79*32.6（mm） Max Service Ceiling Above Sea Level 100m 100m Max Transmission Distance pprox. 10 Minutes ax Flight Time 10-40℃ perating Temperature ategory...

  • Page 21: Certificate

    S6 User Manual APP Name Wingsland FLY ive View Quality 480p,720p atency ms (depends on environments and mobile devices) OS Requirement iOS 9.0 (or later) Android 5.0.1 (or later) Charger Charging Port Micro USB (supports portable power bank) nput 5V/1A-2A (self-adapted) utput 8.7V/0.5A-1A (self-adapted)
