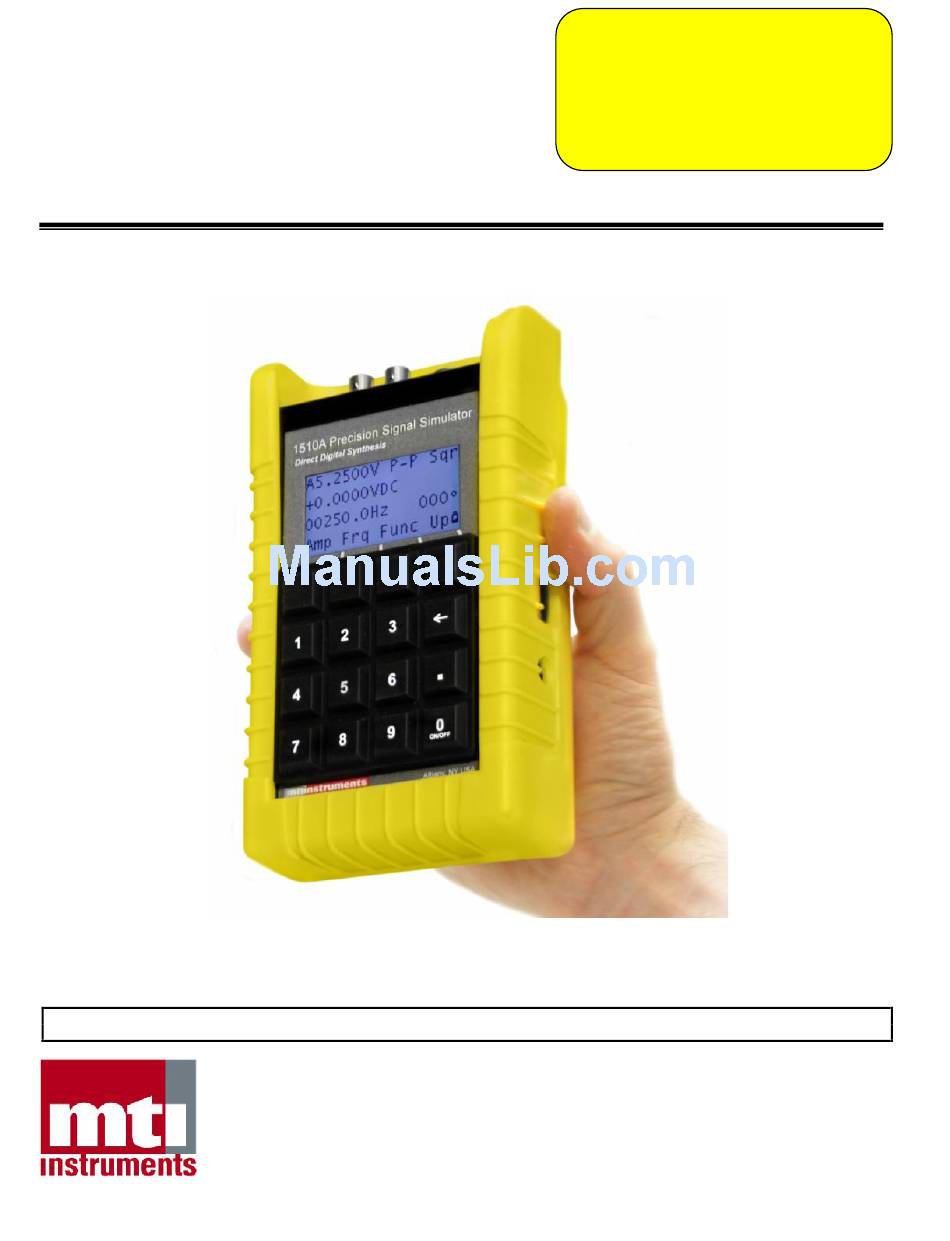

MTI Part Number 7001-0040
Revision 3.1 – August 7, 2014
1510A
Precision Signal Source
Software Operation Manual
his document discloses subject matter in which MTI Instruments Inc. has proprietary rights and such subject matter shall not, without written permission of MTI
Instruments Inc. be used, released, or disclosed in whole or in part. This legend shall be marked on any reproduction hereof in whole or in part.
MTI Instruments, Inc.
325 Washington Avenue Extension, Albany, New York 12205 USA
Phone: (518) 218-2550
█
Note:
Performing a user calibration with the
software package will result in an
accuracy of 2% at best. A factory cal
is required to achieve the original
published MTI specifications.
with direct digital synthesis
FAX: (518) 218-2506
█
