MTI 1510A Operation And Maintenance Manual

Precision signal generator with direct digital synthesis
Hide thumbs Also See for 1510A:

Advertisement

Quick Links

Download this manual
Test Equipment Depot - 800.517.8431 - TestEquipmentDepot.com

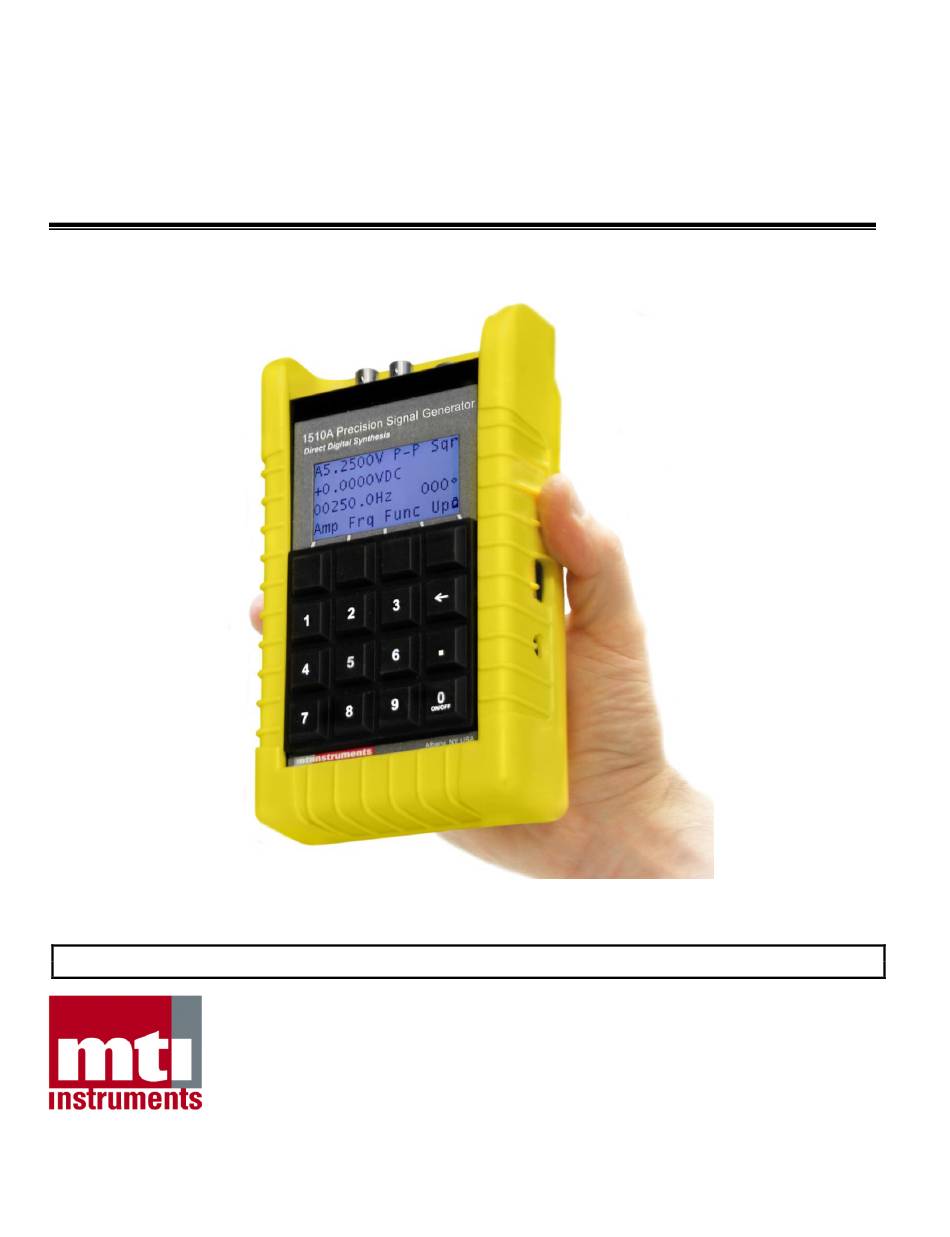

1510A
Precision Signal Generator
with direct digital synthesis
Operation and Maintenance Manual
This document discloses subject matter in which MTI Instruments Inc. has proprietary rights and such subject matter shall not, without written permission of MTI
Instruments Inc. be used, released, or disclosed in whole or in part. This legend shall be marked on any reproduction hereof in whole or in part.
7001-0019 Revision 3.0
January 2, 2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1510A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MTI 1510A

Summary of Contents for MTI 1510A

  • Page 1 Operation and Maintenance Manual This document discloses subject matter in which MTI Instruments Inc. has proprietary rights and such subject matter shall not, without written permission of MTI Instruments Inc. be used, released, or disclosed in whole or in part. This legend shall be marked on any reproduction hereof in whole or in part.
  • Page 2 7001-0019 Revision 3.0...
  • Page 3 1510A has the accuracy and flexibility to calibrate and test all types of measurement systems. Easy to use controls make the 1510A easy to operate, accurate enough for a calibration shop, and it is small and rugged enough for factory, test cell and flight line use.

  • Page 4: Table Of Contents

    OVERVIEW Overview of the 1510A ................... 1 Location of Controls ..................3 Signal Connections ..................4 Turning the 1510A ON and OFF ............... 5 Programming the 1510A ................. 6 CHANNEL A SET UP FUNCTIONS Programming Channel A ................. 7 Voltage Amplitude ..................8 Charge Amplitude ...................

  • Page 5: Notices And Statements

    WEEE on its producer. The WEEE directive also defines 10 product categories for differentiating electrical and electronic equipment covered by it and the RoHS directive. MTI Instruments (MTII) intends to comply with WEEE, and all our applicable products will be labeled with the WEEE-approved recycle bins marking by the directive's effective date of August 13, 2005.

  • Page 6: Overview Of The 1510A

    Speed Signals Channels – A second digital synthesizer is included in the 1510A to provide high accuracy speed signals. Signals up to nearly 20 VAC peak-to-peak can be generated to calibrate tachometer generator channels.
  • Page 7 0-360 relative to Channel A signal To program either channel, users follow a series of prompts on the 1510A display. The top row of keys on the 1510A keypad are “soft” keys which have changing functions depending upon the mode of operation.

  • Page 8: Location Of Controls

    Only use the supplied AC adapter to charge the batteries in this unit. All other devices pose a safety hazard to the user and the unit. NOTE Only use the 1510A with the protective boot in place. 7001-0019 Revision 3.0 Page 3...

  • Page 9: Signal Connections

    SIGNAL CONNECTIONS There are four connectors positioned on the top of the 1510A to provide the different output signals. The figure below illustrates these connectors. OUTPUT B – This BNC style connector provides the Channel B output signal which can be used as a “speed” or synchronizing signal.

  • Page 10: Turning The 1510A On And Off

    3 seconds. As soon as the display becomes blank, the unit has shut down. If the 1510A has been turned off, and the charging unit is connected, the charging message will appear, indicating that the 1510A batteries are being rejuvenated.

  • Page 11: Programming The 1510A

    PROGRAMMING THE 1510A The 1510A can be easily programmed by pressing the “soft-keys” and following the on-screen prompts. There are four major steps to programming the 1510A as illustrated below: SELECT the CHANNEL – Select either Channel A or Channel B...

  • Page 12: Programming Channel A

    PROGRAMMING CHANNEL A The 1510A can be used to generate a wide range of precision signals. The Channel A output can be programmed for voltage or charge signals. Voltage signals are useful for calibrating a wide range of instruments, and can also be used to simulate may types of signals.

  • Page 13: Voltage Amplitude

    CHANNEL A – VOLTAGE AMPLITUDE SET UP Channel A of the 1510A may be programmed for either voltage or charge outputs. The following is an example of how to program Channel A for a voltage output of 5.000 VAC RMS.

  • Page 14: Charge Amplitude

    CHANNEL A – CHARGE AMPLITUDE SET UP Channel A of the 1510A may be programmed for either voltage or charge outputs. The following is an example of how to program Channel A for a CHARGE output of 50.0 pC pk-pk.
  • Page 15 CHANNEL A – FREQUENCY SET UP The 1510A can produce a signal ranging from 1 Hz to up to 100 KHz. The following is an example of how to program Channel A for a frequency of 500Hz: Press the ChA...

  • Page 16: Waveform

    CHANNEL A - WAVEFORM SET UP Channel A of the 1510A can be programmed for one of four different waveform. Sine waves are usually used as calibration signals because they consist of only one frequency component without any harmonics or other frequencies.

  • Page 17: Dc Amplitude

    CHANNEL A – DC AMPLITUDE SET UP Channel A of the 1510A may be programmed for either AC voltage or DC voltage outputs. Additionally, a DC offset or bias may be applied to the Channel A output voltage signal. The following is an example of how to program Channel A for a DC Voltage output of 5.00 Volts.

  • Page 18: Frequency

    When Channel B is programmed to simulate a speed signal, there are many more options: PULSE MODE – Channel B of the 1510A can be programmed to produce a single pulse occurring at the same frequency or at a ratio of the Channel A frequency.

  • Page 19: Voltage Amplitude

    CHANNEL B – VOLTAGE AMPLITUDE SET UP Channel B of the 1510A may be programmed for either voltage or special speed signals. The following is an example of how to program Channel B to create a 5.000 Volts RMS Sine wave output.

  • Page 20: Frequency

    CHANNEL B – FREQUENCY SET UP The 1510A can produce a signal ranging from 1 Hz to over 50 KHz. To program Channel B to produce a signal of 250Hz, perform the following steps: Press the ChB Channel Setup selector button...

  • Page 21: Waveform

    CHANNEL B WAVEFORM FUNCTION SET UP Channel B of the 1510A can produce either a normal signal waveform, a single pulse at a specific frequency, or it can synthesize complex tachometer signals. Channel B of the 1510A can be programmed for 1 of four different waveforms in the waveform mode.

  • Page 22: Ratio Frequency

    CHANNEL B – RATIO FREQUENCY SET UP The 1510A can produce a signal on Channel B whose frequency is a RATIO of the Channel A signal frequency. This is useful when trying to simulate one signal on channel B while maintaining a fixed relationship with the frequency of the signal being generated by Channel A.

  • Page 23: Pulse Set Up

    CHANNEL B PULSE SET UP The 1510A can produce a bi-polar or “TTL” style PULSE function on Channel B which can be used to simulate a “key-phaser” signal, or similar type of machinery speed signal typically used as a once-per-revolution (1/rev) signal.

  • Page 24: Tachometer Set-Up

    CHANNEL B TACHOMETER SET UP The 1510A can produce an odd-tooth tachometer signal to simulate speed signals with “embedded” 1/revolution pulses which are found on many modern gas turbine engines. The “embedded” of “odd-tooth” signal may be programmed with a larger or a smaller amplitude than the other pulses in the signal.

  • Page 25: Jog Function

    JOG FUNCTION Often, it is desirable to repeatedly change one of the 1510A output values by just a small amount. To make this easy, the 1510A features a JOG function where users may repeatedly change a single parameter in small steps.

  • Page 26: Phase Function

    PHASE FUNCTION Often, it is desirable to change the phase relationship between the Channel A and Channel B output signals. To make this easy, the 1510A features a PHASE function available from the Channel A setup page. The following illustrates how to change the Phase Angle between the Channel A signal and the Channel B signal to 90 degrees.

  • Page 27: Frequency Sweep Operation

    To create a simulated deceleration, define the ending frequency to be lower than the starting frequency. Sweep Duration – This is the length of time the 1510A will take to go from the starting frequency to the ending frequency. The time is entered as seconds.

  • Page 28: Bridge Function

    BRIDGE FUNCTION The 1510A can be programmed to produce low level DC voltages to simulate those produced by bridge type sensors such as load cells and strain gauges. This function allows users to calibrate measurement systems with high-accuracy low level signals.
  • Page 29 NOTE For highest accuracy in Bridge Mode, ensure that cables are as short as possible and that no dissimilar metals are used in cables and connectors. At very low signal amplitudes, dissimilar metals can cause false readings due to galvanic interaction. 7001-0019 Revision 3.0 Page 24...

  • Page 30: Saving Setups

    Saving favorite settings can save set-up time and can help to ensure consistency between tests. The following is an example of how to save 1510A settings after they have been defined. This same procedure can be use to save different settings in all 40 memories.

  • Page 31: Recalling Setups

    RECALLING SETUPS Any setting that has been saved in one of the 1510A memory locations can be easily recalled. Recalling saved settings of frequently used configurations will save set-up time and will ensure consistency between tests. The following is an example of how to recall one of the saved settings.

  • Page 32: Charging The Rechargeable Battery

    To charge the batteries, plug the charging module into a suitable 120/240 VAC outlet. Next insert the charging connector into the charging port located on the side of the 1510A case. Note that there is a hole in the protective yellow case for the charging plug.

  • Page 33: Replacing Batteries

    REPLACING AND DISPOSAL OF THE RECHARGEABLE BATTERY WARNING To avoid the potential of electrical shock, remove the 1510A from the battery-charging module and disconnect all test leads prior to replacing the batteries. NOTE The 1510A contains NiMH batteries. Do not dispose of these batteries with other solid waste.

  • Page 34: Maintenance And Calibration

    The 1510A requires very little maintenance. Recalibration is recommended every 12 months. To maintain the 1510A, periodic cleaning of the keys and all accessories is encouraged. A clean cloth dampened with water or a very mild cleaning solution is all that is required to clean the keyboard, case and accessories.

  • Page 35: Sample Programming

    SAMPLE PROGRAMMING SETUPS The 1510A can be used to quickly check the operation of your data acquisition and monitoring system for a number of different types of sensors, machinery and gas turbine engines. The following set-ups are provided as illustrations for setting up the 1510A for different testing and calibration needs.

  • Page 36: Jt8D

    SAMPLE PROGRAMMING SETUPS Continued JT8D 1,5,7 – This program will simulate an acceleration run with a vibration level of 1.00 Inches per Second of constant vibration for engines that use velocity probes with 135 mV/IPS sensitivities. Channel A is used as the vibration signal and Channel B is used as the N1 tach-generator speed signal.

  • Page 37: Cfm56-7

    SAMPLE PROGRAMMING SETUPS Continued CFM56-7 – This program will simulate a constant speed of 6000 RPM with a vibration level of 1.00 G of constant vibration assuming 100pC/G sensitivity accelerometers. Channel A is used as the vibration signal and Channel B is used as the N1 speed signal with an embedded 1/revolution long tooth signal.

  • Page 38: Optional System Accessories

    OPTIONAL ACCESSORIES There are a number of accessories available to compliment your 1510A, and to ease the challenges associated with connecting your calibrator to different cables and connectors. Contact your MTI Instruments representative for more information. Carrying Case with accessory storage – 1400-4008 Replacement AC Power Adapter –...

  • Page 39: Useful Vibration Signal Relationships

    USEFUL VIBRATION SIGNAL RELATIONSHIPS Displacement = Inches peak-to-peak Velocity = Inches per Second Acceleration = Inches per Second Frequency = RPM / 60.0 Acceleration (Gs) = Velocity (IPS) at 61.4 Hz Acceleration (Gs) = Displacement (mils) at 139.9 Hz Displacement (mils) = Velocity (IPS) at 318.3 Hz Velocity = 3.14 x Frequency x Displacement Velocity = 61.44 x Acceleration / Frequency Displacement = 19.57 x G / Frequency...
  • Page 40 NOTES 7001-0019 Revision 3.0 Page 35...

  • Page 41: Specifications

    SPECIFICATIONS Channel B Channel A Standard signal types (for speed synthesizer signals, see next page) Waveform: Sine Wave Voltage Range (0.1 Hz to 100 kHz) 0 to 9.9999 Volts pk Waveform: Sine Wave Voltage Accuracy (of setting) Voltage Range (10mV -10V, 10Hz-20Hz) 0.15%±0.1mV (0.1 Hz to 100 kHz) 0 to 9.9999 Volts pk...
  • Page 42 SPECIFICATIONS (cont’d) Channel B Other Features Speed Synthesizer Signals Controls and features Ratio Speed Signal Function Signal Type Sine, Square, Single pulse, Odd Pulse User Display Graphical, 128x64 pixel, B&W transflective LCD white backlight Signal Range 0 to 9.9999 Volts Pk Computer Port USB 1.0 for remote control, Resolution...

  • Page 43: Warranty Statement

    WARRANTY STATEMENT Seller warrants to the Purchaser that the equipment to be delivered hereunder which is of Seller's own manufacture will be free from defects in material or workmanship. Any parts of the equipment that have been purchased by Seller are warranted only to the extent of the original manufacturer's warranty. This warranty shall apply only to defects appearing within 1 year from the date of shipment by Seller.

  • Page 44: Other Mti Instruments Aviation Products

    OTHER FINE AVIATION PRODUCTS FROM MTI INSTRUMENTS Portable Vibration and Balancing System – The PBS-4100 is a powerful and full function vibration analysis system designed for flightline analysis of gas turbine engines. Trim balancing is fast and easy with the Balancing Wizard.
  • Page 45 325 Washington Avenue Ext. Albany, NY 12205 USA Test Equipment Depot - 800.517.8431 - TestEquipmentDepot.com...
