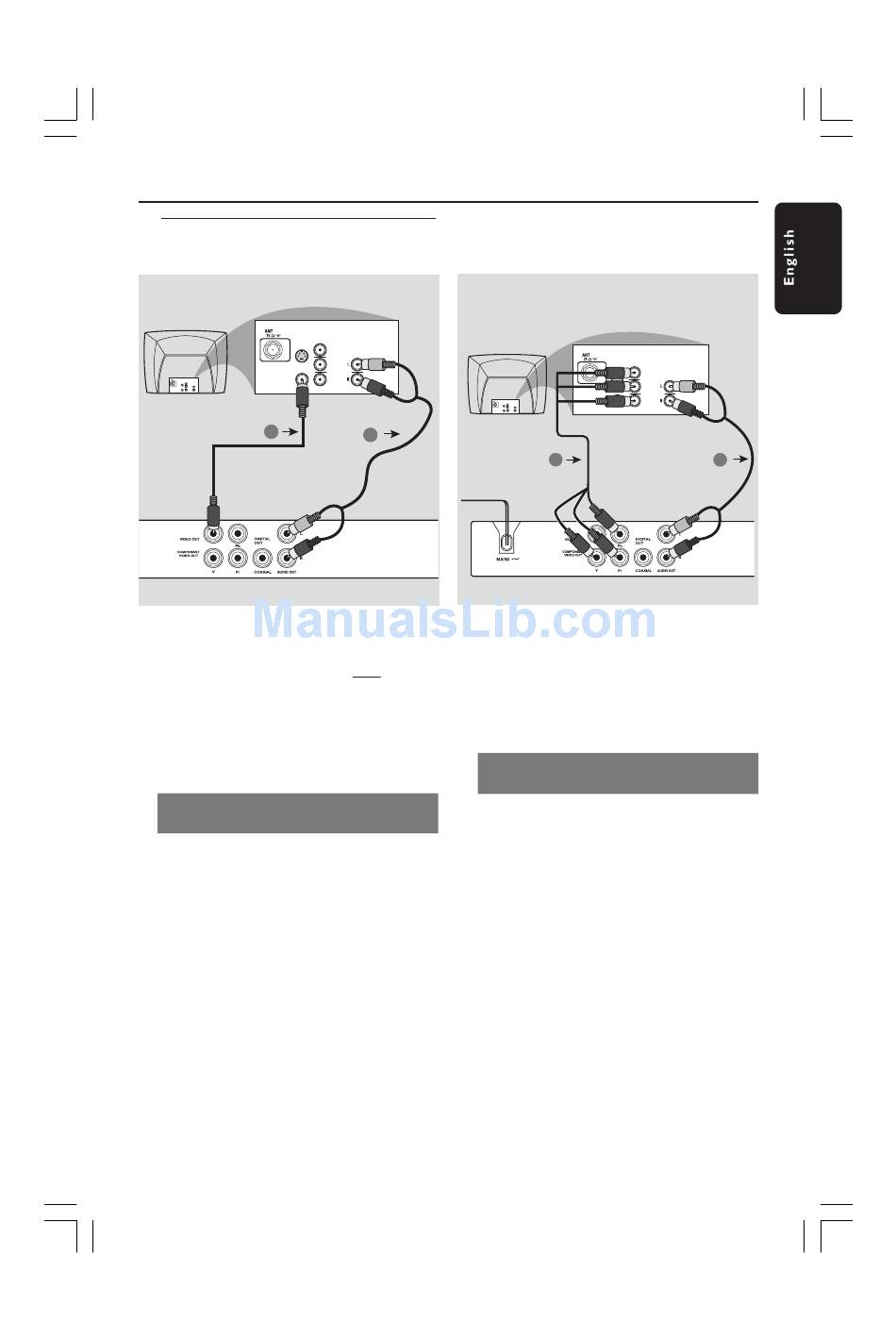

Connecting TV

COMPONENT
VIDEO IN
S-VIDEO
IN
V (Pr/Cr)
AUDIO
OUT
U (Pb/Cb)
VIDEO IN
Y
1
IMPORTANT!
– You only need to make one video
connection from the following
options, depending on the
capabilities of your TV system.
– Connect the DVD system directly
to the TV.
Using Composite Video jacks
(CVBS)
1
Use the composite video cable (yellow) to
connect the DVD Player's CVBS (VIDEO)
jack to the video input jack (or labeled as
A/V In, Video In, Composite or Baseband)
on the TV (cable supplied).
2
To hear the sound of this DVD Player
through your TV, use the audio cables
(white/red) to connect [AUDIO OUT (L/
R)] jacks of the DVD Player to the
corresponding AUDIO IN jacks on the TV
(cable supplied).
01-39_DVP3040K_98_engRC3
COMPONENT
VIDEO IN
S-VIDEO
IN
V (Pr/Cr)
AUDIO
IN
U (Pb/Cb)
VIDEO IN
Y
2
1
2
3
9

Connections

COMPONENT
VIDEO IN
S-VIDEO
IN
V (Pr/Cr)
U (Pb/Cb)
VIDEO IN
Y
COMPONENT
VIDEO IN
S-VIDEO
IN
V (Pr/Cr)
AUDIO
OUT
U (Pb/Cb)
VIDEO IN
Y
1
IMPORTANT!
– The progressive scan video
quality is only possible when using Y
Pb Pr and a progressive scan TV is
required.
Using Component Video jacks
(Y Pb Pr)
Use the component video cables (red/
blue/ green) to connect the DVD system's
Y Pb Pr jacks to the corresponding
Component video input jacks (or labeled
as Y Pb Pr) on the TV (cable not supplied).
To hear the sound of this DVD Player
through your TV, use the audio cables
(white/red) to connect [AUDIO OUT (L/
R)] jacks of the DVD Player to the
corresponding AUDIO IN jacks on the TV
(cable supplied).
Proceed to page 15 for detailed
Progressive Scan set up.
02/06/06, 11:03 AM
AUDIO
IN
2
9
