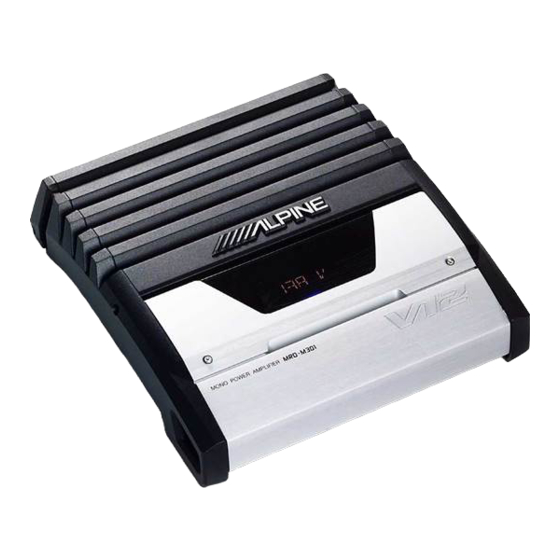

SERVICE MANUAL

MONO POWER AMPLIFIER
TO ALPINE Home Page
2 / 04-A
68E36265S01
MRD-M301

Advertisement

loading
Need help?

Need help?

Do you have a question about the MRD-M301 and is the answer not in the manual?

Questions and answers

Ronnie Dalmacio
January 16, 2025

How do I set it up alpine with this digital setting

User image 678900953e7cf
0
1 comments:
Mr. Anderson
February 3, 2025

To set up the Alpine MRD-M301 with digital settings, follow these steps:

1. Access the settings:
- Press the up or down button until "INPUT" is displayed.
- Press the ENT button to confirm.

2. Adjust the input level:
- Use the up or down button until "LEVEL" is displayed.
- Press the ENT button to confirm.
- Use the left or right buttons to adjust the input level within the range:
- MRD-M301: 0.1 – 1.0V or 1.0 – 8.0V.
- Press the ENT button to save the setting.

These steps allow you to adjust the input level and optimize the digital settings for your system.

This answer is automatically generated

0

Related Manuals for Alpine MRD-M301

Summary of Contents for Alpine MRD-M301

  • Page 1: Service Manual

    SERVICE MANUAL MONO POWER AMPLIFIER TO ALPINE Home Page 2 / 04-A 68E36265S01 MRD-M301...
