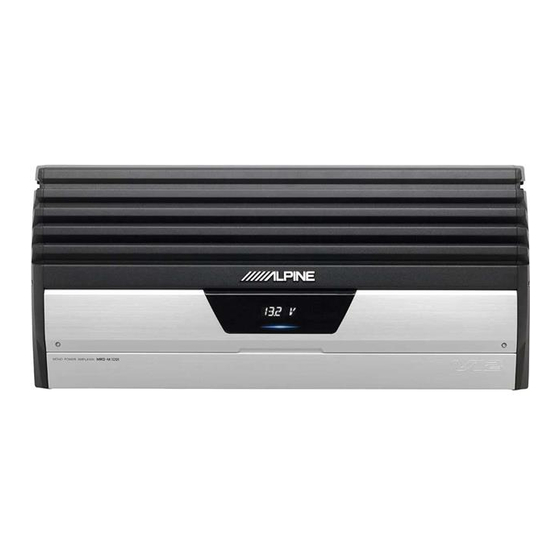

SERVICE MANUAL MONO POWER AMPLIFIER Caution : The part marked with is generating a high voltage, so care will be necessary when working. TO ALPINE Home Page 6 / 04-A 68E36341S01 MRD-M1001...
Page 2
<Cautions for Safe Repair Work> The following cautions will prevent accidents in the workplace and will ensure safe products. *The symbols indicate caution is needed to prevent injuries and damage to property. The symbols and their meanings follow. If you ignore this symbol and handle the product incorrectly or unsafely, Warning serious injury or death may result.
Page 3
MRD-M1001 Contents Packing Assembly Parts List Packing Method View Specifications Block Diagram 6 to 8 Parts Layout on P.W.Boards and Wiring Diagram 9 to 12 Schematic Diagram 13 to 15 Terminal Voltage of IC/ TR 16 to 19 Description of IC Terminal...
MRD-M1001 Packing Assembly Parts List Symbol Description Symbol Description Part No. Part No. #1 101 68-00493Z18 MANUAL,OWNER'S 15E36689S01 COVER,TERMINAL-C $1 101-1 68-00493Z19 MANUAL,OWNER'S(GE) 03E36690S01 WRENCH,HEX. 2.5X2.9 $1 101-2 68-00493Z20 MANUAL,OWNER'S(I.G.S) 03E36691S01 WRENCH,HEX. 2X2.3 03E36238S01 SCR,M4X20 TPG1 03E36692S01 WRENCH,HEX. 4X4.6 03E36208S01 SCR,WRENCH M3X12(BOLT) NOTE : #1 : For North American Model Only, $1 : For General Foreign Model Only, Others : Common.
Block Diagram MRD-M1001 TO CONTENTS MONO1 (Signal) DIGITAL SIGANL ANALOG SIGNAL -6dBfs : 31.8Vrms 1 / 4 TIMES OUTPUT(+) LC FILTER RCA 4P INPUT ISOLATOR DIGITAL POWER AMPLIFIER OUTPUT(-) LC FILTER 256fs CLOCK PROCESSOR COMMANDER VOLTAGE DETECT VOLTAGE DETECT-2 DISPLAY...
Page 7
MRD-M1001 TO CONTENTS MONO1 (POWER) OUTPUT(+) LC FILTER INPUT ISOLATOR RCA 4P DIGITAL POWER AMPLIFIER OUTPUT(-) LC FILTER 256fs CLOCK PROCESSOR Voltage detect +26V/-26V COMMANDER Voltage detect2 DISPLAY ANALOG +5V DIGITAL +5V EEP-ROM DISP +8V POWER +36V/-36V u-COM ANALOG +15V/-15V...
Page 8
MRD-M1001 TO CONTENTS MONO1 (COMMUNICATION) OUTPUT(+) LC FILTER RCA 4P INPUT ISOLATOR DIGITAL POWER AMPLIFIER OUTPUT(-) LC FILTER 256fs CLOCK I2C(SDA,SCL) PROCESSOR STBY,12SEL,MUTE VOLTAGE DETECT DIN,CLK CLIP COMMANDER DOUT V-DET SEL VOLTAGE DETECT-2 VOLT-DET BASS BASS KNOB ANALOG +5V COM0-3...
Page 10
Caution : The part marked with is generating a high voltage, so care will be necessary when working. TP425 TP426 R605 C703 ZD603 TP437 R606 TP34 R371 C632 1000p R337 AW01–12 TP424 R624 360B–1/10 10kB–1/10 0.1/50Vp 20RF–1/4 R628 C615 R609 R339 TP29 C628...
MRD-M1001 Electrical Parts List * Each parts on P.W.Board are described in order of the reference number. =======OUTPUT P.W.Board C001 08E36472S01 CAP,CER. CP 0.1uF C002 08E36472S01 CAP,CER. CP 0.1uF C003 08E36472S01 CAP,CER. CP 0.1uF C280 08E36596S01 CAP,CER. CP 1000pF C281 08E36593S01 CAP,CER.
MRD-M1001 Cabinet Assembly Parts List NOTE : The part that has not PART NUMBER will not be supplied. - - - - - - - - - - - HEAT SINK,MAIN - - - - - - - - - - -...
