Connecting to an F3SX-E-L2R

•Emergency stop switch can be connected
•Door switch, two hand control, single beam, or relay unit can be used in combination with F3SX
•Various settings can be changed and input/output terminals can be monitored using the setting
support software for F3SX
2 8 6 1 3 4 5 7

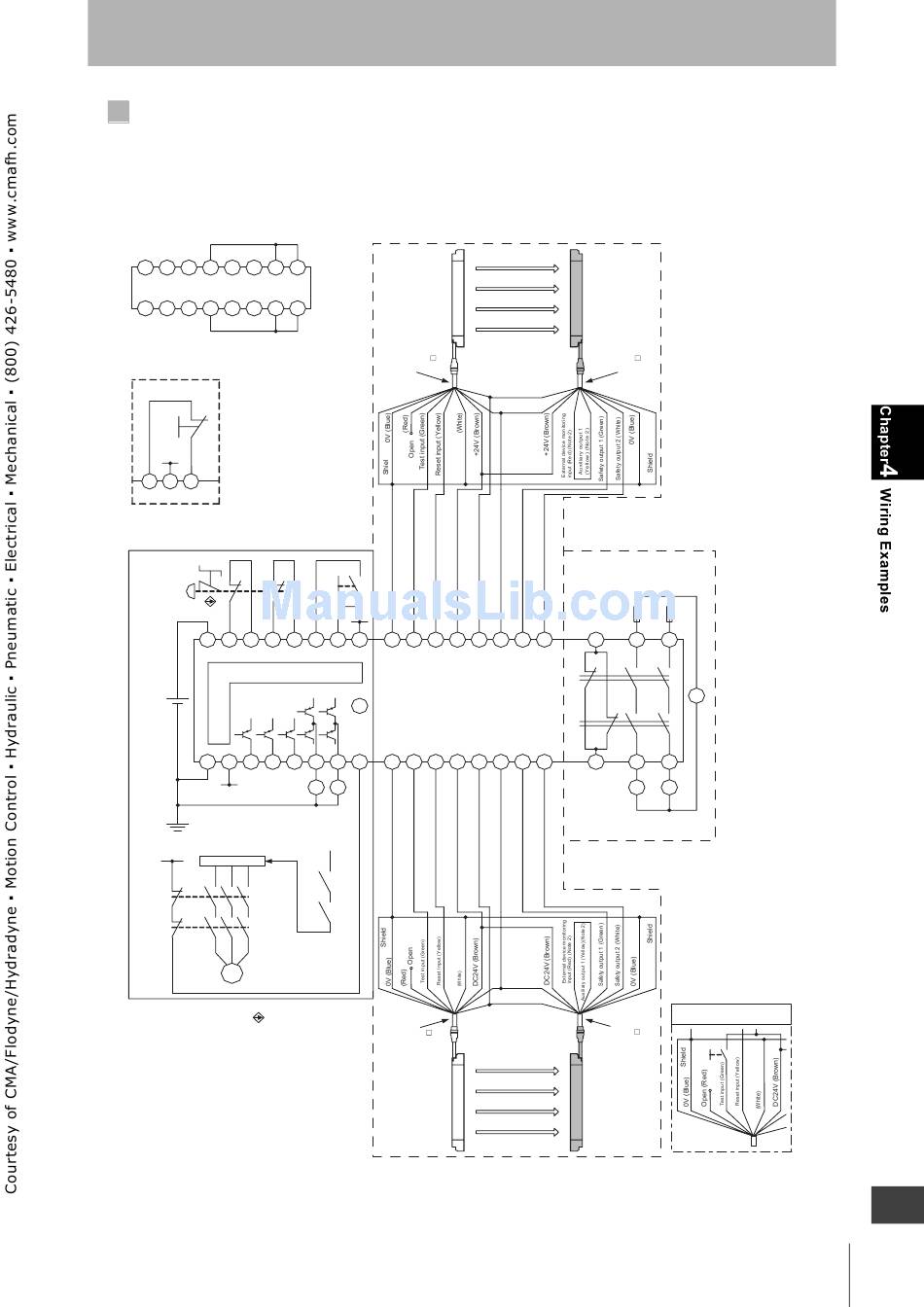

Wiring when safety light curtain
F3SJ is not used
15 9 11 16 14 13 12 10
Wiring for auto reset mode
S2
DC24V
E1
Y1 Y2 Y3
Main Module
11 21
S1
12 22
A1 T11 T12 T21 T22
Control Circuit
DC24V
E1
DC24V
A2 SSC AS3 AS2 AS1
E1
DC24V
DC24V
(operation command)
Motor controller
E1
KM1
KM2
M
S1 :Emergency stop switch
(direct circuit operation contact)(A165E, A22E)
S2 :Reset switch
KM1, KM2 :Magnetic contactor (LC1D)
RY1, RY2 :Relay
M :3-phase motor
E1 :24VDC power supply (S82K)
Note 1. This wiring example is for category 4.
Note 2. When the F3SJ is series-connected, or 5 or more sets
are connected to the total system of F3SX, power
must be supplied to F3SJ from external source.
For details, see documentation of F3SX.
Emitter
Model F39-JC A-L
cable for emitter
S2
DC24V
E1
Y1 Y2 Y3 2 8 6 1 3
DC24V
COM
0V
SS1 SS2 FB 15 9 11 16 14
RY1 RY2
RY1
RY2
Model F39-JC A-L
cable for emitter
Emitter
Input/Output Circuit and Applications
L2 Module
F3SJ (1st unit)
Receiver
Model F39-JC A-D
cable for receiver
Communication
line (+) (Grey)
Communication
line (-) (Pink)
Relay Output Module
(R Module)
Fuse
4 5 7 11 23 33
K1
K2
13 12 10 12 24 34
KM1 KM2
Communication
line (-) (Pink)
Communication
line (+) (Grey)
Model F39-JC A-D
cable for receiver
Receiver
F3SJ (2nd unit)
- F3SJ settings
- Does not use external device monitoring function
- F3SX-E-L2R settings
- Manual reset mode
- Using feedback time monitoring function
AC
Wiring when F3SJ's
testing function is used
Test SW
F3SJ-A
User's Manual
