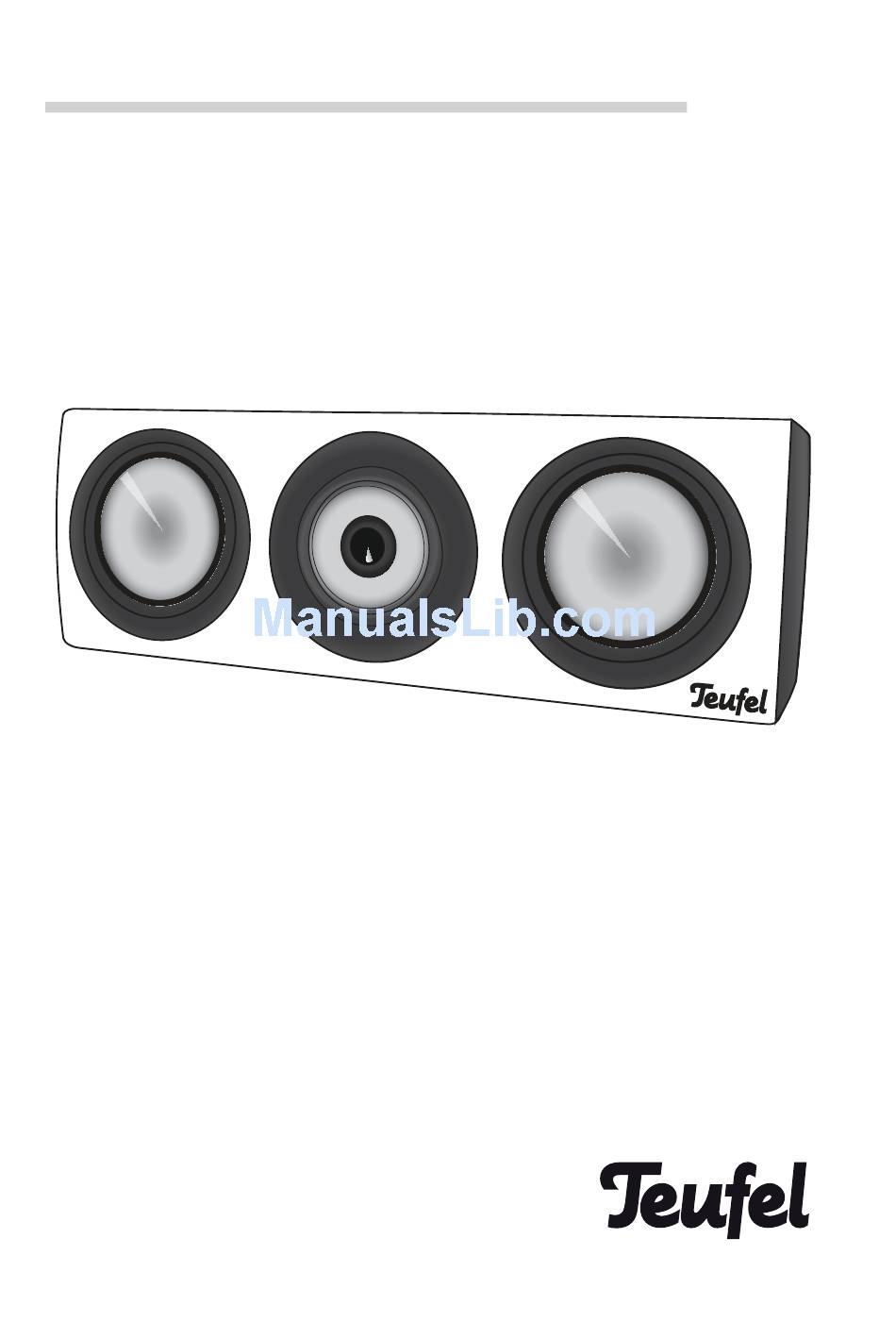

- Page 1 Technical Description and Instruction Manual Definion 3 Center Center Speaker...
-
Page 2: Table Of Contents
Screwing the Wall Bracket onto the Wall ........................7 Connecting the Speaker .............................8 Mounting the Speaker on the Wall Bracket ......................9 Cleaning & Maintenance ............................10 Troubleshooting ................................ 10 Protecting the Environment ............................. 11 Technical Data ................................11 • Definion 3 Center... -
Page 3: General Notes And Information
Please contact our customer service with any ques- prior notice and in no way constitutes any liability on tions, suggestions or comments: the part of Lautsprecher Teufel GmbH. Lautsprecher Teufel GmbH No part of this instruction manual may be reproduced... -
Page 4: For Your Safety
• Do not use the speaker in environments where there is a risk of explosion. • Only use the speaker indoors and not in wet rooms; protect it from dripping and splashing water. • Definion 3 Center... -
Page 5: Product Contents And Preparation
Carefully open the box, take out the EPE foam half aged, please contact our service department (see shell and carefully lift the speaker out of the box with- page 3). out touching the diaphragms. • Do not operate any damaged parts. • Definion 3 Center... -
Page 6: Setting Up The Speaker
You can find speaker stands specially designed for the speakers in our webshop. • The Definion 3 Center must be set up directly under the screen. You can place it in a horizontal position or hang it on the wall. If you mount it on the wall, please be absolutely sure to observe the notes on the next page. -
Page 7: Screwing The Wall Bracket Onto The Wall
Screwing the Wall Bracket onto the Wall The Definion 3 Center is ideally suited for wall mount- ing. Use the enclosed wall bracket for this. Be absolutely sure to observe the following notes before you begin mounting the wall bracket: NOTICE Improper mounting may cause damage. -
Page 8: Connecting The Speaker
Connecting the Speaker Due to differing customer requirements, the Definion 3 Center speakers are shipped without speaker cables. You can find suitable cables in our webshop (www.teufelaudio.com) in the “Accessories” area. • The connector terminal with two pole terminals is located on the back of the speaker. You can connect the speaker cable directly or use pin plugs or cable shoes from our product assortment. -
Page 9: Mounting The Speaker On The Wall Bracket
• Two M6 threaded holes are located on the bottom of the Definion 3 Center as matching points for the screws. • Place the Definion 3 Center on the middle of the carrier plate and secure it with the two screws. • Definion 3 Center... -
Page 10: Cleaning & Maintenance
Cleaning & Maintenance • Ideally, you should remove dust or small amounts of NOTICE dirt with a dry, smooth leather cloth. Using the wrong cleaning agents may dam- • Rub off stubborn dirt with a damp cloth. Make sure age the high-quality surface. that no liquid penetrates the speakers. -
Page 11: Protecting The Environment
Technical Data Dimensions of the carrier plate (W x H x D) 590 x 200 x 190 mm Weight 12 kg Impedance 4 ohm You can find further technical data on our website. Technical changes reserved! • Definion 3 Center... - Page 12 Please contact our customer service with any questions, suggestions or comments: Lautsprecher Teufel GmbH Phone: 00800 - 200 300 40 (toll-free) No responsibility is assumed for the BIKINI Berlin Fax: +49 (0)30 - 300 930 930 correctness of this information.
