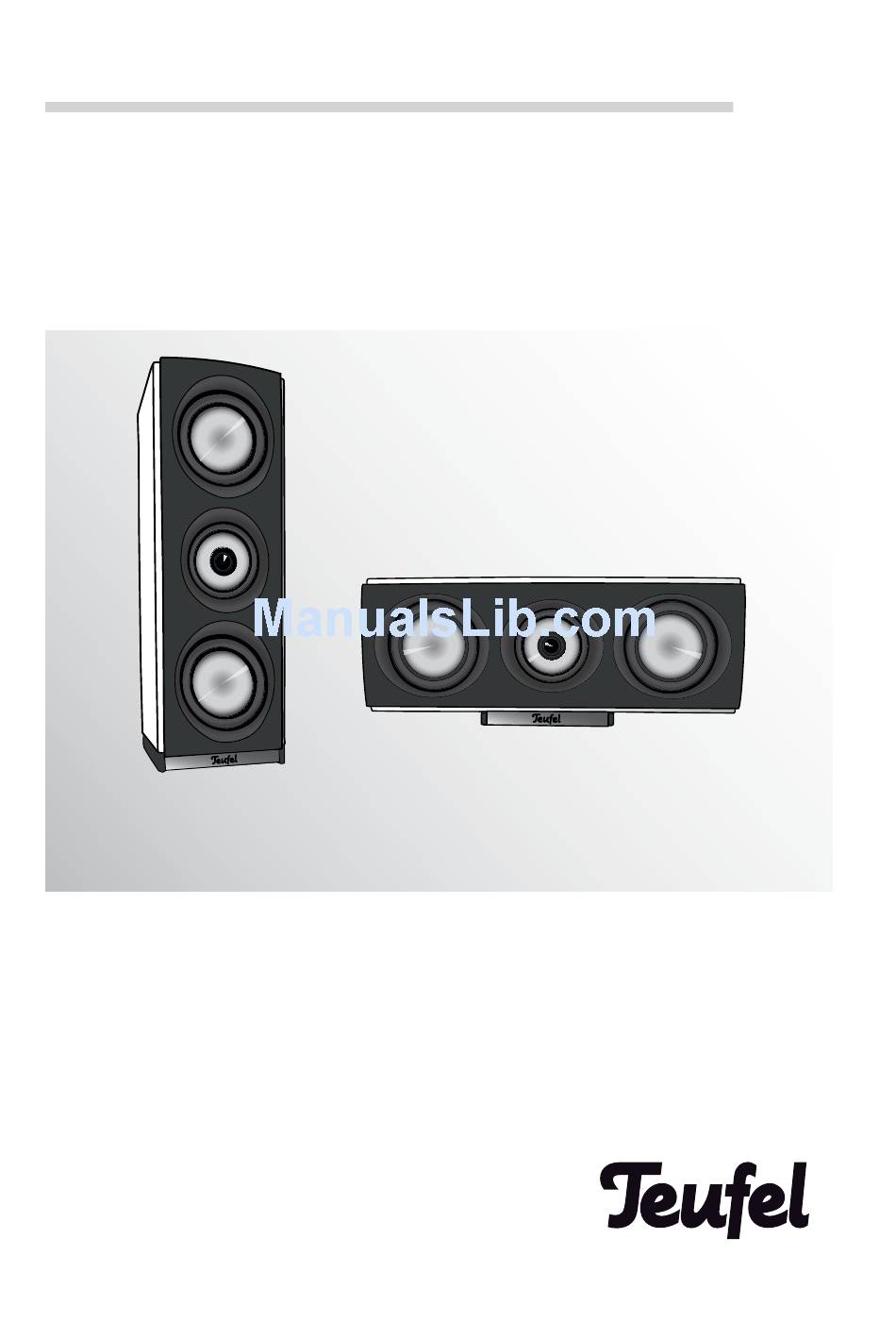

- Page 1 Technical Description and Operating Instructions Definion 5S High End compact speaker...
-
Page 2: Table Of Contents
Troubleshooting ............10 Safety notes ............4 Protecting the environment ........11 Product contents ............5 Disposing of the speakers ......11 Unpacking ............5 Technical data ............12 Check delivery ............5 Mounting speakers ..........6 Setting up the speakers ........... 7 • Definion 5S... -
Page 3: General Notes And Information
For questions, suggestions or any other issues please prior notice and in no way constitutes any liability on contact our customer service department: the part of Lautsprecher Teufel GmbH. Lautsprecher Teufel GmbH No part of these instructions may be reproduced in Gewerbehof Bülowbogen... -
Page 4: For Your Safety
Incorrect location may result in damage. • Do not expose the speakers to direct sunlight. • Only use the speakers in indoor areas. • Do not use the speakers in wet rooms and pro- tect them against dripping or spraying water. • Definion 5S... -
Page 5: Product Contents
If anything is missing or dam- Carrier plate aged, please contact our service department (see DEF 5S FRB page 3). for vertically • Do not operate any damaged parts. aligned speak- oder Carrier plate DEF 5S CB for horizontally aligned speak- • Definion 5S... -
Page 6: Mounting Speakers
Unscrew this screw and then use it to mount the bracket on the speaker. 3. Screw the other bracket flank onto the bottom of the carrier plate using the enclosed wood screws. Assembly of the speakers is now complete. Vertical alignment Horizontal alignment • Definion 5S... -
Page 7: Setting Up The Speakers
The speaker performance of course benefits from the level of quality offered by the connected components and accessories used. Setup as stereo speakers • Definion 5S... -
Page 8: Connecting The Speakers
Connecting the speakers Note Due to differing customer requirements, the Definion 5S speakers are shipped without speaker cables. You can find suitable cables in our webshop (teufelaudio.com) in the “Accessories” area. • The connector terminal with four pole clamps is located on the back of the speaker. -
Page 9: Bi-Amping
6. Connect the other end of the speaker cables to your amplifier/AV receiver. You should be able to find corresponding notes in the operating instruc- tions of your device. 7. Turn your amplifier/AV receiver back on. • Definion 5S... -
Page 10: Care And Cleaning
(e.g. from MP3 files). The sound seems dull. Speakers have been connected with Check to make sure the cables of all incorrect polarity. speakers are correctly connected. • Definion 5S... -
Page 11: Protecting The Environment
For this reason, electrical equipment is labelled with a collection point run by the communal authority/ the displayed symbol. • Definion 5S... -
Page 12: Technical Data
You can find further technical data on our website. Technical changes reserved! For questions, suggestions or other issues please contact our customer service department: Lautsprecher Teufel GmbH Tel.: 00800 200 300 40 (toll-free) No liability is accepted for the accu- Gewerbehof Bülowbogen...
