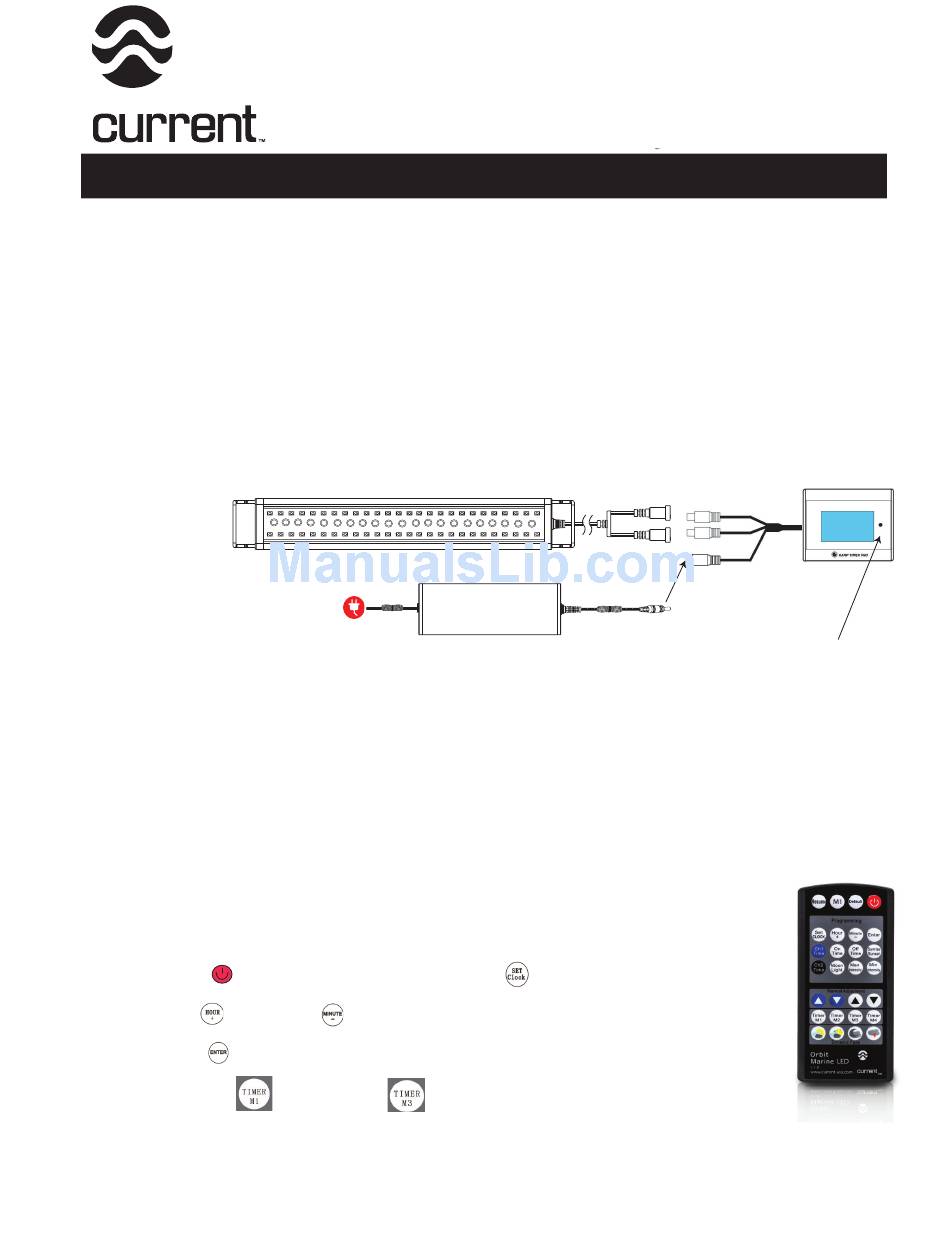

Quick Installation Guide
What's included:
1 - Orbit Marine PRO LED fixture with adjustable docking mounts
1 - 24VDC transformer
1 - Ramp Timer Pro LED controller with slide mounting kit

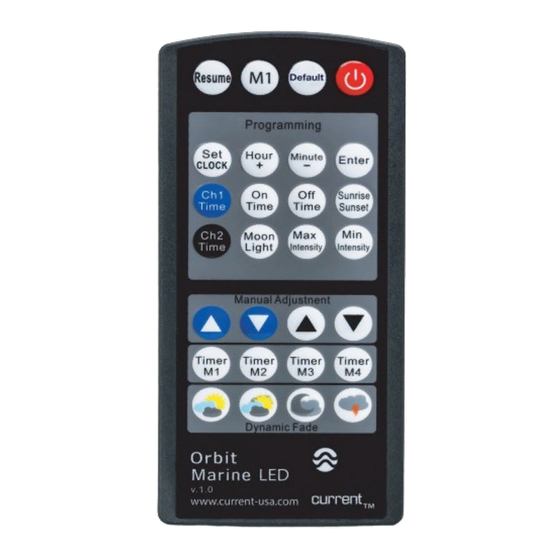

1 - Wireless IR remote
Installing the Orbit Marine PRO
1. Unpack light fixture and components, remove any plastic film on light fixture.
2. Slide the adjustable docking legs on the side of the fixture to match the length of your aquarium.
3. Set fixture on aquarium and connect to the Ramp Timer Pro (included) as per instructions below.
AC Power
GFCI Outlet
Connecting the Ramp Timer Pro to the Orbit Marine PRO
1. Connect your 24VDC transformer to the female DC plug on the Ramp Timer Pro, plug transformer into a GFCI
AC outlet. Ensure a drip loop is created before the outlet as shown on page 6.
2. Connect your LED light(s) to the male DC plugs on the timer. Blue light channel (dawn/dusk/moonlight)
connects to Line 1. White light channel (daylight) connects to Line 2.
3. Remove plastic cover from wireless remote and remove clear plastic tab located at the bottom of the remote.
4. Locate a dry location not near water or salt creep. Clean area thorougly.
5. Use velcro (included) or slide mounting kit to mount Ramp Timer Pro to desired location.
to turn timer on, press SET CLOCK
6. Press POWER
7. Press HOUR
and MINUTE
8. Press ENTER
clock is now set
9. Press TIMER M1
complete.**
** See following page for pre-programmed lighting schedules.
Note: Ramp Timer Pro and remote are NOT waterproof. Ensure neither are located in a location of
splashing water or salt creep.
Orbit Marine PRO LED Light
with 24 hour Ramp Timer Pro LED Controller
Orbit Marine Pro
Transformer
until the current time of day is displayed
or TIMER M3
. Pre-programmed lighting schedule is
24VDC
Ramp Timer Pro Controller
IR Sensor
Page 1
