Viking RDSOE306SS Service Manual

Single and double wall oven
Hide thumbs Also See for RDSOE306SS:
Table of Contents

Advertisement

Quick Links

See also: Use and Care Manual , Installation Manual
Service
Manual
This manual is to be used by qualified appliance technicians only.
Viking does not assume any responsibility for property damage
or personal injury for improper service procedures done by an
unqualified person.

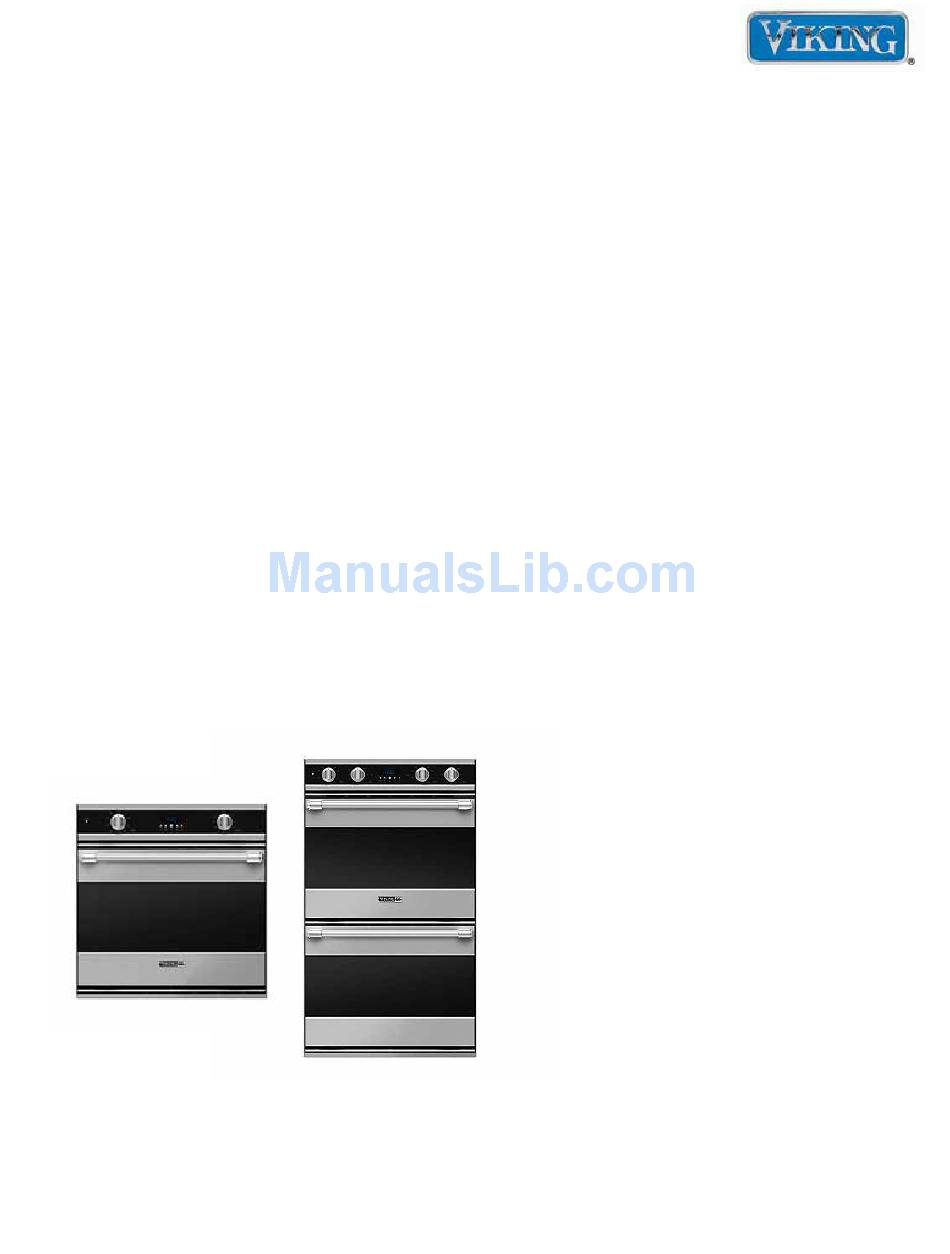

Single
and Double

Wall Oven

Preferred Service
This Base Manual covers general and
specific information including, but not
limited to the following models:
RDSOE306SS
RDDOE306SS
SMC-0031
July 2012
