4C-2. Replacing an Ozone Module
1. Open the Solar Eclipse as described in Section
4C-1.
2. Locate the Ozone Modules on the left wall of
the enclosure.
3. Remove the Filter Cap Assembly from the right
tube fitting of the Ozone Module. Make sure
you keep the Cap, Filter and Orifice together.
4. While holding the Ozone Outlet Manifold, gently
pull the left tube fitting out of the manifold
and both tube fittings through the holes in the
Ozone Module Bracket. Let the Ozone Module
hang down.
5. Disconnect the Ozone Gas Line and unscrew
the two front mounting screws of the Ozone
Bracket. Swing the ozone Bracket forward
and locate the Power Connector (black and
red wires) from the Module Power Supply and
disconnect from the wire harness. Refer to
Figure 6.
6. Unscrew the Ozone Module from the Module
Bracket and remove the Module assembly from
the unit.
7. Install the new Ozone Module by reversing
the above steps. Refer to Figure 5 for visual
instruction. Do not misplace spacer.

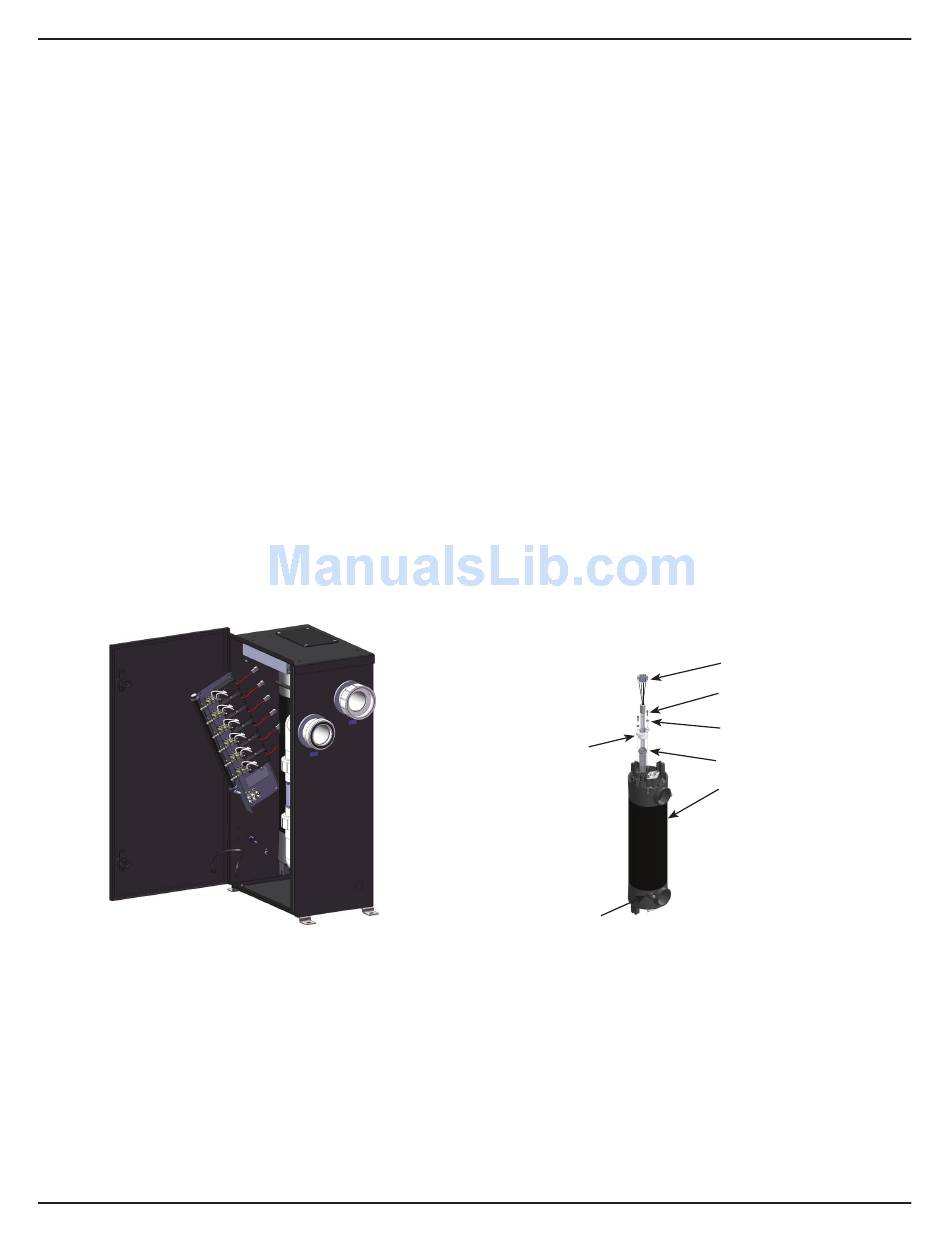

Figure 6: Ozone Bracket During Ozone Module Service
4D. UV Reactor Service and Maintenance
The UV Lamps are housed in a Quartz Tube. If the
Quartz Tube becomes dirty, its ability to transmit UV
rays from the Lamp will be diminished. The Quartz
Tube(s) should be removed from the UV Reactor
every six (6) months and cleaned if necessary.
Solar Eclipse Installation & Operations Manual
4D-1 Lamp Removal
1. Locate the UV Lamp Access Panel on the top
of the Solar Eclipse, remove the 4 screws with
a Phillips head screwdriver, and remove the
panel.
2. After allowing adequate time for the lamps to
cool, disconnect the Lamp Connectors from
Ballast wires.
3. Grasp the UV Lamp wires and gently pull until
the top of the UV Lamp has pulled past the
Lamp Retainer tabs.
4. By holding the UV Lamp's white ceramic end,
slowly pull the UV Lamp until the bottom has
pulled past the Lamp Retainer tabs. DO NOT
TOUCH THE UV LAMP GLASS WITH YOUR
BARE HANDS. Oils on your hands can cause
hot spots on the UV Lamp and shorten its life.
Use a soft clean cotton cloth or clean cotton
gloves to handle the UV Lamp. Carefully place
the UV Lamp in a clean, dry, and safe location.
Repeat this process for the other UV Lamp.
4D-2 Quartz Tube Removal and Cleaning
Note: If the Solar Eclipse is installed below water
level, the bypass valves must all be CLOSED to
prevent excess pool water from draining into the
open unit when a Quartz Tube is removed.
LAMP
RETAINER
DRAIN PLUG
Figure 7: UV Reactor Subassembly
1. Before continuing, allow adequate time for the
Quartz Tubes to cool and drain the water from
the UV Reactor by removing the Drain Plug and
replacing it once water has stopped exiting the
UV Reactor.
2. After removing the lamps, remove the top
Lamp Retainer Screws using the hex key
included in the parts bag. Place the Lamp
Retainer Screws, Washers, and the Lamp
Retainer aside in a safe place.
5
LAMP CONNECTOR
LAMP RETAINER SCREWS
WASHERS
SEALING O-RING
UV REACTOR
