Appendix A: Installation Plumbing - Del ozone Solar Eclipse Installation & Operation Manual

Solar Eclipse Installation & Operations Manual
The DEL Ozone Solar Eclipse works under vacuum. The injector in the Solar Eclipse draws the ozone/air gas mixture
from the ozone cells and mixes it into the water leaving behind some un-dissolved gas bubbles. These bubbles can
affect certain pool system components, so care must be taken when installing the ozone Solar Eclipse.

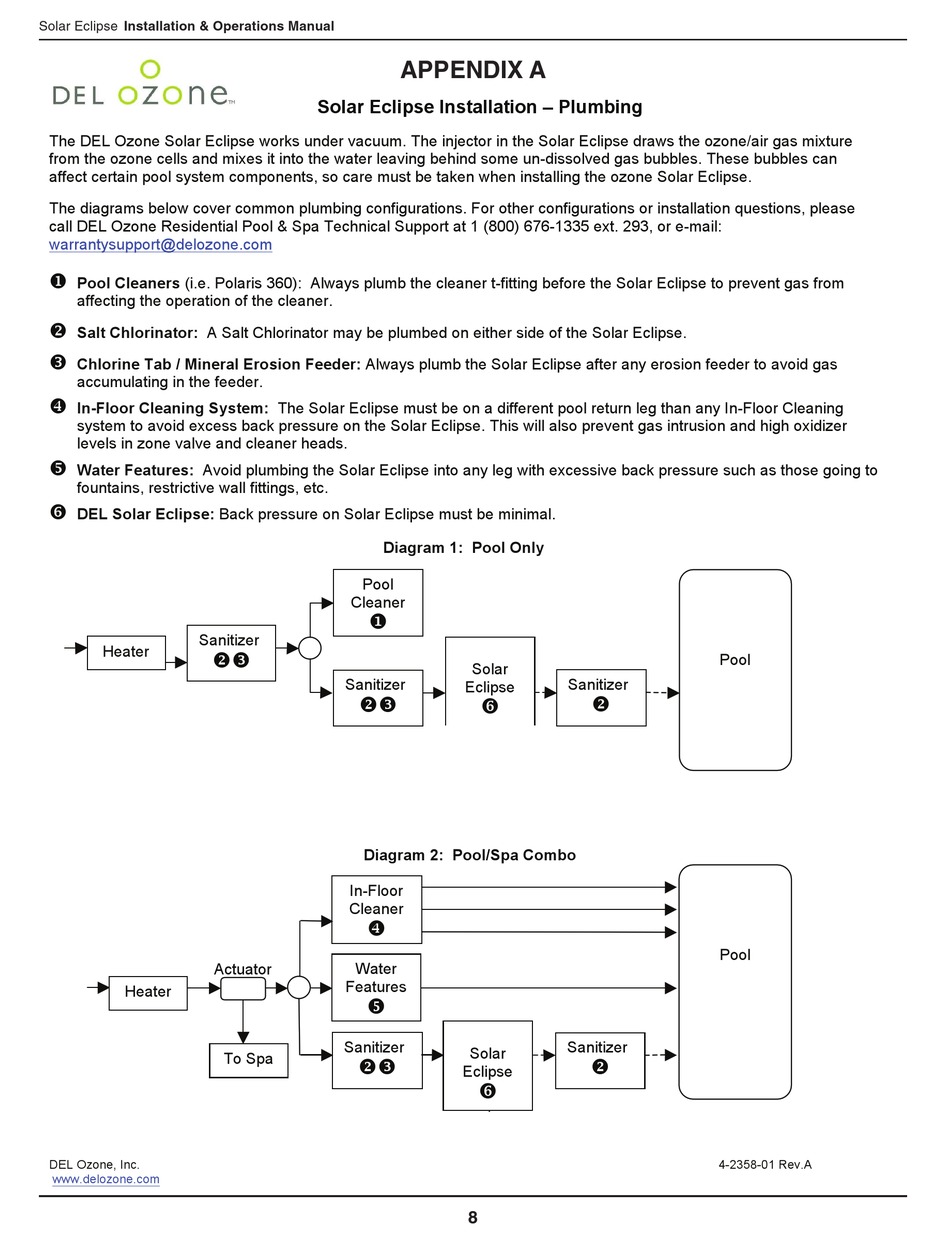

The diagrams below cover common plumbing configurations. For other configurations or installation questions, please
call DEL Ozone Residential Pool & Spa Technical Support at 1 (800) 676-1335 ext. 293, or e-mail:
warrantysupport@delozone.com
!
Pool Cleaners (i.e. Polaris 360): Always plumb the cleaner t-fitting before the Solar Eclipse to prevent gas from
affecting the operation of the cleaner.
"
Salt Chlorinator: A Salt Chlorinator may be plumbed on either side of the Solar Eclipse.
#
Chlorine Tab / Mineral Erosion Feeder: Always plumb the Solar Eclipse after any erosion feeder to avoid gas
accumulating in the feeder.
$
In-Floor Cleaning System: The Solar Eclipse must be on a different pool return leg than any In-Floor Cleaning
system to avoid excess back pressure on the Solar Eclipse. This will also prevent gas intrusion and high oxidizer
levels in zone valve and cleaner heads.
%
Water Features: Avoid plumbing the Solar Eclipse into any leg with excessive back pressure such as those going to
fountains, restrictive wall fittings, etc.
&
DEL Solar Eclipse: Back pressure on Solar Eclipse must be minimal.
