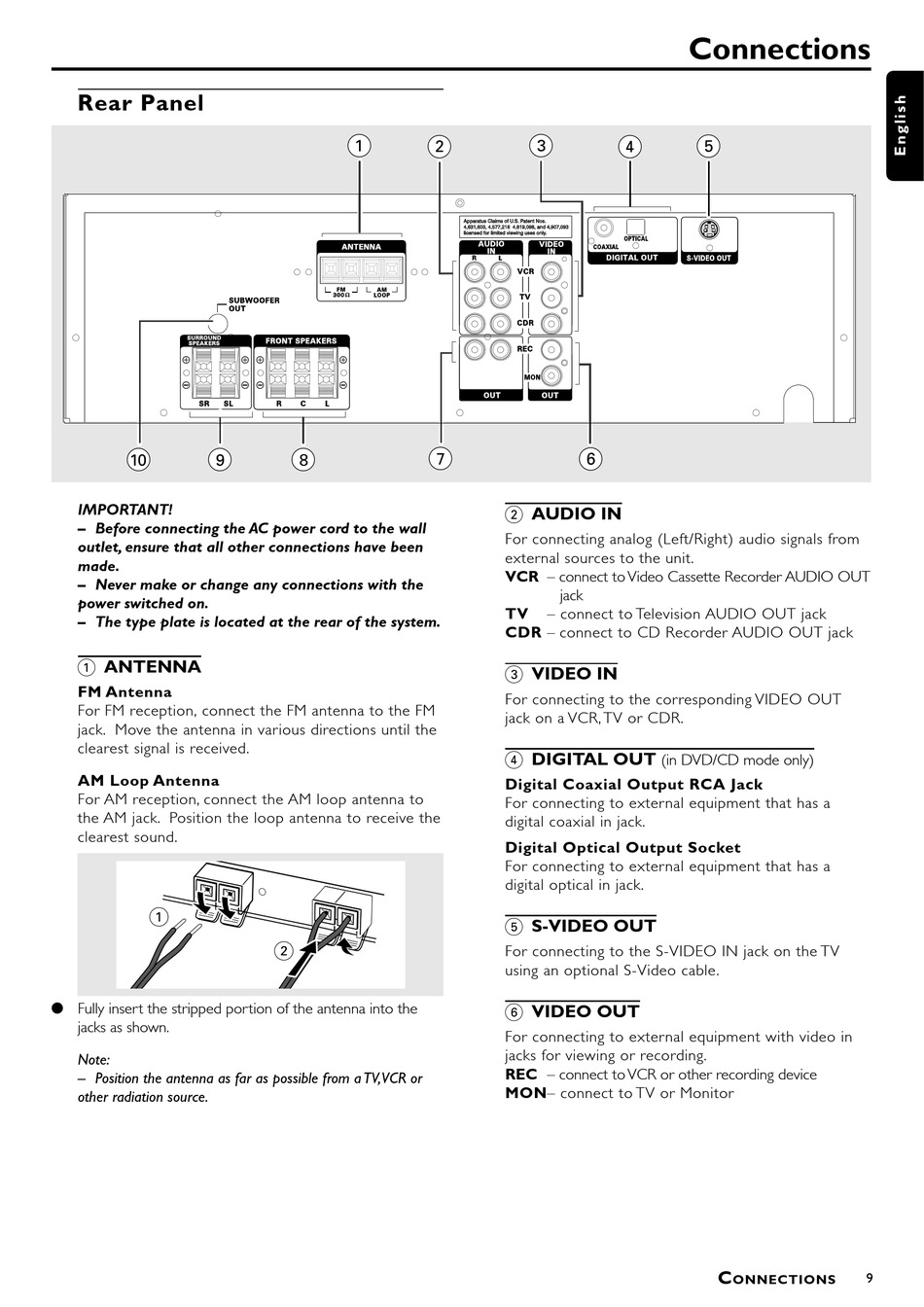

Rear Panel

0
9
IMPORTANT!
– Before connecting the AC power cord to the wall
outlet, ensure that all other connections have been
made.
– Never make or change any connections with the
power switched on.
– The type plate is located at the rear of the system.
1 ANTENNA
FM Antenna
For FM reception, connect the FM antenna to the FM
jack. Move the antenna in various directions until the
clearest signal is received.
AM Loop Antenna
For AM reception, connect the AM loop antenna to
the AM jack. Position the loop antenna to receive the
clearest sound.
1
Fully insert the stripped portion of the antenna into the
jacks as shown.
Note:
– Position the antenna as far as possible from a TV, VCR or
other radiation source.
1
2
7
8
2
3
4
6
2 AUDIO IN
For connecting analog (Left/Right) audio signals from
external sources to the unit.
VCR – connect to Video Cassette Recorder AUDIO OUT
jack
TV
– connect to Television AUDIO OUT jack
CDR – connect to CD Recorder AUDIO OUT jack
3 VIDEO IN
For connecting to the corresponding VIDEO OUT
jack on a VCR, TV or CDR.
4 DIGITAL OUT
(in DVD/CD mode only)
Digital Coaxial Output RCA Jack
For connecting to external equipment that has a
digital coaxial in jack.
Digital Optical Output Socket
For connecting to external equipment that has a
digital optical in jack.
5 S-VIDEO OUT
For connecting to the S-VIDEO IN jack on the TV
using an optional S-Video cable.
6 VIDEO OUT
For connecting to external equipment with video in
jacks for viewing or recording.
REC – connect to VCR or other recording device
MON– connect to TV or Monitor

Connections

5
C
ONNECTIONS
9
