Keysight Technologies

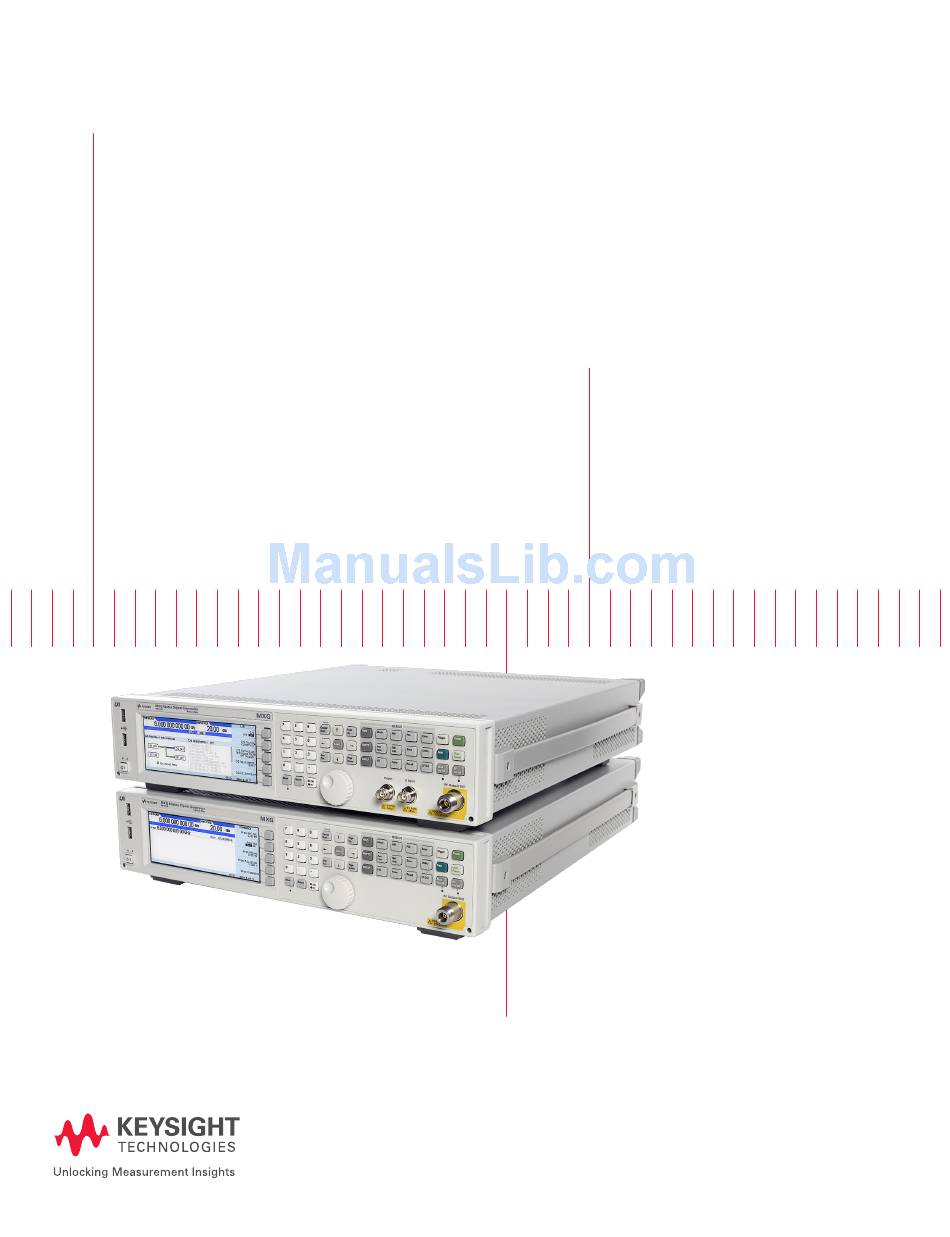

MXG X-Series Signal Generators
N5181B Analog & N5182B Vector
Configuration Guide
This configuration guide will help you
determine which performance options,
software applications, accessories, and
services to include with your new MXG or to
add as upgrades to an existing MXG.
Advertisement
Related Manuals for Keysight N5181B Analog
Summary of Contents for Keysight N5181B Analog
- Page 1 Keysight Technologies MXG X-Series Signal Generators N5181B Analog & N5182B Vector Configuration Guide This configuration guide will help you determine which performance options, software applications, accessories, and services to include with your new MXG or to add as upgrades to an existing MXG.
- Page 2 02 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Configuration Guide Configure Your MXG X-Series Signal Generator This step-by-step process will help you configure your MXG signal generator and choose options to meet your requirements. For detailed specifications, refer to the MXG signal generator data sheet (5991-0038EN).
- Page 3 03 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Configuration Guide Step 5. Choose warranty and calibration options Description Option number Return to Keysight Warranty, 3 years Standard Warranty Assurance Plan, Return to Keysight, 5 years...
- Page 4 04 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Configuration Guide Upgrade your existing MXG analog signal generator Fast license-key upgrades for options that do not require additional hardware: You Can Upgrade! Place an order for the upgrade with Keysight and request to receive the software...
- Page 5 05 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Configuration Guide N5182B MXG X-Series RF Vector Signal Generator Configure your new MXG vector signal generator Step 1. Select maximum frequency range (required option; frequency range not upgradeable)
- Page 6 06 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Configuration Guide Step 5. Choose Signal Studio and embedded software Note: The following software can be added at purchase or as an upgrade. To configure Signal Studio applications, refer to the configuration assistant at: www.keysight.com/find/signalstudio.
- Page 7 07 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Configuration Guide Step 6. Choose accessory and documentation options Description Option number Rack slide kit 1CR012A Front handle kit 1CN006A Rack mount flange kit 1CM010A Rack mount flange kit with front handles...
- Page 8 08 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Configuration Guide Upgrade your existing MXG vector signal generator Fast license-key upgrades for options that do not require additional hardware: You Can Upgrade! Place an order for the upgrade with Keysight and request to receive the...
-
Page 9: Related Literature
09 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Configuration Guide Description Upgrade number Requirements Additional information Digital output connectivity with the N5102A N5182BU-003 Digital input connectivity with the N5102A N5182BU-004 AM, FM, phase modulation... - Page 10 10 | Keysight | MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Configuration Guide Evolving For more information on Keysight Technologies’ products, applications or Our unique combination of hardware, software, support, and people can help services, please contact your local Keysight office.
