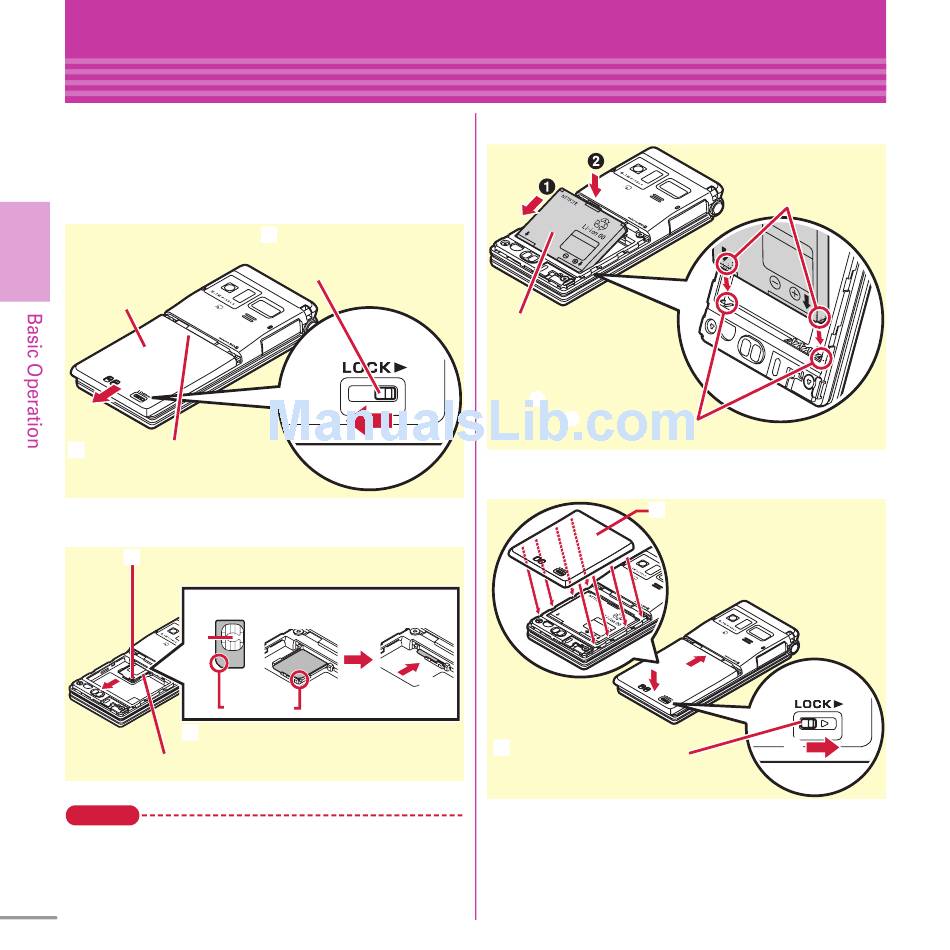

Before Using
Attaching UIM/battery pack
After turning power OFF, close FOMA terminal
and hold it in your hand so that you can properly
attach UIM/battery pack.
✜
Removing back cover
Back cover
b
Press and slide the back cover
in the arrow direction
by approx. 2 mm to remove
✜
Attaching UIM
a
Pull the tab of the tray out until it clicks
UIM
IC
b
Hold UIM with the IC side down,
align the corner cut with the tray to
Tray
set in, and then push the tray
Point
･
The UIM (blue) is not available for this FOMA
terminal. If you have the UIM (blue), bring it to a
docomo Shop to replace.
22
a
Slide the lever in the arrow
direction to lock
Corner cut
✜
Installing battery pack
With the label side up, fit
the convex parts to the
concave parts of the
FOMA terminal and insert
in the a direction, then
push in the b direction
Concave parts
to set in.
✜
Installing back cover
a
a
b
Slide the lever in the arrow
direction c to lock
Convex parts
Fit the 8 tabs to the notches of the
FOMA terminal and push in the
direction a not forming any
clearance, then slide in the
direction b.
b
c
