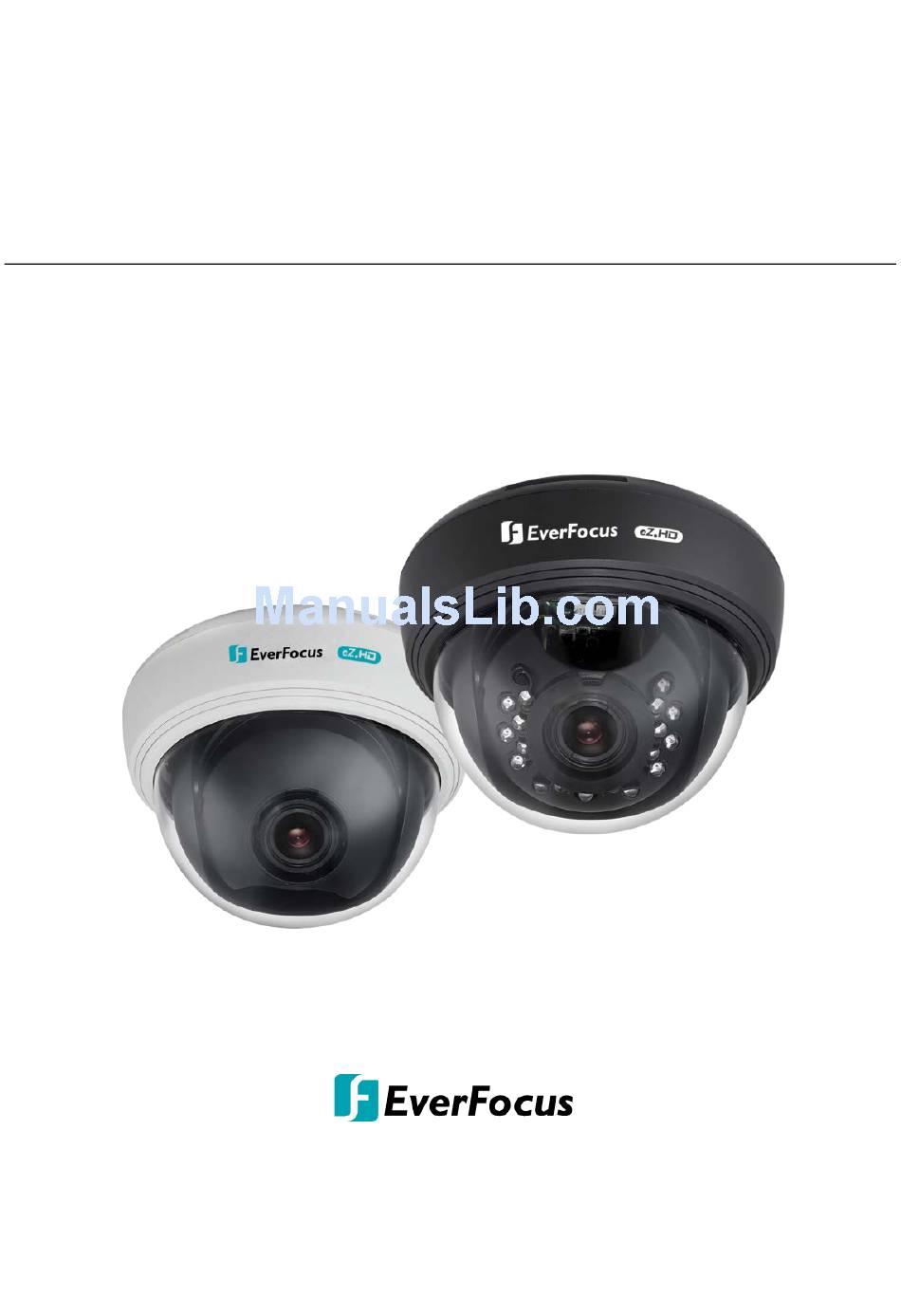

- Page 1 ED910F & ED930F 1080p Full High Definition True Day/Night Indoor Dome Camera User’s Manual Copyright © EverFocus Electronics Corp. Release Date: February 2016...
- Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein.
- Page 3 Safety Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Contents 1. Introduction........................5 Packing List ........................5 Features .......................... 6 2. Cable Description ......................6 3. Installation ........................7 Installation and Adjustment ................... 7 4. Configuration in the OSD Menu ..................13 5. Specifications ........................17... -
Page 5: Introduction
This is the camera that you have been waiting for to create analog CCTV systems that produce astounding image clarity in a wide range of indoor applications at the widest range of light levels. The ED910F/930F supports both NTSC and PAL scanning systems, which can be switched via OSD. -
Page 6: Features
ED910F/ED930F eZ.HD Indoor Dome Camera 1.2 Features 1080p with high flexibility and performance for astounding image 1/2.9" SONY 2.24M pixels CMOS Sensor, delivers amazing high sensitivity Vari-focal 2.8~12mm DC iris lens to capture the desired field of view ... -
Page 7: Installation
ED910F/ED930F eZ.HD Indoor Dome Camera 3. Installation 3.1 Installation and Adjustment ED910F without LED ED930F with LED Camera Breakdown... -
Page 8: Important Notice
ED910F/ED930F eZ.HD Indoor Dome Camera Important Notice Please be noted the camera Base Plate may loosen when you take out the camera from the pack. It is because the Base Plate is attached to the Camera Body without twisting tightly in order to simplify the installation procedure. - Page 9 ED910F/ED930F eZ.HD Indoor Dome Camera Rotate counter-clockwise to remove the camera cap, press and pull to remove the liner. Note: Hold the liner with one hand, then press and pull to remove the liner (refer to the “arrow” marked on the liner) Push the inner click outward and rotate the base plate counter-clockwise, then remove the camera body from the base plate.
- Page 10 ED910F/ED930F eZ.HD Indoor Dome Camera Screw the base plate to the wall / ceiling using the supplied three Screws. To screw the camera body back to the base plate, aim the arrow label of the camera body to the arrow label of the base plate, and rotate the camera body clockwise. A “click”...
- Page 11 ED910F/ED930F eZ.HD Indoor Dome Camera Connect the camera to the 12 VDC or 24 VAC power source and an AHD DVR. Optionally connect the camera to a monitor using the supplied Test Lead to adjust camera angles, focus, zoom and configure OSD menu.
- Page 12 ED910F/ED930F eZ.HD Indoor Dome Camera Note: The function button is using to control direction, and also to switch video format and video output. Please follow the detailed instruction as below to switch the camera to: Switch between 1080p and 720p (Default, 1080p): Press Upward for 5 Seconds ...
-
Page 13: Configuration In The Osd Menu
ED910F/ED930F eZ.HD Indoor Dome Camera 4. Configuration in the OSD Menu You can use the function buttons on the rear panel of the camera body to configure camera settings in the OSD menu: No. Main Sub Menu / Function Menu... - Page 14 ED910F/ED930F eZ.HD Indoor Dome Camera Level Middle, High, Low Area Position, Size,↑,↓,→,← Default Select Area1, Area2, Area3, Area4 Display Position, Size,↑,↓,→,← Black Mask On/Off HSBLC Level 0-100 All Day Model Night AGC Level 0-255 Default AWC→SET Indoor White Outdoor Balance...
- Page 15 ED910F/ED930F eZ.HD Indoor Dome Camera Mirror Off, Mirror, V-flip, Rotate Neg. Image Off/On Select Area1,Area2,Area3,Area4 Position, Size,↑,↓,→,← Display Sensitiv 0-100 Color Green, Blue, White, Red Motion 1.00,0.75,0.50, Trans 0.25 View Type Off, Block, Outline, All OSD View On/Off Alarm Alarm Out...
- Page 16 ED910F/ED930F eZ.HD Indoor Dome Camera x2, x4, x6, x8,x10, x15, x20, Sens-up x25, x30 Pos/Siz Position, Size,↑,↓,→,← Black DPC Start Press Enter DPC View Off/On Level 0-255 CAM ID 0-255 RS485 ID Display Off/On Baud Rate 2400,4800,9600,19200 ,38400 Level 0-10...
-
Page 17: Specifications
ED910F/ED930F eZ.HD Indoor Dome Camera 5. Specifications ED910F ED930F Pickup Device 1/2.9" SONY 2.24M pixels CMOS Video Format NTSC and PAL( can be switched via OSD) Effective Pixels 1920 (H)*1080 (V) Scanning System Progressive Scan Sensitivity 0.01Lux/F1.4 0Lux with IR on... - Page 18 ED910F/ED930F eZ.HD Indoor Dome Camera EverFocus Electronics Corp. EverFocus Taiwan: EverFocus Europe - Germany: 12F-1, No.79, Sec. 1, Shin-Tai Wu Road, Albert-Einstein-Strasse 1, D-46446 Hsi-Chih, New Taipei City, Taiwan Emmerich, Germany TEL: +886 2 2698 2334 TEL: +49 2822 93940...
