C.

imagePROGRAF iPF785/780 Printer Power and Plug Requirements

Canon USA Inc. strongly suggests dedicated and properly grounded outlets
be provided for these imagePROGRAF iPF785/780 printer devices.
•
The imagePROGRAF iPF785/780 printer requires a dedicated single-
phase 120V/15A NEMA 5-15 receptacle for proper operation.

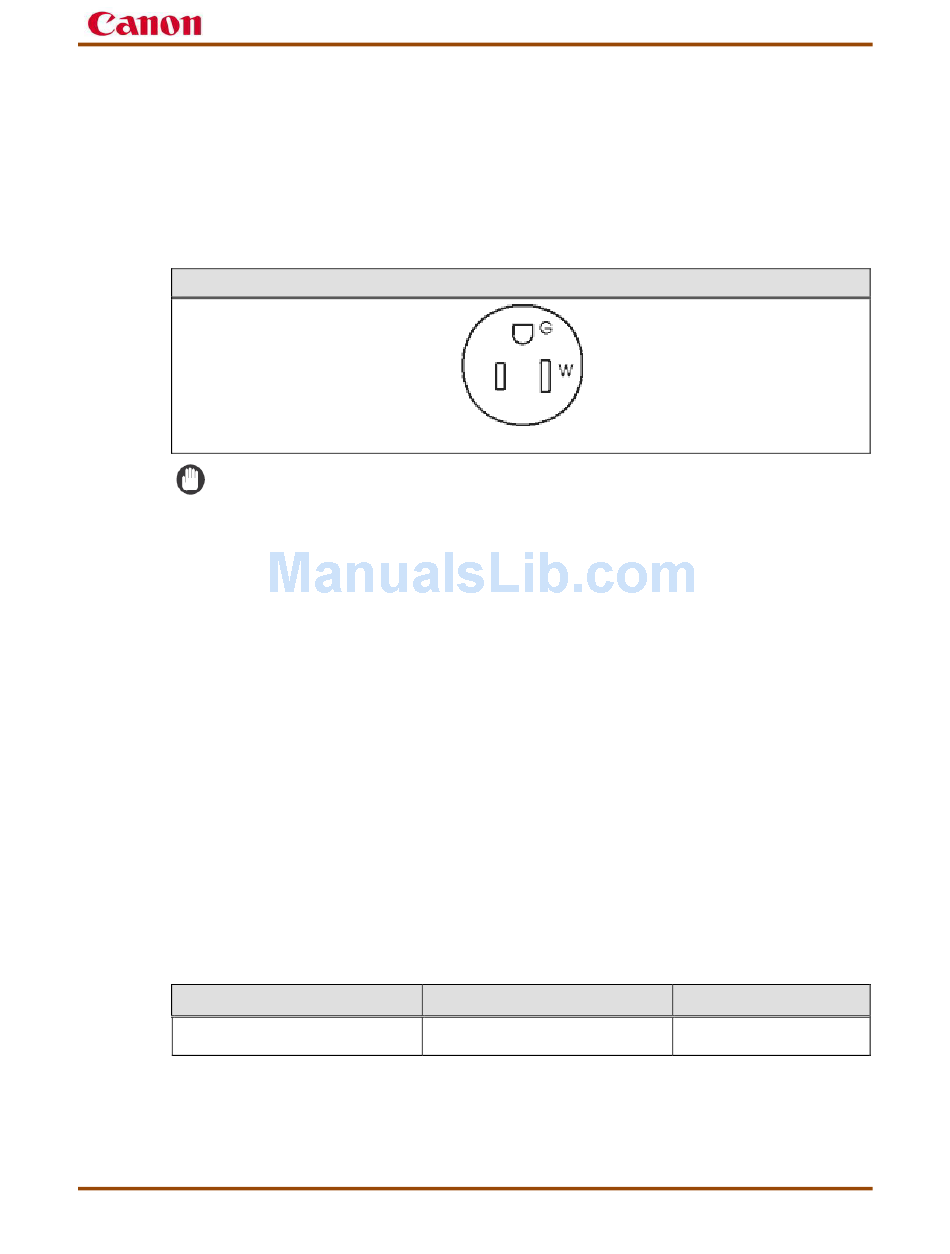

Table 10 – Power Receptacle for imagePROGRAF iPF785/780 Printer
IMPORTANT
•
We recommend an additional standard 120V/15A outlet for service tools,
such as a laptop computer or vacuum that may be used when servicing
or configuring the printer.
•
Use
imagePROGRAF iPF785/780 printer main unit. It is also strongly
suggested to use dedicated and properly grounded outlets for each
optional accessory. Do not use extension cords. The ground connection
serves to provide the internal electronics with a reference voltage. Faulty
or poor ground sources will cause this reference voltage to fall into a
range that no longer serves as a reliable reference voltage. The internal
logic and programming of the imagePROGRAF iPF785/780 printers will
not perform reliably because there is an insufficient difference between
the internal operating signal voltages and the poor ground reference
signal. A qualified electrician can measure and provide the ground
source that the imagePROGRAF iPF785/780 printers or any computer
controlled office equipment requires.
•
Before installation, confirm that all necessary receptacles are available.
•
Phase converters and step down transformers are not supported
Table 11 – Power and Plug Requirements for imagePROGRAF iPF785/780 Printer
Description
imagePROGRAF iPF785/780
imagePROGRAF iPF785/780 Service Guide
imagePROGRAF iPF785/780 Printer Main Unit
NEMA 5-15 Receptacle
only dedicated and
imagePROGRAF iPF785/780 Service Guide
properly grounded
Power Supply
120 V/15 A outlet
outlets for the
Plug Specifications
NEMA 5-15
