D-Link DIR-880L User Manual

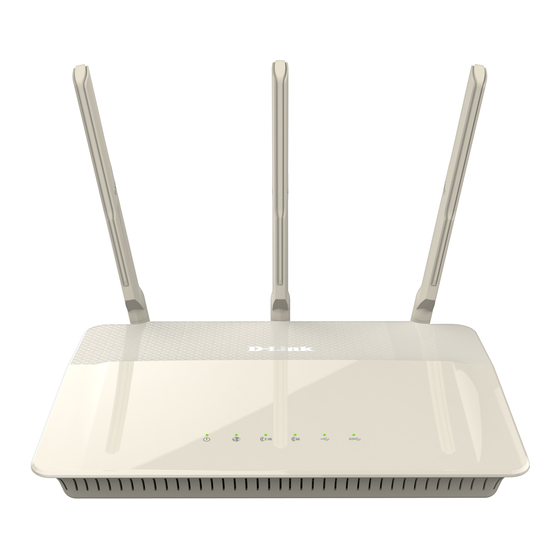

Wireless ac1900 dual band gigabit cloud router
Hide thumbs Also See for DIR-880L:
Table of Contents

Advertisement

Quick Links

Version 1.00 | 02/07/2014

User Manual

Wireless AC1900 Dual Band Gigabit Cloud Router
DIR-880L

Advertisement

Table of Contents
loading

Related Manuals for D-Link DIR-880L

Summary of Contents for D-Link DIR-880L

  • Page 1: User Manual

    Version 1.00 | 02/07/2014 User Manual Wireless AC1900 Dual Band Gigabit Cloud Router DIR-880L...

  • Page 2: Manual Revisions

    Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Revision Date Description 1.00 February 07, 2014 • Initial release...

  • Page 3: Table Of Contents

    Internet (Router Mode) .............67 iPhone®, and iPod Touch® ..........24 IPv6 ..................76 Main Menu ...............28 Internet (Bridge Mode) .............91 Documents ...............29 Wireless (Router Mode) ............94 Pictures ................31 Guest Zone ...............96 Videos.................33 Wireless (Bridge Mode) .............97 Music ..................35 Network ..................98 D-Link DIR-880L User Manual...
  • Page 4 System Log ................. 117 Admin .................. 118 Technical Speciications ..........150 System ................119 Upgrade ................120 Safety Statements ............151 Statistics ................121 Connect a Wireless Client to your Router ....122 WPS Button ................122 Windows® 8 ................123 D-Link DIR-880L User Manual...

  • Page 5: Product Overview

    Wi-Fi Coniguration Note If any of the above items are missing, please contact your reseller. Note: Using a power supply with a diferent voltage rating than the one included with the DIR-880L will cause damage and void the warranty for this product.

  • Page 6: System Requirements

    • Internet Explorer 7 or higher mydlink Requirements • Firefox 3 or higher • Safari 5 or higher • Chrome 5 or higher iPhone, iPad, and iPod touch are registered trademarks of Apple Inc. Android is a trademark of Google, Inc. D-Link DIR-880L User Manual...

  • Page 7: Introduction

    Lite app – which is great for parents. SharePort technology lets you take advantage of the USB 3.0 port found on the back of your DIR-880L (as well as an additional USB 2.0 port).

  • Page 8: Features

    • Cloud Features - The DIR-880L support the QRS Mobile app to setup the router using a mobile device. It is also mydlink-enabled so you can remotely access and mange your DIR-880L from a mobile device. The mydlink SharePort™...

  • Page 9: Antenna Setup

    For best performance, position the router’s antennas with their lat side 45° 45° facing towards the front, and tilt the left and right antennas sideways from the center at a 45 degree angle. D-Link DIR-880L User Manual...

  • Page 10: Hardware Overview

    6 Power Button Receptor for the supplied power adapter. 7 Power Receptor Connect a USB lash drive to share content , or connect it to a USB printer to share it on your network. 8 USB 3.0 Port D-Link DIR-880L User Manual...

  • Page 11: Leds

    A solid blue light indicates that a USB device detected in the USB 2.0 port. USB 2.0 LED A solid blue light indicates that a USB device detected in the USB 3.0 port. USB 3.0 LED D-Link DIR-880L User Manual...

  • Page 12: Installation

    • If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoET, BroadJump, or EnterNet 300 from your computer or you will not be able to connect to the Internet. D-Link DIR-880L User Manual...

  • Page 13: Wireless Installation Considerations

    RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines: 1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that...

  • Page 14: Wall Mounting

    Section 2 - Installation Wall Mounting You can mount the DIR-880L on a wall or partition for ease and convenience. To wall mount your device: Step 1 Screw the provided screws to the wall to which the router will be mounted.

  • Page 15: Manual Setup

    3. Unplug the Ethernet cable from your modem (or existing router if upgrading) that is connected to your computer. Plug it into the LAN port labeled 1 on the back of your router. The router is now connected to your computer. Computer DIR-880L D-Link DIR-880L User Manual...
  • Page 16 Note: This unit is to be used with power supply model WA-36C12R. Computer DIR-880L Modem INTERNET 7. If you are connecting to a broadband service, you may be online already and further coniguration will be optional. D-Link DIR-880L User Manual...

  • Page 17: Getting Started

    There are several diferent ways you can conigure your router to connect to the Internet and connect to your clients: • D-Link Setup Wizard - This wizard will launch when you log into the router for the irst time. Refer to page 14.

  • Page 18: Setup Wizard

    61. The wizard is designed to guide you through a step-by-step process to conigure your new D-Link router and connect to the Internet. Click Next to continue. Please wait while your router detects your Internet connection type. If the router detects your Internet connection, you may need to enter your ISP information such as username and password.
  • Page 19 Note: Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through a router. If the router detected or you selected Static, enter the IP and DNS settings supplied by your ISP. Click Next to continue. D-Link DIR-880L User Manual...
  • Page 20 Click Next to continue. The Summary window will display your settings. Click Next if you are satisied, or click Back to make changes to them. D-Link DIR-880L User Manual...
  • Page 21 If you clicked No, ill out the requested information and click Next to create your mydlink account. At the end of the wizard, you will be presented with a inal summary of your settings. Click Finish to close the wizard. D-Link DIR-880L User Manual...
  • Page 22 Touch (iOS 3.0 or higher), Android device (1.6 or higher). To download the "mydlink Lite" app, visit the Apple Store, Android Market or http://mydlink.com/Lite. PC and Mac users can use the mydlink portal at http://mydlink.com. D-Link DIR-880L User Manual...

  • Page 23: Qrs Mobile App

    Scan for the Wi-Fi name (SSID) as listed on the supplied info card. Select and then enter your Wi-Fi password. Step 3 Once you connect to the router, launch the QRS mobile app from the Home screen of your device. D-Link DIR-880L User Manual...
  • Page 24 Plug one end of the provided Ethernet cable into your DSL or cable modem, and plug the other end into the port marked INTERNET on the DIR-880L. Tap Next to automatically detect your Internet connection and proceed to the next step.
  • Page 25 Enter the administrator password of your choice. Unlike the Wi-Fi password, this password is only required when you need to conigure the router. See page 61 for details of when this password is used. Tap Next to proceed. D-Link DIR-880L User Manual...
  • Page 26 Skip to proceed. Step 9 If you wish to receive push notiications whenever a new irmware update is available, check the Notify me when new irmware is available box and tap Next. Otherwise, just tap Next to proceed. D-Link DIR-880L User Manual...
  • Page 27 You will be presented with a summary of your chosen settings. If you wish to make any changes, tap Back to step back through the previous pages. Otherwise, tap Next to complete the setup. Congratulations, your device has been successfully conigured! You may now exit the QRS app. D-Link DIR-880L User Manual...

  • Page 28: Mydlink Shareport

    Streaming performance will vary depending on the quality of your Internet connection. Note: If you choose to skip the mydlink SharePort registration during the initial setup of your DIR-880L, you may begin the registration process anytime by accessing the mydlink SharePort feature from within the router coniguration. Please see page 96 for details on how to begin the mydlink shareport registration process.
  • Page 29 4. On your mobile device, go to your Wi-Fi settings and connect to your router’s wireless network using the default Wi-Fi settings. Your Wi-Fi network details can be found on the included Wi-Fi coniguration card included with your router, or on the bottom of the router. D-Link DIR-880L User Manual...
  • Page 30 Remote mode will connect you to storage on your router in a diferent location. For example, from your oice connecting to your router at home. If you are directly connected to the DIR-880L’s wireless network, tap Local Access and enter the Admin Password of your router, then tap Log If you are connecting through the Internet tap Remote Access and enter your mydlink login information, then tap Log In.
  • Page 31 Remote Access. Note: If you see a red wireless icon, your router’s network environment may not be suitable for a direct network connection and you may experience slow network speeds. D-Link DIR-880L User Manual...

  • Page 32: Main Menu

    Tap on the movie icon to play videos. Tap on the music icon to play audio iles. Tap on the folder icon to browse all iles in a folder view. Tap on the star icon to access your favorite iles. D-Link DIR-880L User Manual...

  • Page 33: Documents

    Documents The Documents section allows you to share, print, and view documents streamed from your DIR-880L to your mobile device. Tap the document icon on the main menu to browse the documents on your mobile device. Enter a ilename here to search your storage.
  • Page 34 Tap on a ile to start the document viewer. In the viewer: Tap to add/remove the ile from your Favorites. Tap to bring up the same options as >. Note: Some iles may require a third-party app to view them. D-Link DIR-880L User Manual...

  • Page 35: Pictures

    Section 3 - Getting Started Pictures The Pictures section allows you to stream images from your DIR-880L to your mobile device. Tap the camera icon on the main menu to browse your photo collection on your removable storage. Enter a ilename here to search your storage.
  • Page 36 Section 3 - Getting Started Tap on a ile to start the photo viewer. In the viewer: Tap to add/remove the current image from your Favorites. Tap to start the slideshow. Tap to bring up the same options as >. D-Link DIR-880L User Manual...

  • Page 37: Videos

    Videos The Videos section allows you to stream video clips and movies from your DIR-880L to your mobile device. Tap the movie icon on the main menu to browse your videos on your removable storage. Enter a ilename here to search for a speciic ile.
  • Page 38 Tapping this icon gives you additional options: • Mail: Lets you e-mail the video. • iCloud: Lets you store the video on iCloud. • Open In...: Lets you use a third-party app to open the ile. D-Link DIR-880L User Manual...

  • Page 39: Music

    Section 3 - Getting Started Music The Music section allows you to stream songs from your DIR-880L to your mobile device. Tap the music icon on the main menu to browse your music collection on your removable storage. Enter a ilename here to search your storage.
  • Page 40 Tap to enable/disable shule mode. To create a playlist: Tap Edit > Add Playlist. Enter a name for the playlist, then tap Save. The name of the playlist will appear in the browser next to the icon. D-Link DIR-880L User Manual...
  • Page 41 Tap Add Music... to add songs to the current playlist. Tick the songs you wish to add and tap Done. To delete songs from the playlist: Tap Edit in the playlist browser and mark the iles to be deleted. Tap Delete. D-Link DIR-880L User Manual...

  • Page 42: Folders

    The bottom menu bar includes these options: Tap to go back to the main menu. Tap to upload iles from your device to your removable storage. Tap to update the list of iles. Tap to reorder the iles alphabetically. D-Link DIR-880L User Manual...
  • Page 43 Browse to the directory you wish to create a new folder in. Tap Edit at the top right. Tap Add Folder to add a new folder. Enter the name of the new folder, then tap Save. Tap OK to conirm folder creation. D-Link DIR-880L User Manual...
  • Page 44 Tap Done. During the upload process, the size of the ile and the upload progress will be displayed. To upload more iles, tap the + icon at the top right and repeat the steps listed above. D-Link DIR-880L User Manual...

  • Page 45: Favorites

    Tap on a ile to start the ile viewer. In the viewer: Tap to add/remove the ile from your Favorites. Tap to bring up additional options. Note: The ile options available will vary depending on the ile type. D-Link DIR-880L User Manual...

  • Page 46: Using The Mydlink Shareport™ App For Android

    Make sure the device is powered on. Then plug your USB drive into the USB port of the device. Note: If you connect a removable storage with many iles or a large capacity, it may take a while for the router to scan and catalog your iles. USB drive D-Link DIR-880L User Manual...
  • Page 47 On your mobile device, go to your Wi-Fi settings and connect to your router’s wireless network using the default Wi-Fi settings. Your Wi-Fi network details can be found on the included Wi-Fi coniguration card included with your router, or on the bottom of the router. D-Link DIR-880L User Manual...
  • Page 48 Remote Access: Remote mode will connect you to storage on your router in a diferent location. For example, you are at your oice connecting to your router at home. D-Link DIR-880L User Manual...
  • Page 49 Section 3 - Getting Started If you are directly connected to the DIR-880L’s wireless network, tap Local Access and enter the Admin Password of your router, then tap Log In. If you are connecting through the Internet tap Remote Access and enter your mydlink login information, then tap Log In.

  • Page 50: Main Menu

    Tap on the folder icon to browse all iles in a folder view. Tap on the star icon to access your favorite iles. Note: Available features may difer depending on the Android OS version of your device. D-Link DIR-880L User Manual...

  • Page 51: Documents

    Documents The Documents section allows you to share, print, and view documents streamed from your DIR-880L to your mobile device. Tap the document icon on the main menu to browse the iles on your mobile device. Type in the name of a ile to search for it.
  • Page 52 Tap the screen to bring up zoom in/out buttons. Drag the screen up or down to scroll between pages. to perform File, Find, Zoom, Reading View, Go To Page, and Bookmarks actions. Note: Available actions may difer depending on your Android OS. D-Link DIR-880L User Manual...

  • Page 53: Pictures

    Pictures The Pictures section allows you to view images streamed from your DIR-880L to your mobile device. Tap the camera icon on the main menu to browse your photo collection on your removable storage. Type in the name of a ile to search for it.
  • Page 54 Tap to delete the current image. Tap OK to conirm. Tap to bring up additional options using other applications. Tap to access the image editor. Note: This function may vary depending on the version of your Android OS. D-Link DIR-880L User Manual...

  • Page 55: Videos

    Videos The Videos section allows you to stream video clips and movies from your DIR-880L to your mobile device. Tap the movie icon on the main menu to browse your videos on your removable storage. Type in the name of a ile to search for it.
  • Page 56 Tap on a ile to start playing it. Tap on the screen to bring up the scroll bar, pause button, and play button. Tap to resume playback. Tap to pause the video. Note: Available features may vary depending on the Android OS version installed on your device. D-Link DIR-880L User Manual...

  • Page 57: Music

    Section 3 - Getting Started Music The Music section allows you to stream songs from your DIR-880L to your mobile device. Tap the music icon on the main menu to browse your music collection on your removable storage. Type in the name of a ile to search for it.
  • Page 58 Tap Add new playlist... Enter a name for the playlist, then tap OK. The name of the playlist will appear in the browser next to the icon. You can tap then to refresh the playlist page. D-Link DIR-880L User Manual...
  • Page 59 Tap Add Music... to add songs to the current playlist. Tick the songs you wish to add and tap to save. To delete songs from the playlist: Tap Edit in the playlist browser and mark the iles to be deleted. then tap OK to conirm. D-Link DIR-880L User Manual...

  • Page 60: Folders

    Tap to return to the main menu. Tap to access ile options. In the ile browser: Tap to return to the main menu. Tap to upload iles. Tap to refresh, sort, create a new folder, or mark iles for deletion and copying. D-Link DIR-880L User Manual...
  • Page 61 Tap on to delete your selected iles. Tap OK to conirm. To copy iles: Tap on to select iles for copying. Tick the box next to each ile for copying. Tap on to browse to the destination. D-Link DIR-880L User Manual...
  • Page 62 You can also tap New Folder if you wish to create a folder in the current directory. To create a new folder: Browse to the directory you wish to create a new folder in. then Enter the name of the folder in the box, then tap OK. D-Link DIR-880L User Manual...
  • Page 63 Tap Upload. During the upload process, the size of the ile and the upload progress will be displayed under the ile name. To remove a ile from the upload queue, tap the X next to it. D-Link DIR-880L User Manual...

  • Page 64: Favorites

    Tap to return to the main menu. Tap to update the list of iles. Tap to sort the iles by name, size, type, or date. Check a ile then tap to delete it. D-Link DIR-880L User Manual...

  • Page 65: Coniguration

    The bar at the top of the page has quick access to Settings and Management functions. You may quickly jump back Home at any time. Note: The system will automatically log out after a period of inactivity. D-Link DIR-880L User Manual...

  • Page 66: Device Mode

    Section 4 - Coniguration Device Mode The DIR-880L can be placed into two device modes: Router Mode and Bridge Mode. The default mode is Router Mode. To change the device mode, in the Settings menu on the bar on the top of the page, click Internet to see the Internet coniguration options.

  • Page 67: Home

    Click IPv4 or IPv6 to see details of the IPv4 connection and IPv6 connection respectively. Click Release to disconnect from the Internet. If you do this and wish to reconnect, click Renew. To reconigure the Internet settings, refer to page 67. D-Link DIR-880L User Manual...

  • Page 68: Dir-880L

    Section 4 - Coniguration DIR-880L Click on the DIR-880L icon to view details about the router and its wireless settings. Here you can see the router’s current wireless settings, as well as its MAC address and IPv4/IPv6 addresses. To reconigure the network settings, either click Go to settings on the lower left, or click Settings (at the top of the page) and then Network on the menu that appears.

  • Page 69: Connected Clients

    Vendor: Enter a speciic IP address for this client. IP Address: Enable to reserve this IP address for this client. Reserve IP: Allow or Block access to the router. Access: Click Save when you are done. D-Link DIR-880L User Manual...

  • Page 70: Usb Device

    DLNA media server, SharePort, and Windows File Sharing. If you have a USB device connected, you can see its name and how much free space it has. To conigure your SharePort settings, click Go to settings and refer to page 100. D-Link DIR-880L User Manual...

  • Page 71: Settings

    For PPPoE refer to page 70. For PPTP refer to page 71. For L2TP refer to page 73. For DS-Lite refer to page 75. To conigure an IPv6 connection, click the IPv6 link. Refer to page 76. D-Link DIR-880L User Manual...
  • Page 72 The default MAC address is set to the Internet port’s physical interface MAC Address MAC address on the router. You can use the drop-down menu to Clone: replace the Internet port’s MAC address with the MAC address of a connected client. Click Save when you are done. D-Link DIR-880L User Manual...
  • Page 73 The default MAC address is set to the Internet port’s physical interface MAC Address MAC address on the router. You can use drop-down menu to replace Clone: the Internet port’s MAC address with the MAC address of a connected client. Click Save when you are done. D-Link DIR-880L User Manual...
  • Page 74 Enter the secondary DNS server IP address assigned by your ISP. Secondary DNS Server: Maximum Transmission Unit - you may need to change the MTU for MTU: optimal performance with your ISP. Click Save when you are done. D-Link DIR-880L User Manual...
  • Page 75 Enter the subnet mask provided by your ISP (Static IP only). PPTP Subnet Mask: Enter the gateway IP address provided by your ISP (Static IP only). PPTP Gateway IP Address: Enter the primary DNS server IP address assigned by your ISP. Primary DNS Server: D-Link DIR-880L User Manual...
  • Page 76 Enter the secondary DNS server IP address assigned by your ISP. Secondary DNS Server: Maximum Transmission Unit - you may need to change the MTU for MTU: optimal performance with your ISP. Click Save when you are done. D-Link DIR-880L User Manual...
  • Page 77 Enter the subnet mask provided by your ISP (Static IP only). L2TP Subnet Mask: Enter the gateway IP address provided by your ISP (Static IP only). L2TP Gateway IP Address: Enter the primary DNS server IP address assigned by your ISP. Primary DNS Server: D-Link DIR-880L User Manual...
  • Page 78 Enter the secondary DNS server IP address assigned by your ISP. Secondary DNS Server: Maximum Transmission Unit - you may need to change the MTU for MTU: optimal performance with your ISP. Click Save when you are done. D-Link DIR-880L User Manual...
  • Page 79 Address: Once connected, the WAN IPv6 address will be displayed here. WAN IPv6 Address: Once connected, the IPv6 WAN default gateway address will be IPv6 WAN displayed here. Default Gateway: Click Save when you are done. D-Link DIR-880L User Manual...

  • Page 80: Ipv6

    For PPPoE refer to page 83. For IPv6 in IPv4 Tunnel refer to page 85. For 6 to 4 refer to page 87. For 6rd refer to page 88. For Local Connectivity Only refer to page 90. D-Link DIR-880L User Manual...

  • Page 81: Auto Detection

    Displays the router’s LAN link-local address. LAN IPv6 Link- Local Address: Enable or disable the Automatic IPv6 Address Assignment feature. Enable Automatic IPv6 Address Assignment: Enable or disable automatic DHCP-PD services. Enable Automatic DHCP-PD in LAN: D-Link DIR-880L User Manual...
  • Page 82 Section 4 - Coniguration Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless Auto Coniguration DHCPv6. Type: Enter the IPv6 address lifetime (in minutes). Router Advertisement Lifetime: Click Save when you are done. D-Link DIR-880L User Manual...

  • Page 83: Static Ipv6

    Enter the LAN (local) IPv6 address for the router. LAN IPv6 Address: Displays the router’s LAN link-local address. LAN IPv6 Link- Local Address: Check to enable the Automatic IPv6 Address Assignment feature. Enable Automatic IPv6 Address Assignment: D-Link DIR-880L User Manual...
  • Page 84 Section 4 - Coniguration Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless Auto Coniguration DHCPv6. Type: Enter the IPv6 address lifetime (in minutes). Router Advertisement Lifetime: Click Save when you are done. D-Link DIR-880L User Manual...
  • Page 85 Displays the router’s LAN link-local address. LAN IPv6 Link- Local Address: Enable or disable the Automatic IPv6 Address Assignment feature. Enable Automatic IPv6 Address Assignment: Enable or disable automatic DHCP-PD services. Enable Automatic DHCP-PD in LAN: D-Link DIR-880L User Manual...
  • Page 86 Section 4 - Coniguration Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless Auto Coniguration DHCPv6. Type: Enter the IPv6 address lifetime (in minutes). Router Advertisement Lifetime: Click Save when you are done. D-Link DIR-880L User Manual...
  • Page 87 If you selected Use the following DNS address above, enter the Primary DNS primary DNS server address. Server: If you selected Use the following DNS address above, enter the Secondary DNS secondary DNS server address. Server: Enable or disable preix delegation services. Enable DHCP- D-Link DIR-880L User Manual...
  • Page 88 Enable or disable the Automatic IPv6 Address Assignment feature. Enable Automatic IPv6 Address Assignment: Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless Auto Coniguration DHCPv6. Type: Enter the IPv6 address lifetime (in minutes). Router Advertisement Lifetime: Click Save when you are done. D-Link DIR-880L User Manual...

  • Page 89: Ipv6 In Ipv4 Tunnel

    If you selected Use the following DNS address above, enter the Secondary DNS secondary DNS server address. Server: Enable or disable preix delegation services. Enable DHCP- If you disabled DHCP-PD, enter the LAN (local) IPv6 address for the LAN IPv6 router. Address: D-Link DIR-880L User Manual...
  • Page 90 Enable or disable automatic DHCP-PD services. Enable Automatic DHCP-PD in LAN: Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless Auto Coniguration DHCPv6. Type: Enter the IPv6 address lifetime (in minutes). Router Advertisement Lifetime: Click Save when you are done. D-Link DIR-880L User Manual...
  • Page 91 Check to enable the Automatic IPv6 Address Assignment feature. Enable Automatic IPv6 Address Assignment: Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless Auto Coniguration DHCPv6. Type: Enter the IPv6 address lifetime (in minutes). Router Advertisement Lifetime: Click Save when you are done. D-Link DIR-880L User Manual...
  • Page 92 Enter the 6rd border relay IPv4 address settings supplied by your ISP 6rd Border (manual coniguration only). Relay IPv4 Address: Enter the LAN (local) IPv6 address for the router. LAN IPv6 Address: Displays the router’s LAN link-local address. LAN IPv6 Link- Local Address: D-Link DIR-880L User Manual...
  • Page 93 Check to enable the Automatic IPv6 Address Assignment feature. Enable Automatic IPv6 Address Assignment: Select Stateful (DHCPv6), SLAAC + RDNSS or SLAAC + Stateless Auto Coniguration DHCPv6. Type: Enter the IPv6 address lifetime (in minutes). Router Advertisement Lifetime: Click Save when you are done. D-Link DIR-880L User Manual...
  • Page 94 ULA Preix: If you wish to choose your own ULA preix, enter it here. ULA Preix: This section will display the current settings for your IPv6 ULA. Current IPv6 ULA Settings: Click Save when you are done. D-Link DIR-880L User Manual...

  • Page 95: Internet (Bridge Mode)

    You will be presented with the appropriate options for your Connection Is: connection type. Click Advanced Settings... to expand the list and see all of the options. For Dynamic IP (DHCP) refer to page 92. For Static IP refer to page 93. D-Link DIR-880L User Manual...
  • Page 96 Enter the secondary DNS server IP address assigned by your ISP. This Secondary DNS address is usually obtained automatically from your ISP. Server: Maximum Transmission Unit - you may need to change the MTU for MTU: optimal performance with your ISP. Click Save when you are done. D-Link DIR-880L User Manual...
  • Page 97 Enter the secondary DNS server IP address assigned by your ISP. Secondary DNS Server: Maximum Transmission Unit - you may need to change the MTU for MTU: optimal performance with your ISP. Click Save when you are done. D-Link DIR-880L User Manual...

  • Page 98: Wireless (Router Mode)

    20 MHz if you are not using any 802.11n wireless clients. Visibility Status: The default setting is Visible. Select Invisible if you do not want to broadcast the SSID of your wireless network. D-Link DIR-880L User Manual...
  • Page 99 Use the drop-down menu to select the time schedule that the rule Schedule: will be enabled on. The schedule may be set to Always Enable, or you can create your own schedules in the Schedules section (refer to page 116). Click Save when you are done. D-Link DIR-880L User Manual...

  • Page 100: Guest Zone

    Enabling this option will confine connectivity to the Internet, Internet Access disallowing guests from accessing other local network devices. Only: Click Save when you are done. D-Link DIR-880L User Manual...

  • Page 101: Wireless (Bridge Mode)

    You can see the wireless signal strength of each network, and the padlock icon means that a password is required to connect to that network. Click Select to inalize your choice, then Save when you are done. D-Link DIR-880L User Manual...

  • Page 102: Network

    Enter the starting and ending IP addresses for the DHCP server’s IP DHCP IP assignment. Address Range: Note: If you statically (manually) assign IP addresses to your computers or devices, make sure the IP addresses are outside of this range or you may have an IP conlict. D-Link DIR-880L User Manual...
  • Page 103 Enable to allow IPv4 multicast traic to pass through the router from IPv4 Multicast the Internet. Stream: Enable to allow IPv6 multicast traic to pass through the router from IPv6 Multicast the Internet. Stream: Click Save when you are done. D-Link DIR-880L User Manual...

  • Page 104: Shareport

    SharePort drive through a web browser from a device on your network. Click Save when you are done. To manage user accounts for SharePort access, click Create User and refer to the next page for details. D-Link DIR-880L User Manual...

  • Page 105: Create User

    Browse and browse to the desired folder. Click OK when you are done. The new user should be added to the list of user accounts. To save the new list, click Save. To return to the SharePort page, click SharePort. D-Link DIR-880L User Manual...

  • Page 106: Mydlink

    If you already have a mydlink account, click Yes, I have a mydlink account. Enter your email address (which is also your username) and your password. Then, click Sign In to register your existing mydlink account with your router. D-Link DIR-880L User Manual...

  • Page 107: Features

    If you want to remove a priority assignment from a device and return it to the All Devices list, click the cross icon in the top right of the device card. Click Save when you are done. D-Link DIR-880L User Manual...

  • Page 108: Firewall Settings

    Checking: Enable or disable IPv6 simple security. IPv6 Simple Security: Enable or disable IPv6 ingress iltering. IPv6 Ingress Filtering: Allows multiple machines on the LAN to connect to their corporate PPTP: network using the PPTP protocol. D-Link DIR-880L User Manual...
  • Page 109 NAT devices and work around them. This ALG may interfere with the operation of such devices. If you are having trouble making VoIP calls, try turning this ALG of. Click Save when you are done. D-Link DIR-880L User Manual...

  • Page 110: Ipv4/Ipv6 Rules

    Use the drop-down menu to select the time schedule that the rule Schedule: will be enabled on. The schedule may be set to Always Enable, or you can create your own schedules in the Schedules section (refer to page 116). Click OK when you are done. D-Link DIR-880L User Manual...

  • Page 111: Port Forwarding

    Use the drop-down menu to select the time schedule that the rule Schedule: will be enabled on. The schedule may be set to Always Enable, or you can create your own schedules in the Schedules section (refer to page 116). Click OK when you are done. D-Link DIR-880L User Manual...

  • Page 112: Virtual Server

    Use the drop-down menu to select the time schedule that the rule Schedule: will be enabled on. The schedule may be set to Always Enable, or you can create your own schedules in the Schedules section (refer to page 116). Click OK when you are done. D-Link DIR-880L User Manual...

  • Page 113: Website Filter

    Create New Rule. Next, under Website URL/Domain enter the URL or domain. If you wish to remove a rule, click on its trash can icon in the Delete column. If you wish to edit a rule, simply replace the URL or domain. Click Save when you are done. D-Link DIR-880L User Manual...

  • Page 114: Static Routes

    A value 1 is the lowest cost and 15 is the highest cost. Select the interface that the IP packet must use to transit out of the Interface: router when this route is used. Click OK when you are done. D-Link DIR-880L User Manual...

  • Page 115: Ipv6

    Enter the metric value for this rule here. Metric: Select the interface that the IP packet must use to transit out of the Interface: router when this route is used. Click OK when you are done. D-Link DIR-880L User Manual...

  • Page 116: Dynamic Dns

    Enter a timeout time (in hours). Time Out: Click Save when you are done. At the bottom of the page are the IPv6 host settings. To conigure an IPv6 dynamic DNS host, refer to page 113. D-Link DIR-880L User Manual...

  • Page 117: Ipv6 Host

    Enter the host name that you registered with your dynamic DNS Host Name: service provider. Enter the IPv6 address of the dynamic DNS server. Alternatively, select IPv6 Address: the server device in the drop-down menu. Click OK when you are done. D-Link DIR-880L User Manual...

  • Page 118: Quick Vpn

    To Local Hard device. Drive: Select either MSCHAPv2, PAP, or CHAP. Authentication Protocol: Select either None, RC4-40, or RC4-128. MPPE: Click Save when you are done. D-Link DIR-880L User Manual...

  • Page 119: Management

    Click Save when you are done. To conigure and manage your schedules, click Schedule and refer to page 116. D-Link DIR-880L User Manual...

  • Page 120: Schedule

    You can add multiple days to the schedule, but only one period per day. To remove a time period from the schedule, click on the cross icon. Click OK when you are done. D-Link DIR-880L User Manual...

  • Page 121: System Log

    The schedule may be set to Always Enable, or you can create your own schedules in the Schedules section (refer to page 116). Click Save when you are done. D-Link DIR-880L User Manual...

  • Page 122: Admin

    Internet by a web browser. A password is still required to access the web Management: management interface. The port number used to access the DIR-880L is used in the URL. Remote Admin Example: http://x.x.x.x:8080 where x.x.x.x is the Internet IP address...

  • Page 123: System

    If you want to save the current router coniguration settings, use the Save Settings To Local Hard Drive button above. Click to reboot the router. Reboot The Device: Click Save when you are done. D-Link DIR-880L User Manual...

  • Page 124: Upgrade

    Next, click the Upgrade Firmware button and Firmware: browse to the ile to install the new irmware. You can also browse to a language pack ile to install a new language pack. D-Link DIR-880L User Manual...

  • Page 125: Statistics

    You can view the Internet, LAN, Wi-Fi 2.4GHz, or Wi-Fi 5GHz by clicking on the respective tabs at the top. The graph will update in real time. To clear the information on the graph, click Clear. The traic counter will reset if the device is rebooted. D-Link DIR-880L User Manual...

  • Page 126: Connect A Wireless Client To Your Router

    Blu-ray DVD players, wireless printers and cameras will have a WPS button (or a software utility with WPS) that you can press to connect to the DIR-880L router. Please refer to your user manual for the wireless device you want to connect to make sure you understand how to enable WPS.

  • Page 127: Windows® 8

    Wireless Icon Clicking on this icon will display a list of wireless networks that are within connecting proximity of your computer. Select the desired network by clicking on the network name. D-Link DIR-880L User Manual...
  • Page 128 WPS button on your router during this step to enable the WPS function. When you have established a successful connection to a wireless network, the word Connected will appear next to the name of the network to which you are connected to. D-Link DIR-880L User Manual...

  • Page 129: Windows® 7

    If you are joining an existing network, you will need to know the security key or passphrase being used. 1. Click on the wireless icon in your system tray (lower-right corner). Wireless Icon 2. The utility will display any available wireless networks in your area. D-Link DIR-880L User Manual...
  • Page 130 If you get a good signal but cannot access the Internet, check your TCP/ IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information. 4. The following window appears while your computer tries to connect to the router. D-Link DIR-880L User Manual...
  • Page 131 It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the security settings are correct. The key or passphrase must be exactly the same as the one on the wireless router. D-Link DIR-880L User Manual...

  • Page 132: Wps

    Section 5 - Connecting to a Wireless Network The WPS feature of the DIR-880L can be conigured using Windows® 7. Carry out the following steps to use Windows® 7 to conigure the WPS feature: 1. Click the Start button and select Computer from the Start menu.
  • Page 133 Section 5 - Connecting to a Wireless Network 3. Double-click the DIR-880L. 4. Input the WPS PIN number (on the router label) in the Setup > Wireless Setup menu in the Router’s Web UI) and click Next. D-Link DIR-880L User Manual...
  • Page 134 Section 5 - Connecting to a Wireless Network 5. Type a name to identify the network. 6. To conigure advanced settings, click the icon. Click Next to continue. D-Link DIR-880L User Manual...
  • Page 135 Make a note of the security key as you may need to provide this security key if adding an older wireless device to the network in the future. 9. Click Close to complete WPS setup. D-Link DIR-880L User Manual...

  • Page 136: Windows Vista

    (displayed using the SSID) and click the Connect button. If you get a good signal but cannot access the Internet, check you TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information. D-Link DIR-880L User Manual...

  • Page 137: Wpa/Wpa2

    1. Open the Windows Vista® Wireless Utility by right-clicking on the wireless computer icon in your system tray (lower right corner of screen). Select Connect to a network. 2. Highlight the Wi-Fi name (SSID) you would like to connect to and click Connect. D-Link DIR-880L User Manual...
  • Page 138 It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the security settings are correct. The key or passphrase must be exactly the same as the one on the wireless router. D-Link DIR-880L User Manual...

  • Page 139: Windows® Xp

    Wi-Fi network (displayed using the SSID) and click the Connect button. If you get a good signal but cannot access the Internet, check you TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information. D-Link DIR-880L User Manual...

  • Page 140: Wpa/Wpa2

    1. Open the Windows® XP Wireless Utility by right-clicking on the wireless computer icon in your system tray (lower-right corner of screen). Select View Available Wireless Networks. 2. Highlight the Wi-Fi network (SSID) you would like to connect to and click Connect. D-Link DIR-880L User Manual...
  • Page 141 It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the WPA-PSK settings are correct. The Wi-Fi password must be exactly the same as on the wireless router. D-Link DIR-880L User Manual...

  • Page 142: Troubleshooting

    1. Why can’t I access the web-based coniguration utility? When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website, nor do you have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to connect to the web-based utility.
  • Page 143 • Close your web browser (if open) and open it. • Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This should open the login page for your web management.
  • Page 144 • Windows® 95, 98, and Me users type in command (Windows® NT, 2000, XP, Vista®, and 7 users type in cmd) and press Enter (or click OK). • Once the window opens, you’ll need to do a special ping. Use the following syntax: ping [url] [-f] [-l] [MTU value] Example: ping yahoo.com -f -l 1472 D-Link DIR-880L User Manual...
  • Page 145 • To change the MTU, enter the number in the MTU ield and click Save Settings to save your settings. • Test your email. If changing the MTU does not resolve the problem, continue changing the MTU in increments of ten. D-Link DIR-880L User Manual...

  • Page 146: Wireless Basics

    D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business, or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to securely access the data you want, when, and where you want it. You will be able to enjoy the freedom that wireless networking delivers.

  • Page 147: What Is Wireless

    D-Link is the worldwide leader and award winning designer, developer, and manufacturer of networking products. D-Link delivers the performance you need at a price you can aford. D-Link has all the products you need to build your network. How does wireless work? Wireless works similarly to how cordless phones work, through radio signals that transmit data from one point A to point B.
  • Page 148 Who uses wireless? Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, oice, business, D-Link has a wireless solution for it. Home Uses/Beneits • Gives everyone at home broadband access •...

  • Page 149: Tips

    The wireless connection in public places is usually called “hotspots”. Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to the Internet from remote locations like: Airports, Hotels, Cofee Shops, Libraries, Restaurants, and Convention Centers.

  • Page 150: Wireless Modes

    • Ad-Hoc – Directly connecting to another computer for peer-to-peer communication using wireless network adapters on each computer, such as two or more DIR-880L wireless network Cardbus adapters. An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the wireless router or access point.

  • Page 151: Networking Basics

    Check your IP address After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.

  • Page 152: Statically Assign An Ip Address

    Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS is not needed or you may enter a DNS server from your ISP. Step 5 Click OK twice to save your settings. D-Link DIR-880L User Manual...

  • Page 153: Wireless Security

    Appendix B - Networking Basics Wireless Security This section will show you the diferent levels of security you can use to protect your data from intruders. The DIR-880L ofers the following types of security: • WPA2 (Wi-Fi Protected Access 2) •...

  • Page 154: Technical Speciications

    Environmental factors will adversely afect wireless signal range. 2 Frequency Range varies depending on country’s regulation. 3 The DIR-880L does not include 5.25-5.35GHz & 5.47-5.725GHz in some regions. D-Link DIR-880L User Manual...

  • Page 155: Safety Statements

    For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. D-Link DIR-880L User Manual...
  • Page 156 Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d'autres canaux n'est pas possible. Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association avec une autre antenne ou transmetteur. D-Link DIR-880L User Manual...
  • Page 157 Avertissement: Cet appareil doit etre utilise avec une source de courrant, modele WA-36C12R. Table for Filed Antenna Ant. Brand Model No. Type Gain (dBi) Cable loss True Gain (dBi) 2.4GHz 5GHz 2.4GHz 5GHz 2.4GHz 5GHz WHA YU C037-510901-A Dipole 4.15 1.15 WHA YU C037-511311-A Dipole 4.15 1.15 D-Link DIR-880L User Manual...

Table of Contents
