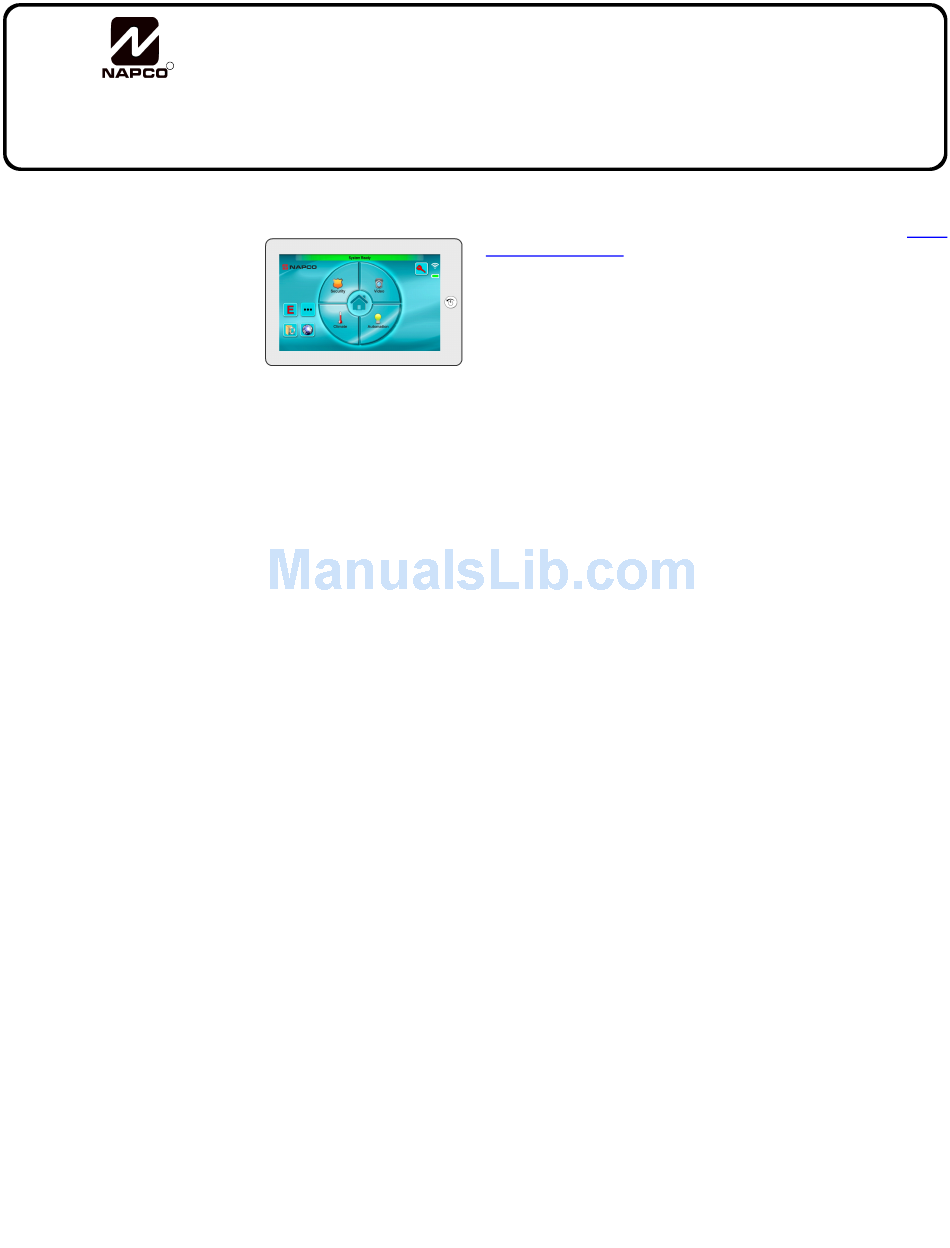

GENERAL DESCRIPTION
Napco's IBR-ITAB iBridge
resolution LCD android tablet that
provides wireless access to all the
features of your alarm system.
The IBR-ITAB keypad is simple to
use, with its intuitive menu-driven
icons and prompts to help guide
you. The wall docking station pro-
vides charging to the IBR-ITAB's
internal battery (its integral charg-
ing circuit ensures automatic re-
charging as required). The décor-neutral IBR-ITABSTAND an-
gled tabletop stand and docking station provides charging and
convenient desktop usage, is ideal for bedrooms, kitchens, etc.
FEATURES
The IBR-ITAB keypad has many convenient features:
• Touch screen control of security system--and more--from
anywhere in the home
• Easy on/off magnetic wall mounting frame (IBR-ITABSTAND
angled tabletop stand and docking station also available)
• Integrated IP video viewing of iSee Video cameras
• Message Minder recordable voice messages
• Internet browser-enabled
• Handy on-screen tools including weather, calculator, etc.
• High-speed, powerful processor
• Large high-resolution 800 x 480 pixel display for clarity
• Intuitive touch screen display with icons and menu driven
prompts (English only)
• 802.11 Wireless Wi-Fi Connectivity
• Digital picture frame or slideshow through a standard USB
memory stick / thumb drive
• Family Message Center - Record and playback messages for
family members Over two minutes of recordable time
• Entry/Exit countdown displayed
• Add or delete User Codes
• Quickly and easily bypass zones
• The IBR-ITAB Tablet Keypad is one part of the integrated
®
Napco iBridge
Remote Control Services that include:
• Virtual Keypad
®
• Z-Wave
Home Controls
• Integrated iSee Video
Compatible with the following control panels:
• Freedom F-64
• LIBRA-P432EX
• GEM-P816
• GEM-P1632
• GEM-P1664
• GEM-P3200
• GEM-P9600
• GEM-X255
iBridge
Installation and Mounting Instructions
®
touch screen tablet keypad is a high-
IBR-ITAB Wireless
Touchscreen Tablet
IBR-ITAB
Touch Screen Tablet Keypad
®
Note: A standard wired keypad must be installed and enrolled
in the system before adding a IBR-ITAB keypad. Visit
napcosecurity.com
Wave devices.
KEYPAD SPECIFICATIONS
Electrical Ratings
Battery: Integral Polymer Lithium-ion
Capacity: 1800mAh, 5-6 hours per charge
Speaker: 1 Integral 2W
Charger: 12VDC/2A DC Adapter, cable length 70" (180cm)
Electrical Ratings (Fully Discharged Battery)
Screen on, charging idle: 12VDC, 845mA
Clicking menu items: 12VDC, 945mA
Electrical Ratings (Fully Charged Battery)
Screen on, charging idle: 12VDC, 300mA
Clicking menu items: 12VDC, 380mA
Features
Hardware Platform: ARM11™ processor family
CPU:
Samsung™ 65nm S3C6410 Mobile Processor CPU
1200MHz (up to 1.2GHz)
Frequency: 667-800MHz
RAM: 256MB DDR
ROM Flash: 1GB
Wi-Fi: 802.11b/g with built in Antenna
LCD Size: 7 inch digital screen
Resolution Ratio: 800 x 480 x 32 WVGA, 16:9 Wide Screen,
Color
Pixels: 260,000 million
Touch Screen: Digital and full-screen, Resistance
Microphone: Integral high sensitivity, voice input
External Card: Push-push type Micro SD Port, Max 32GB
USB Host Cable: USB A Female, for Mouse, keyboard HUB,
etc.
Video: Composite Video, 3.5mm to RCA Port
Firmware: Google Android 1.6
Audio: Compatible with WMA, MP3, WAV, AAC
Images: JPG (Max 2048x2048 pixels) with Slide Show
Video: MPEG-4/H.263/H.264
Housing
Dimensions (HxWxD): 7.5" x 4.7" x 0.4" (19cm x 12cmm x
10cm)
Weight: 11.6oz (330g)
Operating Temperature: 0-49ºC (32-120°F)
SELECTING THE MOUNTING LOCATION
Two items must be considered when planning the system layout:
1. The mounting location selected for the IBR-ITAB keypad
must permit a continuous wireless connection between the
IBR-ITAB keypad and the IBR-WIFI-MOD (see WI1942) or
the ISEE-WAP (see WI2049).
2. In addition, the wall-mounted Charging Station requires
for ordering information and evaluated Z-
WI1944E 06/13
www.
1
