QUICK START GUIDE
© NAPCO 2018
Unpack the touchscreen tablet
1
plied mounting hardware; the Power Adapter is only included with
the model
IBR-TOUCH-WL)
Note: If using older ISEE Series Cameras, use your existing
ISEE-WAP (with its power adapter and CAT5 cable, shown).
. .
IBR-TOUCH-WL
ISEE-WAP
3
Apply power to the control panel, the touchscreen
and the ISEE-WAP / IBR-ZREMOTE / StarLink
Connect radio. Upon power up, both touchscreens
will start within about 5 seconds (both can be manu-
ally powered by pressing and holding the small but-
ton on the right side for 10 seconds).
5
Tap Yes and set the date, time and Time Zone (if
necessary). IMPORTANT: Outdated digital certifi-
cates will disallow connection to your iBridge or
StarLink Connect system, as well as inhibiting nec-
essary automatic firmware downloads.

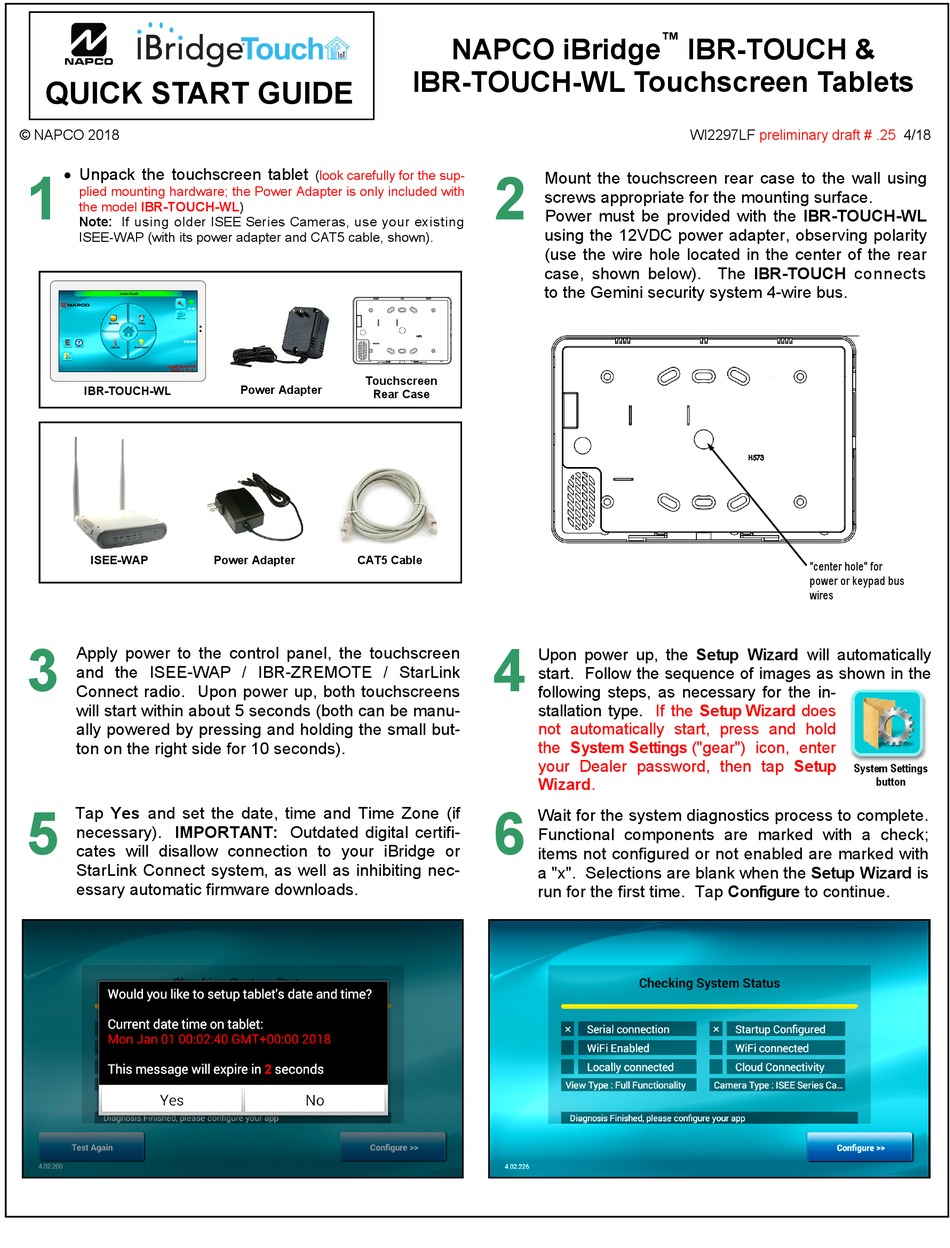

IBR-TOUCH & IBR-TOUCH-WL Quick Start Guide
(look carefully for the sup-
Touchscreen
Power Adapter
Rear Case
Power Adapter
CAT5 Cable
NAPCO iBridge
IBR-TOUCH-WL Touchscreen Tablets
2
Mount the touchscreen rear case to the wall using
screws appropriate for the mounting surface.
Power must be provided with the IBR-TOUCH-WL
using the 12VDC power adapter, observing polarity
(use the wire hole located in the center of the rear
case, shown below). The IBR-TOUCH connects
to the Gemini security system 4-wire bus.
4
Upon power up, the Setup Wizard will automatically
start. Follow the sequence of images as shown in the
following steps, as necessary for the in-
stallation type.
not automatically start, press and hold
the System Settings ("gear") icon, enter
your Dealer password, then tap Setup
Wizard.
6
Wait for the system diagnostics process to complete.
Functional components are marked with a check;
items not configured or not enabled are marked with
a "x". Selections are blank when the Setup Wizard is
run for the first time. Tap Configure to continue.
™
IBR-TOUCH &
WI2297LF
preliminary draft # .25
"center hole" for
power or keypad bus
wires
If the Setup Wizard does
4/18
System Settings
button
1
