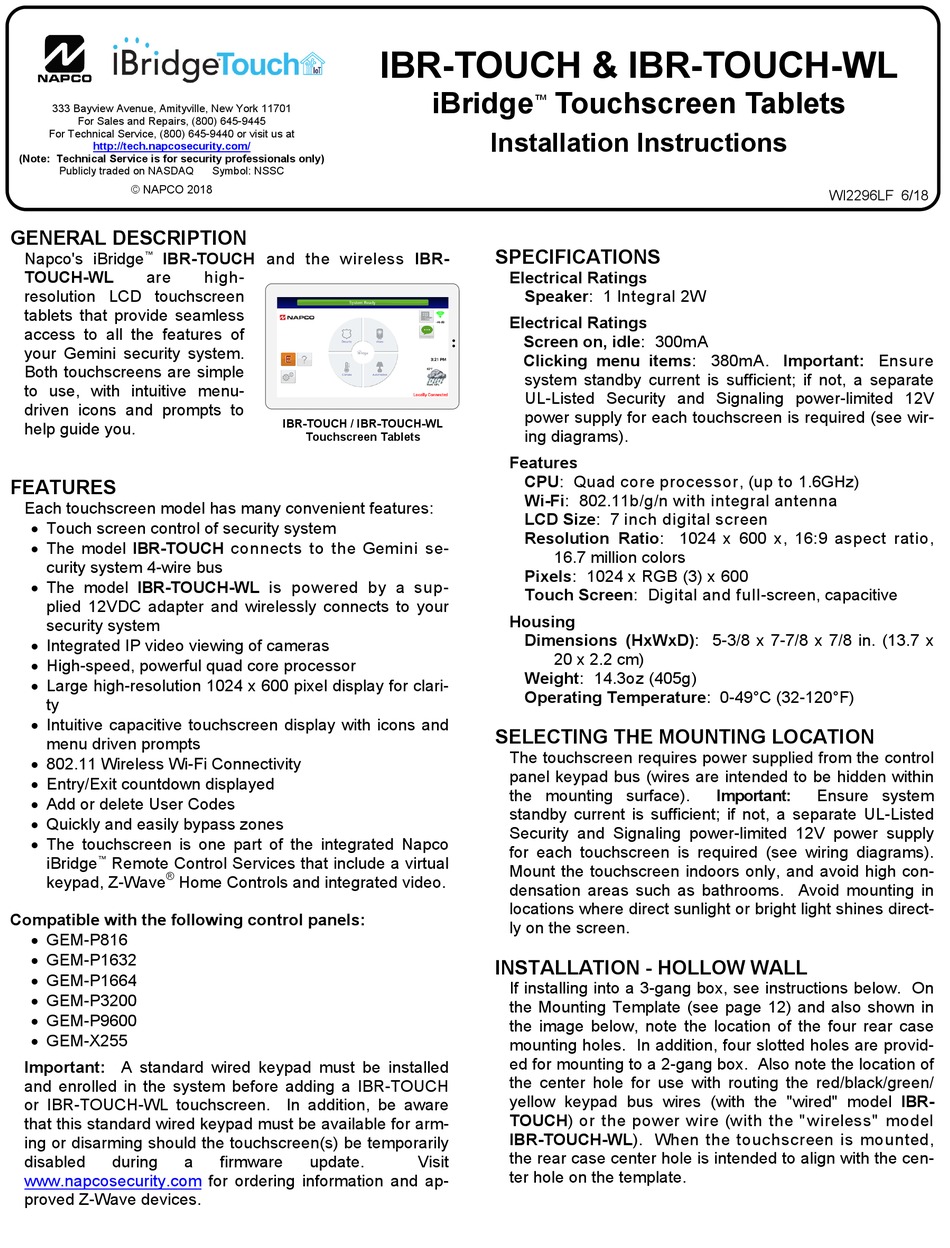

333 Bayview Avenue, Amityville, New York 11701
For Sales and Repairs, (800) 645-9445
For Technical Service, (800) 645-9440 or visit us at
http://tech.napcosecurity.com/
(Note: Technical Service is for security professionals only)
Publicly traded on NASDAQ
© NAPCO 2018
GENERAL DESCRIPTION
Napco's iBridge
IBR-TOUCH and the wireless IBR-
TOUCH-WL
are
resolution LCD touchscreen
tablets that provide seamless
access to all the features of
your Gemini security system.
Both touchscreens are simple
to use, with intuitive menu-
driven icons and prompts to
help guide you.
FEATURES
Each touchscreen model has many convenient features:
 Touch screen control of security system
 The model IBR-TOUCH connects to the Gemini se-
curity system 4-wire bus
 The model IBR-TOUCH-WL is powered by a sup-
plied 12VDC adapter and wirelessly connects to your
security system
 Integrated IP video viewing of cameras
 High-speed, powerful quad core processor
 Large high-resolution 1024 x 600 pixel display for clari-
ty
 Intuitive capacitive touchscreen display with icons and
menu driven prompts
 802.11 Wireless Wi-Fi Connectivity
 Entry/Exit countdown displayed
 Add or delete User Codes
 Quickly and easily bypass zones
 The touchscreen is one part of the integrated Napco
iBridge
Remote Control Services that include a virtual
®
keypad, Z-Wave
Home Controls and integrated video.
Compatible with the following control panels:
 GEM-P816
 GEM-P1632
 GEM-P1664
 GEM-P3200
 GEM-P9600
 GEM-X255
Important: A standard wired keypad must be installed
and enrolled in the system before adding a IBR-TOUCH
or IBR-TOUCH-WL touchscreen. In addition, be aware
that this standard wired keypad must be available for arm-
ing or disarming should the touchscreen(s) be temporarily
disabled
during
a
www.napcosecurity.com
proved Z-Wave devices.
IBR-TOUCH & IBR-TOUCH-WL
Symbol: NSSC
high-
IBR-TOUCH / IBR-TOUCH-WL
Touchscreen Tablets
firmware
update.
for ordering information and ap-
iBridge
Touchscreen Tablets
Installation Instructions
SPECIFICATIONS
Electrical Ratings
Speaker: 1 Integral 2W
Electrical Ratings
. .
Screen on, idle: 300mA
Clicking menu items: 380mA. Important: Ensure
system standby current is sufficient; if not, a separate
UL-Listed Security and Signaling power-limited 12V
power supply for each touchscreen is required (see wir-
ing diagrams).
Features
CPU: Quad core processor, (up to 1.6GHz)
Wi-Fi: 802.11b/g/n with integral antenna
LCD Size: 7 inch digital screen
Resolution Ratio: 1024 x 600 x, 16:9 aspect ratio,
16.7 million colors
Pixels: 1024 x RGB (3) x 600
Touch Screen: Digital and full-screen, capacitive
Housing
Dimensions (HxWxD): 5-3/8 x 7-7/8 x 7/8 in. (13.7 x
20 x 2.2 cm)
Weight: 14.3oz (405g)
Operating Temperature: 0-49°C (32-120°F)
SELECTING THE MOUNTING LOCATION
The touchscreen requires power supplied from the control
panel keypad bus (wires are intended to be hidden within
the mounting surface).
standby current is sufficient; if not, a separate UL-Listed
Security and Signaling power-limited 12V power supply
for each touchscreen is required (see wiring diagrams).
Mount the touchscreen indoors only, and avoid high con-
densation areas such as bathrooms. Avoid mounting in
locations where direct sunlight or bright light shines direct-
ly on the screen.
INSTALLATION - HOLLOW WALL
If installing into a 3-gang box, see instructions below. On
the Mounting Template (see page 12) and also shown in
the image below, note the location of the four rear case
mounting holes. In addition, four slotted holes are provid-
ed for mounting to a 2-gang box. Also note the location of
the center hole for use with routing the red/black/green/
yellow keypad bus wires (with the "wired" model IBR-
TOUCH) or the power wire (with the " wireless" model
IBR-TOUCH-WL). When the touchscreen is mounted,
the rear case center hole is intended to align with the cen-
Visit
ter hole on the template.
WI2296LF 6/18
Important:
Ensure system
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IBR-TOUCH and is the answer not in the manual?

Questions and answers

Summary of Contents for NAPCO IBR-TOUCH

  • Page 1 LCD Size: 7 inch digital screen  Touch screen control of security system Resolution Ratio: 1024 x 600 x, 16:9 aspect ratio,  The model IBR-TOUCH connects to the Gemini se- 16.7 million colors curity system 4-wire bus Pixels: 1024 x RGB (3) x 600 ...
  • Page 2 IBR-TOUCH-WL touchscreen MUST be used (or an IBR-TOUCH running with the setting "Connect using Wi-Fi Only" enabled, and thus is acting as a model IBR-TOUCH-WL). In addition, the touchscreen must be connected to the same network "center hole" for as the IBR-ZREMOTE or StarLink Connect radio.
  • Page 3 1: WIRING OVERVIEW with the IBR-TOUCH only ("Keypad Only" Mode) Internet STANDARD CONTROL KEYPAD PANEL Note: " Keypad Only" mode is KEYPAD BUS selected in the Setup Wizard, when the IBR-TOUCH is first started (see the IBR-TOUCH & IBR-TOUCH-WL BROADBAND...
  • Page 4 Touchscreen Tablet and optional iSeeVideo wireless cameras. Only use the ISEE-WAP if remote services or if Z-Wave are NOT required. Therefore, the customer may ONLY control their alarm system or view video LOCALLY through an optional IBR-TOUCH tablet or video through mobile devices running the iBridge mobile app, using the iBridge Wi-Fi service provided by the ISEE-WAP.
  • Page 5: Run Diagnostics

    Tap to re-start the Setup Wizard to configure how the IBR- the IBR-TOUCH / IBR-TOUCH-WL and the IBR- TOUCH / IBR-TOUCH-WL will be used, its Wi-Fi connection ZREMOTE or StarLink radio. Includes discovery and settings to the customer's Wi-Fi network and iBridge radio, ports established during the initial handshake process.
  • Page 6 USB socket lo- Dealer Settings Menu cated on the side of the IBR-TOUCH / IBR-TOUCH- WL to re-install the firmware. Note: The update file must be placed in a folder named "napco" (case (2) Configure Wireless Camera: When wireless cam- sensitive) located in the top root directory.
  • Page 7: Emergency Button

    ZREMOTE module or StarLink radio internal clock of the selected camera. When this feature is selected, with the same time as the IBR-TOUCH / IBR-TOUCH- be aware that the network path from the touchscreen to the IBR-ZREMOTE / StarLink Connect radio and to...
  • Page 8: User Settings

    "never". Note: When this feature is ena- bled and the screen dims, the IBR-TOUCH also en- User Settings Menu ters "sleep mode", an inactive state to save power. To re-awaken, simply touch the screen or a non- screen button. Screen timeout selections include 15...
  • Page 9: User Settings Menu

    The absence of a name or logo in this document does not constitute a waiver of any and all intellectual property rights that NAPCO Se- curity Technologies, Inc.
  • Page 10 IBR-TOUCH must be 2. Once in Dealer Program Mode, press Reset. wired to the control panel keypad bus, and the IBR-TOUCH- 3. In Direct Address Programming Mode, enter the fol- WL must have a local wireless connection to the "local"...
  • Page 11 "KEYPAD MODE". After putting the control panel into Keypad Configuration Mode, it normally takes up to 40 seconds for the keypad on the IBR-TOUCH to read "out of system". The keypad will display "01 Out of Sys- (Reserved for future use) tem RCM MODULE".
  • Page 12 IMPORTANT HEN PRINTING OR PHOTO- COPYING TEMPLATE ALWAYS SELECT PRINTING OPTIONS TO ENSURE THAT COPIES PRODUCED WITHOUT SIZE ADJUSTMENTS ERIFY THE DIMENSIONS OF 2.000 2.000 THIS BOX ARE ± 0.010. INCHES...
